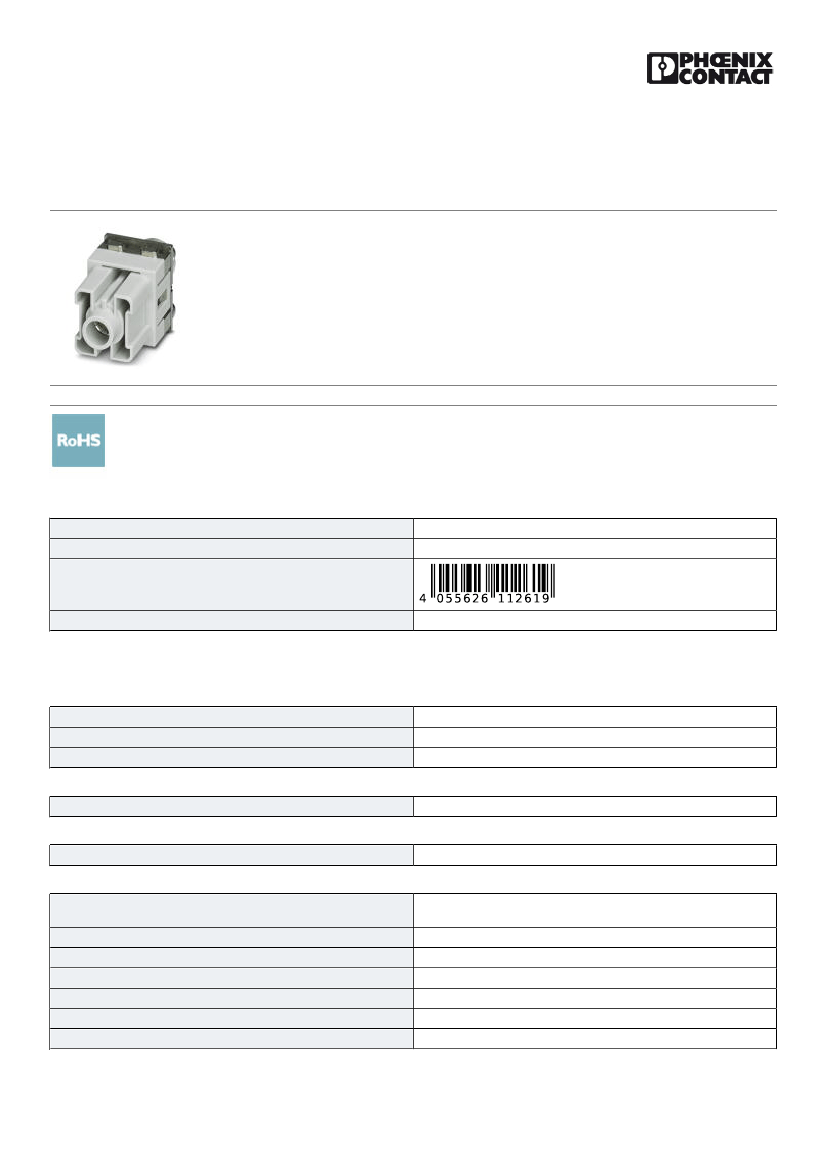

Contact insert module - HC-M-01-AT-F-40-PE - 1417380
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Contact insert module, number of positions: PE, power contacts: 0, control contacts: 0, Socket, Axial screw
connection V, 25 mm² ... 70 mm², application: PE transmission
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626112619
2 pc
2 pc
Technical data
Dimensions
Height
Width
Length
54.3 mm
34.2 mm
29.4 mm
Electrical characteristics
Connection profile
PE
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
Mechanical characteristics
Conductor cross section
Connection cross section AWG
Stripping length of the individual wire
Tightening torque
25 mm² ... 70 mm² (The cross section specification refers to the
geometric cross section of the cable used)
10 ... 00
16 mm
8 Nm (25 mm² ... 70 mm²)
9 Nm (50 mm²)
10 Nm (70 mm²)
Contact diameter
9.5 mm
11/01/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1417380
Contact insert module - HC-M-01-AT-F-40-PE - 1417380
Technical data
Mechanical characteristics
Wire diameter including insulation
Hexagonal socket
Insertion/withdrawal cycles
Minimum housing height
12 mm (25 mm²)
16 mm (40 mm²)
WAF 5
≥ 500
72 mm
General
Note
For HEAVYCON HC-B6 to B48 housing (housing height: min. 72 mm),
HC-M-B..-MF-... module carrier frame required, axial connection for 5
mm Allen key
The axial screw connection must be established using a 5 mm Allen key
(for stranded conductors only)
Series
Color
Number of module slots
Connection method
Contact type
Flammability rating according to UL 94
Assembly instructions
HC-M-HS
light gray
2
Axial screw connection
turned
V0
To ensure correct use, installation in housing with IP54 protection or
better is required
Note regarding axial connection technology:
Only for stranded wires. The specified conductor cross sections refer to
the geometric cross section of the cable used.
Cables with a geometric cross section which deviates significantly from
the nominal cable cross section must be checked before use.
The axial connection technology connection space is designed for fine
strand cables according to VDE 0295 Class 5. Deviating cable structures
(e.g., Class 6 cables) must be checked before use.
Assembly instructions
Before assembly, ensure that the tapered screw is fully loosened
(chamber is open). Cables must not be twisted. The wires must
be pushed into the contact chamber as far as they will go (until
the insulation touches the contact). Hold the wires in position and
tighten using an Allen key. The used wire end must be cut off before
reconnection. The terminal screw must only be retightened once to
prevent the litz wires from breaking. To prevent damage to the contact,
the wire/cable must be mechanically held at an appropriate distance
from the connection point (e.g., when used in a plate cut out). For
notes on correct execution, see DIN VDE 0100-520:2003-06. Unused
connections must be tightened with maximum torque.
Connection
Material data
Contact material
Contact surface material
Contact carrier material
Copper alloy
Ag
PC
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
11/01/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1417380
Contact insert module - HC-M-01-AT-F-40-PE - 1417380
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
29,3
60,1
Schematic diagram
34,3
5
Axial screw connection
Female insert
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
RU C-
DE.AI30.B.01102
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/01/2018 Page 3 / 3
