821B014-203R001 datasheet, PDF

Datasheet> All Categories > The connector> 821B014-203R001

821B014-203R001: DescriptionCONN RCPT FMALE 14POS SOLDER CUP; CategoryThe connector; File Size99KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

821B014-203R001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	821B014-203R001	-	-	View	Buy Now

821B014-203R001 Overview

CONN RCPT FMALE 14POS SOLDER CUP

821B014-203R001 Parametric

Parameter Name	Attribute value
Connector type	socket, female socket
Number of pins	14
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	Panel mount, bulkhead style (front nut)
Termination	solder cup
Fastening type	push-pull
towards	Marked
Intrusion protection	IP50 - Dustproof
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	shield
Rated current	-
Voltage - Rated	-
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

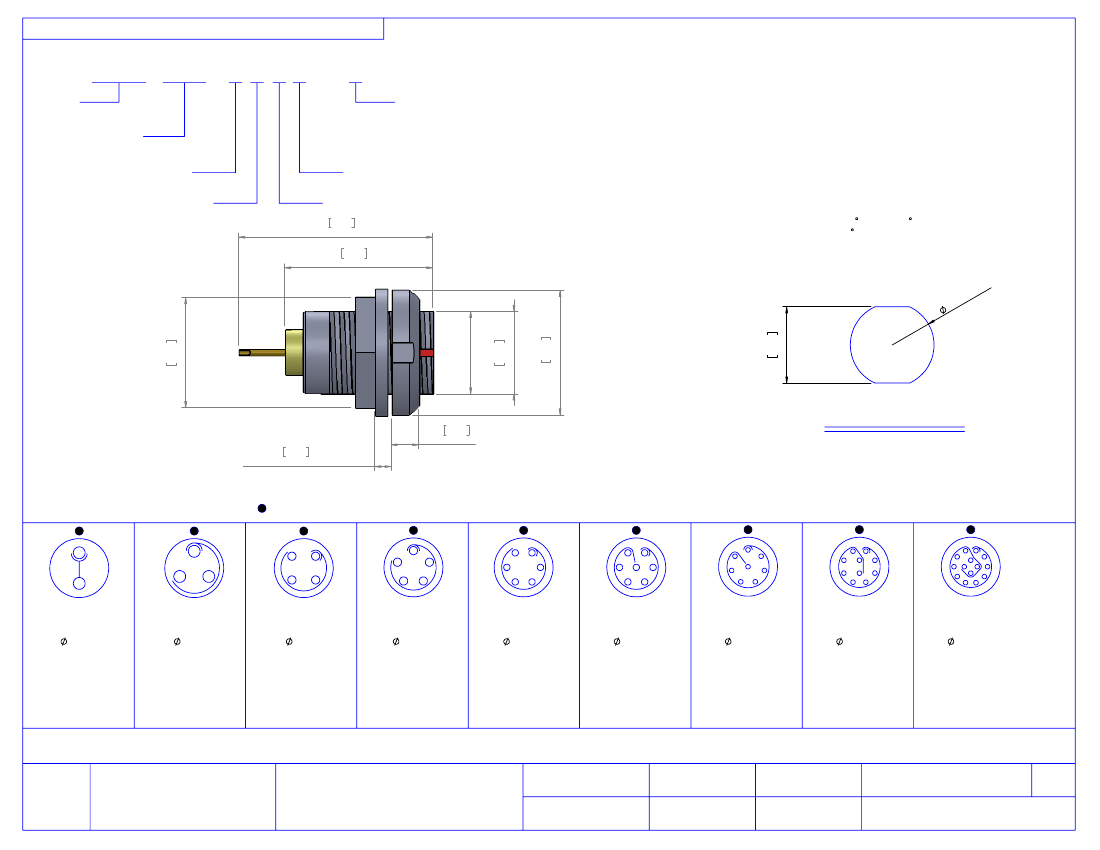

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

SHELL : BRASS

SHELL PLATING : NICKEL

NUT : BRASS

NUT PLATING : NICKEL

LATCH SLEEVE : BRASS

LATCH SLEEVE PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 4.5 Nm [39 IN/lbs]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 50

0.413

10.50

(ACROSS FLATS)

821B YYY - 2 0 3 R 00 1

SERIES

12.00 [0.475]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2 = FEMALE

SOLDER CUP (PANEL MOUNT)

1 = GOLD FLASH

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

0.913

23.20

0.736

18.70

M12*1.0

0.551

14.00

0.630

16.00

0.417

10.60

0.126

3.20

0.236

6.00

(MAX. PANEL THICKNESS)

PANEL CUTOUT

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

CHART A

= KEY LOCATION

**VIEW FROM TERMINATION END**

2 POSITION

20 AWG MAX.

15 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1500V

WORKING VOLTAGE

= 500V

3 POSITION

20 AWG MAX.

12 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 mΩ

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

4 POSITION

22 AWG MAX.

10 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

5 POSITION

22 AWG MAX.

9 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 415V

6 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 1050V

WORKING VOLTAGE

= 350V

7 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

8 POSITION

24 AWG MAX.

5 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 950V

WORKING VOLTAGE

= 315V

10 POSITION

28 AWG MAX.

2.5 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 900V

WORKING VOLTAGE

= 300V

14 POSITION

28 AWG MAX.

2 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 800V

WORKING VOLTAGE

= 260V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

M. SIGMON

DATE:

02-05-16

SCALE:

N.T.S.

SHEET

REV:

CHECKED:

DATE:

DWG NO.

821BYYY-203R001
