5452312 Overview

TERM BLOCK HDR 24POS 5.08MM

5452312 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (2 sides)
Number of pins24
Number of pins per level24
Number of levels1
spacing0.200"(5.08mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC12A
Voltage - IEC400V
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell materialPolyamide (PA), nylon
Contact tail length0.138"(3.50mm)
Insulation height0.339"(8.61mm)
https://www.phoenixcontact.com/us/products/5452312
Printed-circuit board connector - BCH-508H-24 BK - 5452312
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 24, Pitch: 5.08 mm, Color:
black, Contact surface: Tin, Mounting: Wave soldering

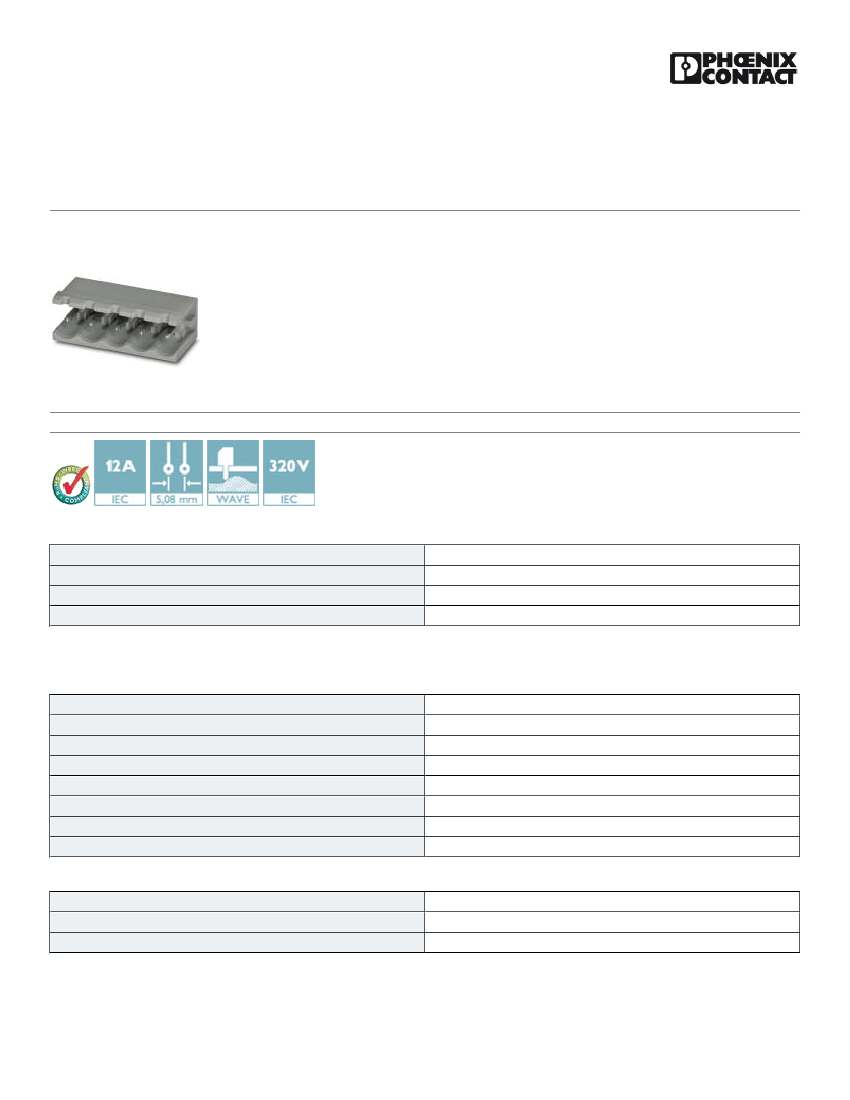

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
China
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
05/03/2016   Page 1 / 3
