T A
M
X
RoHS COMPLIANT
E - PLATED PLASTIC HANDLE
3 - PIN
4 - PIN
5 - PIN
6 - PIN
7 - PIN
8 - PIN
2.04
C
0.130
REF
C
CONTACT PLATING
BLANK - SILVER (STANDARD)
AU
- GOLD
HOUSING FINISH
BLANK - NICKEL
B
- BLACK CHROME
0.41
FLEX RELIEF SIZE (CABLE RANGE)
BLANK - STANDARD SIZE ( 0.065 - 0.155)
L
- NO FLEX RELIEF
3 PIN - 6 PIN HANDLE ( 0.115 - 0.190)
C
7 PIN - 8 PIN HANDLE ( 0.115 - 0.250)
1.54
C
0.190
REF
0.250
REF
NUMBER OF CONTACTS
3 - 3 CONTACTS
4 - 4 CONTACTS
5 - 5 CONTACTS
6 - 6 CONTACTS
7 - 7 CONTACTS
8 - 8 CONTACTS
TA_MLX SERIES
3 PIN - 6 PIN
7 PIN - 8 PIN

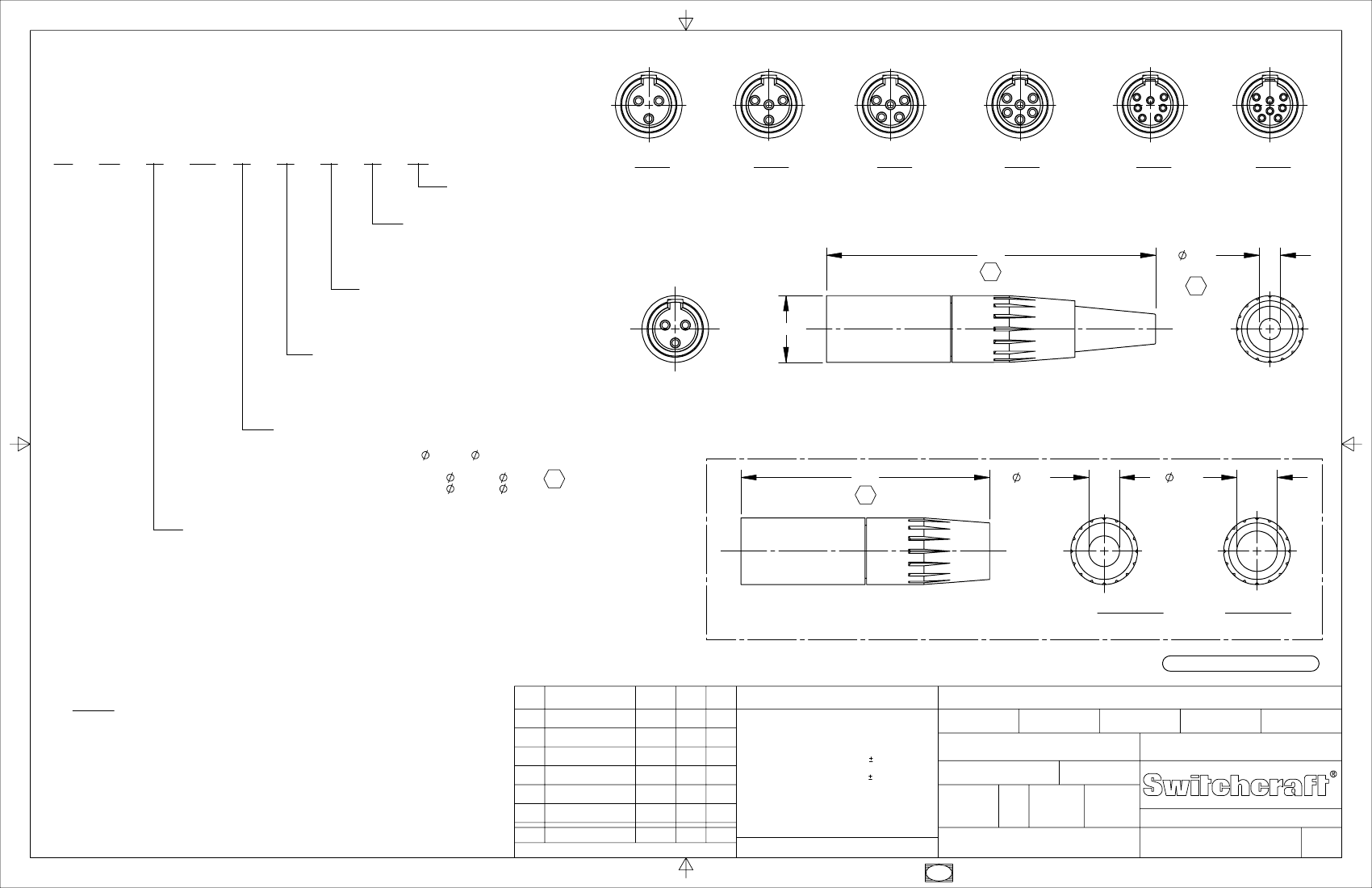

CUSTOMER DRAWING
NOTES:
1. MATERIALS:
HOUSING - COPPER ALLOY, NICKEL PLATED
CONTACTS - COPPER ALLOY, SILVER OR GOLD PLATED
HANDLE - THERMOPLASTIC (UL 94V-0), BLACK
FLEX RELIEF - PVC (UL 94V-0), BLACK
CABLE CLAMP - STEEL, ELECTRO-TIN PLATED
CONTACT INSULATORS - PPS (UL 94V-0)
2. THIS PRODUCT IS RoHS COMPLIANT.
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
D
C
B
A
REV
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
26500
25955
25885
25229
ECO NUMBER
02-03-10
09-22-08
06-10-08
12-21-05
DATE
JEB
JEB
JEB
AH
BY
TJK
TJK
TJK
TJK
APVD
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
2:1
06-12-12
JEB
JEB
06-12-12
TJK
06-12-12
PART No.
APVD
SHEET
REVISIONS
DO NOT SCALE DRAWING
NAME
TINI QG MALE
STRAIGHT CORD PLUG, RoHS
1
OF
1
REV
TA_MX SERIES
D
SolidWorks CAD File
B
