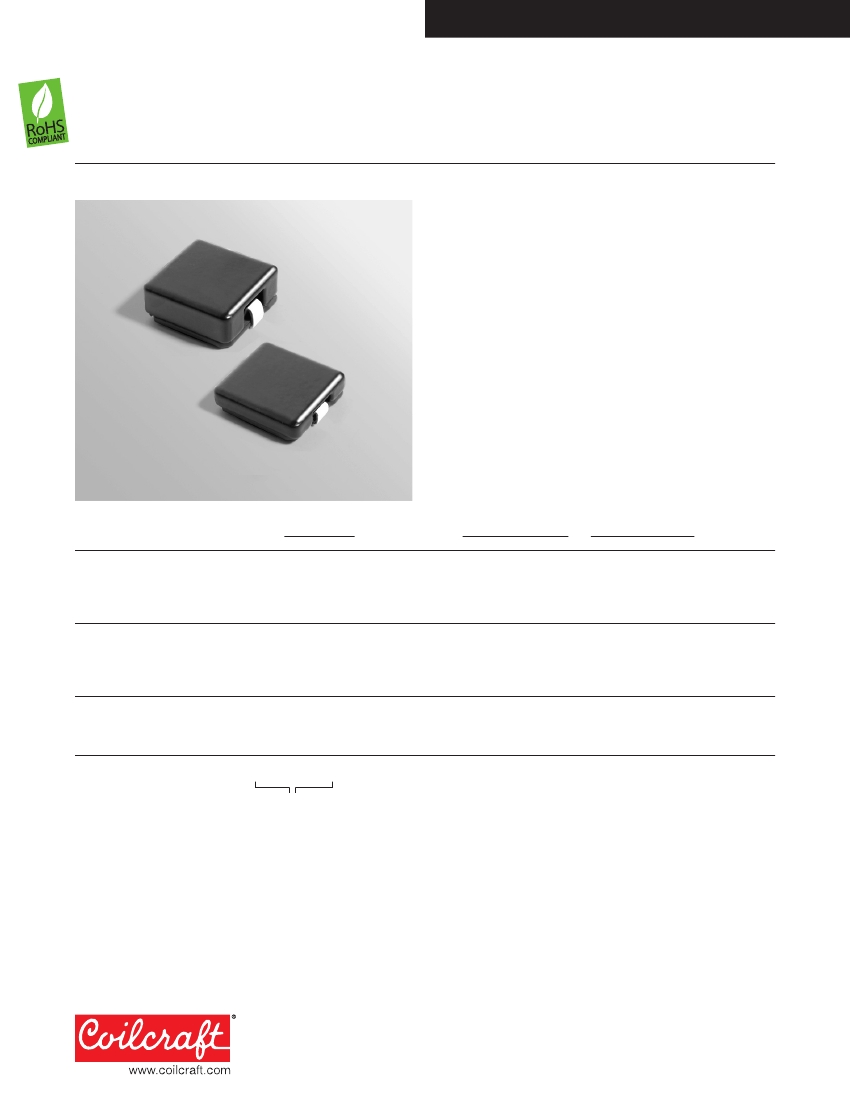

Document 327-1
Shielded Power Inductors
MLC12xx/15xx
• Soft saturation makes them ideal for VRD/VRM applications
• Special materials eliminate all thermal aging issues.
Designer’s Kit C387
contains samples of all values
Core material
Iron
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS tin-silver over copper. Other terminations
available at additional cost.
Weight
MLC12xx 1.91 – 3.04 g; MLC15xx 2.73 – 5.12 g
Ambient temperature
–40°C to +85°C with
Irms
current
Maximum part temperature:
The part may be operated without
damage as long its temperature (ambient + self-heating) does not
exceed +125°C.
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
DCR (mOhm)
typ
max
SRF typ
3
(MHz)
Isat
(A)
4
10% drop 20% drop
42.6
35.2
34.5
24.9
27.5
21.7
22.8
23.3
22.4
17.7
17.3
19.2
11.8
Irms
(A)
5
20°C rise 40°C rise
16.5
16.3
16.8
12.8
15.2
12.4
11.9
12.3
12.4
11.7
10.3
10.9
6.9
22.7
21.9
24.1
19.8
21.0
17.3
16.3
17.6
17.5
16.5
14.2
15.3
9.8
Height
max (mm)
6.5
6.1
5.6
4.1
6.5
5.1
4.1
6.1
5.6
5.3
4.6
6.1
4.8
Part
number
1
10.5 mm × 11.x mm body size (see next page for 13.2 mm × 14.x mm body size)
MLC1265-361ML_
0.36
0.93
1.03
234
26.9
MLC1260-401ML_
0.40
0.93
1.03
228
21.0
MLC1255-421ML_
0.42
0.93
1.03
219
21.1
MLC1240-451ML_
0.45
1.73
1.91
198
16.5
MLC1265-701ML_
MLC1250-801ML_
MLC1240-901ML_
MLC1260-122ML_
MLC1255-122ML_
MLC1250-132ML_
MLC1245-152ML_
MLC1260-172ML_
MLC1245-402ML_
0.70
0.80
0.90
1.20
1.20
1.30
1.50
1.75
4.00
1.24
2.35
2.57
2.38
2.38
2.38
4.08
2.84
8.18
1.37
2.59
2.83
2.62
2.62
2.62
4.49
3.13
9.00
134
151
108
93
85
76
79
72
46
16.4
13.3
13.9
14.0
14.1
10.8
10.7
12.1
7.42
1. When ordering, please specify
termination
and
packaging
codes:
MLC1245-402MLC
Termination: L
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape.
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked.
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using a Coilcraft SMD A fixture in an Agilent/HP 4284A LCR meter.
‑
3. SRF measured using an Agilent/HP4291A impedance analyzer and a Coilcraft 16193 fixture.
4. DC current at which the inductance drops the specified amount from its value without current.
5. Current that causes the specified temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 327-1
Revised 04/19/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 327-2
Shielded Power Inductors – MLC12xx/15xx Series
Part
number
1
Inductance
2
±20% (µH)
DCR (mOhm)
typ
max
SRF typ
3
(MHz)
Isat
(A)
4
10% drop 20% drop
54.0
38.1
35.7
47.4
28.7
21.2
27.3
30.1
21.0
24.2
17.7
22.3
18.1
13.63
11.8
10.57
9.57
8.60
7.80
7.03
6.70
5.77
Irms
(A)
5
20°C rise 40°C rise
18.0
18.6
16.1
17.4
14.6
11.5
13.9
13.7
10.6
11.6
11.5
10.7
10.9
12.17
8.43
10.98
9.27
8.60
7.19
6.87
6.12
5.63
25.6
26.9
22.3
24.6
20.6
16.7
19.7
19.9
14.6
16.3
15.8
15.2
15.6
16.58
11.7
15.57
13.62
12.01
10.18
9.46
8.65
7.75
Height
max (mm)
6.5
6.5
5.6
6.5
6.0
3.9
5.2
6.5
3.9
6.5
5.2
6.5
5.6
6.5
5.2
6.5
6.5
6.5
6.5
6.5
6.5
6.5
13.2 mm × 14.x mm body size (see previous page for 10.5 mm × 11.x mm body size)
MLC1565-451ML_
0.45
0.864
0.951
158
32.8
MLC1565-501ML_
0.50
0.864
0.951
132
21.3
MLC1555-551ML_
0.55
1.34
1.48
165
20.8
MLC1565-801ML_
0.80
1.20
1.32
93
27.4
MLC1560-901ML_
MLC1538-102ML_
MLC1550-102ML_
MLC1565-142ML_
MLC1538-152ML_
MLC1565-202ML_
MLC1550-252ML_
MLC1565-282ML_
MLC1555-302ML_
MLC1565-372ML_
MLC1550-452ML_
MLC1565-472ML_
MLC1565-602ML_
MLC1565-732ML_
MLC1565-922ML_
MLC1565-113ML_
MLC1565-133ML_
MLC1565-153ML_
0.90
1.0
1.0
1.4
1.5
2.0
2.5
2.8
3.0
3.7
4.5
4.7
6.0
7.3
9.2
11.3
13.0
15.4
1.72
3.46
1.72
2.20
4.36
3.47
3.43
4.10
4.06
3.10
7.13
4.00
5.50
7.20
9.70
10.60
12.57
16.40
1.90
3.81
1.90
2.42
4.80
3.82
3.74
4.51
4.47
3.40
7.85
4.40
6.05
7.92
10.60
11.60
13.75
18.00
101
81
76
77
50
64
45
44
42
47
36
39
34
29
25
21
19
17
17.8
13.6
16.1
18.9
13.4
15.2
10.9
13.7
11.1
8.13
7.12
6.23
5.60
5.10
4.57
4.07
3.93
3.43
1. When ordering, please specify
termination
and
packaging
codes:
MLC1565-153MLC
Termination: L
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape.
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked.
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using a Coilcraft
SMD A fixture in an Agilent/HP 4284A LCR meter.
‑
3. SRF measured using an Agilent/HP4291A impedance analyzer and a
Coilcraft 16193 fixture.
4. DC current at which the inductance drops the specified amount from its
value without current.
5. Current that causes the specified temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
A
MLCxxx
-xxxML
XXXX Y
B
Part number
Internal code
Parts manufactured prior
to March 2012 may be
marked differently.
Max height.
See electrical
specifications
table.
C
D
Recommended
Land Pattern
G
E
F
E
Tape and Reel
(24 mm wide plastic tape)
MLC1240
MLC1245
MLC1250
MLC1255
MLC1260
MLC1265
MLC1538
MLC1550
MLC1555
MLC1560
MLC1565
Quantity
Tape thickness
Pocket
Pocket
7″ reel 13″ reel
(mm)
spacing (mm) depth (mm)
250
900
0,35
16
4,45
200
800
0,35
16
4,95
200
700
0,40
16
5,45
200
700
0,40
16
5,95
175
600
0,40
16
6,50
150
600
0,40
16
6,70
200
800
0,35
20
4,00
150
600
0,40
20
5,45
150
500
0,40
20
5,95
150
500
0,40
20
6,20
125
500
0,40
20
6,50
Body
A
B
Size
max
max
1240
11.2
10.5
1245
11.2
10.5
1250
11.2
10.5
1255
11.4
10.5
1260
11.4
10.5
1265
11.4
10.5
1538
13.8
13.2
1550
13.8
13.2
1555
13.8
13.2
1560
13.8
13.2
1565
14.0
13.2
All dimensions are in mm.
C
1.8
1.8
1.8
1.8
1.8
1.8
2.4
2.4
2.4
2.4
2.4
D
2.3
2.3
2.3
2.3
2.3
2.3
3.0
3.0
3.0
3.0
3.0
E
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
5.0
5.0
5.0
F
4.0
4.0
4.0
4.0
4.0
4.0
5.4
5.4
5.4
5.4
5.4
G
2.7
2.7
2.7
2.7
2.7
2.7
3.4
3.4
3.4
3.4
3.4
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 327-2
Revised 04/19/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 327-3
Shielded Power Inductors – MLC12xx/15xx Series

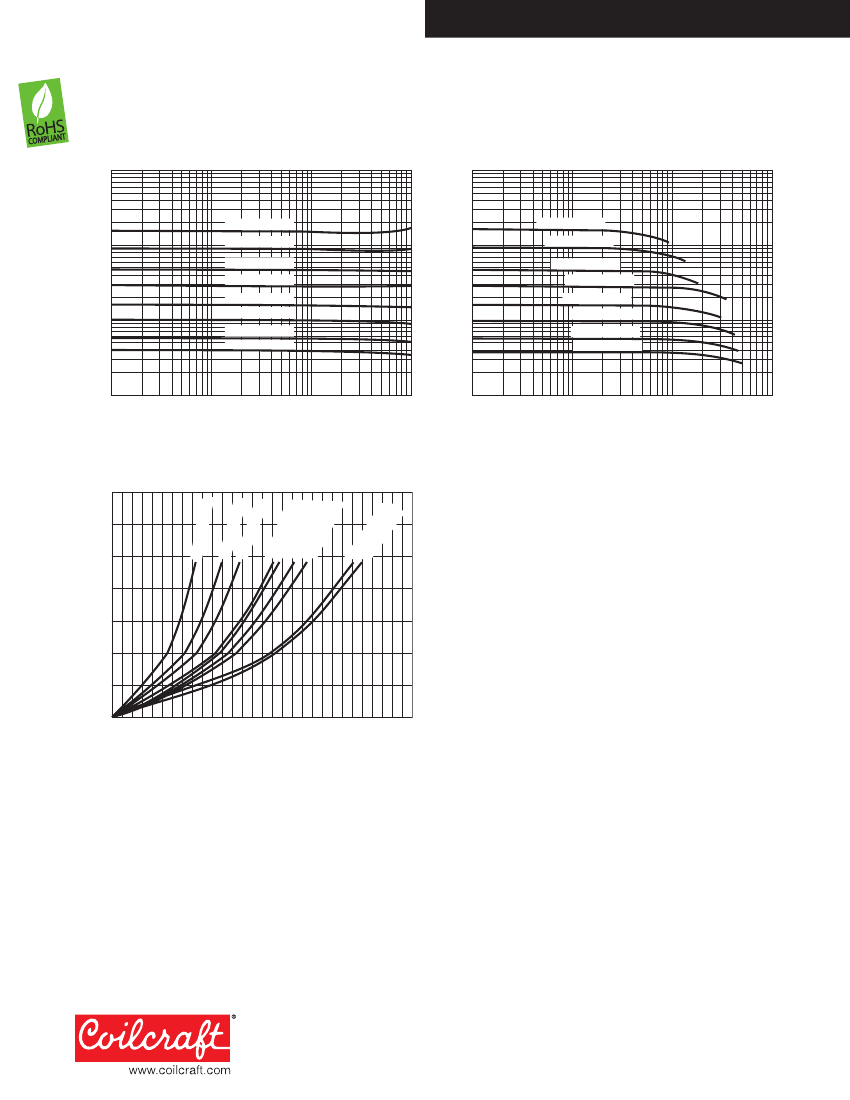

Typical L vs Frequency
100
Typical L vs Current
100
MLC1565-153
MLC1565-153
Inductance (µH)
Inductance (µH)
10
MLC1565-922
MLC1550-452
MLC1565-282
MLC1538-152
MLC1538-102
MLC1555-551
MLC1265-361
10
MLC1565-922
MLC1550-452
MLC1565-282
MLC1538-152
MLC1538-102
MLC1555-551
MLC1265-361
1
1
0.1
0.01
0.1
0.1
Frequency (MHz)
1
10
0.1
1
Current (A)
10
100
Inductance vs current is unaffected by part temperature up to 125°C.
Temperature Rise vs Current
MLC1
565-15
3
MLC
1565
-922
MLC
155
0-45
2
ML
C
ML
1538-
15
C1
ML
565-
2
28
C1
ML 538-
2
1
C1
26 02
0-1
22
15
20
70
Temperature rise (from 25°C)
60
50
40
30
20
10
0
0
5
10
Current (A rms)
ML
ML
C15
C1
55-
26
551
5-
36
1
25
30
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 327-3
Revised 04/19/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
京公网安备 11010802033920号
EEWORLD
