MAL214668151E3

Description
CAP ALUM 150UF 20% 63V RADIAL
CategoryPassive components
File Size136KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

MAL214668151E3 Overview

CAP ALUM 150UF 20% 63V RADIAL

MAL214668151E3 Parametric

Parameter NameAttribute value
capacitance150µF
Tolerance±20%
Voltage - Rated63V
ESR (equivalent series resistance)-
Service life at different temperatures3000 hours at 125°C
Operating temperature-55°C ~ 125°C
polarizationpolarization
gradeAEC-Q200
applicationAutomotive grade
Ripple current @ low frequency375mA @ 100Hz
impedance150 mOhms
lead spacing0.197"(5.00mm)
size/dimensions0.394" diameter (10.00mm)
Height - Installation (maximum)0.866"(22.00mm)
Surface mount pad dimensions-
Installation typeThrough hole
Package/casingRadial, Can
146 RTI

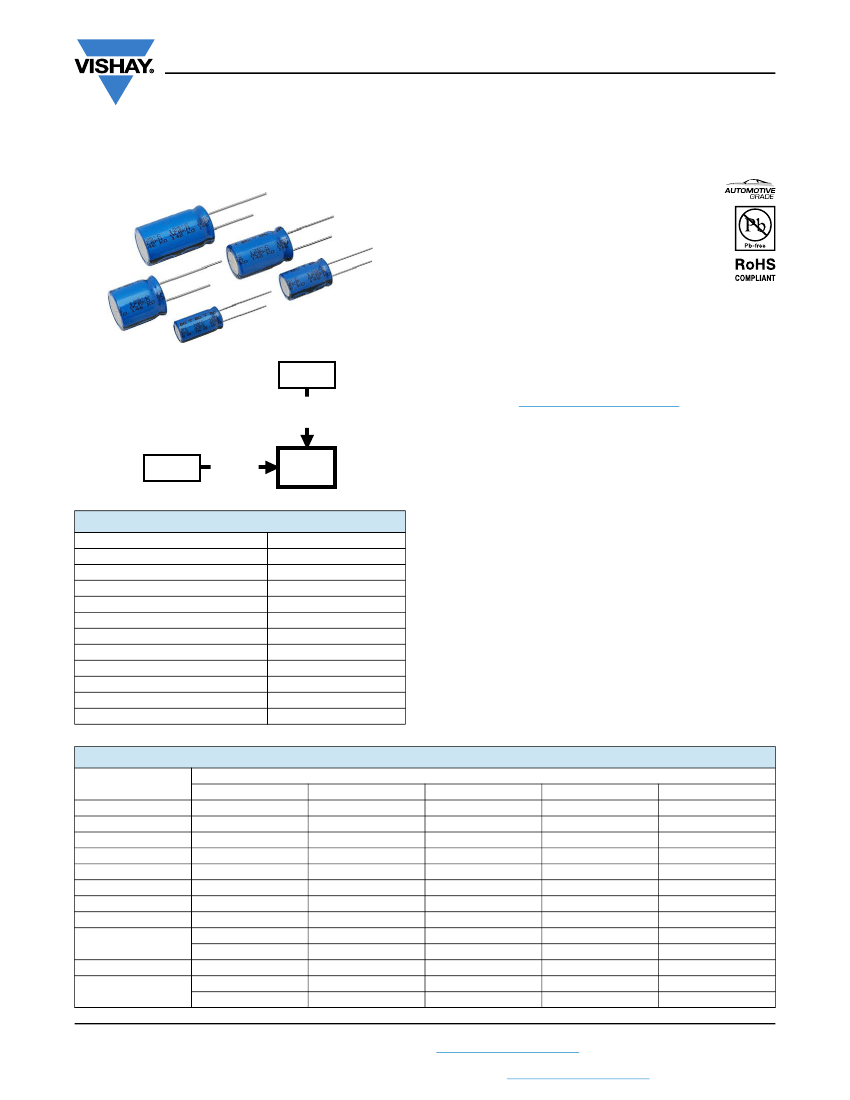

www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Radial, High Temperature, Low Impedance
FEATURES
• Very long useful life:
2500 h to 6000 h at 125 °C
• High stability, high reliability
• Very low ESR
• AEC-Q200 qualified
• Excellent ripple current capability
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Radial leads, cylindrical aluminum case with pressure
relief, insulated with a blue PET sleeve
• Charge and discharge proof
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
140 RTM
lower Z
longer life
APPLICATIONS
150 RMI
125 °C
146 RTI
• Power supplies (SMPS, DC/DC converters) for industrial,
automotive, telecommunications and military
• Smoothing, filtering and buffering
MARKING
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 125 °C
Useful life at 125 °C
Useful life at 40 °C, 1.8 x I
R
applied
Shelf life at 0 V, 125 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
10 x 12 to 18 x 35
68 μF to 6800 μF
± 20 %
16 V to 63 V
-55 °C to +125 °C
2000 h to 5000 h
2500 h to 6000 h
400 000 h
1000 h
IEC 60384-4 / EN 130300
55 / 125 / 56
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code, in accordance with IEC 60062
• Code indicating factory of origin
• Logo of manufacturer
• Upper category temperature (125 °C)
• Negative terminal identification
• Series number (146)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
68
100
150
220
330
390
470
560
680
820
1000
16
-
-
-
-
-
-
10 x 12
-
10 x 16
-
-
10 x 20
-
25
-
-
-
-
10 x 12
-
10 x 16
-
10 x 20
-
-
12.5 x 20
-
U
R
(V)
35
-
-
-
10 x 12
10 x 16
-
10 x 20
-
12.5 x 20
-
-
12.5 x 25
-
50
-
10 x 12
-
10 x 16
10 x 20
-
12.5 x 20
-
12.5 x 25
-
16 x 20
18 x 20
16 x 25
63
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
18 x 20
16 x 25
18 x 25
16 x 31
16 x 35
18 x 31
-

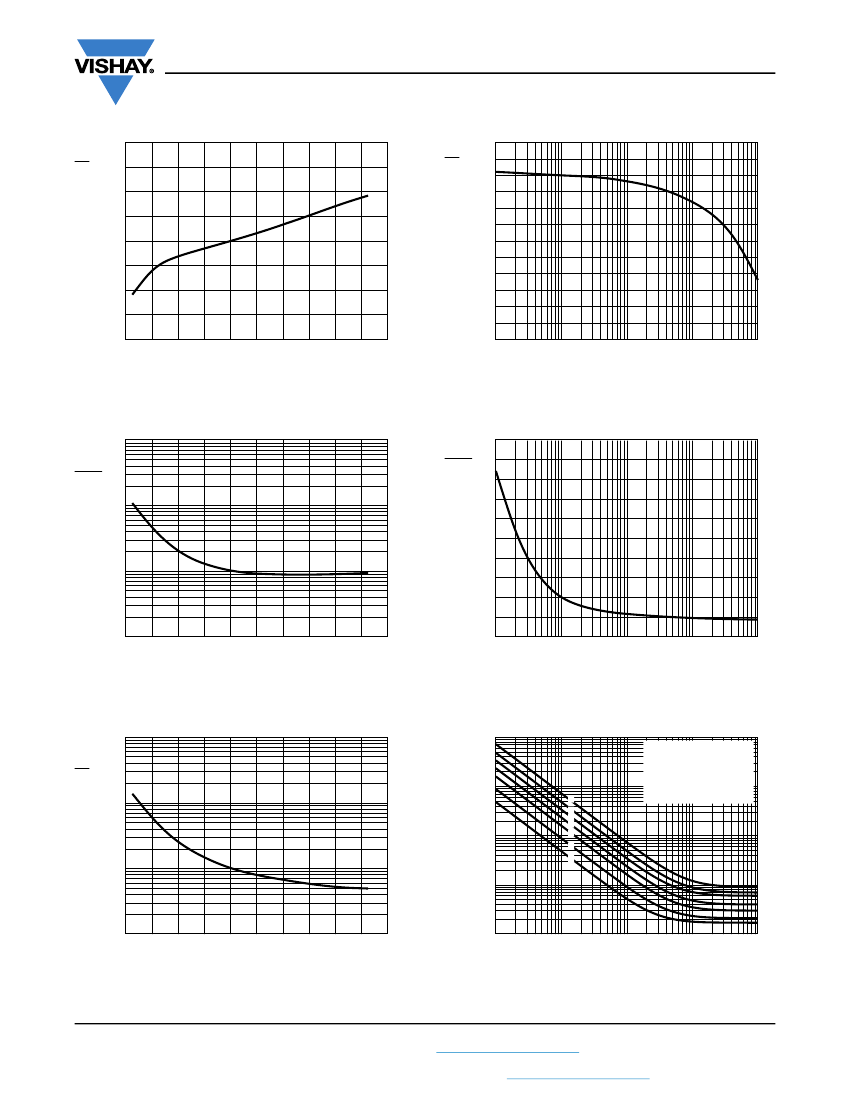

Revision: 22-Mar-17
Document Number: 28401
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
