DF62C-24S-2.2C(11) datasheet, PDF

Datasheet> All Categories > The connector> DF62C-24S-2.2C(11)

DF62C-24S-2.2C(11): DescriptionCONN RCPT HOUSING 24POS 2.2MM; CategoryThe connector; File Size760KB，12 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

DF62C-24S-2.2C(11) Overview

CONN RCPT HOUSING 24POS 2.2MM

DF62C-24S-2.2C(11) Parametric

Parameter Name	Attribute value
Connector type	jack
Contact type	female socket
Number of pins	24
spacing	0.087"（2.20mm）
Number of rows	5
spacing	0.079"（2.00mm）
Installation type	free hanging
Contact termination	crimp
Fastening type	pin lock
color	black
characteristic	-
Remark	Does not include contacts

Preview

Download Datasheet

View All

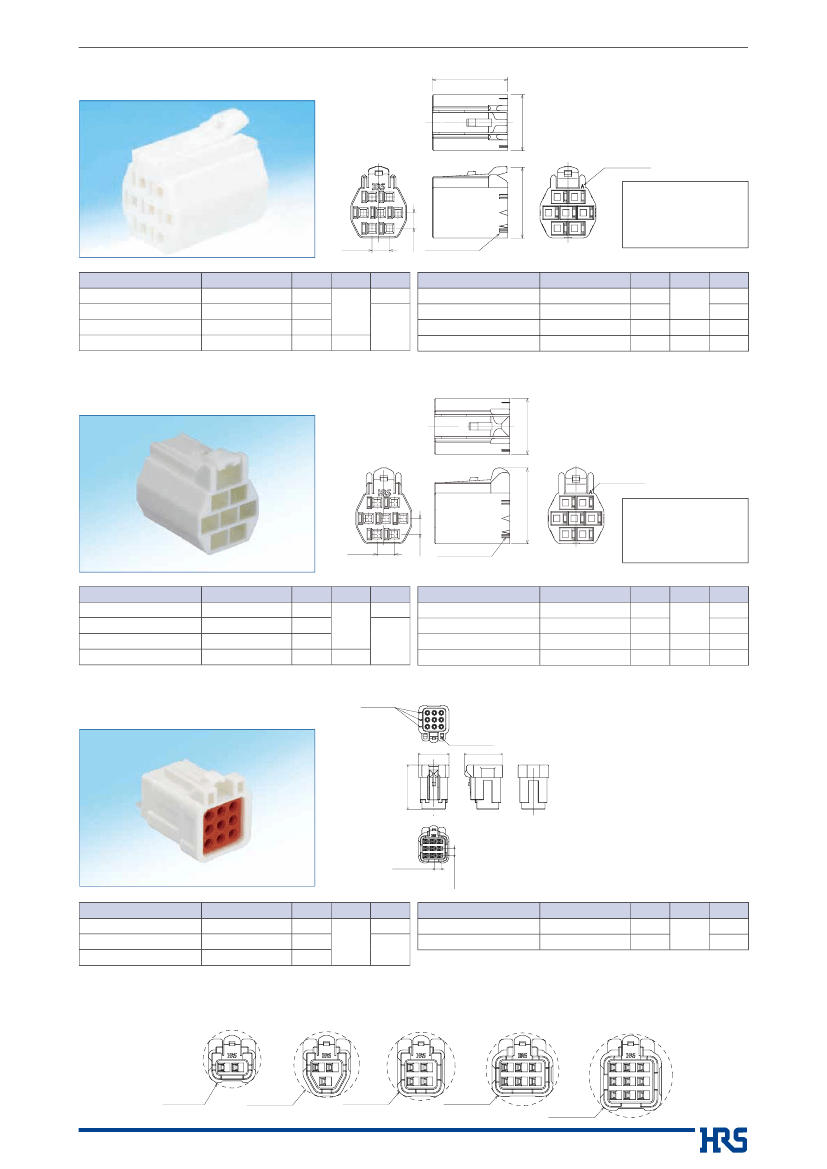

2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces

DF62 Series / DF62W Series

（UL, C-UL Listed）

Non-waterproof

type

（DF62B, DF62C,

DF62P）

Waterproof type

（DF62W）

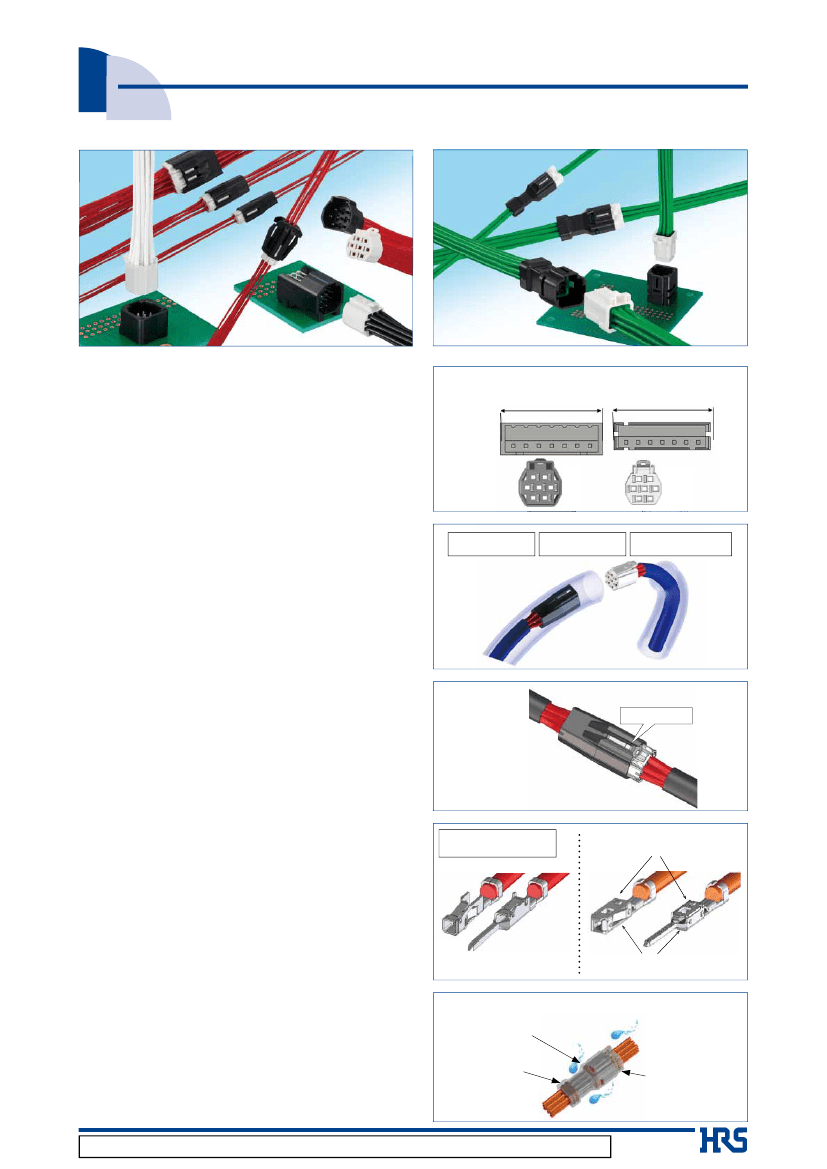

■Features

1. The slim, sleek design and smooth contour combine

to complete connections in tight spaces.

These connectors were designed to take full advantage

of small/narrow spaces. The contacts are arranged in a

grid pattern which shortens the diagonal distances and

the body was slimmed down by creating smooth outer

surfaces. This design helps to save precious space and

makes these connectors virtually tangle free. There is

no visible or exposed metal which would eliminate the

possibility of electrical arcing between the connector

and the inside of a metal conduit. (Please refer to Fig. 1

and 2)

Compact shape due to 2 × 2.2 grid layout of pins

*Both are 7 contacts with 3A current rating

Existing

products

DF62

Fig.1

Smooth external

shape

No exposed metal

Grid Arrangement

2. Secure lock mechanism

The locking structure emits a clear tactile click upon

lock completion. After completion, a second indicator

can be utilized. The socket lock can be visually

checked through the plug window after mating. These

indicators function together to prevent incomplete

mating. (Please refer to Fig. 3)

Fig.2

Visual check

for complete

mating

3. Reliable contact structure

The structure utilizes two contact points to provide

a reliable contact that resists damage from vibration

and rough operation.

1.Visual check area

4. Robust contact structure

The unique structure provides protection to the

contacts and lance areas, it prevents any bending

or deformity that might occur during mating, the

assembly procedure or while in transportation.

(Please refer to Fig. 4)

2. Locking is confirmed

by an audible click.

Fig.3

（Water-resistant

type (DF62W)）

Robust box-shaped contact structure

Image of the outward

appearance of the contact

（For

non-water-proof type）

5. Multiple variations available

There are several different wire counts available,

giving the designer the variety needed to complete

the application. Protected lock type, panel mount

type and pin header type are also available.

6. Applicator sharing

The applicators for the DF11 and DF59 series (existing

products) can be adapted to accommodate the DF62

series applicators.

*Some

modifications are required.

Please contact Hirose for additional details.

（Non-water-resistant

type (DF62) contacts）

Designed for easy

contact insertion.

Fig.4

Condensation prevention measure

(IP67 level Water-resistance)

Housing seal

7. Condensation prevention measure

(Water-resistant type DF62W)

IP67 level water-resistance in mated condition.

(Fig. 5)

Wire seal

Fig.5

2018.3④

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.
