INT ERNET DAT A SHEET for Article Number 7000-14641-7961500
M12 f emale 0° shielded, D-cod. wit h cable EN
PUR 2x2xAWG22 shielded gn UL/CSA+dragchain 15m
Ethernet CAT5
Female straight
M12, 4-pole
D-coded
shielded
Further cable lengths on request. Plastic housings with good resistance against chemicals
and oils. The resistance to aggressive media should be individually tested for your
application. Further details on request.
Link t o Product

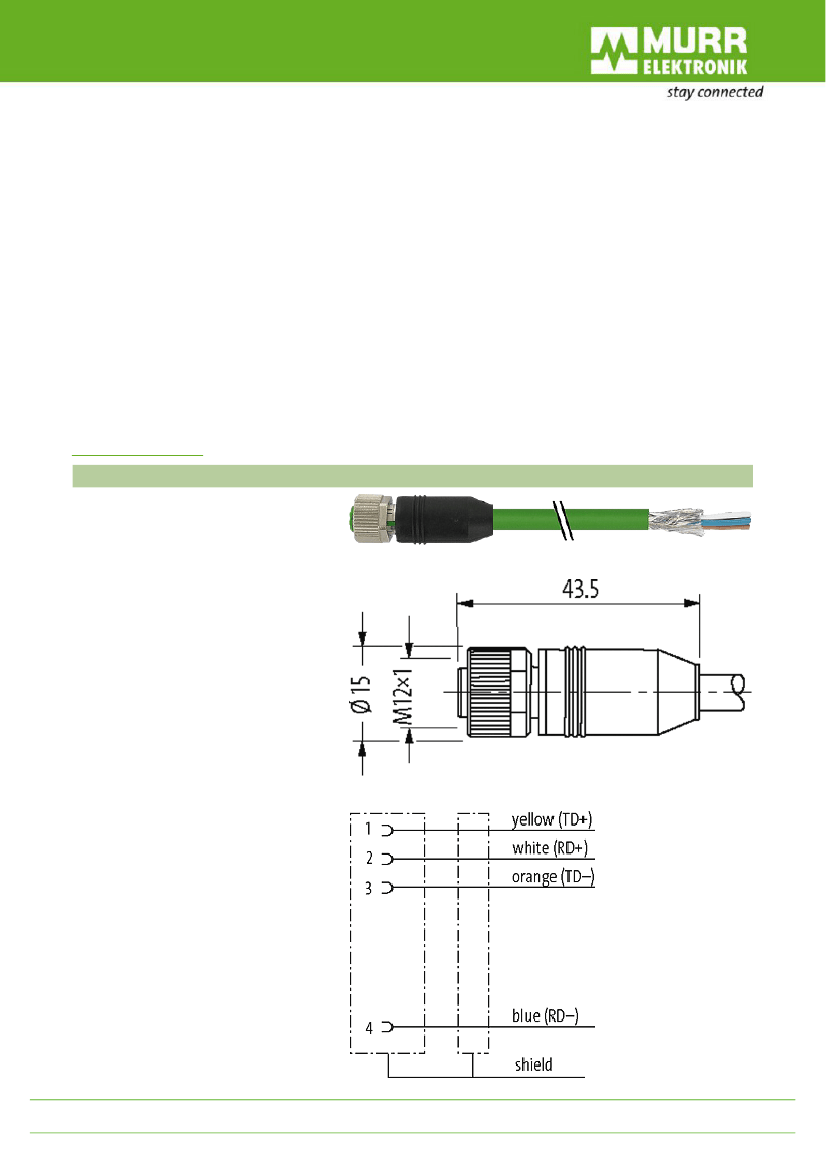

Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-14641-7961500
Pro d uc t may d iffe r fro m Imag e
Appro va ls
* only for products with UL/CSA approved cable
Mo re Inf o
EtherNet/IP
Fo rm
Fo rm
Ca bles
Cab le numb er
No ./d iameter o f wires
Wire iso latio n
C-track p ro p erties
Jacket Co lo r
Material (jacket)
Outer Ø
Bend rad ius (mo ving )
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Cab le id entificatio n
Ap p ro val (cab le)
796
2×2×0.34 mm²
PE (wh, ye, b l, o r)
3 Mio .
g reen
PUR (UL/CSA)
6.7 mm ±5%
12 × o uter Ø
-40...+80 °C
-30...+70 °C
796
UL (AWM-Style 20233/11602), CSA; CE
14641
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-14641-7961500
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
Diameter (co re)
Material (wire iso latio n)
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Shield
Material (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
thermal resistance
No minal vo ltag e
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Bend rad ius (mo ving )
No . o f b end ing cycles (C-track)
T raversing d istance (C-track)
T ravel sp eed (C-track)
Acceleratio n (C-track)
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Rated surg e vo ltag e
Op erating current p er co ntact
Material g ro up
T ransfer p arameters
T ransfer rate
Co d ing
Lo cking o f p o rts
Co mp ressio n g land
Pro tectio n
Lo cking material
Material
Genera l da ta
Stand ard s
Po llutio n Deg ree
T emp erature rang e
71
Cu wire, b are
max. 55
Ω/km
(20 °C)
2×2×AWG22
PE
1.4 mm ±5%
wh, ye, b l, o r
yes
min. 85%
PUR
6.7 mm ±5%
g reen
flame retard ant
300 V
-40...+80 °C
-30...+70 °C
5 × o uter Ø
12 × o uter Ø
max. 3 Mio . (25 °C)
max. 5 m (ho rizo ntal)
max. 3.3 m/s
max. 2 m/s²
max. 60 V DC
max. 30 V DC
1.5 kV
max. 4 A
IEC 60664-1, categ o ry I
CAT 5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
up to 100 Mb it/s Full Dup lex
D-co d ed
Screw thread M12 × 1 mm (reco mmend ed to rq ue 0.6 Nm) self-
securing
M12 (SW13)
IP66K, IP67 inserted and tig htened (EN 60529)
Zinc d ie casting , matte nickel p lated
PUR
DIN EN 61076-2-101 (M12)
3
-25...+85 °C, d ep end ing o n cab le q uality
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-14641-7961500
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
EAN
eClass
Packag ing unit
DE
85444290
4048879557832
27061801
1
