ASG-C-V-A-25.000MHZ

Description
OSC VCXO 25.000MHZ LVCMOS SMD
CategoryPassive components
File Size109KB,1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ASG-C-V-A-25.000MHZ Overview

OSC VCXO 25.000MHZ LVCMOS SMD

ASG-C-V-A-25.000MHZ Parametric

Parameter NameAttribute value
typeVCXO
frequency25MHz
Functionenable/disable
outputLVCMOS
Voltage - Power3.3V
frequency stability±35ppm
Absolute pulling range (APR)-
Operating temperature-40°C ~ 85°C
Current - Power (maximum)45mA
grade-
Installation typesurface mount
Package/casing6-SMD, no leads
size/dimensions0.276" long x 0.197" wide (7.00mm x 5.00mm)
Height - Installation (maximum)0.075"(1.90mm)
Current - Power (disabled) (maximum)-
0.28
7.01
Pin #
1
0.20
5
Pin Description
For VCXO configuration
VoltageControl for VCXO
Output Enable (OE)
GND
RF Output
N/C
Vdd
2
3
4

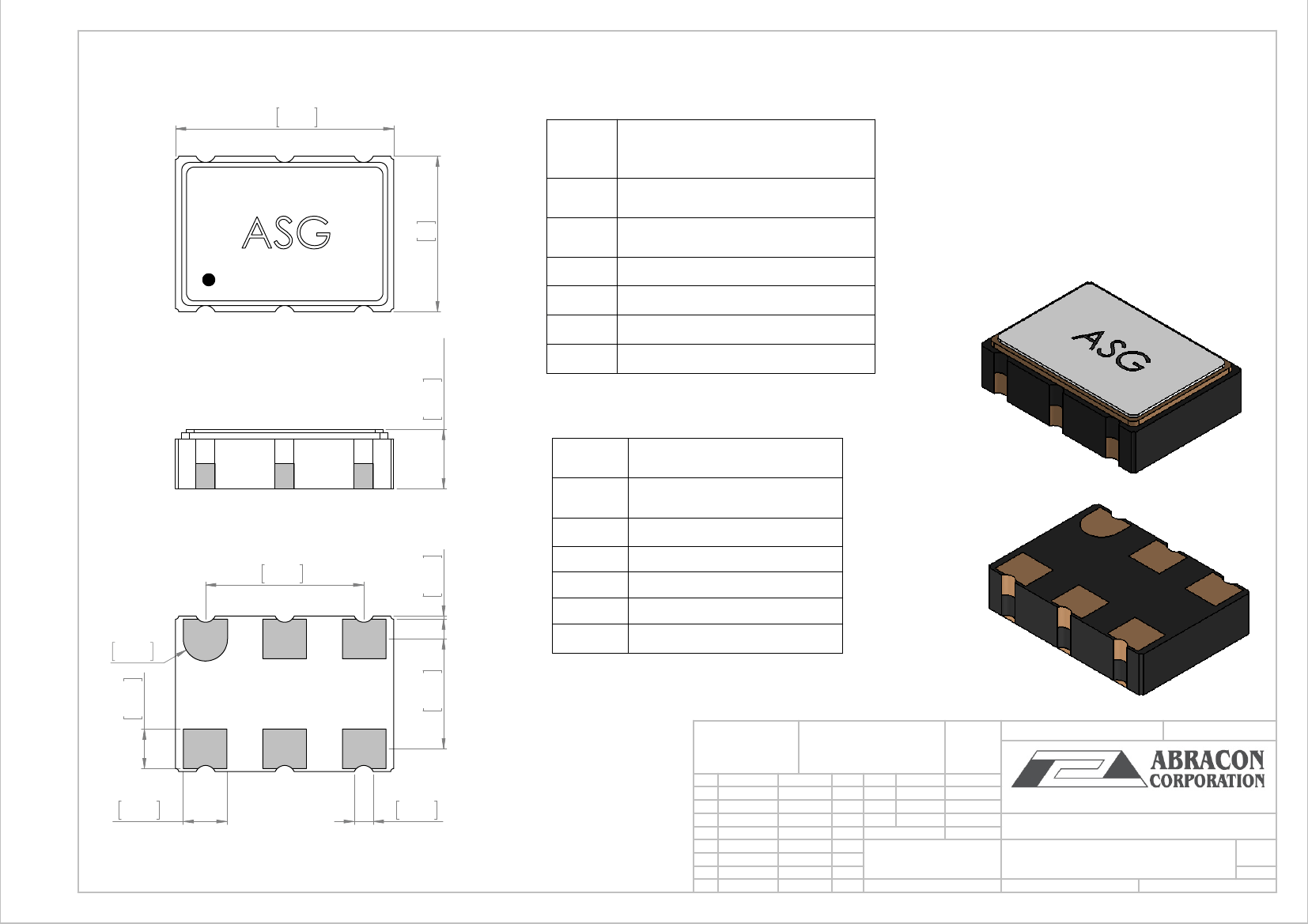

GYWW
TOP VIEW
0.07 MAX
1.90
5
6
Pin #
SIDE VIEW
0.004
0.10
0.20
5.08
1
R0.03
0.71
0.05
1.27
0.14
3.53
2
3
Pin Description
For XO configuration
1 Output Enable (OE)
N/C for XO
GND
RF Output
N/C
Vdd
1
2
3
4
5
6
0.06
1.40
4
5
6
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCH(MM)
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBUR AND
BREAK SHARP
EDGES
DO NOT SCALE DRAWING
REVISION
-
0.02
0.61
NAME
DRAWN
CHK'D
APPV'D
MFG
SAAZVAT
XXXXXX
SIGNATURE
DATE
30332 Esperanza, Rancho Santa margarita, California 92688
TITLE:
MEMS
BOTTOM VIEW
Q.A
MATERIAL:
DWG NO.
ASG-C
SHEET 1 OF 1
A3
WEIGHT:
SCALE:10:1
