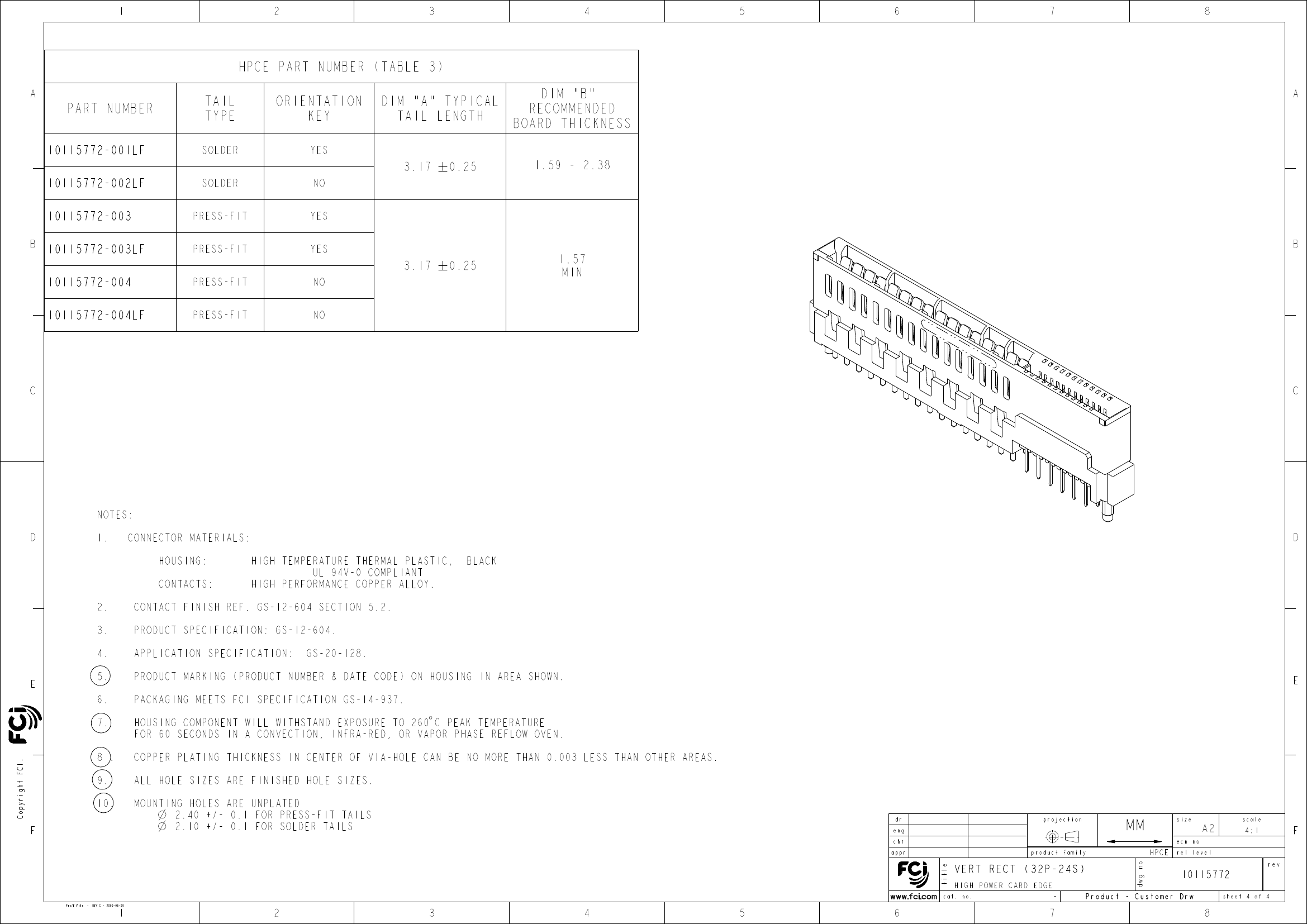

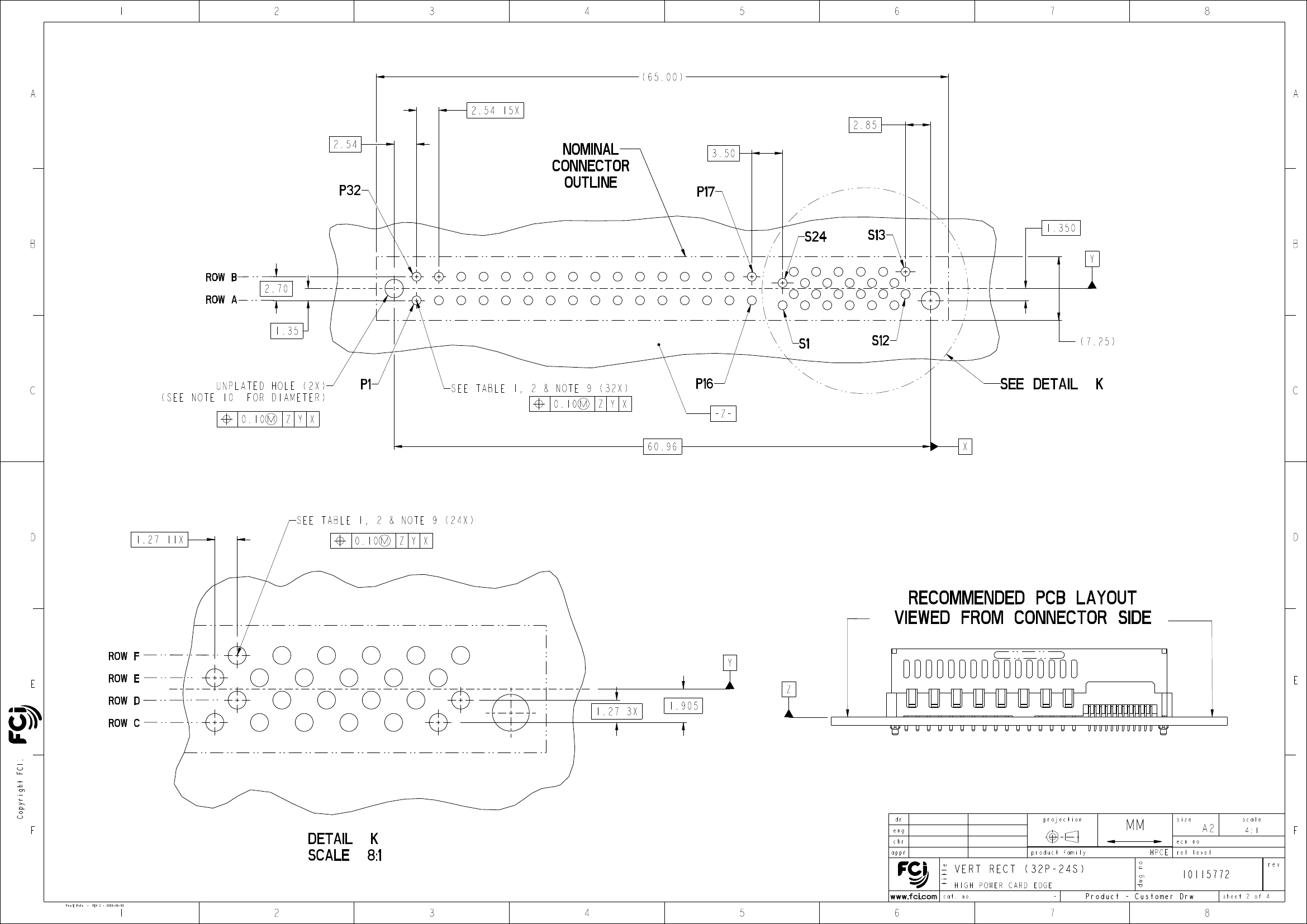

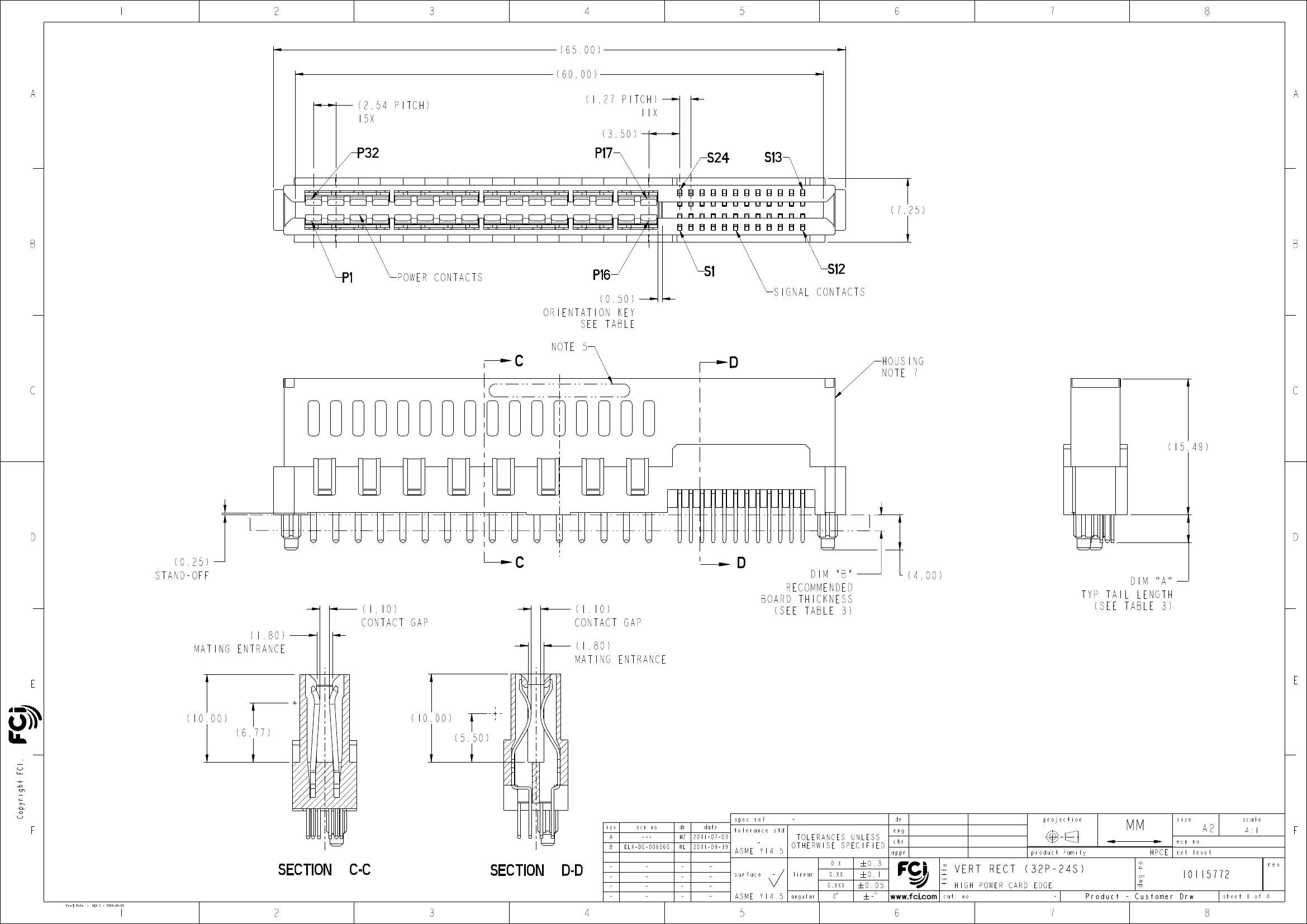

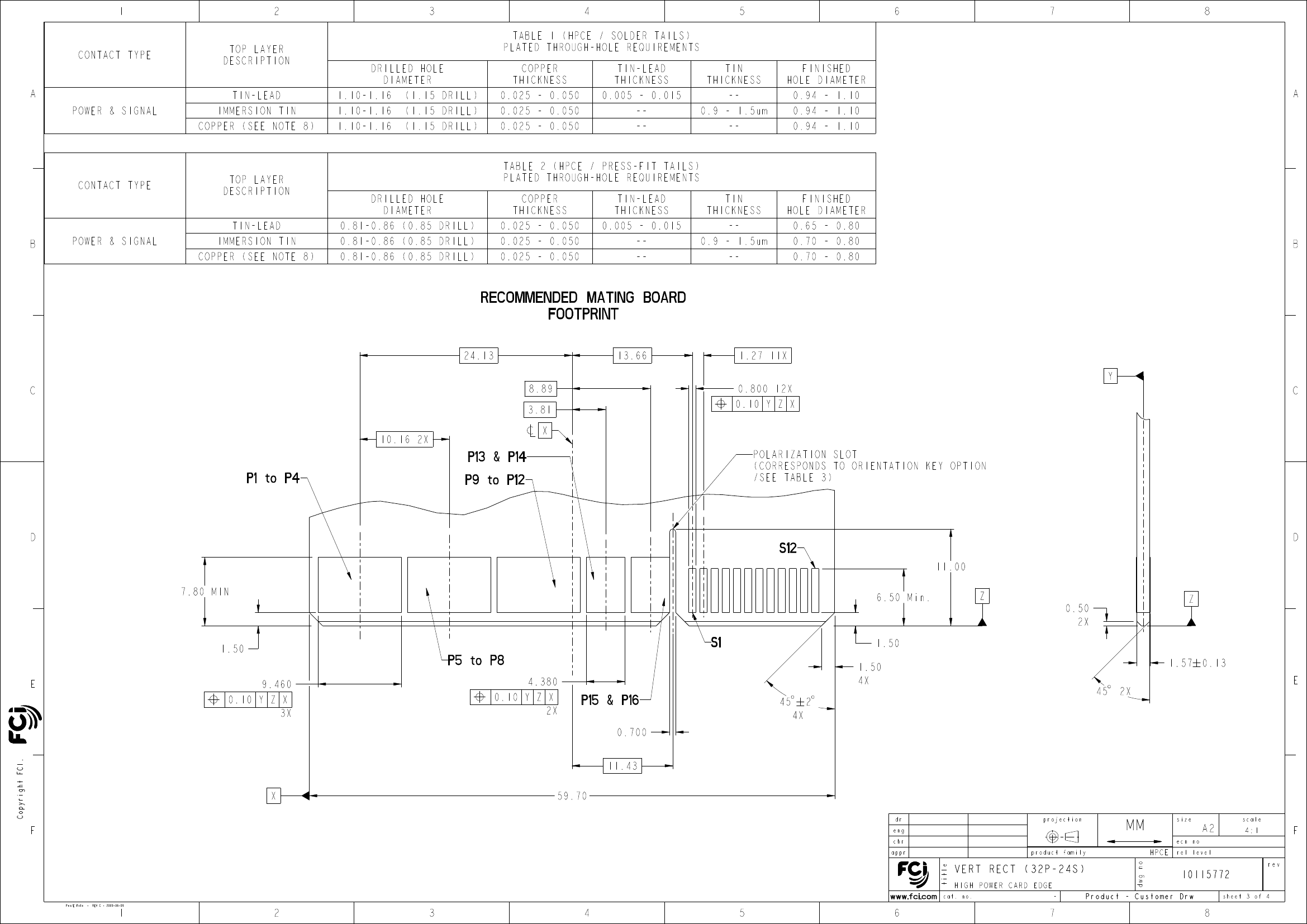

CONN EDGE DUAL FMALE 56POS .100
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 6 weeks |
| Board mount options | PEG |
| body width | 0.285 inch |
| subject depth | 0.61 inch |
| body length | 2.559 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | BELLOWED TYPE |
| Durability | 200 Cycles |
| Insulation resistance | 500000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 10115772 |
| Plug contact pitch | 0.05 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Plating thickness | 30u inch |
| Rated current (signal) | 9 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.125 inch |
| Termination type | SOLDER |
| Total number of contacts | 24+32 |
| 10115772-002LF | 10115772-003LF | 10115772-001LF | |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 56POS .100 | CONN EDGE DUAL FMALE 56POS .100 | CONN EDGE DUAL FMALE 56POS .100 |
| Maker | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Factory Lead Time | 6 weeks | 7 weeks | 6 weeks |
| body width | 0.285 inch | 0.285 inch | 0.285 inch |
| subject depth | 0.61 inch | 0.61 inch | 0.61 inch |
| body length | 2.559 inch | 2.559 inch | 2.559 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 25 mΩ | 20 mΩ |
| Contact style | BELLOWED TYPE | HYBRID | BELLOWED TYPE |
| Durability | 200 Cycles | 200 Cycles | 200 Cycles |
| Insulation resistance | 500000000 Ω | 5000000000 Ω | 500000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | 10115772 | 10115772 | 10115772 |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Plating thickness | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 9 A | 1.5 A | 9 A |
| Guideline | UL, CSA | UL | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.125 inch | 0.125 inch | 0.125 inch |
| Termination type | SOLDER | PRESS FIT | SOLDER |
| Total number of contacts | 24+32 | 24+32 | 24+32 |
| Board mount options | PEG | - | PEG |
| Plug contact pitch | 0.05 inch | - | 0.05 inch |
