51710-054LF datasheet, PDF - EEWORLD Datasheet

51710-054LF: DescriptionPWRBLADE VERT HDR; CategoryThe connector The connector; File Size219KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51710-054LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51710-054LF	-	-	View	Buy Now

PWRBLADE VERT HDR

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
body width	0.574 inch
subject depth	0.5 inch
body length	1.75 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S24P2
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51710-054
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	26
Evacuation force-minimum value	.1668 N

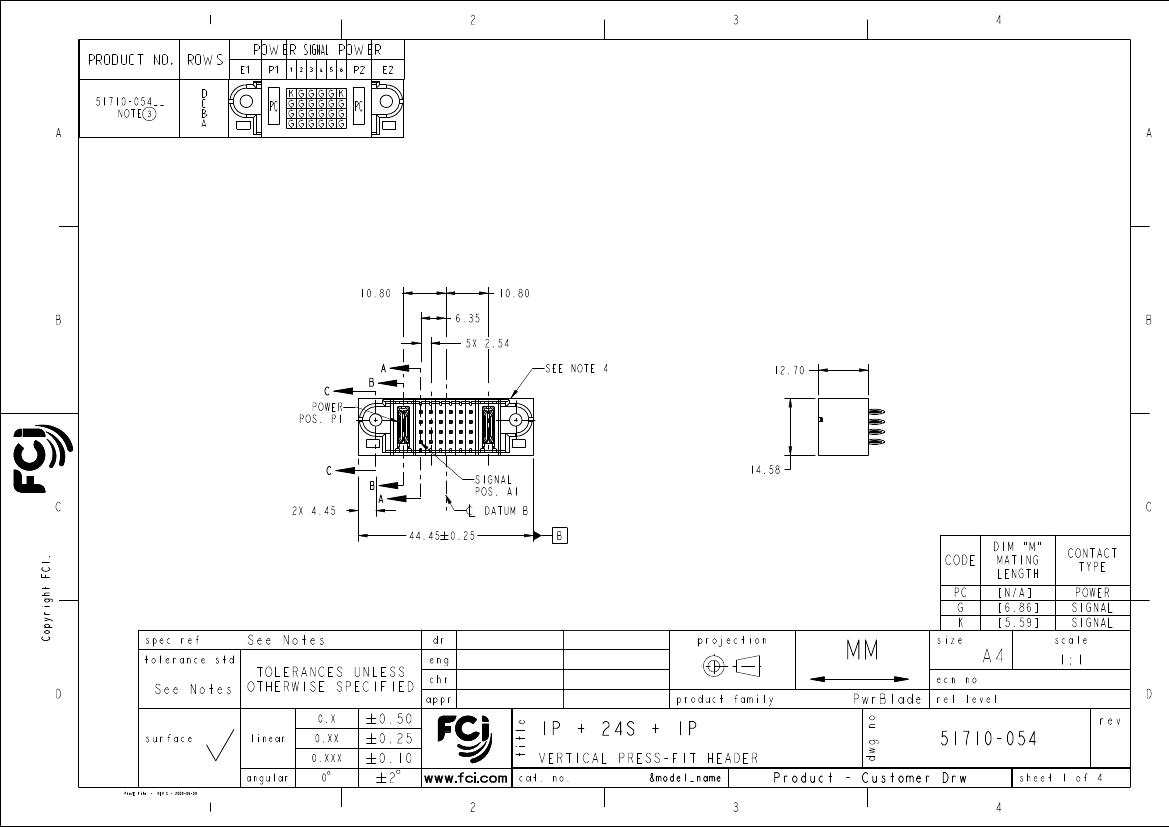

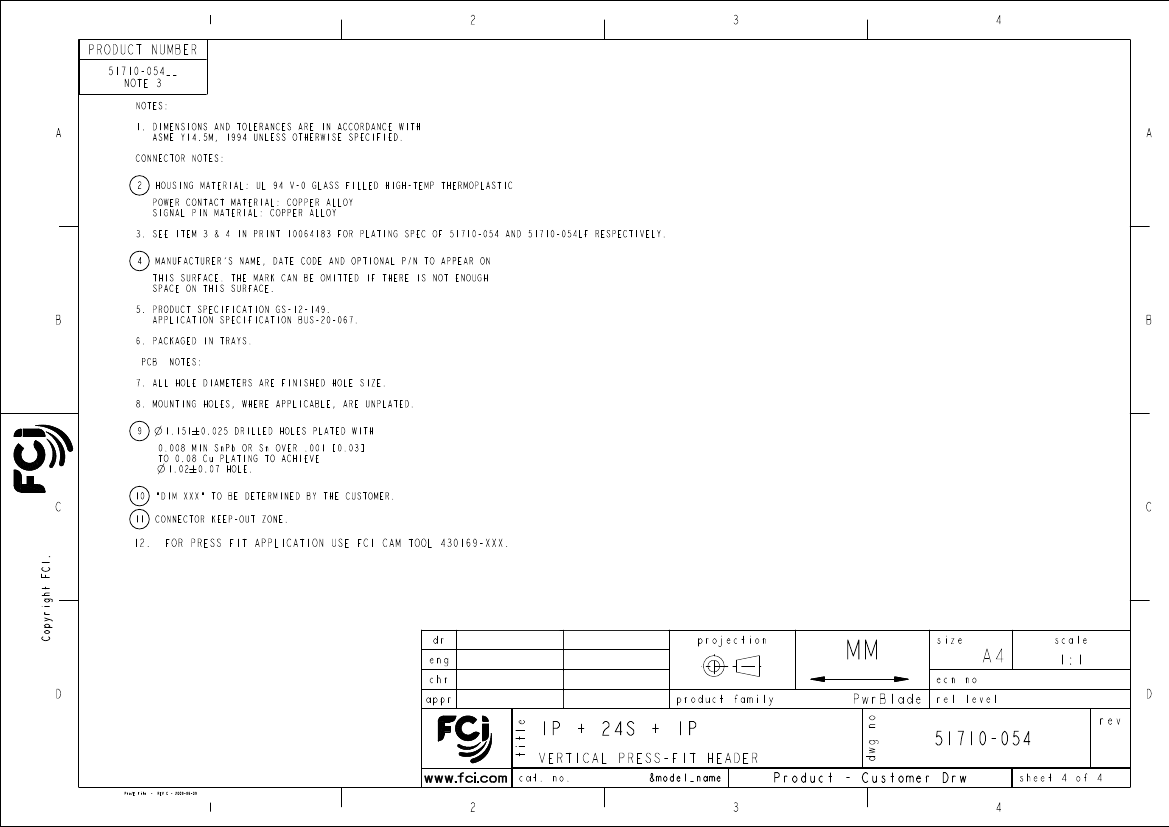

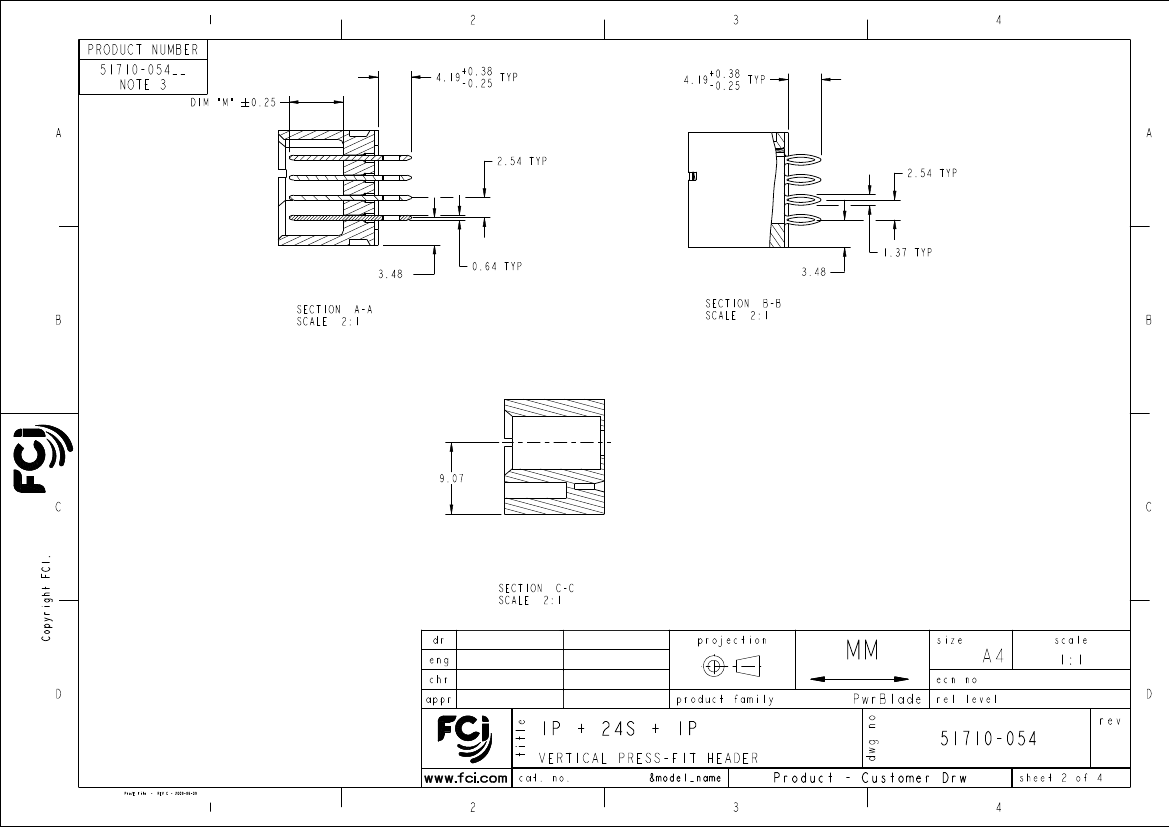

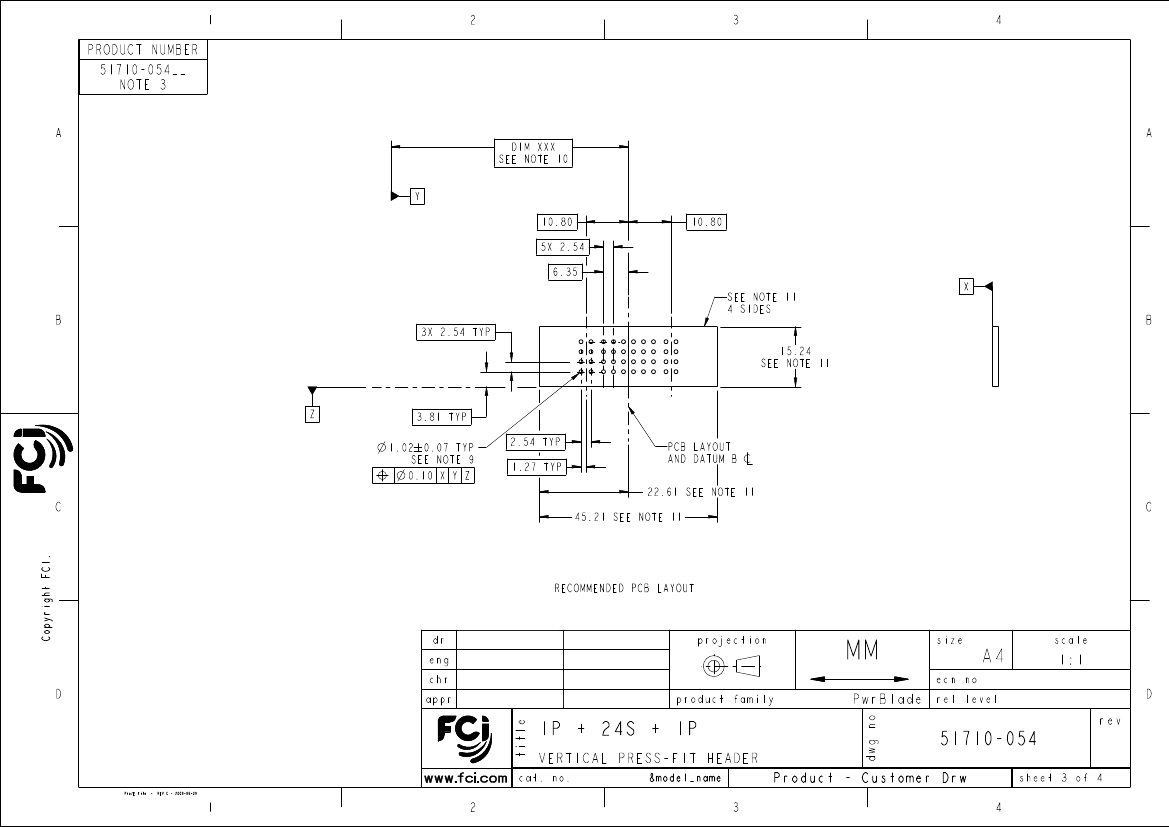

X Q Wang

-

Pei-Ming Zheng

2012/08/02

2012/08/09

-

2012/08/09

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Aug 09, 2012

	51710-054LF	51710-054
Description	PWRBLADE VERT HDR	Board Connector, 26 Contact(s), Male, Straight, Solder Terminal, Locking, Plug
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compli
body width	0.574 inch	0.574 inch
subject depth	0.5 inch	0.5 inch
body length	1.75 inch	1.75 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P2	S24P2
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51710-054	51710-054
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	26	26
Evacuation force-minimum value	.1668 N	.1668 N
