Clever design
High precision insulator
- better impedance matching
OPTALLOY
®
plating
instead of nickel
- better conductivity
- better mating
- non magnetic
- non allergic
Details, making the difference
Four slot nut for less wear
Full crimp version
(recommended by IMS
Connector Systems)
- fast and efficient
assembling process
- no power connection on
site required
Other cable terminations
also possible
- solder/solder
- solder/crimp
OPTALLOY® is a registered trademark of Collini-Flühmann AG, Switzerland
Perfect detail
Series 1.6/5.6
This range of precision
75 ohm connectors meet
both the high mechanical
and electrical specifications
required by the latest
telecommunication switching
equipments.
Designed to work at both
analogue frequencies and
high digital bit rates the
connectors are designed for
termination onto the standard
ranges of 75 ohm flexible
cables. Other styles are
available for both panel and
distribution frame mounting
together with Press Fit
versions for PCB mounting.
Coupling Styles
The IMS range of jack
connectors are fully
intermateable with the
4 standard plug interfaces,
screw on, snap, clip and
quick lock versions.
IMS have concentrated their
developments on the screw
on interface of the plug
connector as this type has
the highest retention force.
Other styles are available
on request.
Design in accordance with
CECC 22 240
DIN 47 295
IEC 169-13

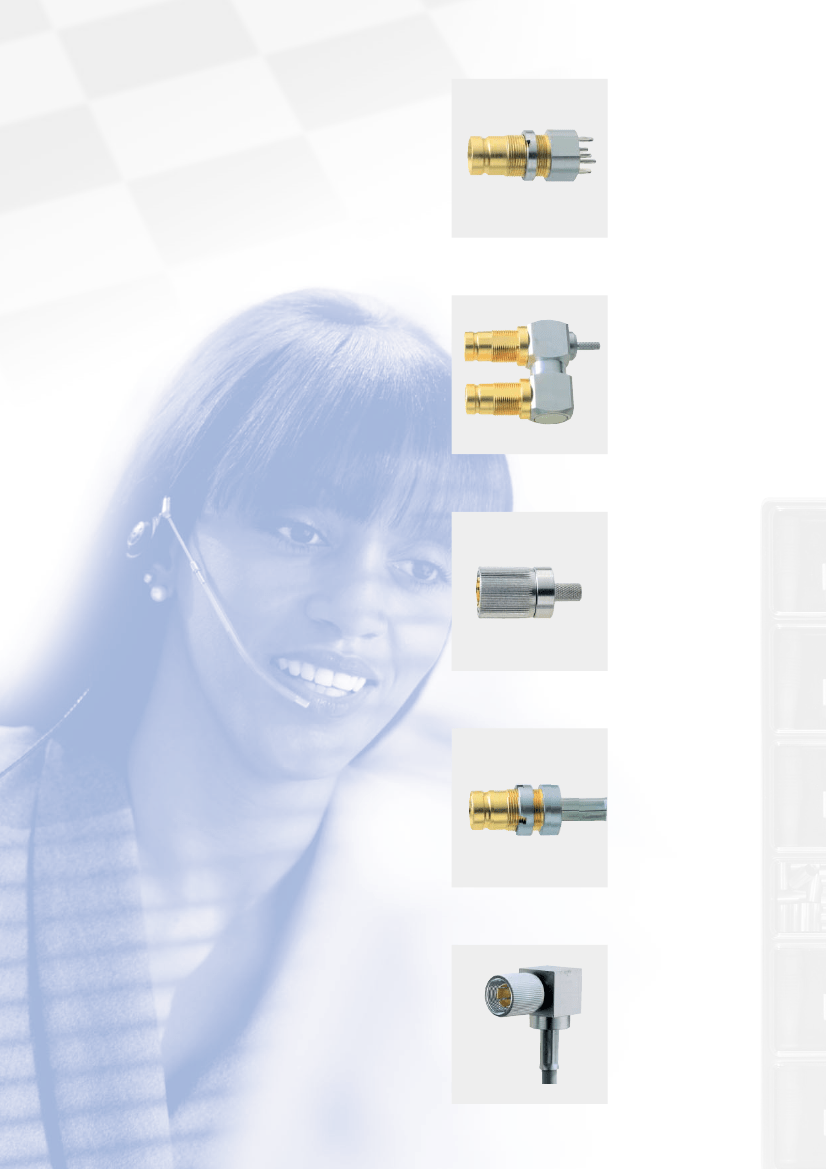

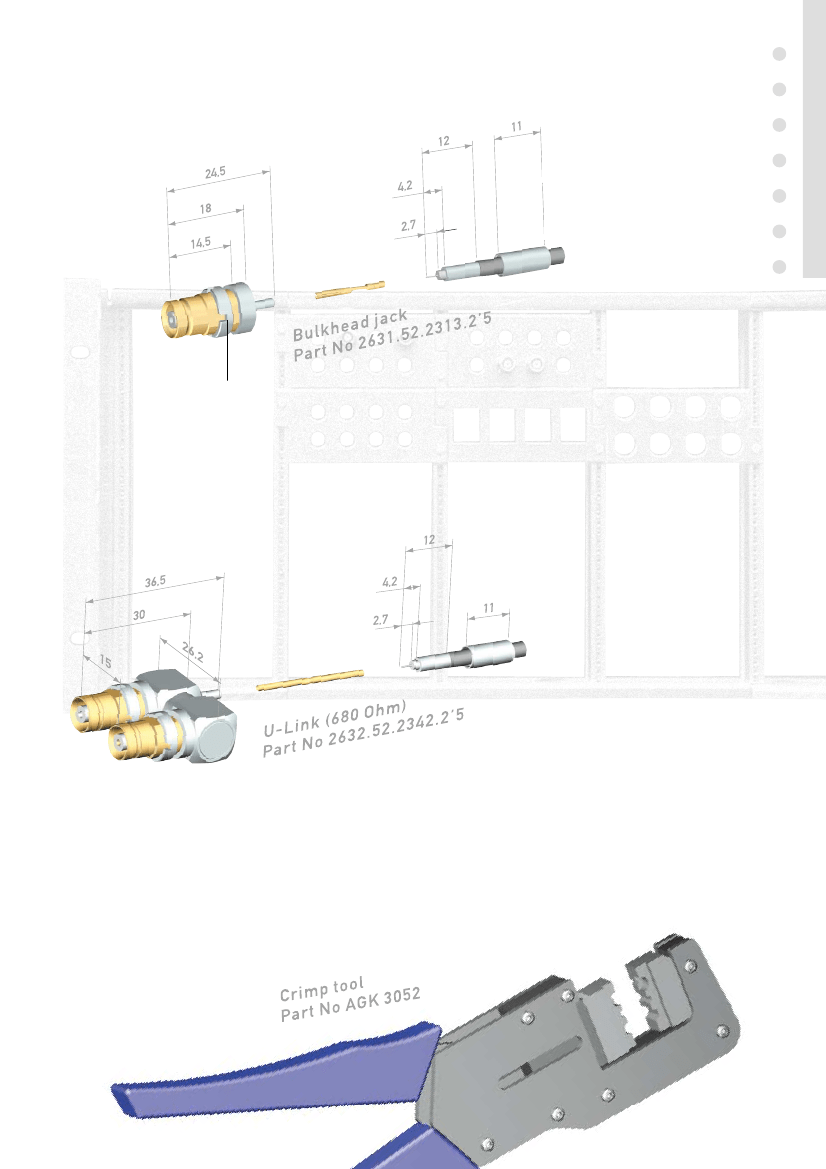

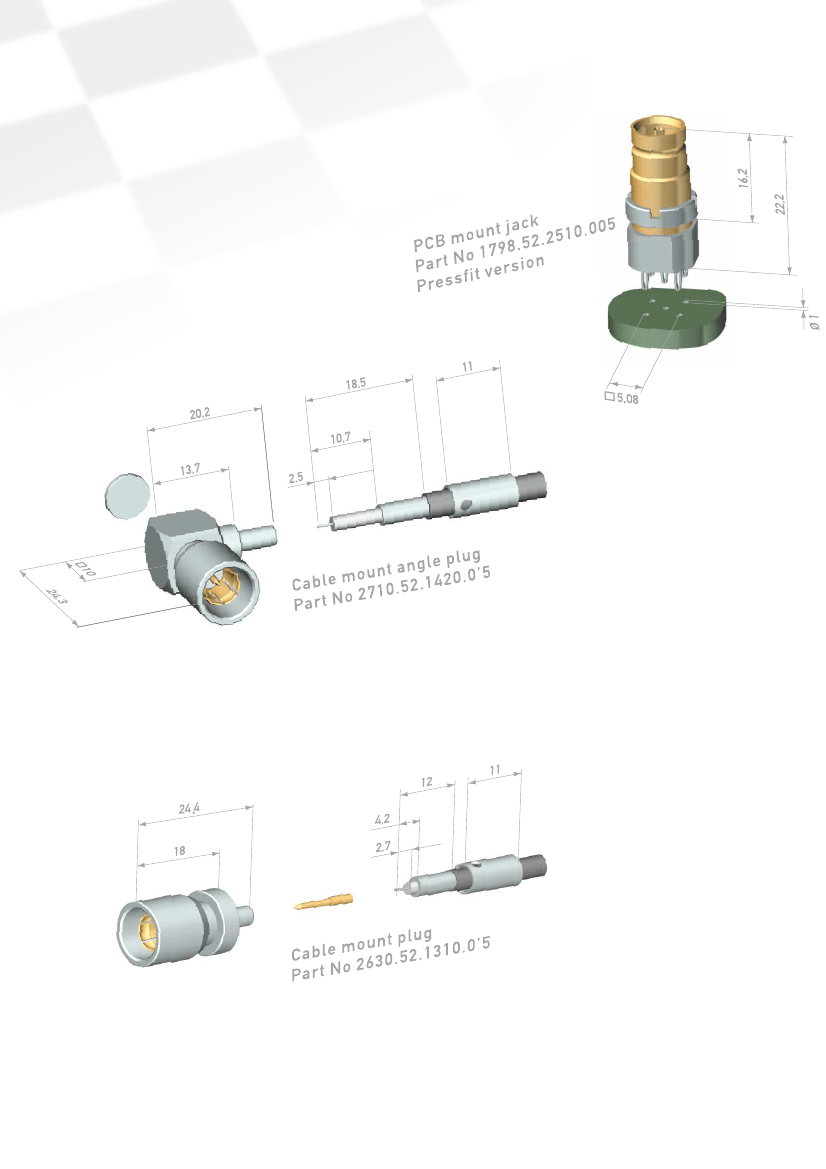

1798.52.2510.005
2632.52.2342.2’5
2630.52.1310.0’5
2631.52.2312.2’5

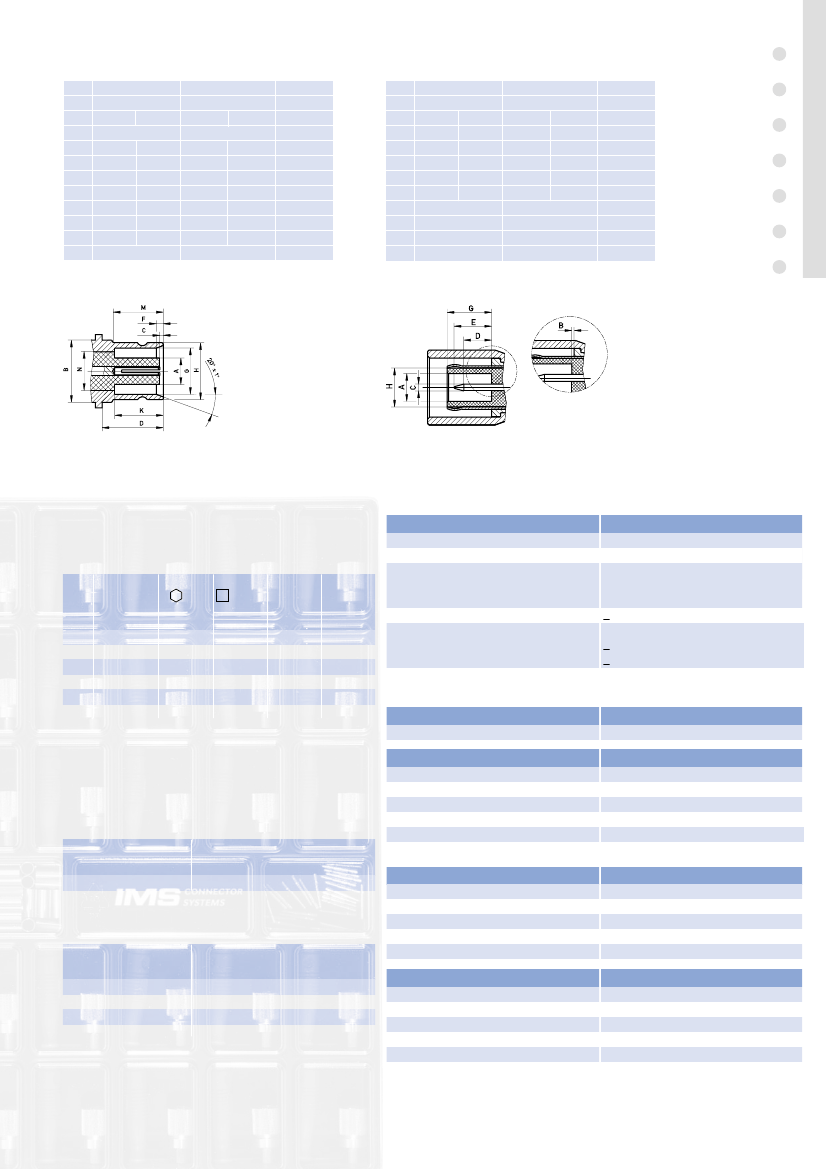

Convincing figures
2710.52.1420.0’5
mm
min.
A
B
C
D
F
G
H
K
M
N
0,25
9,7
0,9
6,6
8,1
6,7
7,0
5,6
7,5
1,1
6,69
8,25
max.
3,8
M 9 x 0,5
min.
inch
max.
0,150
M 9 x 0,5
0,0098
0,382
0,0354
0,2598
0,3189
0,264
0,276
0,295
0,220
0,0433
0,2634
0,3248
3/diam.
3/diam.
Note
3/diam.
2/5
A
B
C
D
E
G
H
6,4
0,97
3,9
min.
4,00
mm
max.
0,15
1,03
4,3
5,5
6,6
5,6
min.
0,157
inch
max.
0,0059
0,0382
0,1535
0,2520
0,220
0,0406
0,1693
0,217
0,2598
2/diam.
Note
2/diam.
Jack
Plug
Cable table
Second last digit in Part No indicates cable
group A-F
Type
Crimp size
Crimp size
Crimp
Crimp
hex
square
length
length
outer contact inner contact inner contact outer contact
in mm
in mm
in mm
in mm
Electrical Characteristics:
Impedance (MIL-C-39012B)
Operating frequency
Return-loss:
2 GHz
Higher frequency ranges
Insulation resistance
Contact resistance:
Centre contact
Outer contact
Operating voltage
Proof voltage
< 4 mOhm
< 2 mOhm
330 V / 50 Hz
1000 V / 50 Hz
26 dB (depending on Cablegroup)
on request
> 10 GOhm
75 Ohm
up to 8 GHz
A
B
C
D
E
F
Filotex 0.25
TZC 750 24
ST 212
Filotex 0.4
TR-SP.127
ST 214
2.95
4.52
3.65
4.60
5.41
6.50
1.2
1.2
1.2
1.2
*
1.2
2.00
2.00
2.00
2.00
2.00
2.00
9.50
9.50
9.50
9.50
9.50
9.50
Mechanical Characteristics:
Mating cycles
500
* The centre conductor must be crimped by 8 indent crimping,
using a tool with IMS Connector System Part No AGK 3052
Pos. 01 (M22520/2-01) and a positioner with IMS Connector
Systems Part No AGK 3052 Pos. 02 (M22520/2-06)
Environmental:
Working temperature range
Moisture resistance
Relative humidity
-40° C up to +125° C
MIL-STD-202, 10 cycles
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-STD-202
Crimptool + inserts
Crimp tool
Part No
AGK 2365
acc. MIL Std 22520/5
Shock
Vibration
Corrosion
Materials & Plating
Housing
Insulator
Centre contact
Spring loaded contact
Brass
PTFE / Peek
Brass
Bronze
CuBe
Crimp inserts
Part No
AGK 3068
AGK 3069
AGK 2728
AGK 2729
Spring basket
(mm)
1,2 / 2,95 / 4,6
1,2 / 3,65 / 6,5
4,52
5,41
Plating
Housing
Insulator
Centre contact
Spring loaded contact
Spring basket
Optalloy
–
Au
Au
Au
