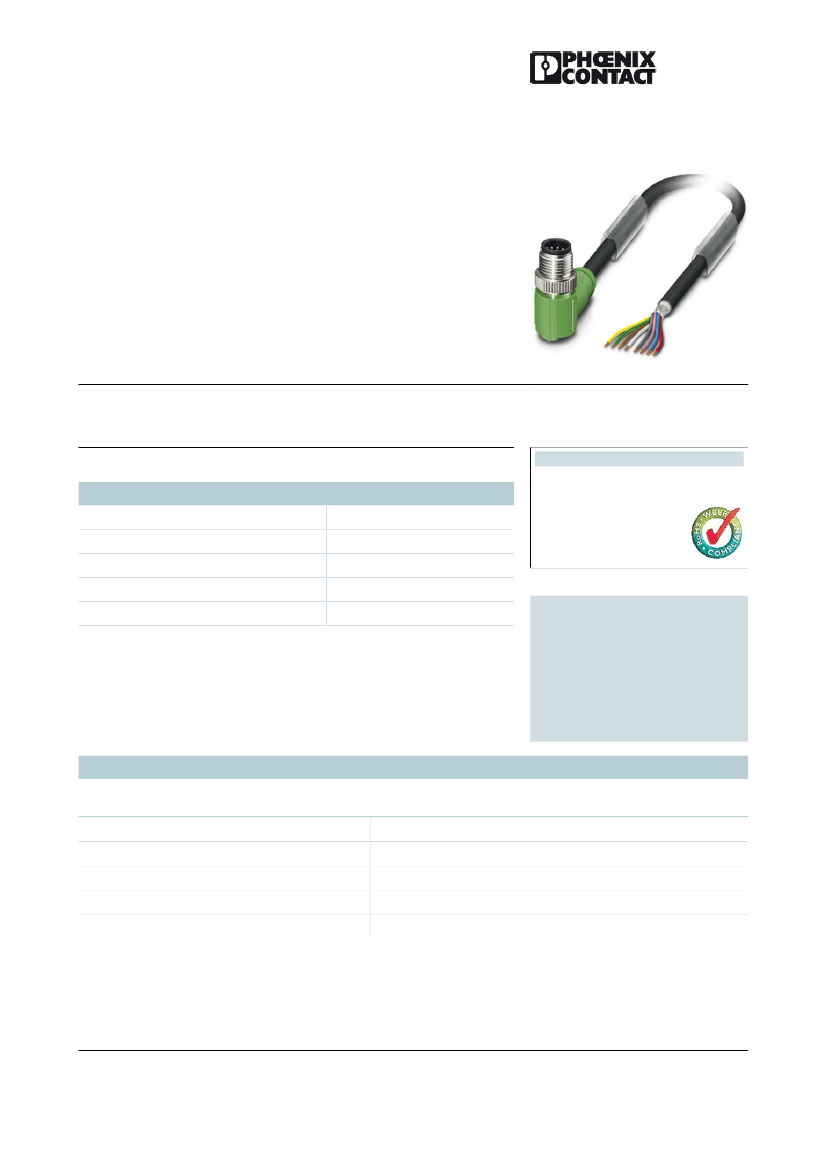

SAC-8P-M12MR/10,0-PUR SH
Order No.: 1522846
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1522846
Sensor/actuator cable, 8-pos., PUR halogen-free black, shielded,
angled M12 plug on free conductor end, cable length: 10 m
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918957636
1 pcs.
85444290
0.5502 KG
Page 95 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
06/03/2008
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
2A
30 V
8
≤ 5 mΩ
≥ 100 MΩ
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 5
Jul 6, 2009
SAC-8P-M12MR/10,0-PUR SH
Order No.: 1522846
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1522846
Length of cable
Ambient temperature (operation)
10 m
-25 °C ... 90 °C (plug/socket)
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Status display
Conductor data
Cable type
Conductor cross section
AWG signal line
Conductor structure, signal line
Core diameter including insulation
External cable diameter
Wire colors
External sheath, color
Outer sheath, material
Conductor material
Cable weight
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
PUR halogen-free black shielded
0.25 mm²
24
32 x 0.10 mm
1.17 mm ±0.02 mm
5.90 mm
Brown, white, green, yellow, gray, pink, blue, red
Black-gray RAL 7021
PUR
Bare Cu litz wires
54 kg/km
59 mm
59 mm
4000000
59 mm
10 m
3 m/s
A - standard
HB
II
3
IP65/IP67/IP69K
CuZn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
No
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 5
Jul 6, 2009
SAC-8P-M12MR/10,0-PUR SH
Order No.: 1522846
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1522846
Acceleration
Special properties
10 m/s²
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or
varnish
Flame resistance
Freedom from halogen
Resistance to oil
Other resistance
As per UL-Style 20549
As per DIN VDE 0472 part 815
complying with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Drawings

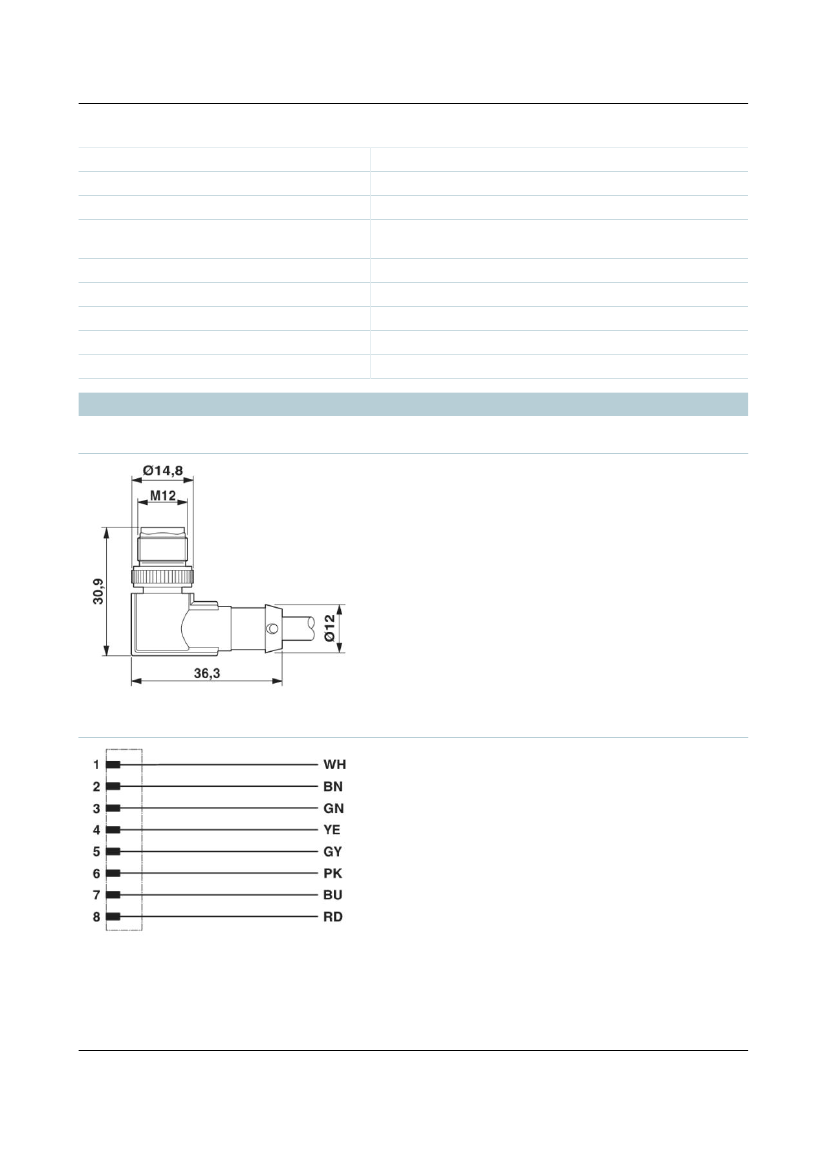

Dimensioned drawing
M12 x 1 male connector, angled, shielded
Circuit diagram
Contact assignment of the M12 plug
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 5
Jul 6, 2009
SAC-8P-M12MR/10,0-PUR SH
Order No.: 1522846
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1522846

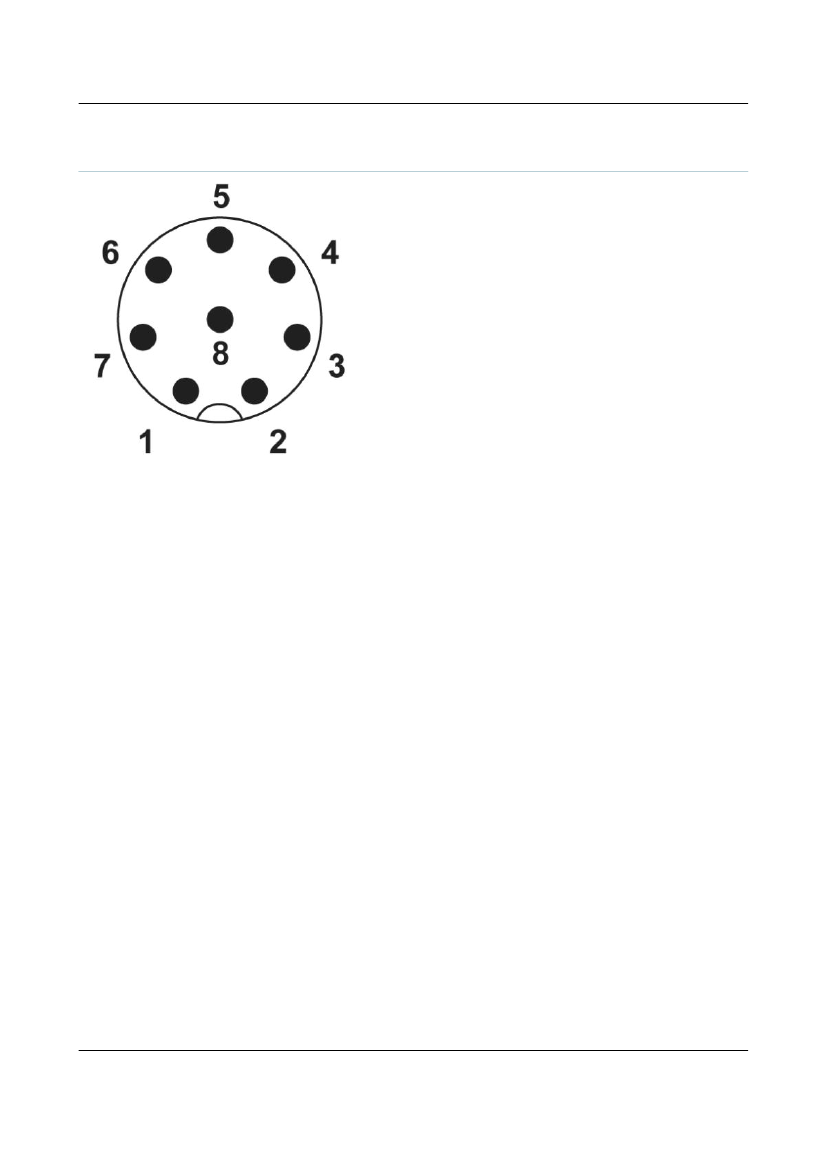

Schematic diagram
