LT1160IN#PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LT1160IN#PBF

LT1160IN#PBF: DescriptionIC PWR MOSFET DRIVER N-CH 14-DIP; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size105KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

LT1160IN#PBF Overview

IC PWR MOSFET DRIVER N-CH 14-DIP

LT1160IN#PBF Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	conform to
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Manufacturer packaging code	N
Reach Compliance Code	compliant
ECCN code	EAR99
high side driver	YES
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-PDIP-T14
JESD-609 code	e3
Humidity sensitivity level	1
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Nominal output peak current	1.5 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	3.809 mm
Maximum supply voltage	15 V
Minimum supply voltage	10 V
Nominal supply voltage	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	0.6 µs
connection time	0.5 µs
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

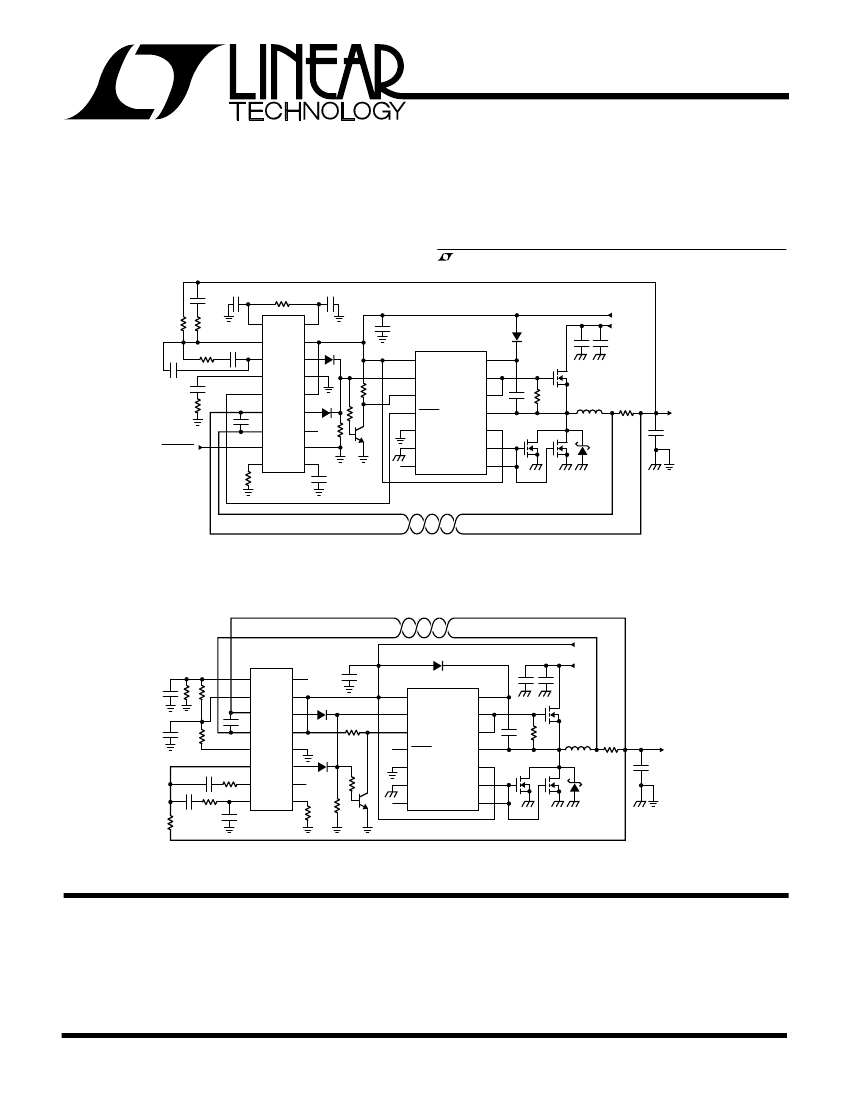

SPECIFICATION NOTICE

LT1160/LT1162

September 1996

The Typical Applications, Figures 4 and 5, in the

1160/LT1162

data sheet list an incrorrect

component part number. The following illustrations show the correct component part number in

bold

. For complete specifications, typical performance curves and applications information,

, LTC and LT are registered trademarks of Linear Technology Corporation.

please see the

LT1160/LT1162

data sheet.

0.1µF

4.7k

360Ω

0.1µF

4.7k

0.33µF

0.022µF

LT3526

2.2nF

f = 25kHz

1N4148

27k

2N2222

1N4148

LT1160

IN TOP

BOOST

T GATE DR

IRFZ44

MBR360

0.1µF

330k

70µH

0.007Ω

IRFZ44

1µF

10µF

1N4148

12V

60V MAX

2200µF EA

LOW ESR

1µF

510Ω

0.1µF

IN BOTTOM T GATE FB

UV OUT

SGND

PGND

T SOURCE

B GATE DR

B GATE FB

5400µF

LOW ESR

SHUTDOWN

* MAGNETICS CORE #55585-A2

30 TURNS 14GA MAGNET WIRE

** DALE TYPE LVR-3

ULTRONIX RCS01

1160/62 F04

Figure 4. 90% Efficiency, 40V to 5V 10A Low Dropout Voltage Mode Switching Regulator

12V

1N4148

LT1846

6800pF

100pF

500k

18k

4700pF

f = 40kHz

** DALE TYPE LVR-3

ULTRONIX RCS01

10k

2N2222

25k

1N4148

2200µF EA

LOW ESR

10µF

IN TOP

LT1160

BOOST

T GATE DR

60V

MAX

2.2µF

10k

IRFZ44

0.1µF

330k

47µH

0.007Ω

1µF

18k

0.1µF

IN BOTTOM T GATE FB

UV OUT

SGND

PGND

T SOURCE

B GATE DR

B GATE FB

IRFZ44

MBR360

5400µF

LOW ESR

* HURRICANE LAB

HL-KM147U

1160/62 F05

Figure 4. 90% Efficiency, 40V to 5V 10A Low Dropout Current Mode Switching Regulator

For further information regarding this specification notice contact:

Linear Technology Corporation

1630 McCarthy Blvd.

Milpitas, California 95035-7417

Attn: Product Marketing Manager

Phone: (408) 432-1900

LT1160IN#PBF Related Products

	LT1160IN#PBF	LT1160CS#PBF	LT1160CN#PBF	LT1160IS#TRPBF	LT1160CS#TRPBF	LT1160IS#PBF
Description	IC PWR MOSFET DRIVER N-CH 14-DIP	IC PWR MOSFET DRIVER N-CH 14SOIC	IC PWR MOSFET DRIVER N-CH 14-DIP	IC PWR MOSFET DRIVER N-CH 14SOIC	IC PWR MOSFET DRIVER N-CH 14SOIC	IC PWR MOSFET DRIVER N-CH 14SOIC
Brand Name	Linear Technology	Linear Technology	Linear Technology	Linear Technology	Linear Technology	Linear Technology
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	DIP	SOIC	DIP	SOIC	SOIC	SOIC
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	SOP,	SOP,	SOP, SOP14,.25
Contacts	14	14	14	14	14	14
Manufacturer packaging code	N	S	N	S	S	S
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
high side driver	YES	YES	YES	YES	YES	YES
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Nominal output peak current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.809 mm	1.75 mm	3.809 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
Minimum supply voltage	10 V	10 V	10 V	10 V	10 V	10 V
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	YES	NO	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	NOT SPECIFIED	30	30	30
Disconnect time	0.6 µs	0.6 µs	0.6 µs	0.6 µs	0.6 µs	0.6 µs
connection time	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs
width	7.62 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm
Encapsulate equivalent code	DIP14,.3	SOP14,.25	DIP14,.3	-	-	SOP14,.25
power supply	12 V	12 V	12 V	-	-	12 V
Base Number Matches	1	1	1	1	1	-
length	-	8.65 mm	-	8.65 mm	8.65 mm	8.65 mm
