KTPS18-15013MP-VI-P1 datasheet, PDF

Datasheet> All Categories > Power/power management> KTPS18-15013MP-VI-P1

KTPS18-15013MP-VI-P1: DescriptionAC/DC WALL MOUNT ADAPTER 15V 18W; CategoryPower/power management; File Size515KB，4 Pages; ManufacturerKAGA ELECTRONICS CO.,LTD; Websitehttp://www.volgen.com/; Environmental Compliance

Download Datasheet Parametric View All

KTPS18-15013MP-VI-P1 Overview

AC/DC WALL MOUNT ADAPTER 15V 18W

KTPS18-15013MP-VI-P1 Parametric

Parameter Name	Attribute value
Use area	internationality
form	Wall mounting
input type	Multiple inserts (included)
Voltage - input	100 ~ 240 VAC
Voltage - Output	15V
Current - Output (maximum)	1.3A
Power (W)	20W
No-load power consumption	-
polarization	positive center
application	ITE (Business)
efficiency	Class VI
Operating temperature	0°C ~ 40°C
Output connector	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm
size/dimensions	2.95" long x 1.41" wide x 2.58" high (75.0mm x 35.8mm x 65.6mm)
Approval	-
input connector	Multiple inserts
Wire length	59"（1.50m）
weight	-

Preview

Download Datasheet

View All

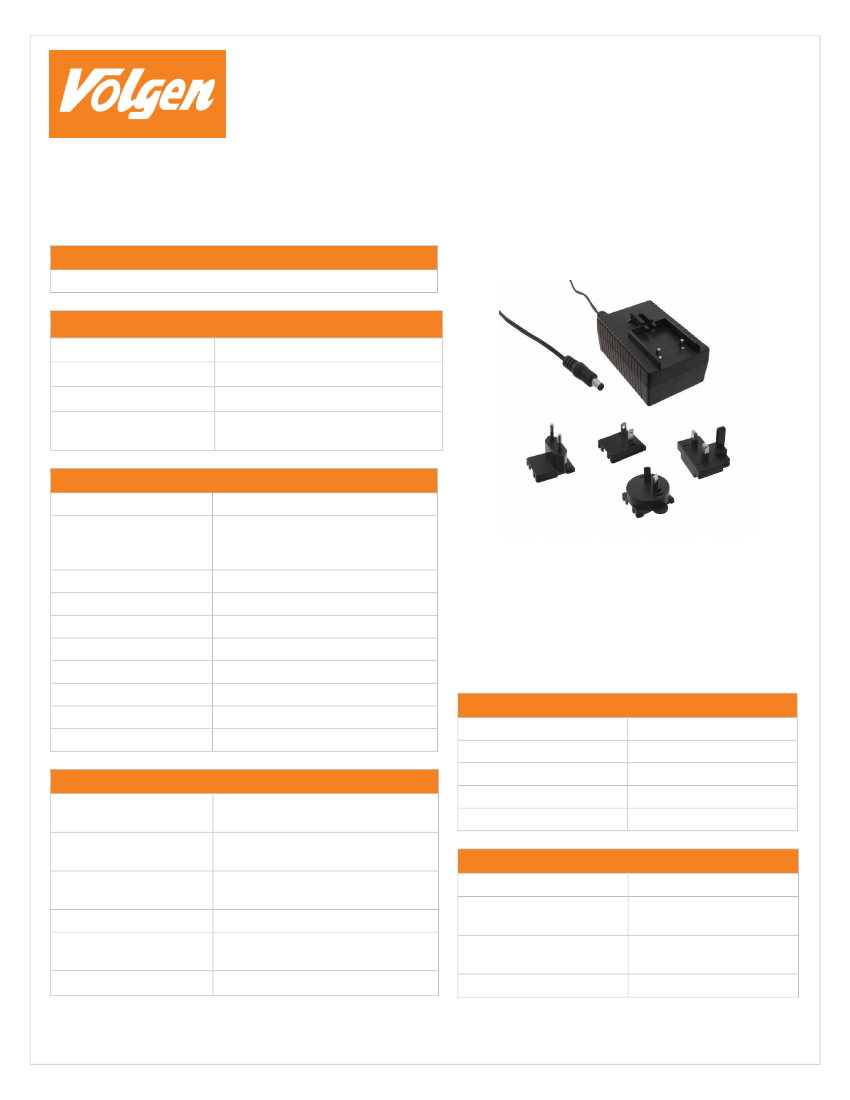

KTPS18 Series

DoE/CEC Level VI

18 Watt DoE/CEC Level VI

Universal Input, Wall-mount Adapters

With Interchangeable AC plug

INPUT SPECIFICATIONS

All specifications are typical at nominal input, full load.

INPUT SPECIFICATIONS

Input Voltage

Input Frequency

Input Current

Protection

AC 100 – 240VAC

50 – 60Hz

0.48A Max

Internal Primary Current Fuse

Inrush Limiting

OUTPUT SPECIFICATIONS

Output Voltage

Efficiency

See Chart

DoE/CEC Level VI, Energy Star,

ErP Stage 2, NRCan, GEMS

Level VI

Short Circuit Protection

Over Current Protection

Over Voltage Protection

Ripple

Hold-Up Time

Transient Response

Load Regulation

Leakage Current

1 - 2 % Vp-p (max)

10 mS (min)

0.5mS for 50% Load Change(typ)

± 5% (typ)

0.25mA @ 2 pin

FEATURES



DoE/CEC LEVEL VI

UNIVERSAL INPUT (AC100-240V)

OVER VOLTAGE PROTECTION

OVER CURRENT PROTECTION

SHORT CIRCUIT PROTECTION

ROHS COMPLIANT

Protection

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Storage Temperature

Cooling.

Operating Humidity

Storage Humidity

0°C~+40°C

-20°C ~ +80°C

Convection

20 – 80% Rh

10 – 90% Rh

GENERAL SPECIFICATIONS

MTBF(Calculated)

Dielectric Withstanding

Voltage

EMI

Conduction & Radiation

Harmonic Current

EMS Immunity

Safety Approvals

300,000 Calculated hours at 25°C

by Telcordia SR-332

3,000 VAC Primary – Secondary

MECHANICAL SPECIFICATIONS

Compliance to EN55022 Class B

Compliance to EN61000-3-2,3

Compliance to EN61000-4-

2,3,4,5,6,8,11

UL/cUL/CE/CB/GS/PSE/FCC/RCM

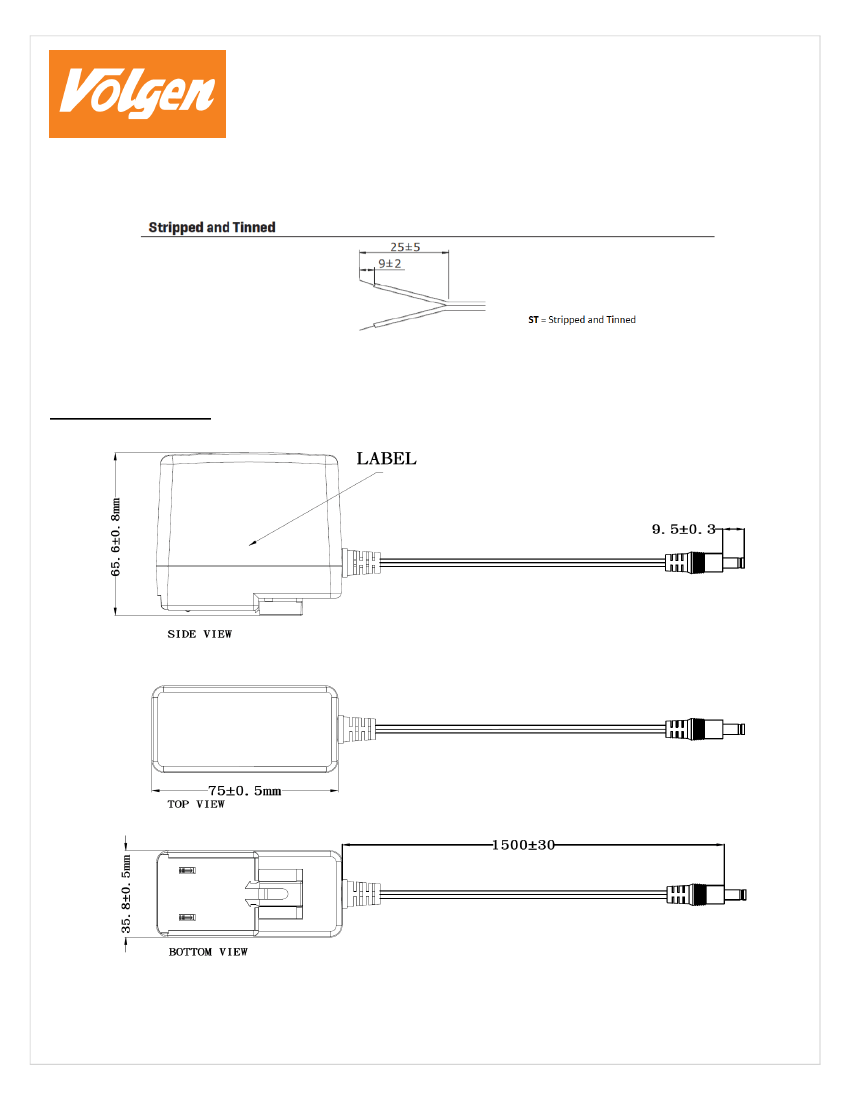

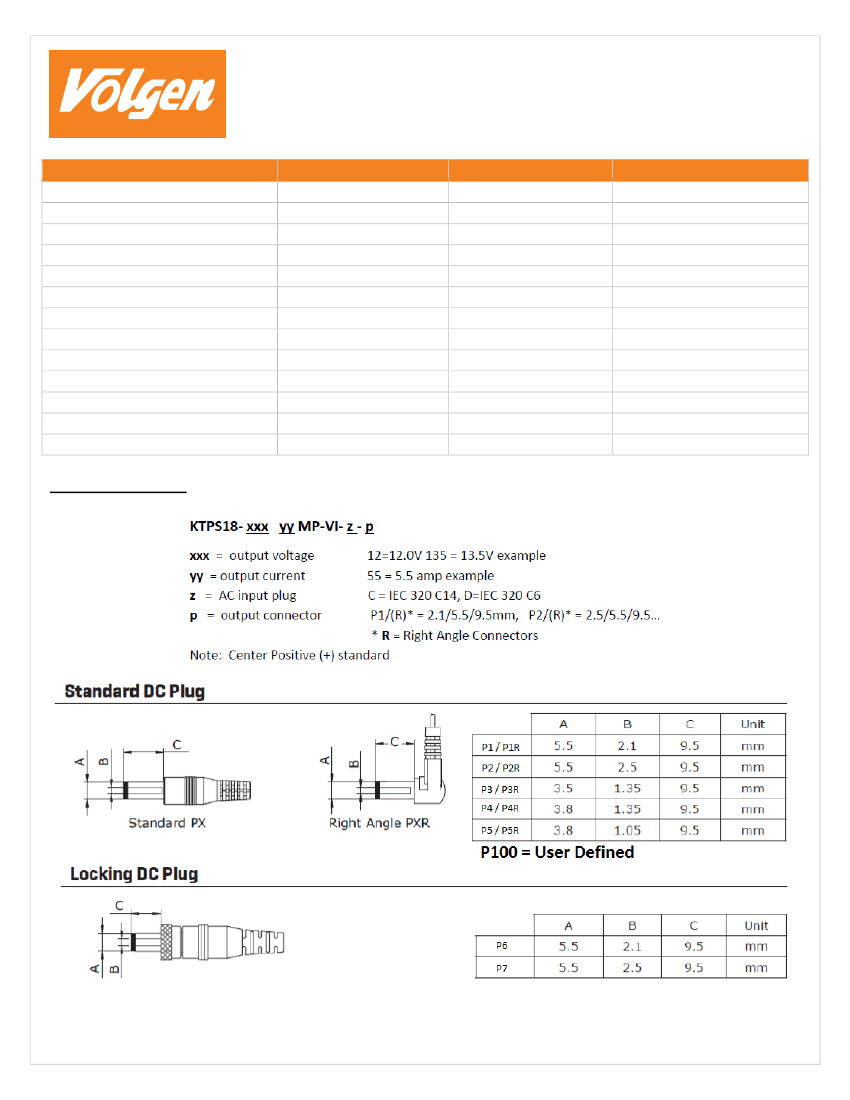

Case Dimension

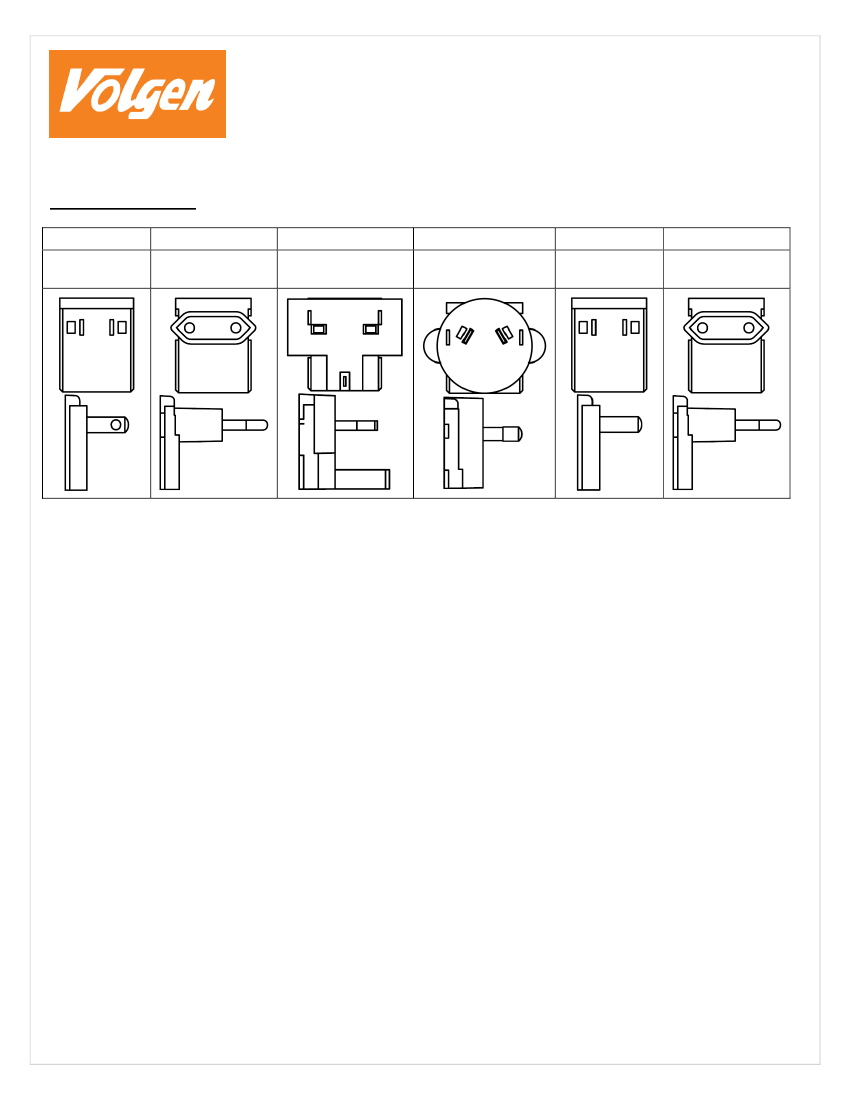

Available Input

Connectors

DC Cord

Output Connector

L75 x W36 x H66(mm)

USA, EU, UK, AUS,

CHN, KOR

18AWG

(Optional 20 & 22 AWG)

5.5 x 2.1 x 9.5 mm C+
