SACCBP-M12MSD-4CON-M16/1,0-933
Order No.: 1552353
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1552353
Bus system flush-type plug, PROFINET, 4-pos., M12, shielded, D-
coded, rear/screw mounting with M16 thread, with 1 m bus cable, 2 x 2
x 0.34 mm²
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
4046356162272
1 pcs.
85444290
0.1015 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
04/13/2007
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 3
Jul 6, 2009
SACCBP-M12MSD-4CON-M16/1,0-933
Order No.: 1552353
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1552353

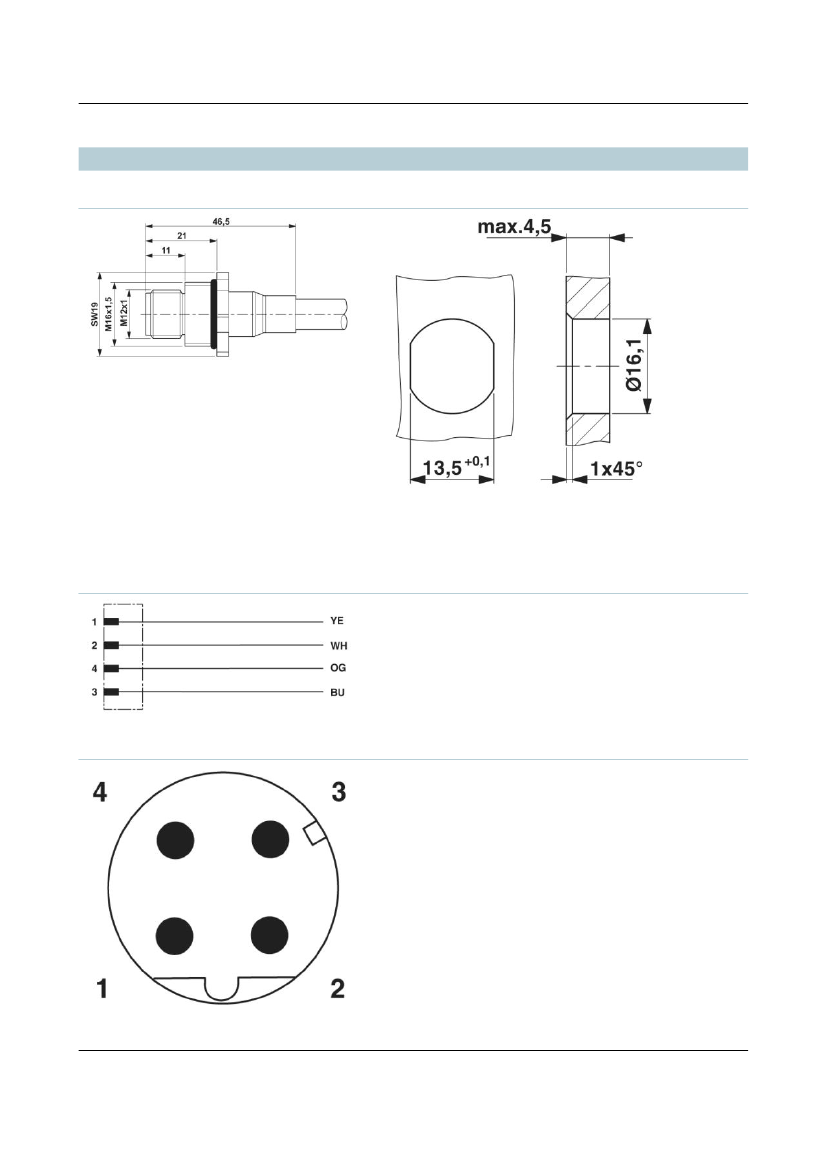

Drawings
Dimensioned drawing
M12 flush-type plug
Housing cutout for M16 fastening thread,
mounting panel with feed-through hole
(alternatively with surface as protection against
rotation)
Circuit diagram
Contact assignment of the M12 plug
Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side
