Darlington amplifier, with 13.5 dB typical gain and 18
dBm of output power. The input and output are fully
matched to 50 Ω with typical return loss >10 dB.
Third order linearity (OIP3) is typically 28 dBm and
reverse isolation is >21 dB. Functional operation is
achieved with a single bias voltage V
DD
, from +3 V
to +5 V.
An external resistor between V
DD
and pin 6 enables
single bias operation. No negative bias is necessary.
See DC Bias Operation table for external resistor
value selection.
The MAAM-011206 is housed in a leadless 1.5 x 1.2
mm plastic SMT package compatible with standard
pick and place assembly equipment. It is fabricated
using a GaAs process which features full passivation
for increased performance and reliability.
The device is well suited to diverse applications
such as LO drivers, gain blocks and RF driver
stages.
Pin Configuration
3,4
Pin #
1
2
3
4
5
6
Pin Name
RF
OUT
/ V
DD
N/C
RF
IN
N/C
N/C
V
B
Description
RF Output / Drain Bias
No Connection
3
RF Input
No Connection
3
No Connection
3
Bias Adjust
3. MACOM recommends connecting unused package pins to
ground.
4. The exposed pad centered on the package bottom must be
connected to RF, DC and thermal ground.
Ordering Information
1,2
Part Number
MAAM-011206-TR3000
MAAM-011206-SMB
Package
3000 Piece Reel
Sample Board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 3 loose parts.
1
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0009466
MAAM-011206
Broadband Darlington Amplifier
DC - 15 GHz
Electrical Specifications: T
A
= 25°C, V
DD
= +5 V, V
B 5
= 1.5 V , Z
0
= 50
Ω
Parameter
Test Conditions
1 GHz
6 GHz
12 GHz
15 GHz
0.1 - 15 GHz
0.1 - 15 GHz
0.1 - 15 GHz
1 GHz
6 GHz
12 GHz
15 GHz
1 GHz
6 GHz
12 GHz
15 GHz
P
IN
= 6.5 dBm
1 GHz
6 GHz
12 GHz
15 GHz
P
IN
= -5 dBm/tone, 1 MHz tone spacing
1 GHz
6 GHz
12 GHz
15 GHz
—
Units
Min.
—
11.5
9.5
—
—
—
—
Typ.
15.0
13.5
11.0
10.0
22
15
15
4.0
4.5
6.0
7.0
19.0
20.0
18.0
16.0
20.0
18.0
16.0
15.5
28.0
28.0
27.5
27.0
72
Max.
Rev. V2
Gain
dB
—
Isolation
Input Return Loss
Output Return Loss
dB
dB
dB
—
—
—
Noise Figure
dB
—
—
Output P
SAT
dBm
—
—
Output Power
dBm
—
16.0
14.0
—
—
Output IP3
dBm
—
—
Bias Current
mA
—
—
5. For single voltage operation, refer to typical R
B
values and biasing information on pages 3 and 4.
2
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0009466
MAAM-011206
Broadband Darlington Amplifier
DC - 15 GHz
DC Bias Operation
Bias Adjust Using V
B
Pin 6 can be connected to a separate voltage source to achieve the desired I
DD
, not to exceed 120 mA. The
amplifier will be powered down by applying a V
B
of 0.2 V or less.
Rev. V2
Single Bias Operation
Connecting V
DD
to pin 6 with an external resistor R
B
enables single bias operation of the amplifier; see page 4
application information. The value of external resistor R
B
sets the desired current I
DD
. The following table shows
approximate performance at 6 GHz with different external resistor values.
V
DD
(V)
5
5
5
5
5
R
B
(Ω)
20000
11000
6800
4800
4000
I
DD
(mA)
26
34
47
62
72
Gain
(dB)
11
12
13
13
13
P
1dB
(dBm)
—
17
17
18
19
RL (I/O)
(dB)
13
15
17
17
18
The following table shows drain current (I
DD
) versus external resistor (R
B
) values for V
DD
voltages of 5 V & 3.3 V:
V
DD
= 3.3 V
R
B
(Ω)
8000
5000
3200
2500
2200
1900
1600
1500
1400
1300
I
DD
(mA)
14
17
24
32
37
45
55
59
64
70
R
B
(Ω)
30000
20000
11000
8500
6800
5500
4800
4500
4000
—
V
DD
= 5 V
I
DD
(mA)
23
26
34
40
47
55
62
65
72
—
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0009466
MAAM-011206
Broadband Darlington Amplifier
DC - 15 GHz
Absolute Maximum Ratings
6,7
Parameter
Input Power
Operating Voltage
Junction Temperature
8,9
Operating Temperature
Storage Temperature
Absolute Maximum
15 dBm
7V
+150°C
-40°C to +85°C
-65°C to +150°C
Rev. V2
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these devices.
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. MACOM does not recommend sustained operation near these
survivability limits.
8. Operating at nominal conditions with T
J
≤ +150°C will ensure
MTTF >1 x 10
6
hours.
9. Junction Temperature (T
J
) = T
C
+
Ө
JC
* (V * I)
Typical thermal resistance (Ө
JC
) = 90°C/W.
a) For T
C
= +25°C,
T
J
= 57°C @ 5 V, 72 mA
b) For T
C
= +85°C,
T
J
= 121°C @ 5 V, 80 mA

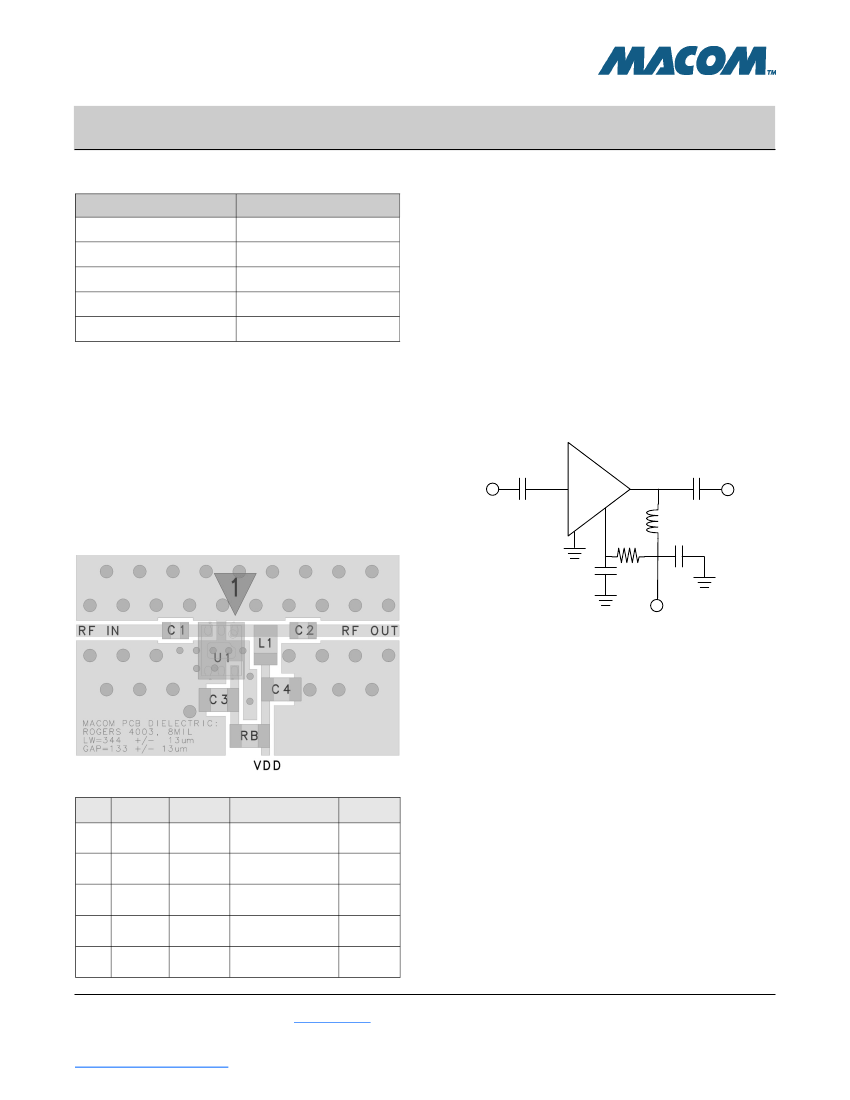

Application Schematic
C1
3
6
2,4,5,7
R
B
1
L1
C4
C2
RF
IN
RF
OUT
Recommended PCB Layout
C3
V
D
Grounding
It is recommended that the total ground (common
mode) inductance not exceed 0.03 nH (30 pH). This
is equivalent to placing at least four 8 mil (200
μm)
diameter vias under the device, assuming an 8 mil
(200
μm)
thick RF layer to ground.
Parts List
Des
C1
C2
C3
C4
R
B
L1
U1
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0009466
Value
100 pF
1 µF
See bias
chart
470
Ω @
100
MHz
—
Size
0201
0402
0402
0402
1.5 x 1.2
mm
Part Number
Murata
GRM0335C1E101
Taiyo Yuden
LMK105BJ105
Various
Murata
BLM15GG471
MACOM
MAAM-011206
Purpose
DC
Block
DC
Bypass
DC bias
Choke
Gain Block
MAAM-011206
Broadband Darlington Amplifier
DC - 15 GHz
Typical Performance Curves: T
A
= 25°C, V
DD
= +5 V, R
B
= 4 kΩ, Z
O
= 50 Ω
Gain
30
25
20
Rev. V2
Return Loss
0
-5
S11
S22
S11 & S22 (dB)
0
2
4
6
8
10
12
14
16
-10
-15
-20
-25
-30
S21 (dB)
15
10
5
0
0
2
4
6
8
10
12
14
16
Frequency (GHz)
Frequency (GHz)
P1dB
30
25
20
15
10
5
0
P
SAT
30
25
20
15
10
5
0
P1dB (dBm)
0
2
4
6
8
10
12
14
16
P
SAT
(dBm)
0
2
4
6
8
10
12
14
16
Frequency (GHz)
Frequency (GHz)
OIP3
40
Noise Figure
8
20
Noise Figure (dB)
0
2
4
6
8
10
12
14
16
30
6
OIP3 (dBm)
4
10
2
0
0
0
2
4
6
8
10
12
14
16
5
Frequency (GHz)
Frequency (GHz)
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
