Preliminary Specification Sheet
GHXS050A060S‐D4
V
RRM
=600V
I
DAV
= 50A @T
C
= 125
0
C
Features
• SiC Schottky Diode
‐ Zero reverse recovery
‐ Zero forward recovery
‐ Temperature Independent switching behavior
‐ Positive temperature coefficient on V
F
• Low stray inductance
• High junction temperature operation
SiC SBD Anti-Parallel
Power Module
Applications
• Supplies for DC power equipment
• Rectifier for induction heating
• Welding equipment
• High temperature and rectifiers
Anti‐Parallel
Benefits
• Outstanding performance at high frequency
operation
• Low losses and Low EMI noises
• Very rugged and easy mount
• Direct mounting to heatsink (isolated package)
• Low junction to case thermal resistance
• Easy paralleling due to positive T
C
of V
F
• RoHS Compliant
Absolute Maximum Ratings
(T
j
=25
o
C unless otherwise specified)
Parameters
Maximum Reverse Voltage
Average Forward Current (per SBD)
Non‐repetitive Forward Surge Current
Operating Junction Temperature
Storage Temperature
Symbol
V
RRM
I
DAV
I
FSM
Conditions
T
C
= 25 C
T
C
= 150
0
C
t=8.3 ms, T
C
= 150
0
C
T=10 s, T
C
= 25
0
C
0
Specifications
600
134
50
250
1000
‐55 ~ 175
‐55 ~ 150
Units
V
A
A
A
A
0
0
T
j
T
STG
C
C
Electrical Characteristics
(T
j
=25
o
C unless otherwise specified)
Page 1 of 5
Rev. 1.2
12/29/2014
Preliminary Specification Sheet
Parameters
Maximum peak repetitive reverse
voltage
Maximum Reverse Leakage Current
per diode
Diode Forward Voltage
Total Capacitive Charge
Switching Time
Total Capacitance
Symbol
V
RRM
I
RM
V
F
Q
C
t
C
C
V
R
= 600V, T
j
= 25
0
C
V
R
= 600V, T
j
= 150 C
I
F
= 50A, T
j
= 25 C
I
F
= 50A, T
j
= 175
0
C
VR=600 V, IF<IF,max
dI
F
/dt = 200 A/s, T
j
= 175
0
C
V
R
= 1V, f = 1 MHz
V
R
= 300V, f = 1 MHz
V
R
= 600V, f = 1 MHz
0
0
GHXS050A060S‐D4
Conditions
Min
600
‐‐
‐‐
‐‐
‐‐
‐‐
‐‐
‐‐
‐‐
‐‐
Typ
‐‐
12.2
1455
1.6
2.5
100
‐‐
1900
185
167
Max
‐‐
100
‐‐
1.8
‐‐
‐‐
10
‐‐
‐‐
‐‐
Units
V
A
A
V
V
nC
ns
pF
pF
pF
Thermal and Package Characteristics
(T
j
=25
o
C unless otherwise specified)
Parameters
Junction to Case Thermal Resistance
Junction to Ambient Thermal
Resistance
Mounting Torque
Terminal Connection Torque
Package Weight
Isolation Voltage
Symbol
R
THJC
R
THJA
M
d
M
dt
W
t
V
ISOL
I
ISOL
< 1mA, 50/60Hz, t=1 min
2500
1.3
Conditions
Per Diode
Per Diode
Min
‐‐
‐‐
Typ
‐‐
‐‐
‐‐
32
V
Max
0.25
20
1.5
1.5
Units
0
0
C /W
C /W
N‐m
N‐m
g
Product Number and Pin Descriptions
Part Number
GHXS050A060S‐D4
Rating
600V,50A
Pin 1
Cathode 1
Pin 2
Anode 2
Pin 3
Cathode 2
Pin 4
Anode 1
Page 2 of 5
Rev. 1.2
12/29/2014
Preliminary Specification Sheet
GHXS050A060S‐D4

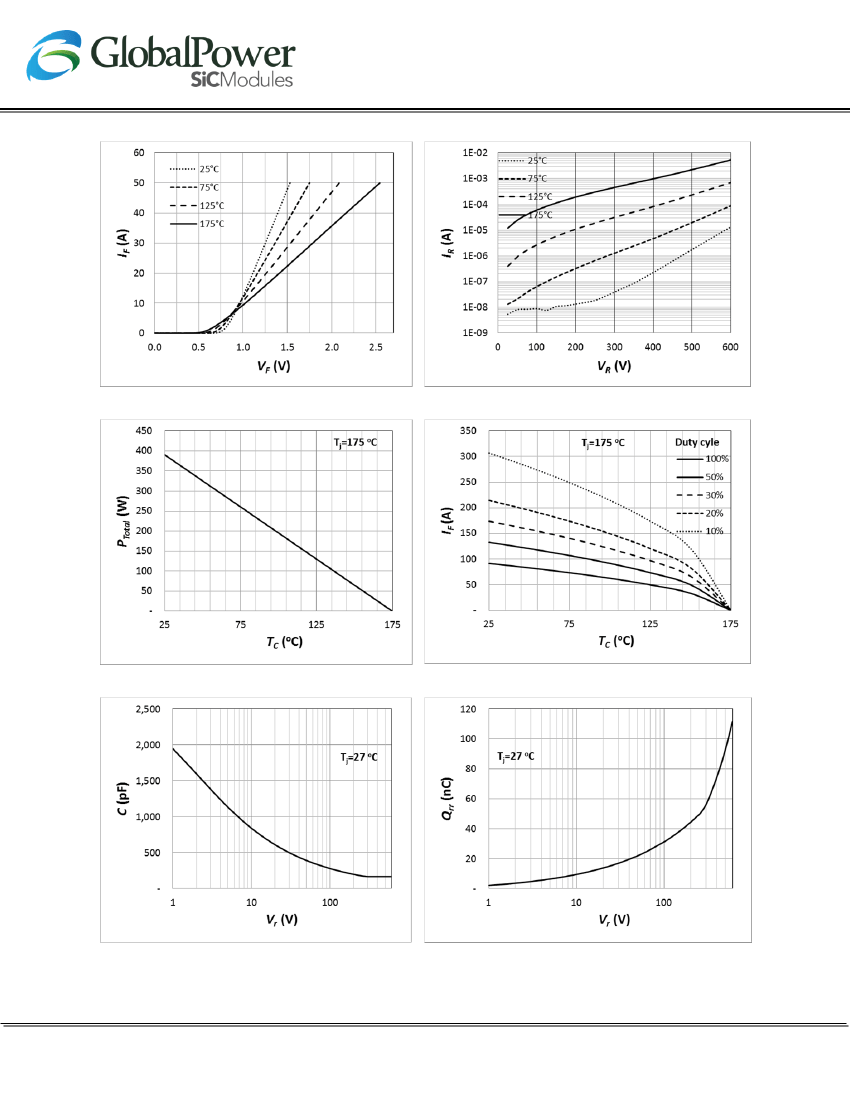

Forward Characteristics (parameterized on Tj)
Reverse Characteristics (parameterized on Tj)
Power Derating
Current Derating
Capacitance Curve
Recovery Charge
Page 3 of 5
Rev. 1.2
12/29/2014
Preliminary Specification Sheet
SOT-227 Package Outline
GHXS050A060S‐D4
Revision History
Date
9/6/2013
6/4/2014
12/29/2014
Revision
1.0
1.1
1.2
Notes
Initial release
Add the part number, pin assignment table.
Change the pin assignment table (swapped anode and cathode)
Global Power Technologies Group
20692 Prism Place
Lake Forest, CA 92630
TEL (949) 207-7500
FAX (949) 613-7600
E-mail:
info@gptechgroup.com
Web site: www.gptechgroup.com
Page 4 of 5
Rev. 1.2
12/29/2014
Preliminary Specification Sheet
Notes
•
GHXS050A060S‐D4
RoHS Compliance
The levels of RoHS restricted materials in this product are below the maximum concentration
values (also referred to as the threshold limits) permitted for such substances, or are used in
an exempted application, in accordance with EU Directive 2011/65/EC (RoHS2), as
implemented March, 2013. RoHS Declarations for this product can be obtained from the
Product Documentation sections of www.gptechgroup.com.
REACh Compliance
REACh substances of high concern (SVHCs) information is available for this product. Since
the European Chemi- cal Agency (ECHA) has published notice of their intent to frequently
revise the SVHC listing for the foreseeable future,please contact our office at GPTG
Headquarters in Lake Forest, California to insure you get the most up-to-date REACh SVHC
Declaration.
REACh banned substance information (REACh Article 67) is also available upon request.
This product has not been designed or tested for use in, and is not intended for use in,
applications implanted into the human body nor in applications in which failure of the product
could lead to death, personal injury or property damage, including but not limited to equipment
used in the operation of nuclear facilities, life-support machines, cardiac defibrillators or
similar emergency medical equipment, aircraft navigation or communication or control
systems, or air traffic control.
To obtain additional technical information or to place an order for this product, please contact
us. The information in this datasheet is provided by Global Power Technologies Group.
GPTG reserves the right to make changes, corrections, modifications, and improvements of
datasheet without notice.
•
•
•
Page 5 of 5
Rev. 1.2
12/29/2014
