EDU20WH-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> EDU20WH-X

EDU20WH-X: DescriptionPWR ENT RCPT NEMA5-20 BOX SCREW; CategoryThe connector; File Size576KB，3 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

EDU20WH-X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EDU20WH-X	-	-	View	Buy Now

EDU20WH-X Overview

PWR ENT RCPT NEMA5-20 BOX SCREW

EDU20WH-X Parametric

Parameter Name	Attribute value
Connector style	NEMA 5-20R
Connector type	socket, female socket
Current - IEC	-
Voltage - IEC	-
Current - UL	20A
Voltage - UL	-
filter type	Unfiltered - Commercial
fuse	none
Number of pins	(2) 3 positions per connection
Installation type	Outlet box
Termination	screws
switch function	-
characteristic	Install hardware
fuse holder, drawer	-
Panel opening size	-
Panel thickness	-
Material flammability rating	-
Intrusion protection	-
Approval	UL

Preview

Download Datasheet

View All

Pan-Way

LD Surface Raceway System

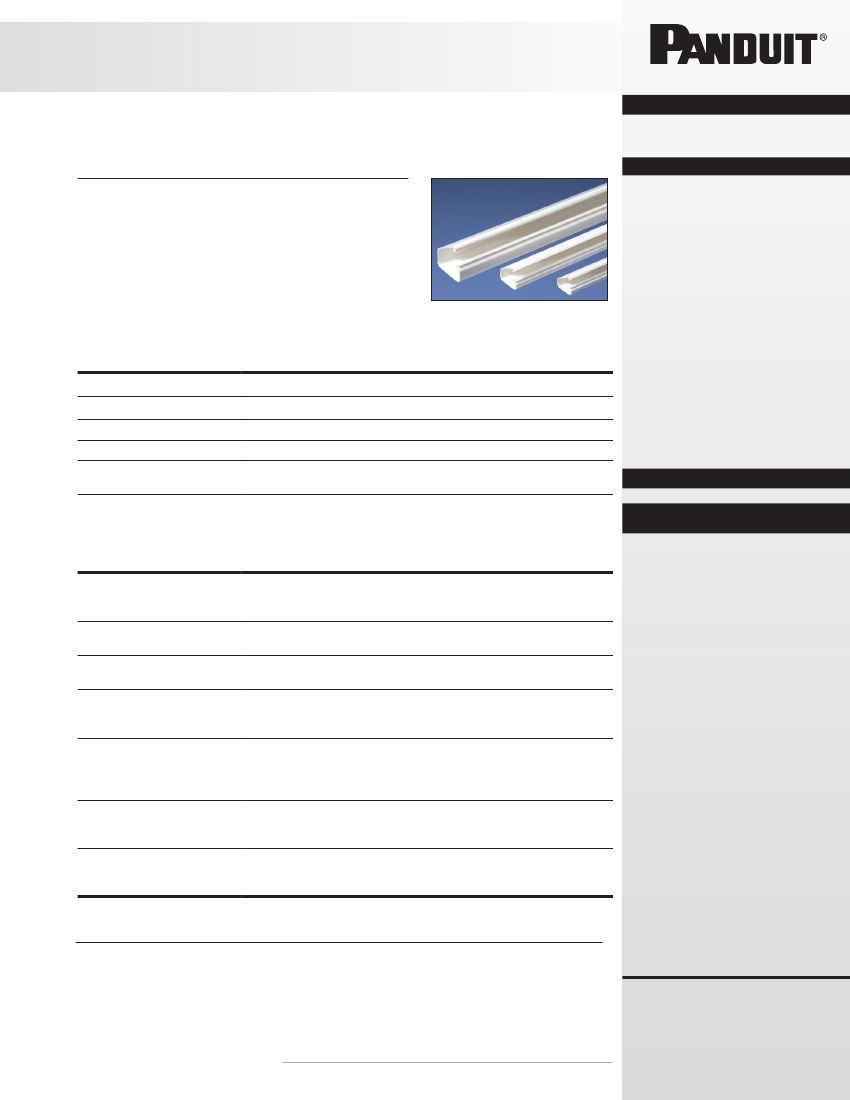

SPECIFICATION SHEET

LD Raceway

Raceway:

LD3IW**-A

LD5IW**-A

LD10IW**-A

specifications

LD non-metallic series low voltage, one-piece hinged design,

single channel surface raceway shall include adhesive backing

and shall be made of impact resistant material with a smooth

finish that shall not scratch, peel or corrode. The raceway shall

include an assortment of bend radius and standard fittings that

complement the offering to help route, protect and conceal low

voltage data, voice and video cabling. LD raceway shall be

available in three sizes and four standard colors that shall be

optimized with the Panduit

Pan-Net

communication system.

technical information

Material:

Flammability:

Capacity:

Voltage Rating:

Operating and

Storage Temperature:

Rigid PVC

UL94V-0; FT4

Single Channel

50V or less

0 to 50o C

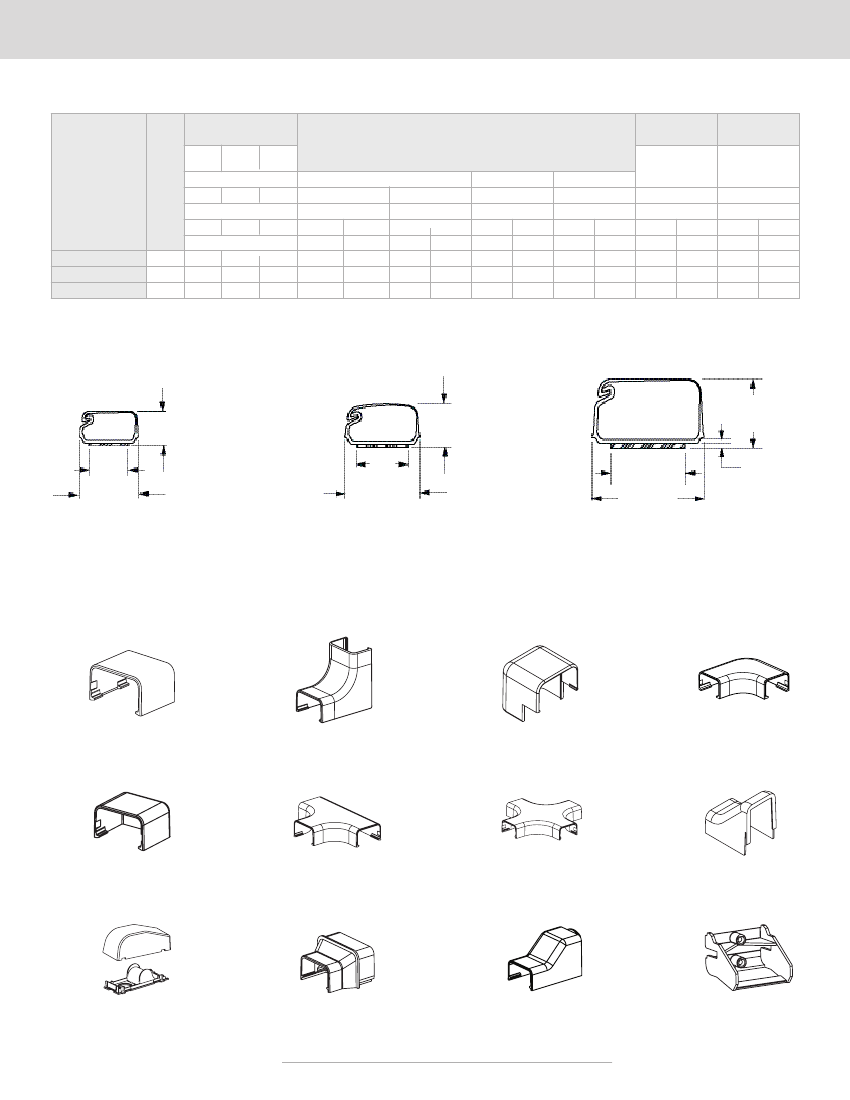

Raceway Fittings

Coupler:

CF*IW-E

Inside corner:

ICFC*IW-X

Outside corner:

OCFC*IW-X

Right angle:

RAFC*IW-X

End cap:

ECF*IW-X

Tee:

TFC*IW-X

Four-way cross:

CRFC5IW-X

Drop ceiling/

entrance end:

DCF*IW-X

Right angle/

entrance end:

RAEFXIW-X

LD5 to LD3

reducer:

RF5X3IW-E

LD10 to LD5

reducer:

RF10X5IW-X

LD10 to LD3

reducer:

RF10X3IW-X

LD5 fire box

adapter:

FBA5IW-X

LD10 fire box

adapter:

FBA10IW-X

LD Raceway Installation

Installation tool:

LDW*-V

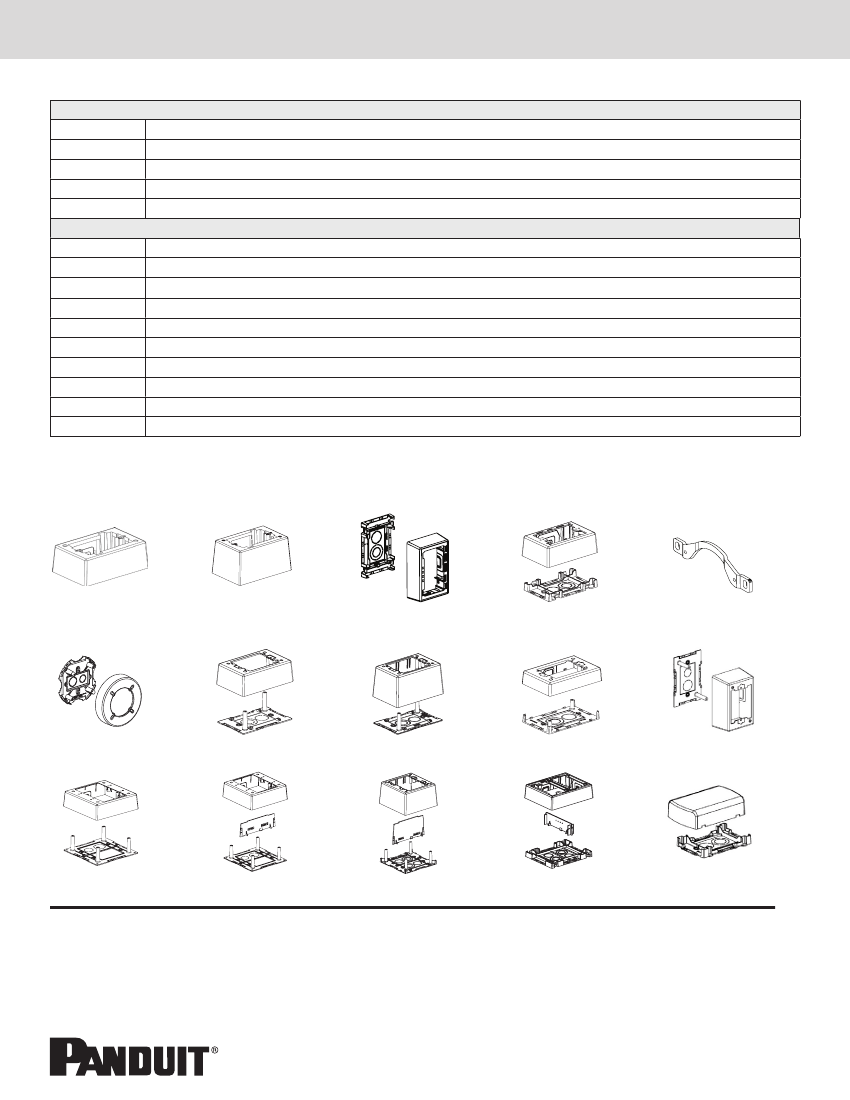

LD Raceway Surface Mount

Outlet/Junction Boxes

Low Voltage:

Single gang,

one–piece :

JB1IW-A

Single gang,

one-piece, deep:

JB1DIW-A

Single gang,

two-piece :

JBX3510IW-A

Single gang, two-piece,

fast snap:

JB1FSIW-A

In-wall box adapter:

JBA-X

Power rated:

Single gang,

two-piece:

JBP1IW

Single gang,

two-piece, deep:

JBP1DIW

Single gang,

two-piece, extension:

JBP1EIW

Single gang, two-piece,

intermediate:

JBP1IIW

Single gang, two-piece,

snap on:

JBP1FSIW

Single gang,

two-piece, round:

RJBX3510IW

Double gang,

two-piece:

JBP2IW

Double gang,

two-piece, deep:

JBP2DIW

Double gang,

two-piece, divided:

JBP2SIW

Double gang,

two-piece, snap on:

JBP2FSIW

* Insert raceway size of 3, 5, or 10

** Insert raceway length of 6’, 8’, or 10’

All parts listed in International White (IW) color.

To order other colors substitute Electrical Ivory

(EI), International Gray (IG), and White (WH).

key features and benefits

1" bend radius

control fittings:

Cables in the raceway will satisfy the minimum 1” bend radius

requirement, preventing the potential degradation of cable

performance; meets TIA/EIA standards

One-piece hinged design:

Cables can be laid into the raceway, speeding installation and

preventing damage to cables

Adhesive backing:

Available in different

sizes & lengths:

Non-metallic

construction:

Full length adhesive strip allows easy tool free installation and

works well for temporary mounting

Accommodates varying cable types and capacities.

Available sizes - LD3, LD5,LD10 ;

Available lengths - 6’,8’,10’ (2m length available in Europe only)

Lightweight, reducing installer fatigue and labor required to

install the raceway; solid color throughout will not chip, peel,

rust or corrode; easy to cut with standard saws and saw blades,

eliminating the need for special cutting devices

Available in four standard colors- IW,EI,IG,WH. AW available in

Europe only. Raceway is field paintable to match walls and

surrounding décor

Wide variety of fittings and surface mount boxes available for

various LD raceway applications

Distinct colors:

Full selection of

fittings and surface

mount boxes:

applications

Pan-Way

LD Surface Raceways are

designed to provide easy and economical

solutions for routing any low voltage cable

along smooth and clean perimeter walls,

baseboards or ceilings. This raceway is a

perfect solution for schools, hospitals, offices,

homes or anywhere a small, secure, low

profile raceway is needed.
