370-90-109-00-001000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 370-90-109-00-001000

Preview

370-90-109-00-001000: DescriptionCONN TURRET HDR; CategoryThe connector socket; File Size392KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

370-90-109-00-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	370-90-109-00-001000	-	-	View	Buy Now

370-90-109-00-001000 Overview

CONN TURRET HDR

370-90-109-00-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP9
Shell material	POLYETHYLENE
JESD-609 code	e0
Number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

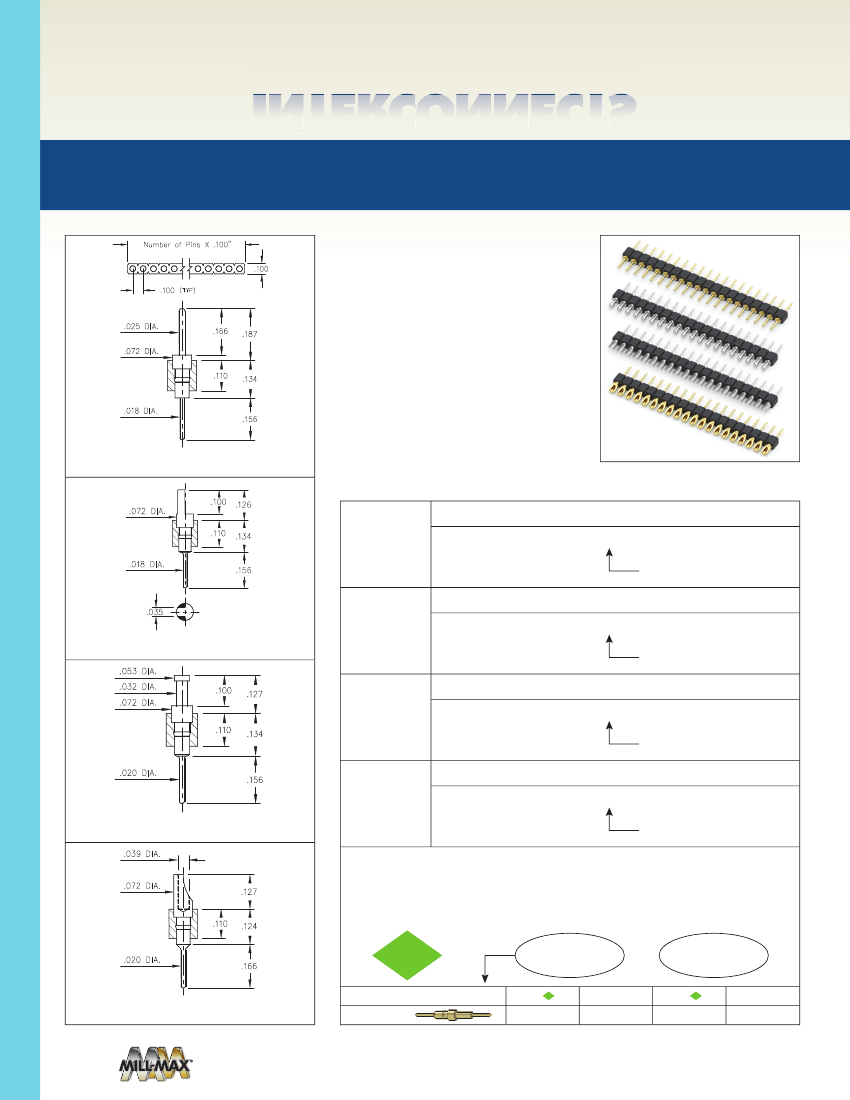

INTERCONNECTS

SERIES 350, 360, 370, 380 • .100” GRID SOLDER TAIL •

SINGLE ROW STRIPS

•

Series 350, 360, 370 & 380 single row header

strips come in various styles (pin, slotted,

head, turret and solder cup) with pluggable

solder tails

.025 DIA.

.072 DIA.

.110

.134

.166

.187

350...001 uses pin #0290

360...001 uses pin #0282

370...001 uses pin #0700

380...001 uses pin #8000

See pages 215 and 216 for details

.018 DIA.

.156

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

FIG. 1

.072 DIA.

.100

.126

ORDERING INFORMATION

Series 350...001

.025” / .018” Dia. Solder Tails

350 XX 1_ _ 00 001000

Specify number of pins

01-64

.134

.110

FIG. 1

Series 360...001

.018 DIA.

.156

.035

Slotted Head / Solder Tail

360 XX 1_ _ 00 001000

FIG. 2

.053 DIA.

.032 DIA.

.072 DIA.

.110

.100

.127

FIG. 2

Series 370...001

Specify number of pins

01-64

Turret / Solder Tail

370 XX 1_ _ 00 001000

FIG. 3

.134

Specify number of pins

01-64

.020 DIA.

.156

Series 380...001

Solder Cup / Solder Tail

380 XX 1_ _ 00 001000

FIG. 4

FIG. 3

.039 DIA.

Specify number of pins

01-64

PAGE 84 | INTERCONNECTS

.072 DIA.

.127

.110

.124

.020 DIA.

.166

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

10

µ”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

90

200

µ”

Sn/Pb

40

200

µ”

Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
