DK-1611-26-100/B datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> DK-1611-26-100/B

Preview

DK-1611-26-100/B: DescriptionCABLE MOD 8P8C PLUG-PLUG 100'; CategoryWire/cable; File Size88KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

DK-1611-26-100/B Overview

CABLE MOD 8P8C PLUG-PLUG 100'

DK-1611-26-100/B Parametric

Parameter Name	Attribute value
Cable type	round cable
Connector type	plug to plug
Installation type	free hanging
Number of pins/contacts	8p8c (RJ45, Ethernet)
length	100.00'（30.48m）
shield	No shielding
color	blue
characteristic	molded plug
style	Cat6

Preview

Download Datasheet

View All

Material:

• Conductor: 26AWG 7*0.16±0.015mm

• Conductor Insulation color coding: (1) White/Orange, (1) Orange, (1) White/Green,

(1) Green, (1) Blue, (1) White/Blue, (1) White/Brown, (1) Brown

• Cable jacket printing: CM (UL) C(UL) 4P 26AWG UTP CAT.6 PATCH CABLE

ISO/IEC 11801 & EN 50288 & ANSI/TIA-568-C.2

• Wiring T568B Color

• P1 & P2 Contact plug: RJ45 8P8C 3 pc UL 94V-2

• Cable tie: White

• Cable jacket color: Black, White, Blue, or Grey

• Dielectric strength: 2.5KV dc-2seconds

• Working temperatures: -20°C ~ +60°C

Order Code:

DK-1611-26-xxx/x

Order lengths in feet: 1,3,5,7,10,15,

20,25,50,100

Cable Jacket colors: Black(BL), White(WH),

Blue(B), Green(GR), or Grey(G)

Scale

X.

X.X

Free

±0.3

±X

±X°

TOL

Id.

Drawn

Modification

23.04.13

Date

Wilson

Replace

Name

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Date

23.04.13

Name

Wilson

Groll

Title

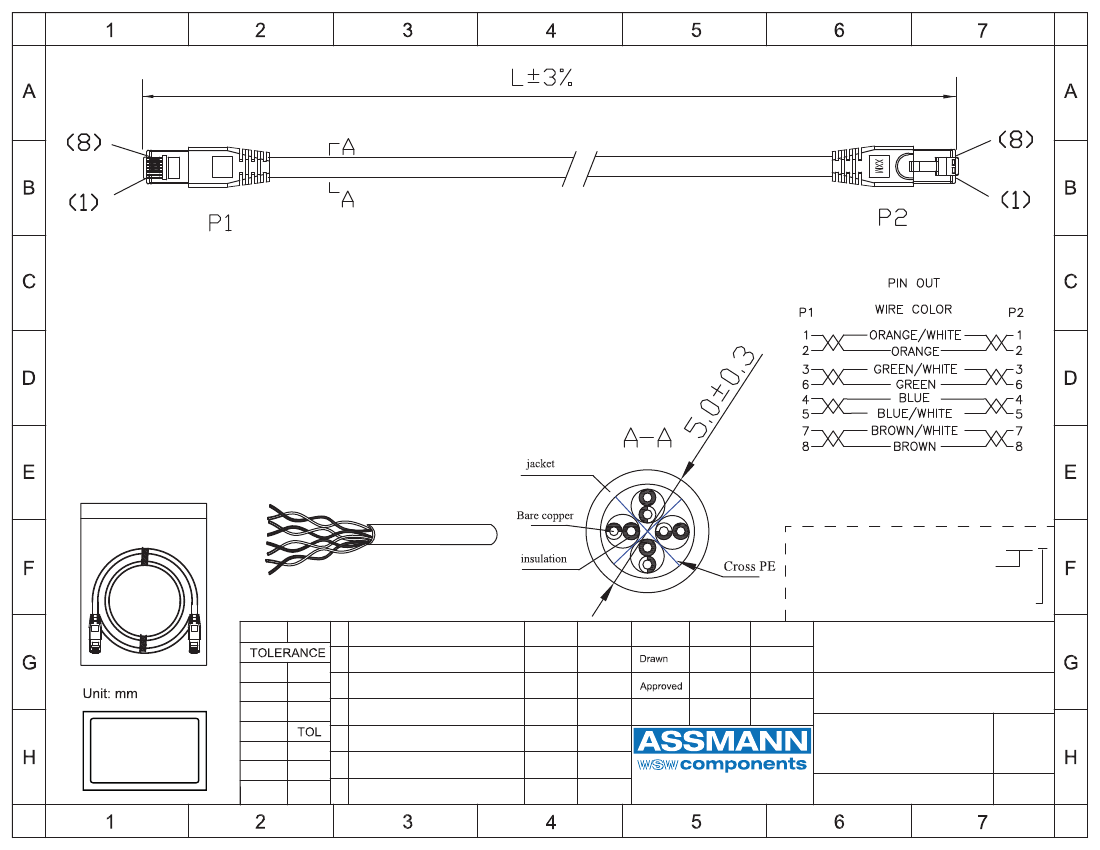

Cat6 UTP Patch cable

Unshielded/Booted, 26AWG, gold plating

ASSMANN WSW-No.

DK-1611-26-xxx/x

Drawing-No.

RoHS

Compliant

X.XX

DIM

X.°

X.X°

Angle

rev00

Sheet

1/1
