DWRT818SV23690 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DWRT818SV23690

DWRT818SV23690: DescriptionSLIMDWR 8P18S SKTV PCB AG SPEC; CategoryThe connector; File Size216KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DWRT818SV23690 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DWRT818SV23690	-	-	View	Buy Now

DWRT818SV23690 Overview

SLIMDWR 8P18S SKTV PCB AG SPEC

DWRT818SV23690 Parametric

Parameter Name	Attribute value
Connector usage	-
Connector type	socket, female socket
Connector style	drawer
Number of pins	26
Number of pins loaded	all
spacing	0.130"（3.30mm）
Number of rows	2
Number of columns	-
Installation type	Through hole
Termination	welding
Contact layout (typical)	18 signals, 8 power
characteristic	-
Contact plating	-
Contact plating thickness	-
color	black
Rated current	-
Material flammability rating	UL94 V-0
Operating temperature	-55°C ~ 105°C
Rated voltage	-

Preview

Download Datasheet

View All

CoolPower

Slim Drawer - DWR Series

www.amphenolacp.com

Amphenol CoolPower

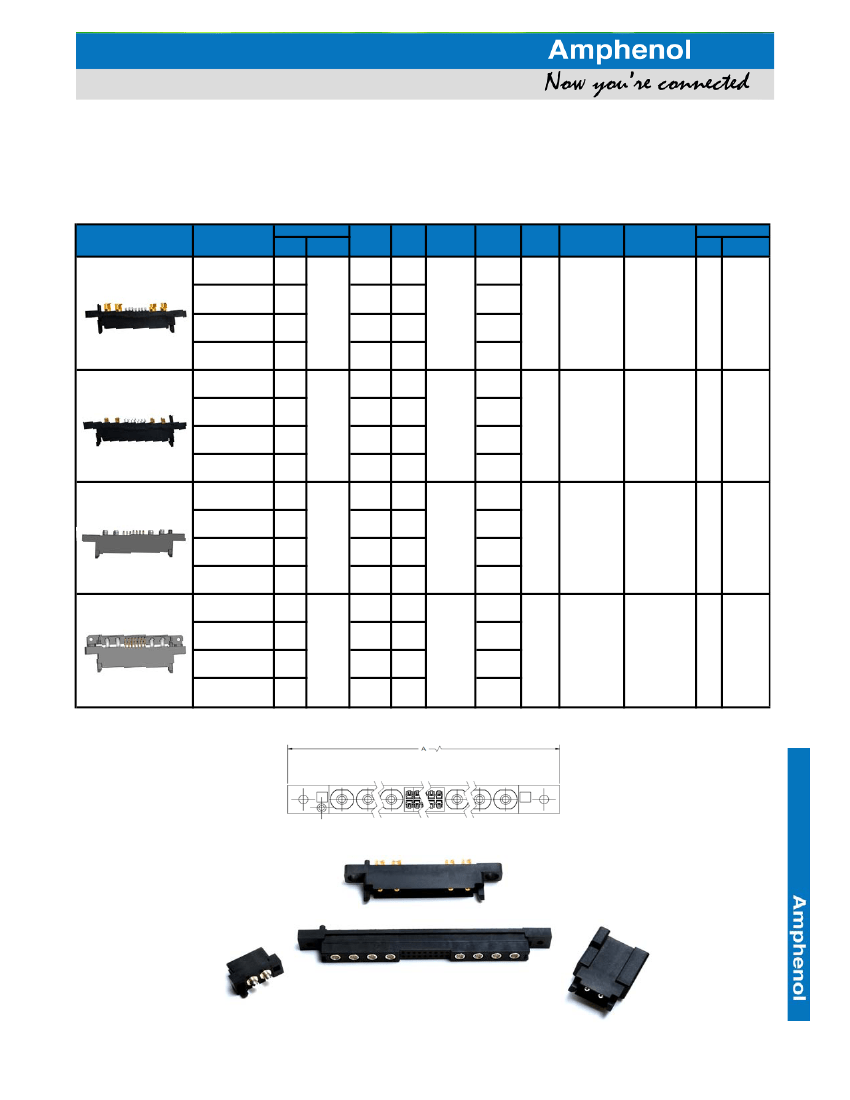

Slim Drawer connectors combine robust, high performance reliability with cost effective features critical in today's power applications. Slim Drawer connectors can

accommodate a variety of mixed power and signal contact arrangements to serve in a number of power supply and distribution applications. Slim Drawer key features include:

- Integrated alignment features for blind mating

- Design flexibility

- High current CoolBand contact technology (supports hot plug applications)

For more information, please refer to Product Specification S6031C or product family drawings

- Slim profile

- Optional sequential mating, AC and DC arrangements

- RoHS Compliant

Number of Contacts

Slim Drawer Connector

Part Number

Power

DWR-T2XXP-V21X-0X

Signal

Maximum

Dim. "A" *

Gender

Orientation

Contact

Options

CoolBand

Size #8

ø .138"

Current

Rating**

Termination

Contact Plating

Options

†

Mounting Options

††

PCB

Panel

4.074"

DWR-T2XXS-V21X-0X

00 to 40

4.794"

Socket

Vertical

DWR-T4XXP-V21X-0X

5.514"

CoolBand

Size #8

ø .138"

CoolBand

Size #8

ø .138"

Vertical

CoolBand

Size #8

ø .138"

CoolBand

Size #8

ø .138"

Vertical

CoolBand

Size #8

ø .138"

CoolBand

Size #8

ø .138"

CoolBand

Size #8

ø .138"

Up to

60A

Solder-cup

8 AWG Power

20 AWG Signal

2 = 15µ" Gold

3 = 30µ" Gold

6 = 200µ Silver

STD

0,1,2,4,6

DWR-T4XXS-V21X-0X

6.234"

Socket

DWR-T6XXP-V23X-0X

4.074"

DWR-T6XXS-V23X-0X

00 to 40

4.794"

Socket

PCB Solder Tail

Up to

60A

ø .148" Power

0.18" x 0.30" Signal

.150" Tail Length

DWR-T8XXP-V23X-0X

5.514"

2 = 15µ" Gold

3 = 30µ" Gold

6 = 200µ Silver

STD

0,1,2,4,6

DWR-T8XXS-V23X-0X

6.234"

Socket

DWR-T2XXP-V26X-0X

4.074"

DWR-T2XXS-V26X-0X

00 to 40

4.794"

Socket

Up to

60A

Press-Fit Tail

.150" Tail Length

DWR-T4XXP-V26X-0X

5.514"

2 = 15µ" Gold

3 = 30µ" Gold

6 = 200µ Silver

STD

0,1,2,4,6

DWR-T4XXS-V26X-0X

6.234"

Socket

DWR-T6XXP-V23X-XX

4.074"

DWR-T6XXS-V23X-XX

00 to 40

4.794"

Socket

Right

Angle

Up to

60A

PCB Solder Tail

ø .148" Power

0.18" x 0.30" Signal

DWR-T8XXP-V23X-XX

5.514"

2 = 15µ" Gold

3 = 30µ" Gold

6 = 200µ Silver

A,B

0,1,2,4,6

DWR-T8XXS-V23X-XX

6.234"

Socket

Pin (Male) connectors shown - Dim. "A" same for both genders

Silver plating option on Power-only (15µ" gold on signal contacts)

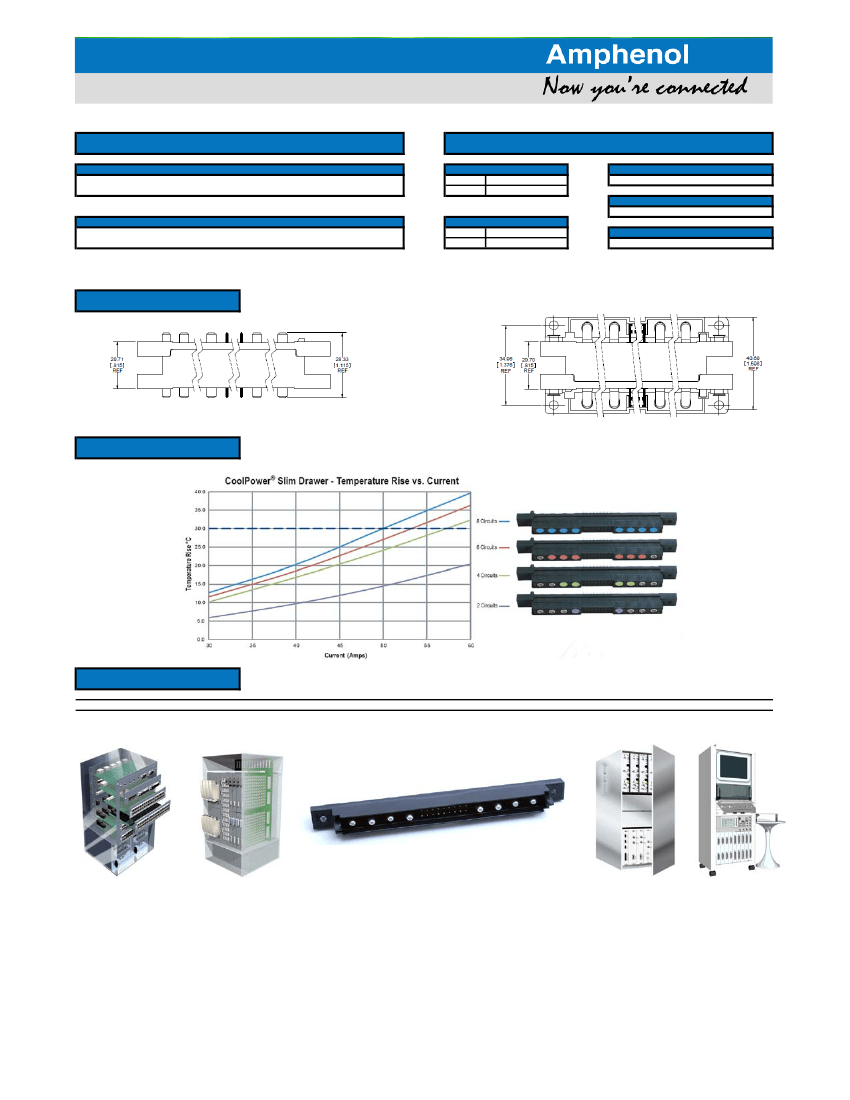

† Refer to T-rise vs. Current Rating Graph (rear side)

†† See rear side for Options

CoolPower

Slim Drawer

ACPSDHC11

DWRT818SV23690 Related Products

	DWRT818SV23690	DWRT200PV23693	DWRT818PV23690	DWRT818PV23691	DWRT200SV23692
Description	SLIMDWR 8P18S SKTV PCB AG SPEC	slimdwr 2P pinv screw AG	SLIMDWR 8P18S PINV PCB AG SPEC	SLIMDWR 8P18S PINV PCB AG SPEC	SLIMDWR 2P SKTV PCB AG SPEC
Connector type	socket, female socket	-	Plug, male pin	Plug, male pin	socket, female socket
Connector style	drawer	-	drawer	drawer	drawer
Number of pins	26	-	26	26	2
Number of pins loaded	all	-	all	all	all
spacing	0.130"（3.30mm）	-	0.130"（3.30mm）	0.130"（3.30mm）	-
Number of rows	2	-	2	2	-
Installation type	Through hole	-	Through hole	Through hole	Through hole
Termination	welding	-	welding	welding	welding
Contact layout (typical)	18 signals, 8 power	-	18 signals, 8 power	18 signals, 8 power	2 power supply
color	black	-	black	black	black
Material flammability rating	UL94 V-0	-	UL94 V-0	UL94 V-0	UL94 V-0
Operating temperature	-55°C ~ 105°C	-	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
