10 X 10 Die-Cast Enclosure Antennas
HD RooTenna
®
HD RooTenna
®
enclosuRe oFFeRs 900 To 5850 MHz opeRaTion opTions
The HD RooTenna
®
from Laird Technologies is an innovative antenna system which gives the
operator ultimate system flexibility. The die-cast enclosure is available as a stand-alone enclosure,
with an integrated low-gain antenna or with a detachable high-gain panel antenna. Antennas
are wide band for spectral flexibility.
Radomes are UV resistant ASA plastic. Hardware is stainless steel. The antenna systems come
with a pigtail cable with choice of connectors to adapt to any available radio equipment.
There is a removable and customizable user mounting plate inside for mounting electronics.
The antenna models come standard with Laird Technologies patented RJ45-ECS field
replaceable ethernet connector feedthru.
The die-cast enclosure can be pole or wall mounted. A heavy duty tilt bracket is available
for those installations requiring up or downtilt. Eleven (11) engineered knockouts are provided;
9 sized for N connectors and 2 sized for a cable feedthru.
FeaTuRes
•
11 engineered knockouts
•
Wide band antennas
• Rugged and weatherproof
•
Hinged cover for easy maintenance
•
IP 67 Rated
•
Integrated low gain or detachable high gain
antenna in variety of frequencies and gains
MaRkeTs
•
WiFi / WLAN / WiMAX systems
•
Industrial wireless
•
Mesh networks
•
Wi-POP base stations
•
Client antennas
•
Industrial wet process
electrical enclosure
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
10 X 10 Die-Cast Enclosure Antennas
Innovative
Technology
for a
Connected
World
HD RooTenna
®

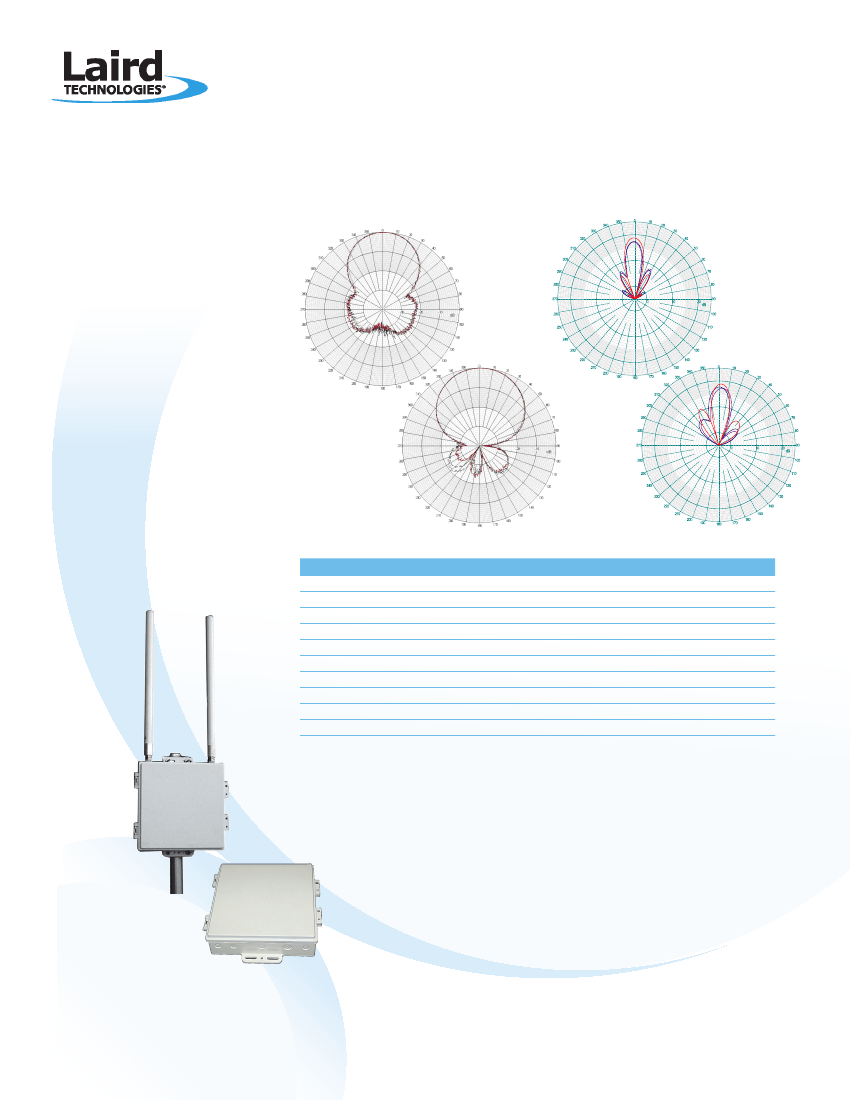

anTenna paTTeRns
900-928 MHz H Plane
2400 MHz H Plane
900-928 MHz E Plane
2400 MHz E Plane
SpecIfIcATIONS
Gain (integrated antenna)
Gain (detachable antenna)
VSWR
Impedance
Input power
Wind Survivability
Weight (die-cast enclosure)
Weight (detachable antenna)
Dimensions (inside)
Dimensions (outside)
Dimensions (detachable antenna)
900-928
8dBi
12dBi
1.5:1
2400-2700
15dBi
19dBi
1.5:1
50 OHM
100 W
Die-cast enclosure (150mph); Detachable antenna (125mph)
4.5lb (2kg)
3lb (1.4kg)
10" x 10" x 2" (254 x 254 x 51 mm)
12.3" x 11.5"x 3" (311 x 292 x 76 mm)
16.13" x 14.63" x 1.3" (410 x 371 x 32 mm)
sysTeM oRDeRinG inFoRMaTion
Dce10D-912-xxxx
Dce10D-2419-xxxx
Dce10l-985-xxxx
Dce10l-2416-xxxx
Dce10-H-001
HD RooTenna
®
enclosure with detachable 900-928MHz 12dBi panel antenna
HD RooTenna
®
enclosure with detachable 2400-2700MHz 19dBi panel antenna
HD RooTenna
®
enclosure with integrated 900-928MHz 8dBi panel antenna
HD RooTenna
®
enclosure with integrated 2400-2700Mhz 15dBi antenna
HD RooTenna
®
hinged die-cast enclosure only
(xxxx = connector type - Nf, SfMf, RSMM, McM, MMcXp, RTNM, RMMXp, SSMB and UfL)
ANT-DS-HD-ROO 0409
