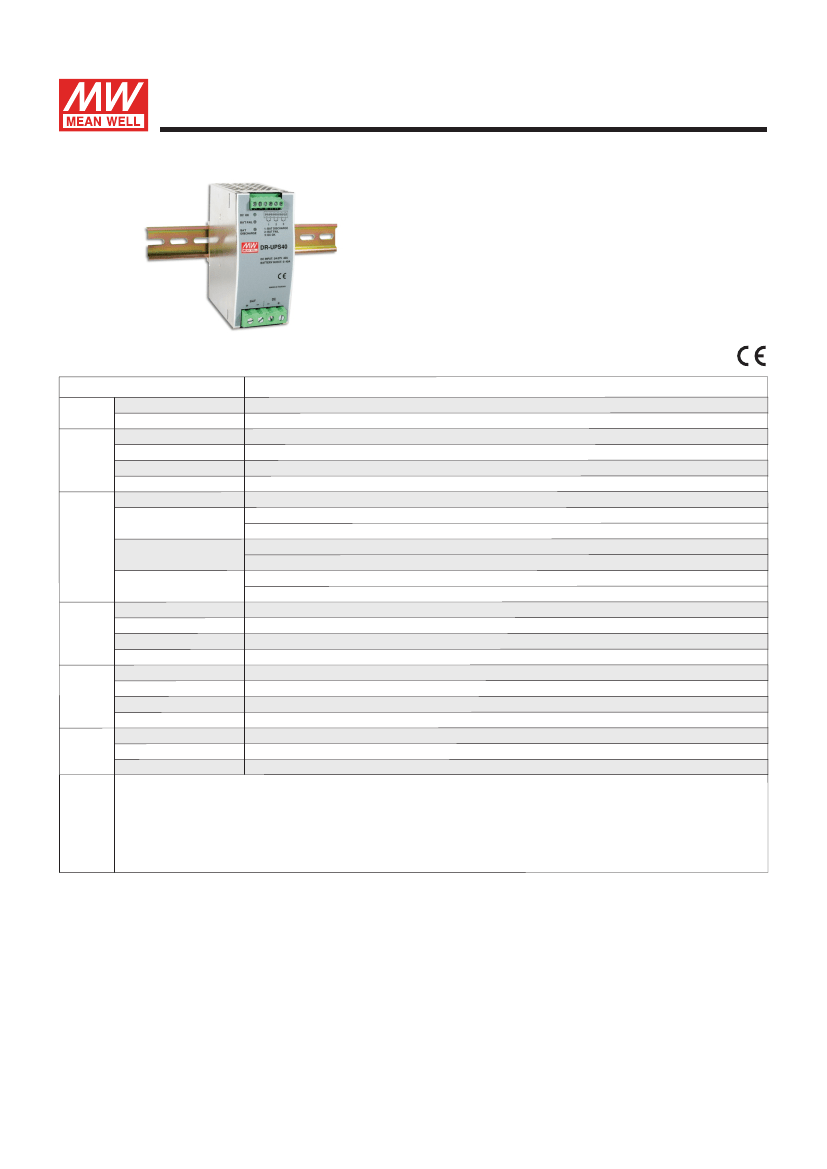

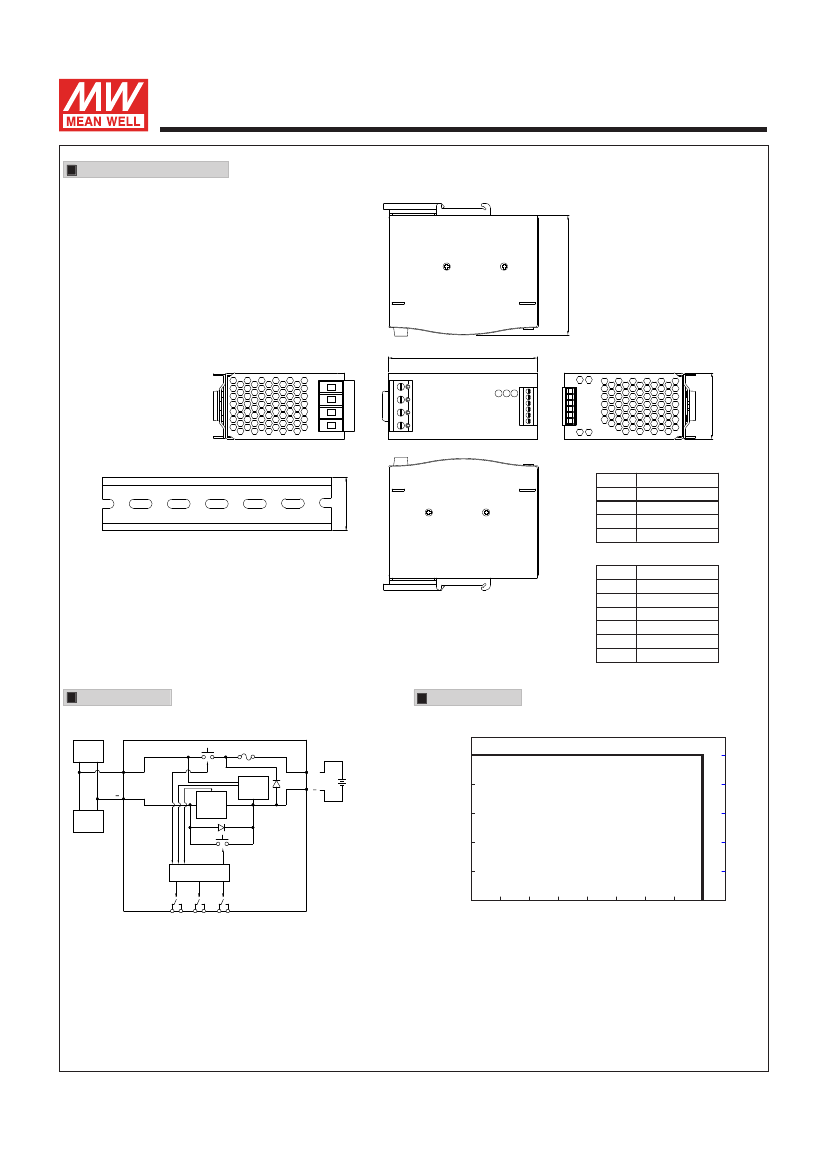

40A DC UPS Module

■

DR-UPS40

‧



‧



‧



‧



‧



‧



‧



‧



‧





SPECIFICATION

MODEL

DC INPUT / DC VOLTAGE (Typ.)

DC BUS

RATED CURRENT

BATTERY

INPUT /

OUTPUT

CURRENT RANGE

EXTERNAL BATTERY (Typ.)

DR-UPS40

Note.5

24 ~ 29V

40A

21 ~ 29V

0 ~ 40A

4 / 7 / 12AH / 24V

Relay contact : Short when DC voltage between 21~29V(

3%), relay contacts

LED(Green) : DC BUS OK : light ; DC BUS fail : dark

Note.2

VOLTAGE RANGE (Typ.)

CHARGE CURRENT (Typ.)

Note.4

RELAY CONTACT RATING (max.)

30VDC, 1A

DC BUS OK

FUNCTION BATTERY FAIL

BATTERY DISCHARGE

WORKING TEMP.

ENVIRONMENT

WORKING HUMIDITY

VIBRATION

Short when battery voltage falls below 21.9V(±3%) or battery failure is observed through the battery test function, relay contacts

LED(Red) : Battery over-discharge warning or battery broken : light ; Battery OK : dark

Relay contact : Short when battery in discharge condition, relay contacts

LED(Yellow):light : Battery discharging

；

dark : Battery is not discharging or discharging current<2.0A

-20 ~ +70℃

20 ~ 90% RH

Component : 10 ~ 500Hz, 2G 10min./1cycle, 60min. each X, Y, Z axes ; Mounting : Compliance to IEC600068-2-6

Terminal-Chassis :0.5KVAC, Relay Contacts-Terminal :0.5KVAC

Terminal-Chassis :>100M Ohms / 500VDC / 25℃/ 70% RH

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3

Compliance to EN61000-4-2,3,4,5,6,8

,11

, heavy industry level, criteria A

161.9K hrs min. MIL-HDBK-217F (25℃)

55.5*125.2*100mm (W*H*D)

0.55Kg; 20pcs/12Kg/1.29CUFT

STORAGE TEMP., HUMIDITY

-20 ~ +85℃, 10 ~ 95% RH

WITHSTAND VOLTAGE

SAFETY & ISOLATION RESISTANCE

EMC

EMC EMISSION

(Note 3)

EMC IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

℃















File Name:DR-UPS40-SPEC 2017-07-07
