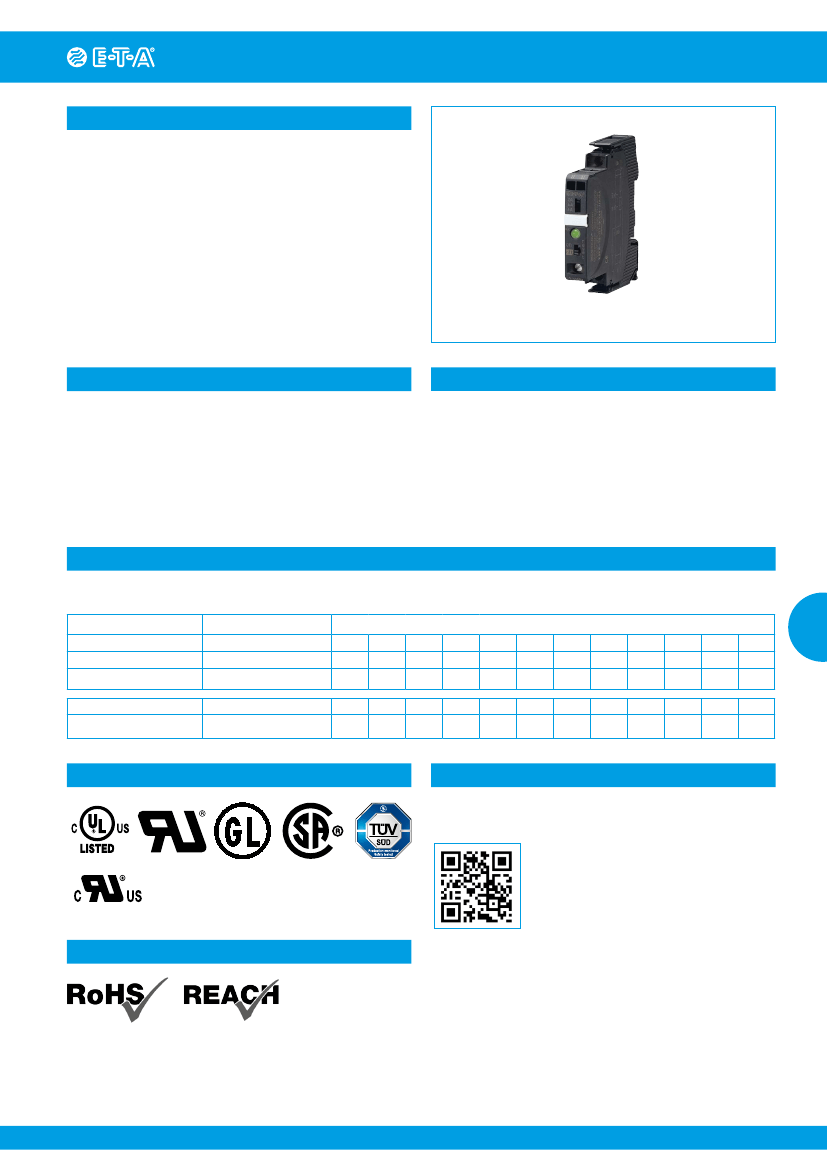

Electronic Circuit Protector ESX10-T.-DC 24 V

Description

E-T-A’s ESX10-T electronic circuit protector is only 12.5 mm wide and

selectively protects all DC 24 V load circuits, thereby increasing the

uptime of machines and systems. This is achieved by a combination

of active electronic current limitation in the event of a short circuit and

overload disconnection typically from 1.1 times rated current. The

ESX10-T responds faster than frequently used DC 24 V switch mode

power supplies without tripping fast and thus prevents disastrous

voltage dips of the supply. It works with a single trip curve for all loads.

Even capacitive loads up to 75,000 μF can be handled very easily.

Besides fixed current ratings from 0.5 A to 12 A, adjustable current

rating versions are also available. The integral fail-safe element (fuse)

is adjusted to the circuit protector’s rated current and can thus very

easily be synchronised with the wired cable cross section. This makes

planning much easier.

ESX10-TD

Features

Your benefits

Track-mountable

Active linear current limitation

Capacitive loads up to 75,000 μF

ESX10-TA/-TB: fixed current ratings 0.5 A…12 A

ESX10-TD: adjustable current ratings, e.g. [0,5 A / 1 A / 2 A];

[2 A / 4 A / 6 A]; [6 A / 8 A / 10 A]

Approvals: UL, CSA, GL

OPTION: Control inputs, signalling

OPTION: ATEX approval

Increases machine uptime through clear failure detection and

stable power supply

Reduces downtimes through quick fault resolution

Simplifies planning through clear sizes and ratings

Saves costs and time through fast and flexible mounting including

integral power distribution solution

Preferred types – for more details on all configurations please see order numbering code

Preferred types are E-T-A products most frequently used by E-T-A

customers. We manufacture E-T-A preferred types in particularly high

Preferred types

ESX10-TA/-TB

ESX10-TA-100-DC24V-

ESX10-TB-101-DC24V-

ESX10-TD

ESX10-TD-101-DC24V-

Short description

fixed current rating

without auxiliary contacts

auxiliary contact

“make contact”

adjustable current rating

auxiliary contact

“make contact”

Preferred ratings (A)

0.5

•

0.5

–

•

–

•

–

•

–

•

–

•

–

•

–

•

–

•

–

0.5/1/2 2/4/6

–

6/8/10

–

6/8/10

•

volumes. Our preferred types are supplied at shorter lead times than

non-standard versions.

0.5/1/2 2/4/6

•

Approvals

Information online

For access to the latest documents please follow:

http://www.e-t-a.de/qr1006/

Compliances

1822

www.e-t-a.de
