PL455ACWP-221 datasheet, PDF - EEWORLD Datasheet

PL455ACWP-221: DescriptionCONN 1553 TWIN PLUG STR CRIMP; CategoryThe connector; File Size399KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

PL455ACWP-221 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PL455ACWP-221	-	-	View	Buy Now

CONN 1553 TWIN PLUG STR CRIMP

Parameter Name	Attribute value
Connector style	1553, dual axis
Connector type	Plug, female socket, male pin (concentric)
Contact termination	crimp
Protective termination	crimp
impedance	non-constant
Installation type	free hanging
Installation features	-
cable set	Raychem 10614
Fastening type	latch lock
Frequency - maximum	2GHz
Number of ports	1
characteristic	Three soldering pieces
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 1 bushing, 1 heat shrink
Matrix material	brass
substrate surface	nickel
Center contact plating	gold
dielectric materials	-
Operating temperature	-65°C ~ 125°C
center contact material	copper beryllium
Rated voltage	900V
Number of patches	-
Insertion loss	-

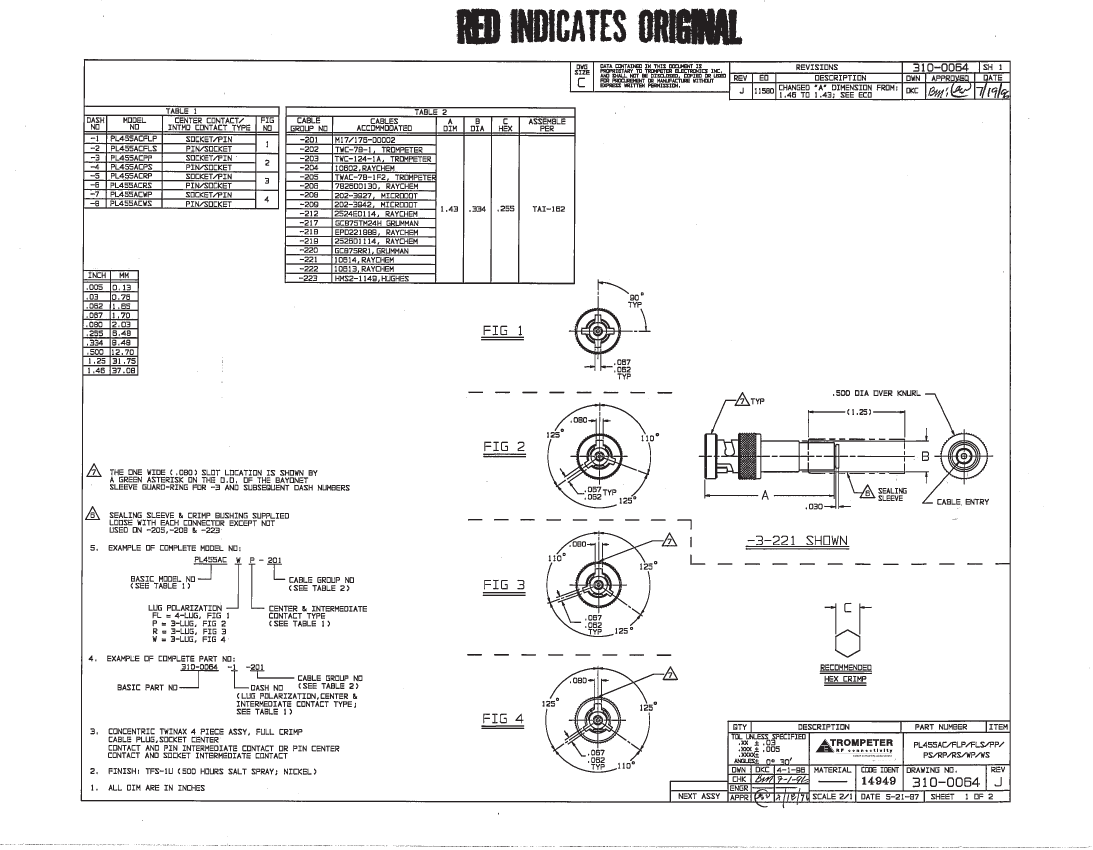

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	PL455ACWP-221	PL455ACFLP-221	PL455ACPS-201	PL455ACFLP-222
Description	CONN 1553 TWIN PLUG STR CRIMP	RF Connectors / Coaxial Connectors 1553 Twinax Pin Contact Full CRMP	CONN 1553 TWIN PLUG STR CRIMP	CONN 1553 TWIN PLUG STR CRIMP
Connector style	1553, dual axis	-	1553, dual axis	1553, dual axis
Connector type	Plug, female socket, male pin (concentric)	-	Plug, male pin, female socket (concentric)	Plug, female socket, male pin (concentric)
Contact termination	crimp	-	crimp	crimp
Protective termination	crimp	-	crimp	crimp
impedance	non-constant	-	non-constant	non-constant
Installation type	free hanging	-	free hanging	free hanging
cable set	Raychem 10614	-	M17/176-00002	Raychem 10613
Fastening type	latch lock	-	latch lock	latch lock
Frequency - maximum	2GHz	-	2MHz	2MHz
Number of ports	1	-	1	1
characteristic	Three soldering pieces	-	Three soldering pieces	Four ears
Shell color	silver	-	silver	silver
include	3 pieces - 1 connector, 1 bushing, 1 heat shrink	-	3 pieces - 1 connector, 1 bushing, 1 heat shrink	3 pieces - 1 connector, 1 bushing, 1 heat shrink
Matrix material	brass	-	brass	brass
substrate surface	nickel	-	nickel	nickel
Center contact plating	gold	-	gold	gold
Operating temperature	-65°C ~ 125°C	-	-65°C ~ 125°C	-65°C ~ 125°C
center contact material	copper beryllium	-	copper beryllium	copper beryllium
Rated voltage	900V	-	900V	900V
