NOTES:
1. MATERIALS AND FINISHES (PLATING THICKNESS IN MICROINCHES):
BODIES
- BRASS, NICKEL PLATING (100 MIN THICK)
COUPLING NUT
- BRASS, NICKEL PLATING (100 MIN THICK)
CONTACT
- BeCu, SILVER PLATING (200 MIN THICK)
REAR CONTACT
- PHOSPHOR BRONZE, SILVER PLATING (200 MIN THICK)
WASHER
- BRASS, NICKEL PLATING (100 MIN THICK)
OUTER CONTACT
- PHOSPHOR BRONZE, NICKEL PLATING (100 MIN THICK)
FERRULE
- COPPER, NICKEL PLATING (100 MIN THICK)
INSULATORS
- PTFE
GASKET
- SILICONE
HEAT SHRINK TUBING - CROSSLINKED POLYOLEFIN
2. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $C TO +165 $C
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF 31-5179, AND DATE CODE"
4. CABLE ASSEMBLY INSTRUCTIONS
A. TRIM CABLE AS SHOWN.
B. SOLDER CABLE CENTER CONDUCTOR TO CONTACT.
C. INSERT CABLE WITH PTFE INSULATOR ENTERING CONNECTOR AND BRAID OVER
KNURL.
D. CRIMP FERRULE WITH AMPHENOL TOOL 227-944 AND DIE SET 227-1221-11 CAVITY
A, .213" HEX DIE.
5. SHOWS CABLE ENTRY DIMENSIONS.
1.00 REF.
0.50 REF.
31-5179
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
--
C
RELEASE TO MFG.
DESCRIPTION
COD SHEET ADDED
9/20/13
------
DATE
------
49679
ECO
APPR
RAK
SCALE
1.500
1.103 REF.
0.536 REF.
0.437 REF.
TYP.(2)

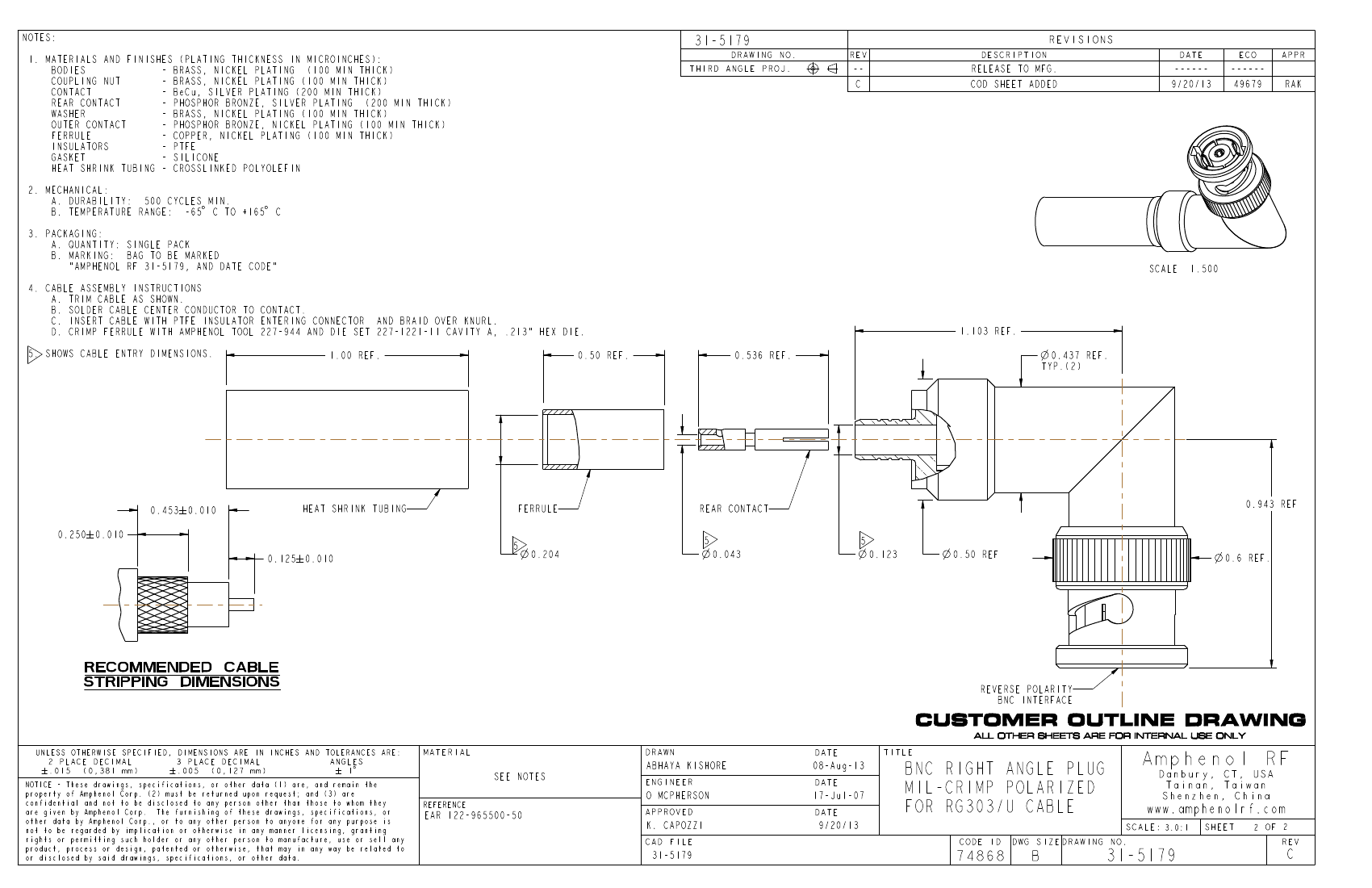

0.453 #
0.010
0.250 #
0.010
HEAT SHRINK TUBING
FERRULE
REAR CONTACT
0.943 REF
0.125 #
0.010
0.204
0.043
0.123
0.50 REF
0.6 REF.
RECOMMENDED CABLE
STRIPPING DIMENSIONS
REVERSE POLARITY
BNC INTERFACE
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
SEE NOTES
REFERENCE
ABHAYA KISHORE
O MCPHERSON
K. CAPOZZI
31-5179
08-Aug-13
17-Jul-07
DATE
DATE
DATE
TITLE
ENGINEER
APPROVED
CAD FILE
EAR 122-965500-50
9/20/13
BNC RIGHT ANGLE PLUG
MIL-CRIMP POLARIZED
FOR RG303/U CABLE
74868
CODE ID
Amphenol RF
www.amphenolrf.com
SCALE: 3.0:1
SHEET
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
2 OF 2
REV
DWG SIZE DRAWING NO.
B
31-5179
C
