AWH 50A-0222-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> AWH 50A-0222-T

AWH 50A-0222-T: DescriptionCONN HEADER 50POS R/A SHORT GOLD; CategoryThe connector; File Size107KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

AWH 50A-0222-T Overview

CONN HEADER 50POS R/A SHORT GOLD

AWH 50A-0222-T Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	50
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	Lock/eject hook, short
Contact Length - Mating	-
Contact length - terminal	0.150"（3.81mm）
Overall contact length	-
Insulation height	0.327"（8.30mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polybutylene terephthalate (PBT), glass fiber reinforced
characteristic	keyway
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	grey
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

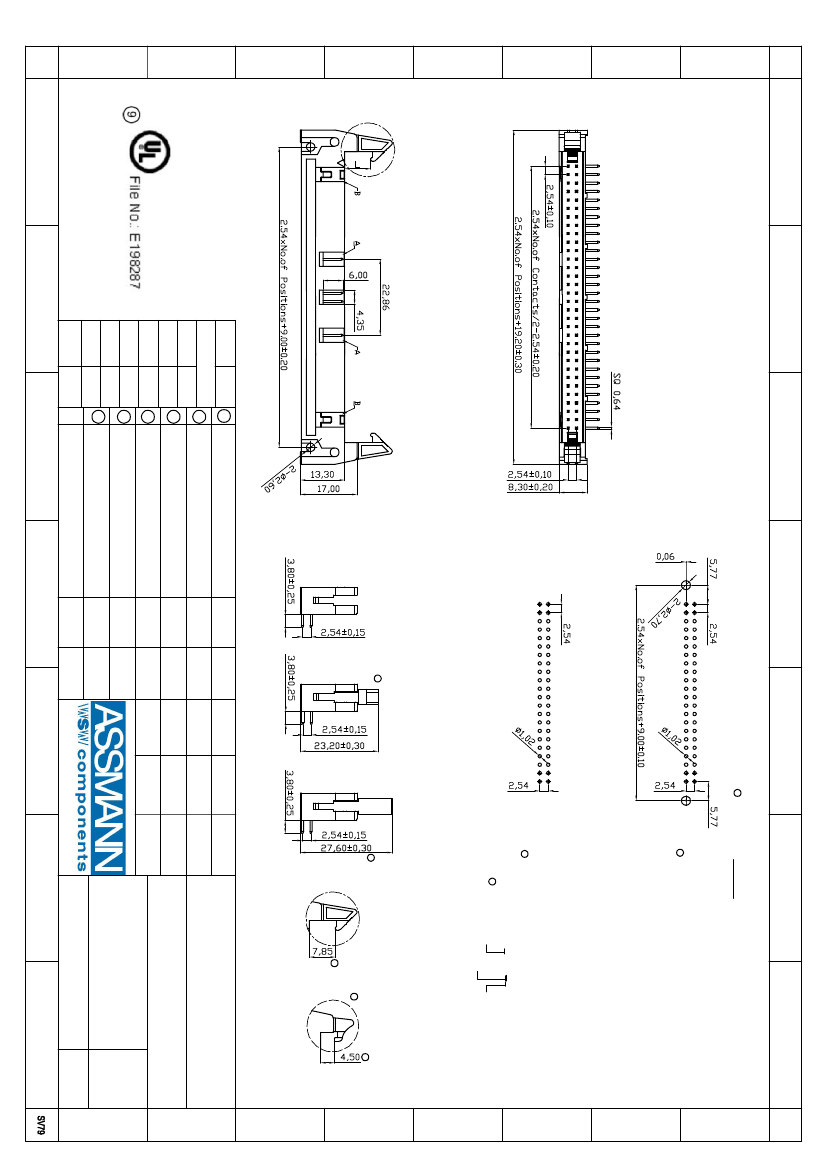

Special(with fixing holes)

NOTES:

Standard

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

MATERIAL

1.Insulator Material:PBT+30%G.F,(UL94V-0), Grey

2.Contact Material : Brass

3.Contact Plating : Gold Flash / Tin or Full Tinned

Over Ni

ELECTRICAL

1.Current Rating : 3.0AMP

2.Withstand Voltage : 1000V AC/minute

3.Contact Resistance : 20mΩ max

4.Insulation Resistance: 1000MΩ min

ENVIRONMENTAL

1.Operation Temperature: -40°C to +105°C

2.Packing : Tray

3.No side slot "A" and "B" from 6 to 16 pin

No side slot "A" from 18 to 58 pin

Ordering Information

AWH xxA-0

x2-T

No. of Contacts

06 08

2: Gold Flash

/Tinned

10 12

14 16

18 20

24 26

30 34

40 50

60 64

Latch Type

0(w/o latch)

2(with short latch)

3(with long latch)

XXP

Dimension L

Scale

1:1

TOLERANCE

X.X

±0.40

X.XX ±0.25

X.XXX ±0.15

Angle

Update

Add special PCB layout

Add UL file no.

Add the fulled Tinned version

Long Latch

without Latch

with short Latch

Short Latch

with long Latch

12.12.2013

11.11.2013

29.03.2013

07.12.2010

Amy

Winnie

Alex

Drawn

Approved

Date

25.01.2006

11.11.2013

Name

Customer-No.

RoHS compliant

Alex

3°

Winnie

ASSMANN WSW-No.

AWH xxA-02x2-T

Id.

Correct drawing of short latch

Change dimension

Modification

05.05.2010

27.10.2009

Date

Dean

Name

Drawing-No.

ASS 2311 CO

rev09

Replace

Sheet
