8553-0-15-15-11-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8553-0-15-15-11-14-10-0

8553-0-15-15-11-14-10-0: DescriptionCONN PIN RCPT; CategoryThe connector terminals; File Size696KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8553-0-15-15-11-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8553-0-15-15-11-14-10-0	-	-	View	Buy Now

8553-0-15-15-11-14-10-0 Overview

CONN PIN RCPT

8553-0-15-15-11-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8553-0-15-15-11-14-10-0
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

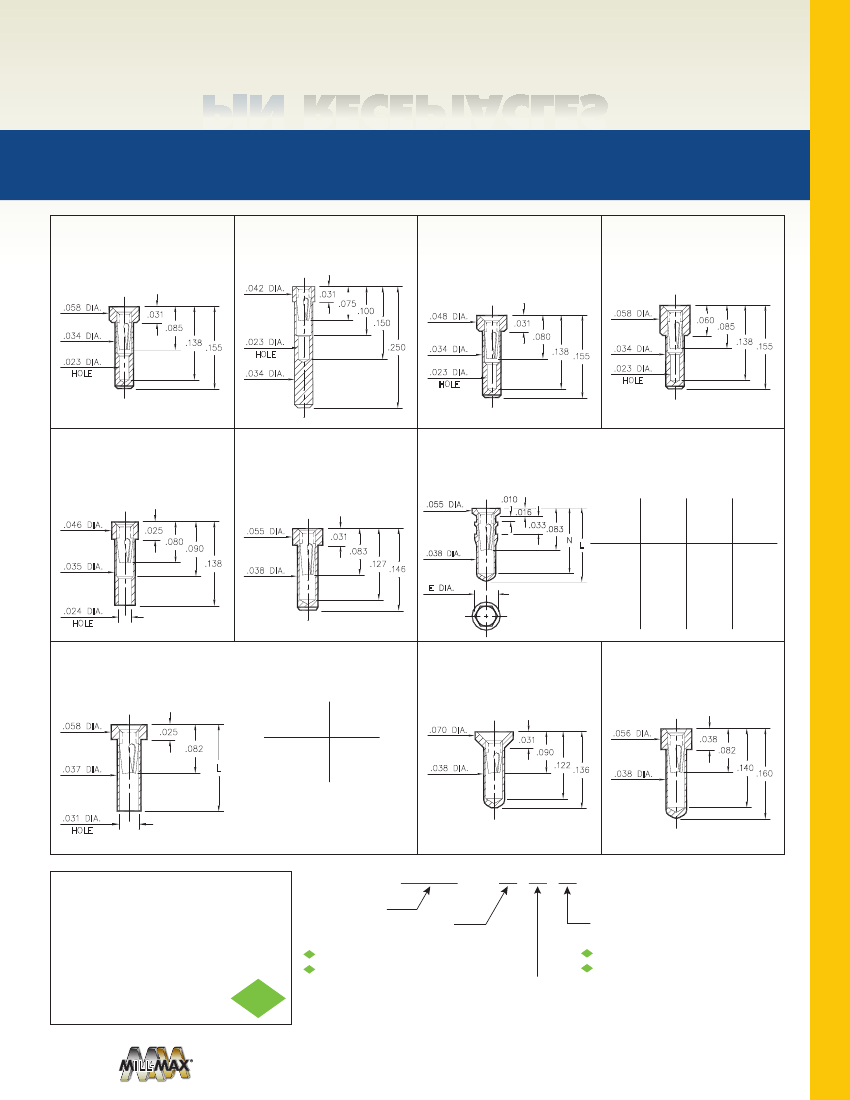

RECEPTACLES

FOR .015” - .020” DIAMETER PINS (#11 CONTACT)

AND .015” - .022” DIAMETER PINS (#21 CONTACT)

(SEE SPECIFIC CONTACT RANGE ON PAGE 251)

0548

0548-0-15-XX-21-XX-10-0

Solder mount in .036 min. mounting hole

8975

.042 DIA.

8975-0-15-XX-21-XX-10-0

Solder mount in .036 min. mounting hole

.031

3016

3016-0-15-XX-21-XX-10-0

9548

Solder mount in .036 min. mounting hole

Also available on 16mm wide carrier tape:

1,900 parts per 13” reel

See page 194.2 for Tape & Reel details

.048 DIA.

9548-0-15-XX-21-XX-10-0

Solder mount in .036 min. mounting hole

.058 DIA.

.034 DIA.

.023 DIA.

HOLE

.075

.031

.085

.138

.155

.100

.150

.250

.058 DIA.

.031

.080

.138

.034 DIA.

.023 DIA.

HOLE

.060

.085

.138

.155

.023 DIA.

HOLE

.034 DIA.

.023 DIA.

HOLE

.155

8637

8637-0-15-XX-21-XX-10-0

1407

Solder mount in .037 min. mounting hole

Also available on 16mm wide carrier tape:

2,000 parts per 13” reel

See page 194.2 for Tape & Reel details

.046 DIA.

.025

.080

.035 DIA.

.090

.138

1407-0-15-XX-11-XX-10-0

0553/4553/8553

X553-X-15-XX-X1-XX-10-0

.010

.016

.033

.083

Hex press-fit in .041 plated through-hole

for Part Numbers

0553-X

and

8553-0

ONLY

Hex press-fit in .042 plated through-hole

for Part Number

4553-0

ONLY

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier tape:

1,500 parts per 13” reel

See page 194.1 for Tape & Reel details

.055 DIA.

Also available on 16mm wide carrier tape:

1,580 parts per 13” reel

See page 194.1 for Tape & Reel details

.055 DIA.

.031

.083

.038 DIA.

Basic

Part

Number

Hex

Dia.

Length

Depth

.038 DIA.

.127

.146

DIA.

.024 DIA.

HOLE

0553-1

0553-2

0553-3

4553-0

8553-0

.044

.045

.044

.140

.170

.282

.170

.245

.124

.154

.266

.154

.229

0566

.058 DIA.

0566-X-15-XX-21-XX-10-0

Solder mount in .039 min. mounting hole

0442

Basic Part

Number

Length

0442-0-15-XX-11-XX-10-0

Solder mount in .040 min. mounting hole

0554

0554-0-15-XX-21-XX-10-0

Solder mount in .040 min. mounting hole

.025

.082

.070 DIA.

.037 DIA.

0566-1

0566-2

.083

.138

.031

.090

.122

.056 DIA.

.038

.082

.140

.038 DIA.

.136

.038 DIA.

.160

.031 DIA.

HOLE

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#11 or #21

CONTACT (DATA ON PAGE 251)

(For alternate contact choices, see group A on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 157 | PIN RECEPTACLES
