SFS1001G - SFS1008G
Taiwan Semiconductor
CREAT BY ART

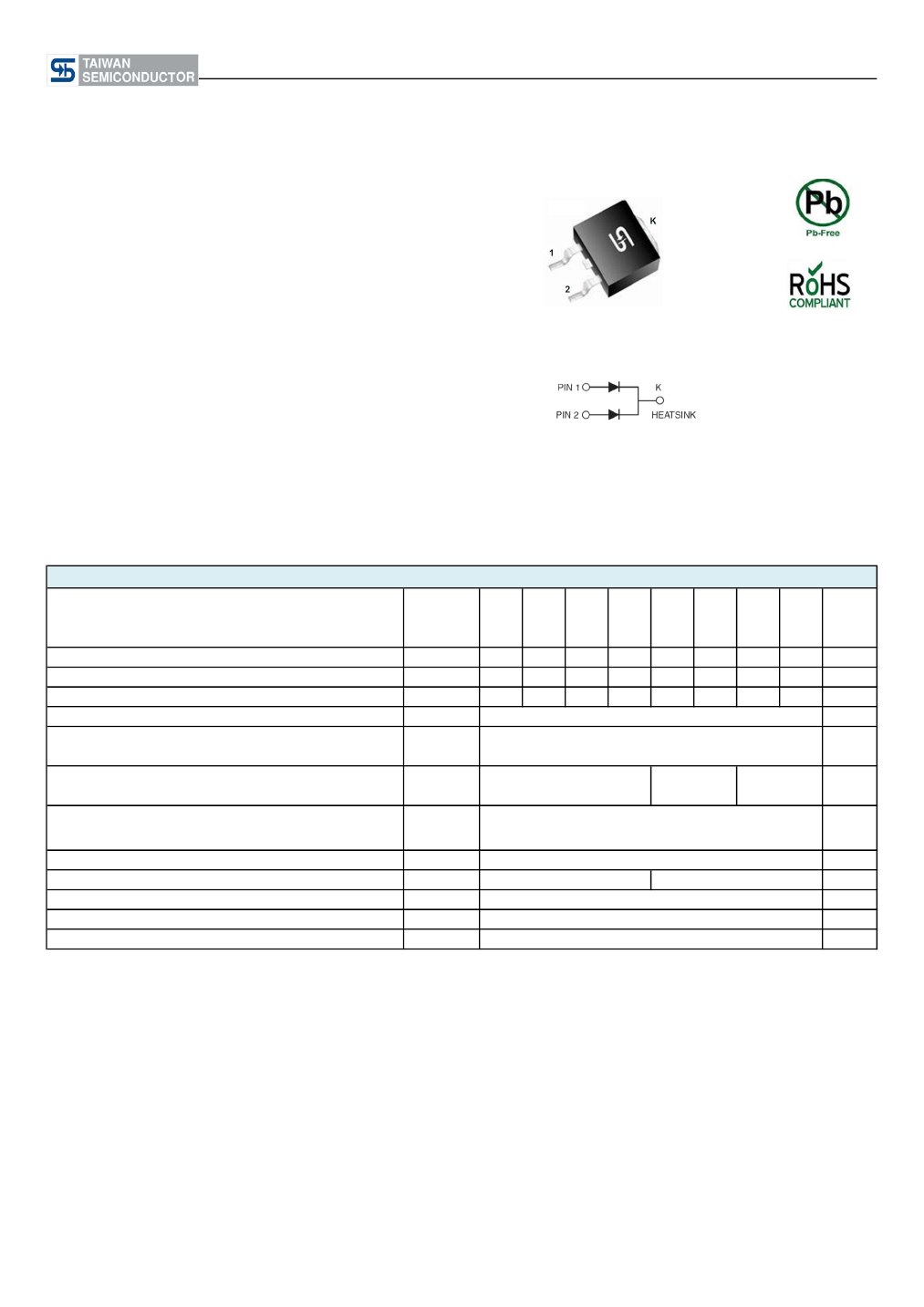

10A, 50V - 600V Surface Mount Super Fast Rectifiers
FEATURES
- Low forward voltage drop
- Ideal for automated placement
- High current capability
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
TO-263AB (D PAK)
MECHANICAL DATA
Case:
TO-263AB (D
2
PAK)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Weight:
1.37 g (approximately)
2
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
SFS
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 5 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
2
- 55 to +150
- 55 to +150
0.975
1
200
35
50
G
50
35
50
SFS
G
100
70
100
SFS
G
150
105
150
SFS
G
200
140
200
10
125
1.3
1.7
SFS
G
300
210
300
SFS
G
400
280
400
SFS
G
500
350
500
SFS
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
G
600
420
600
1001 1002 1003 1004 1005 1006 1007 1008
Document Number: DS_D1405076
Version: H15
SFS1001G - SFS1008G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SFS100xG
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
RN
MN
PACKING CODE
PACKING CODE
SUFFIX
G
(*)
PACKAGE
PACKING
800 / 13" Paper reel
800 / 13" Plastic reel
D
2
PAK
Note 1: "x" defines voltage from 50V (SFS1001G) to 600V (SFS1008G)
EXAMPLE
PREFERRED P/N
SFS1008GHRNG
PART NO.
SFS1008G
PART NO.
SUFFIX
H
PACKING CODE
RN
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

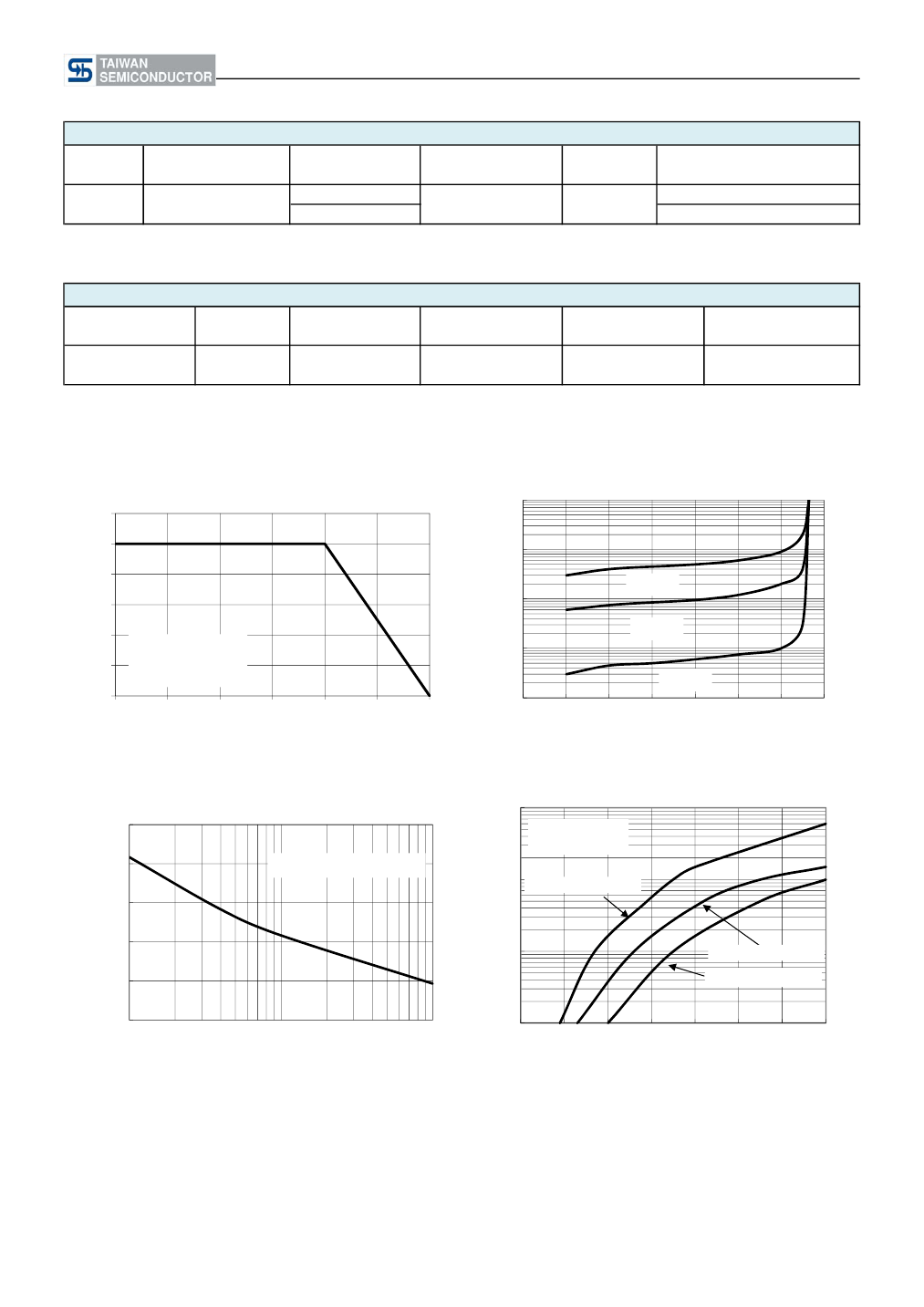

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT
(μA)
1000
FIG.1 FORWARD CURRENT DERATING CURVE
12
AVERAGE FORWARD
A
CURRENT (A)
10
8
6
4
2
0
0
25
50
75
100
CASE TEMPERATURE (
o
C)
125
150
100
T
J
=100°C
10
T
J
=75°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
INSTANTANEOUS FORWARD CURRENT
(A)
PEAK FORWARD SURGE CURRENT
(A)
150
120
90
60
30
0
1
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
Pulse Width=300μs
1% Duty Cycle
8.3ms Single Half Sine Wave
10
SFS1001G-SFS1004G
1
SFS1005G-SFS1006G
SFS1007G-SFS1008G
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Document Number: DS_D1405076
Version: H15

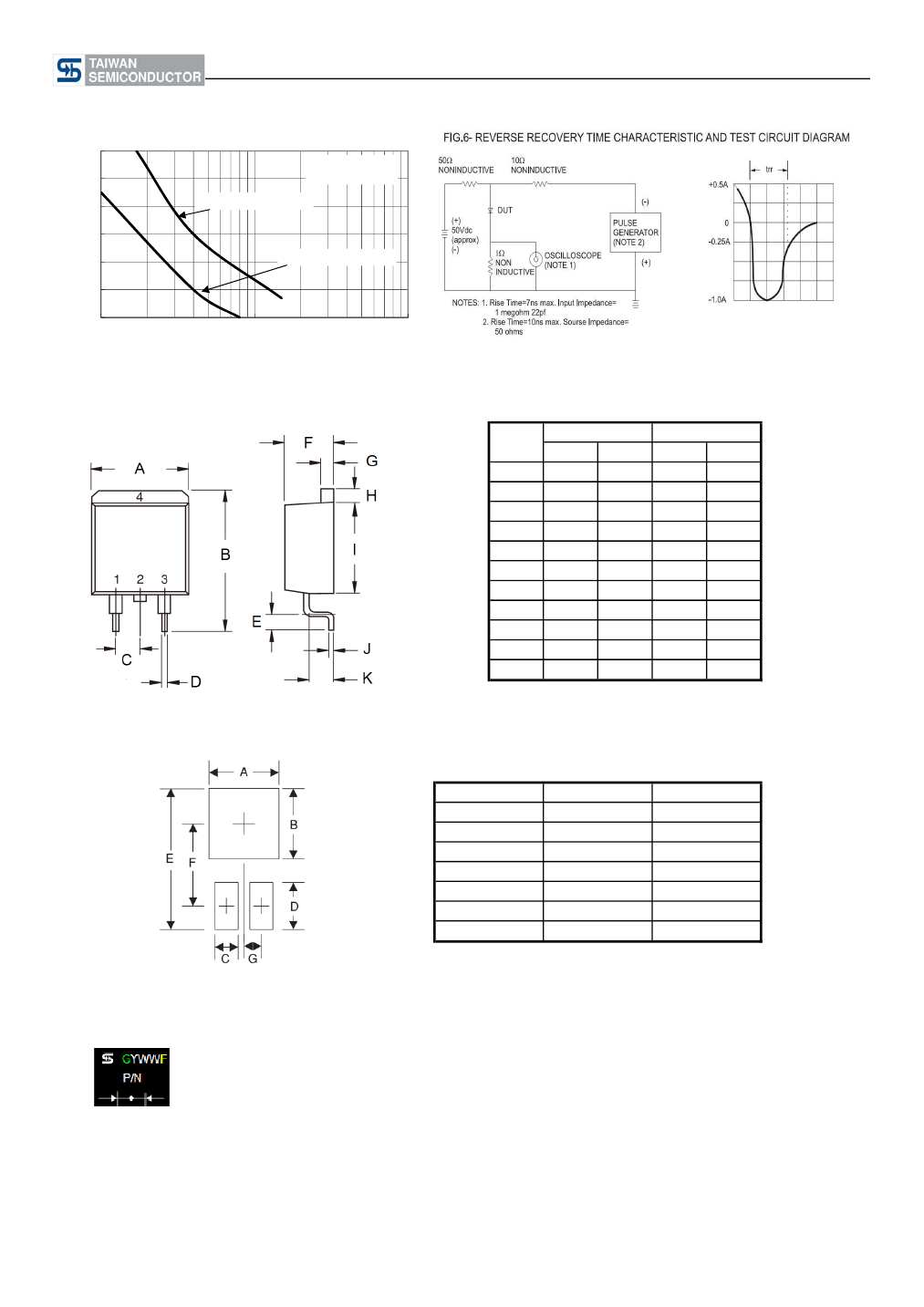

SFS1001G - SFS1008G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1405076
Version: H15
