180-089N06-11-2PA

Description
Fiber Optic Connector Adapter, Simplex, Plug
CategoryThe connector    The connector
File Size188KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

180-089N06-11-2PA Overview

Fiber Optic Connector Adapter, Simplex, Plug

180-089N06-11-2PA Parametric

Parameter NameAttribute value
Reach Compliance Code_compli
Other featuresSTANDARD: MIL-PRF-28876, POLARIZED
Body/casing typePLUG
Connection TypeSIMPLEX
Connector typeFIBER OPTIC CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceNO
MIL complianceYES
Manufacturer's serial number180-089
OptionsGENERAL PURPOSE
Base Number Matches1
Test Probes
and Adapters
180-089 NF 06-15-8 P A
Product Series
Basic Number
Finish Symbol
(See Table II)
06 = Plug Adapter
Shell Size (Table I)

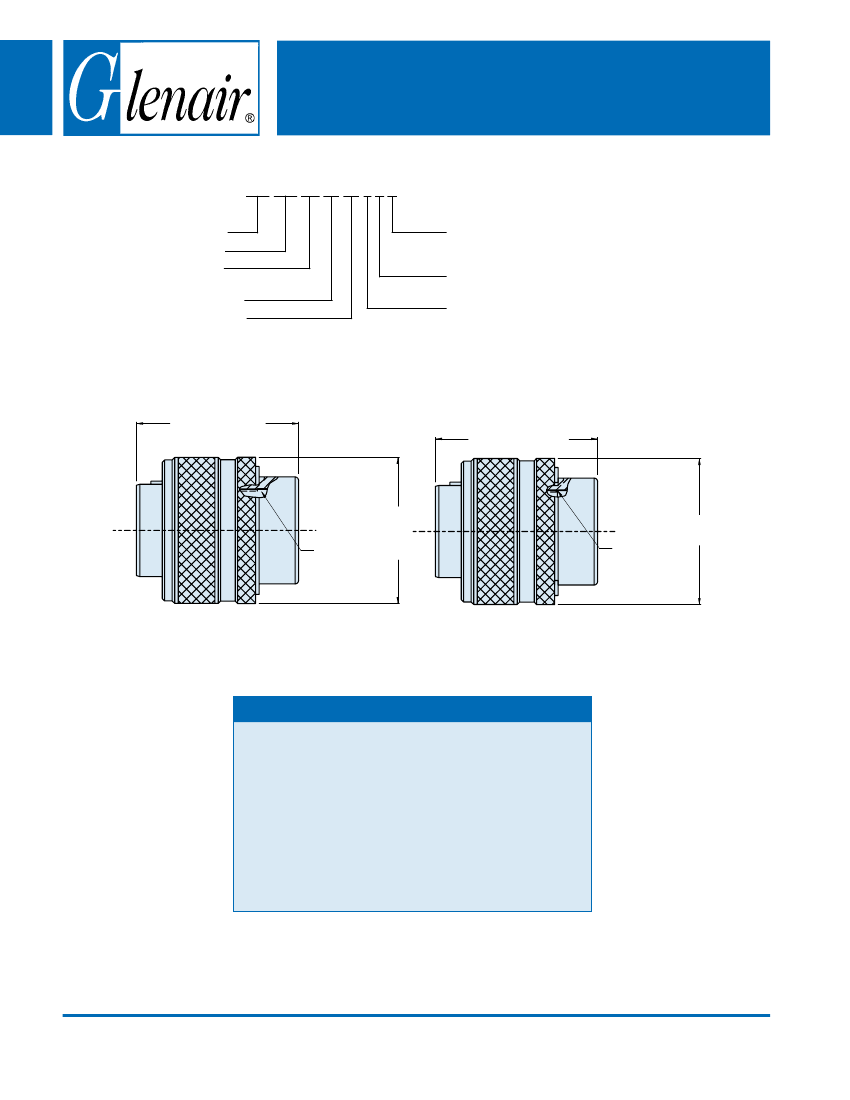

1.410 (35.8) Max
180-089 (06 Plug)
Fiber Optic Test Adapter
MIL-PRF-28876
Alternate Keying Position
Per MIL-PRF-28876
P = Pin Insert
S = Socket Insert (With Alignment Sleeves)
Insert Arrangement

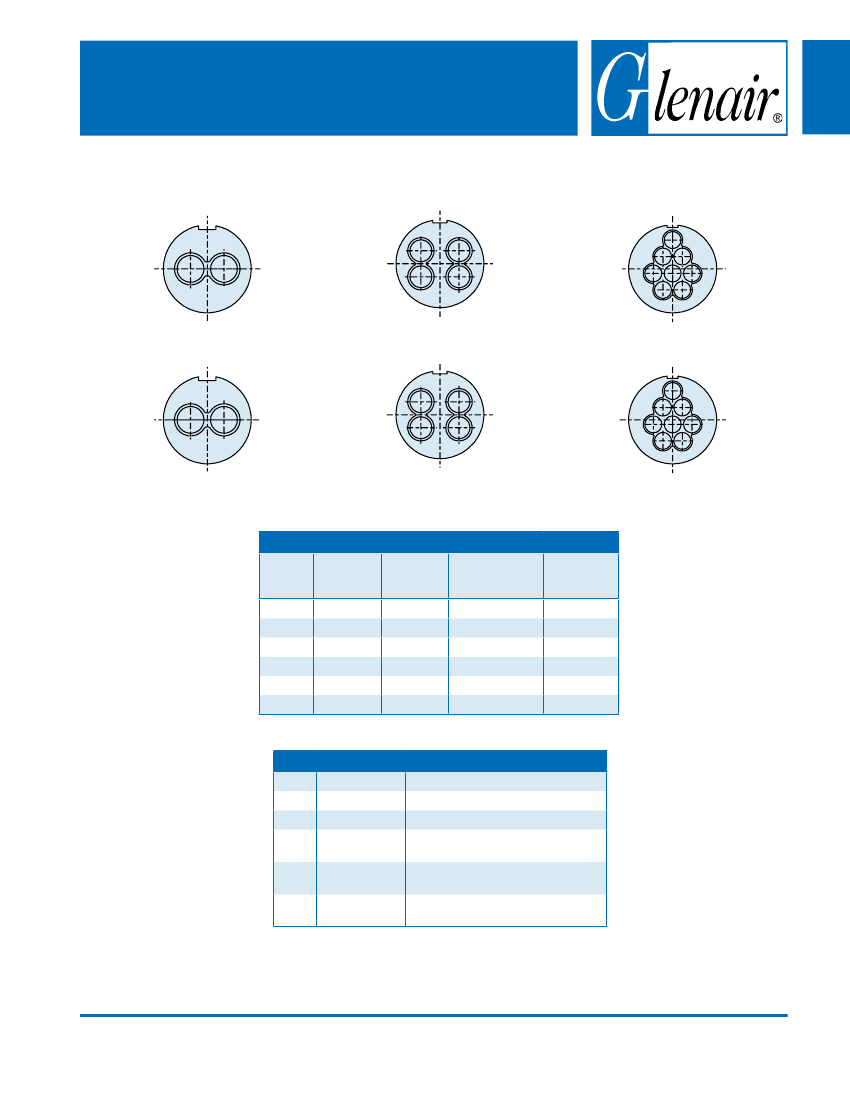

Per MIL-PRF-28876E, Table I
1.410 (35.8) Max
Dia. B
Typ
Socket Insert
Pin Insert
Dia. B
Typ
06
Y
PLUG ASSEMBL
APPLICATION NOTES
1. Material/ Finish:
Barrel/ Shell, Lock Nut- Al Alloy/ See Table II.
Insert, Coupling Nut- Hi Grade Engineering Thermoplastic/ N.A.
Alignment Sleeve- Zirconia Ceramic/ N.A.
Retaining Ring- Stainless Steel/ N.A.
Retaining Clips- Beryllium Copper/ N.A.
Lock Cap- Black Anodize.
2. For Fiber Optic Test Probe Terminus
See Glenair Drawing 181-027.
3. Assembly identified with manufacturer’s
name and P/N, space permitting.
4. Metric dimensions (mm) are indicated in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
L-20
