SFF1001GA - SFF1008GA
Taiwan Semiconductor
CREAT BY ART
10A, 50V - 600V Isolated Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency, low VF.
- High current capability
- High reliability
- High surge current capability
- Low power loss.
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21

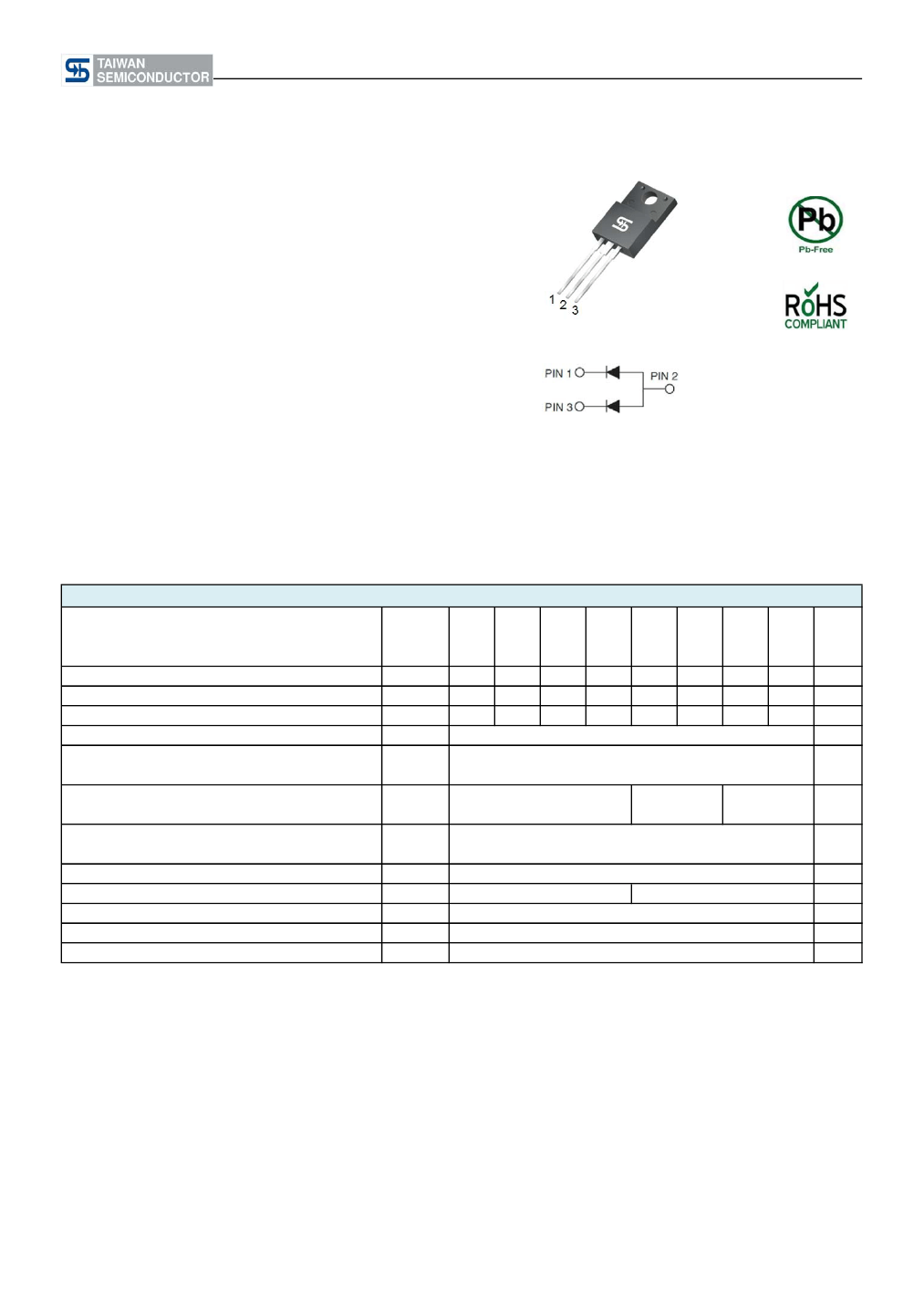

ITO-220AB
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max. (5 in-lbs. max.)
Weight:
1.8 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
SFF
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 5A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V DC.
T
J
=25°C
T
J
=125°C
GA
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
8
- 55 to +150
- 55 to +150
0.975
10
400
35
50
50
35
50
SFF
GA
100
70
100
SFF
GA
150
105
150
SFF
GA
200
140
200
10
125
1.3
1.7
SFF
GA
300
210
300
SFF
GA
400
280
400
SFF
GA
500
350
500
SFF
GA
600
420
600
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
SYMBOL 1001 1002 1003 1004 1005 1006 1007 1008 UNIT
Document Number: DS_D0000132
Version: D15
SFF1001GA - SFF1008GA
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SFF100xGA
(Note 1)
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
PACKAGE
ITO-220AB
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SFF1001GA) to 600V (SFF1008GA)
EXAMPLE
PREFERRED P/N
SFF1008GAHC0
PART NO.
SFF1008GA
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

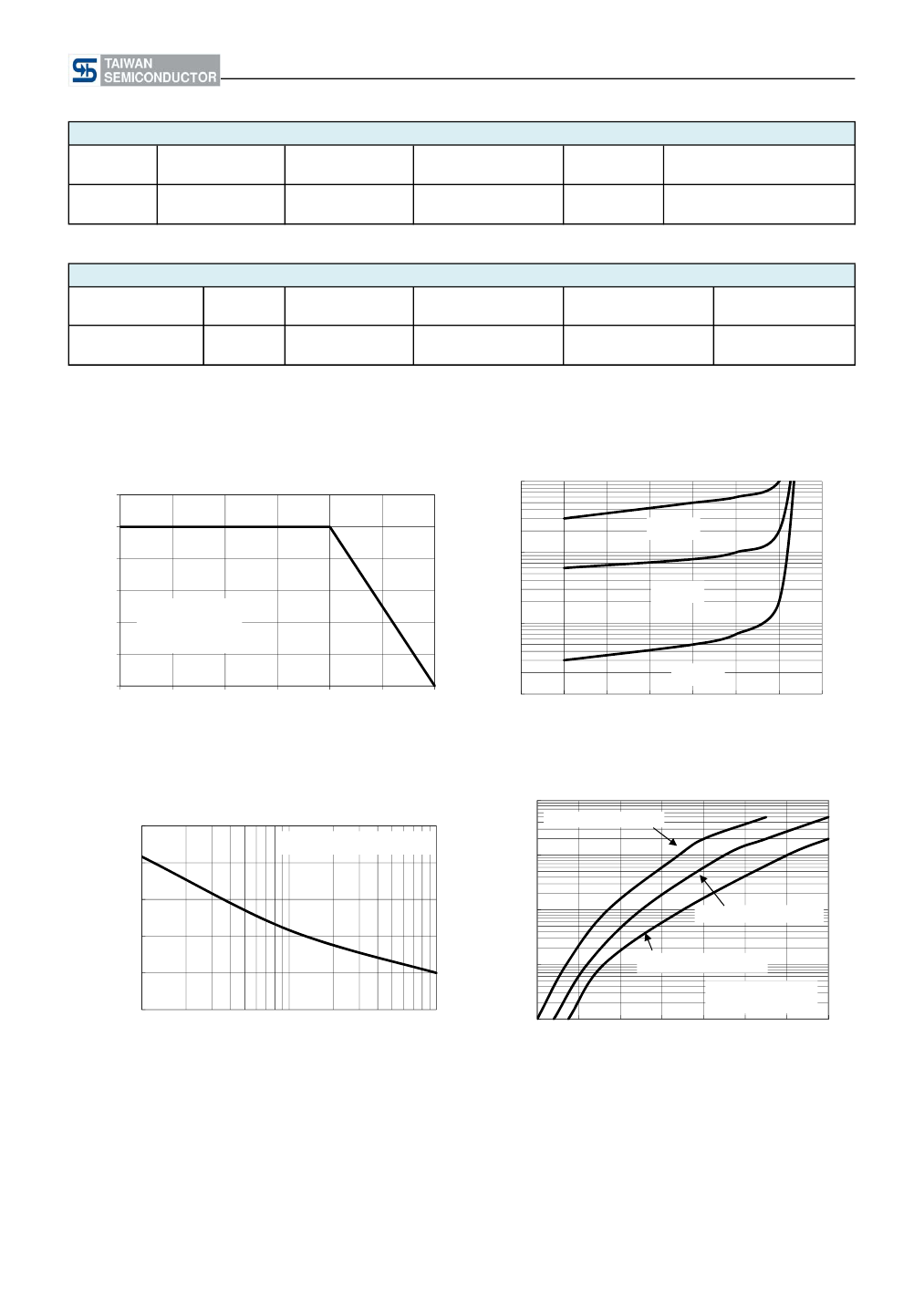

FIG.1 FORWARD CURRENT DERATING CURVE
12
AVERAGE FORWARD CURRENT (A)
10
8
6
4
2
0
0
25
50
75
100
125
150
CASE TEMPERATURE (
°
C)
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
100
INSTANTANEOUS REVERSE CURRENT(μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
T
J
=100°C
10
T
J
=75°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
SFF1001GA-04GA
PEAK FORWARD SURGE CURRENT (A)
150
8.3ms Single Half Sine Wave
120
90
60
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
10
1
SFF1005GA-06GA
0.1
SFF1007GA-08GA
Pulse Width=300μs
1% Duty Cycle
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Document Number: DS_D0000132
Version: D15
SFF1001GA - SFF1008GA
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
90
CAPACITANCE (pF)
80
SFF1001GA-04GA
70
60
50
40
1
10
REVERSE VOLTAGE (V)
100
f=1.0MHz
Vsig=50mVp-p
SFF1005GA-08GA

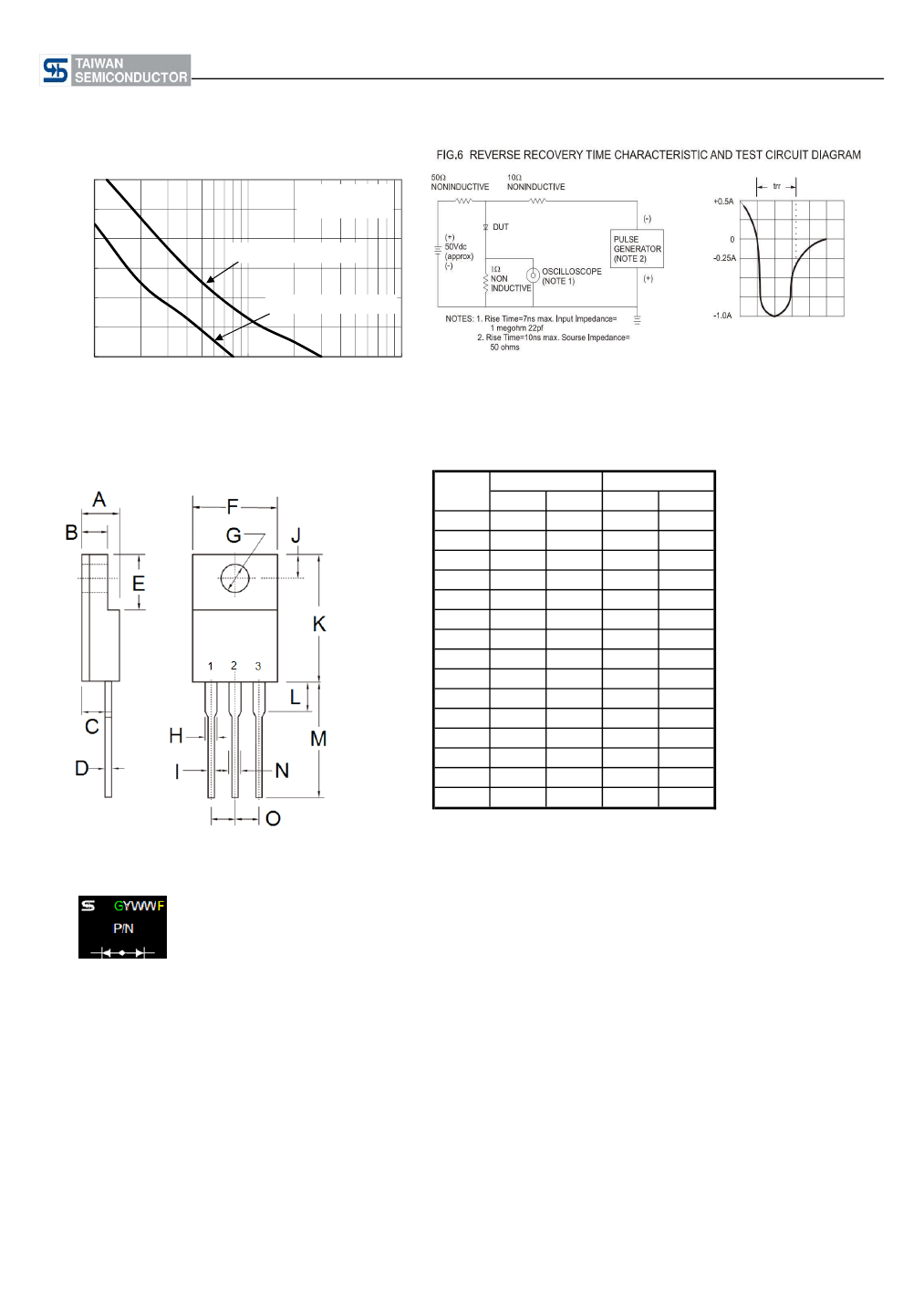

PACKAGE OUTLINE DIMENSIONS
ITO-220AB
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.95
0.50
2.40
14.80
-
12.60
-
2.41
Max
4.70
3.16
2.96
0.76
6.90
10.30
3.40
1.45
0.90
3.20
15.50
4.10
13.80
1.80
2.67
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.037
0.020
0.094
0.583
-
0.496
-
0.095
Max
0.185
0.124
0.117
0.030
0.272
0.406
0.134
0.057
0.035
0.126
0.610
0.161
0.543
0.071
0.105
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D0000132
Version: D15
SFF1001GA - SFF1008GA
Taiwan Semiconductor
CREAT BY ART
Notice
