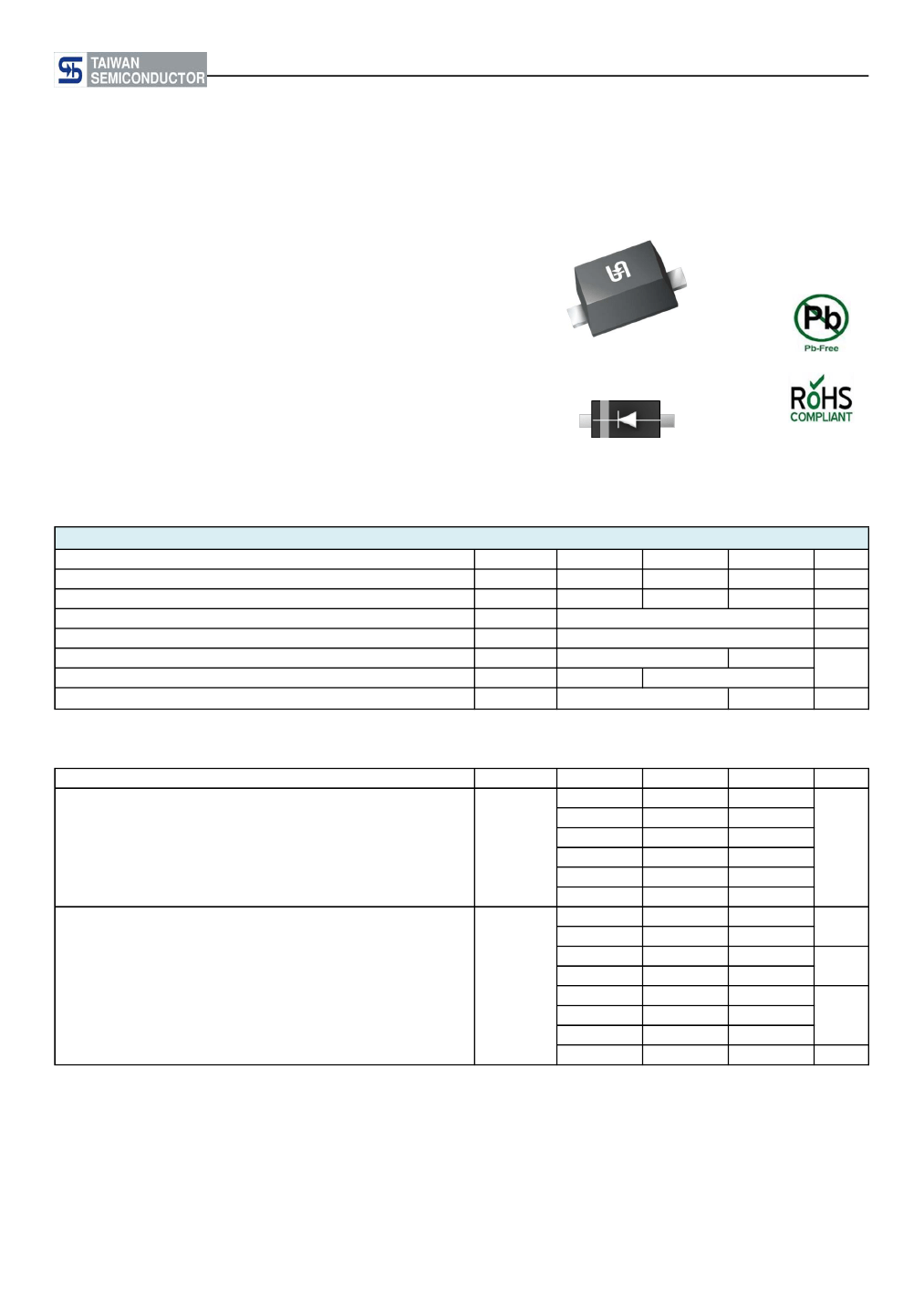

B0520LWF,B0530WF,B0540WF
Taiwan Semiconductor
Small Signal Product
Low VF SMD Schottky Barrier Diode
FEATURES
- Surface device type mounting
- Moisture sensitivity level 1
- Packing code with suffix "G" means
green compound (halogen-free)
SOD-123F
MECHANICAL DATA
- Case: Flat lead SOD-123 small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed : 260°C/10s
- Polarity: Indicated by cathode band
- Weight: 8.85 ± 0.5 mg
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Repetitive Peak Reverse Voltage
Reverse Voltage
Mean Forward Current @ T
L
=100
o
C (Lead Temperature)
Non-Repetitive Peak Forward Surge Current (Note 1)
Thermal Resistance (Junction to Lead)
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
Notes: 2. Valid provided that electrodes are kept at ambient temperature
PARAMETER
Forward Voltage
I
F
= 0.1 A
I
F
= 0.5 A
I
F
= 1.0 A
I
F
= 0.1 A , Ta = 100
o
C
I
F
= 0.5 A , Ta = 100
o
C
Reverse Leakage Current
I
F
= 1.0 A , Ta = 100
o
C
V
R
= 10V
V
R
= 20V
V
R
= 10V , Ta = 100
o
C
V
R
= 20V , Ta = 100
o
C
V
R
= 15V
V
R
= 30V
V
R
= 40V
V
R
= 40V , Ta = 100
o
C
I
R
V
F
SYMBOL
B0520LWF
0.300
0.385
-
0.220
0.330
-
75
250
5
8
-
-
-
-
B0530WF
0.375
0.500
-
-
-
-
-
-
-
-
20
130
-
-
B0540WF
-
0.510
0.620
-
0.460
0.610
-
10
-
5
-
-
20
13
mA
μA
μA
mA
V
UNIT
(Note 2)
SYMBOL
V
RRM
V
R
I
O
I
FSM
R
θJL
R
θJA
T
J
, T
STG
340
-65 to +125
150
206
-65 to +150
B0520LWF
20
20
B0530WF
30
30
500
5.5
118
o
B0540WF
40
40
UNIT
V
V
mA
A
C/W
o
C
Notes: 1. Test Condition: 8.3ms single half sine-wave superimposed on rated load
Document Number: DS_S1412005
Version: C14
B0520LWF,B0530WF,B0540WF
Taiwan Semiconductor
Small Signal Product

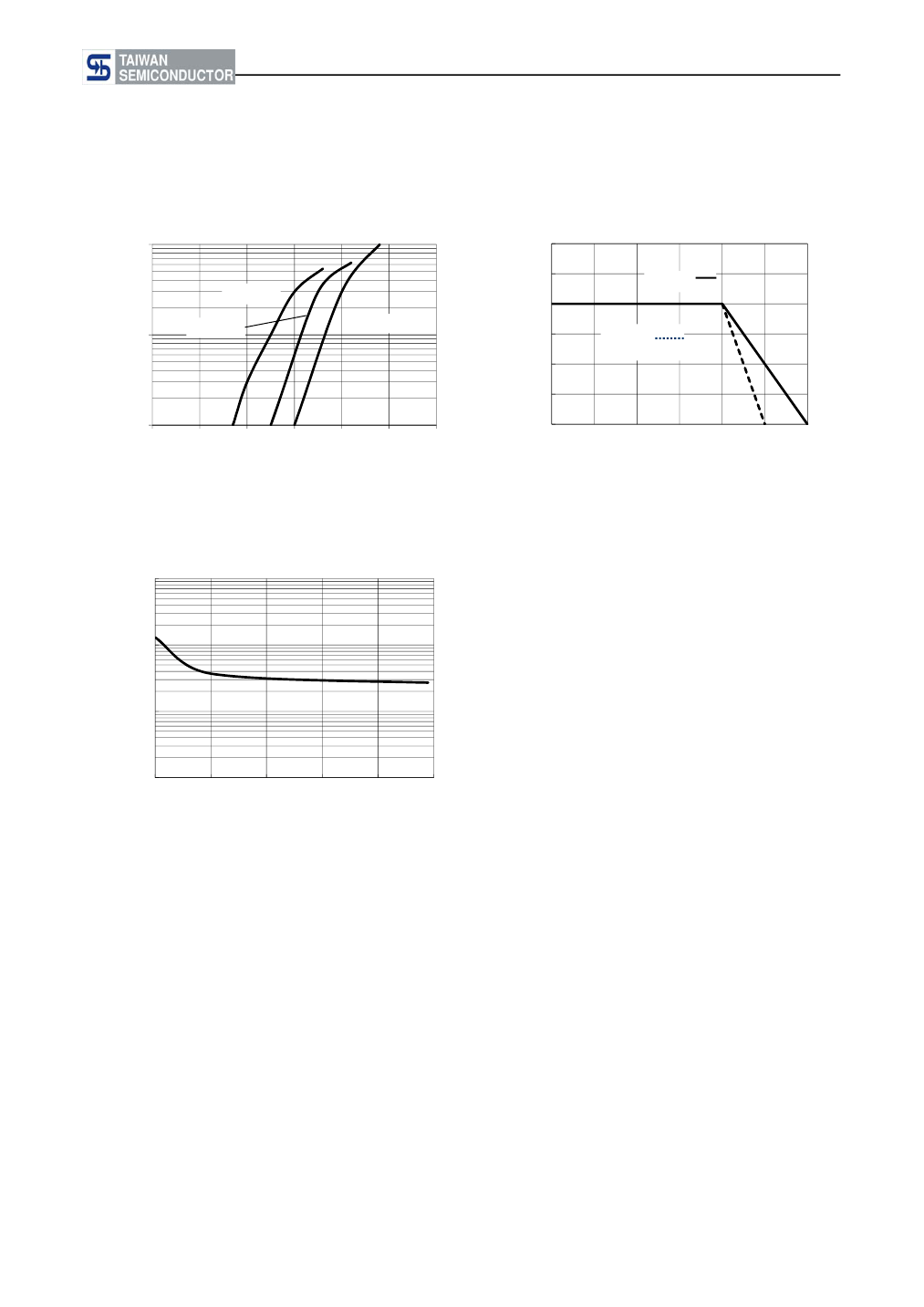

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
Fig. 1 Typical Forward Characteristics
1
Instantaneous Forward Current (A)
0.75
0.63
0.50
0.38
0.25
0.13
0.00
0.0
0.1
0.2
0.3
0.4
0.5
0.6
Instantaneous Forward Volatge (V)
Fig. 2 Forward Current Derating Curve
B0520LWF
B0530WF
B0540WF
0.1
Average Forward Current (A)
B0540WF
B0530WF
B0520LWF
0.01
0
25
50
75
100
125
150
Terminal Temperature (°C)
Fig. 3 Typical Junction Capacitance
1000
Junction Capacitance (pF)
100
10
1
0
5
10
15
20
25
Reverse Voltage (V)
Document Number: DS_S1412005
Version: C14
B0520LWF,B0530WF,B0540WF
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
B05xxxF
(Note 1)
PART NO.
SUFFIX
(Note 2)
-xx
PACKING
CODE
RH
PACKING CODE
SUFFIX
G
PACKAGE
SOD-123F
PACKING
3K / 7" Reel
Note 1: "xxx" defines voltage from 20V (B0520LWF) to 40V (B0540WF)
Note 2: Part No. Suffix „-xx “ would be used for special requirement
EXAMPLE
PREFERRED P/N
B0540WF RH
PART NO.
B0540WF
PART NO.
SUFFIX
PACKING CODE
RH
PACKING CODE
SUFFIX
DESCRIPTION
Multiple manufacture
source
G
Multiple manufacture
source
Green compound
Define manufacture
source
Green compound
B0540WF RHG
B0540WF
RH
B0540WF-B0 RHG
B0540WF
-B0
RH
G
Document Number: DS_S1412005
Version: C14
B0520LWF,B0530WF,B0540WF
Taiwan Semiconductor
Small Signal Product

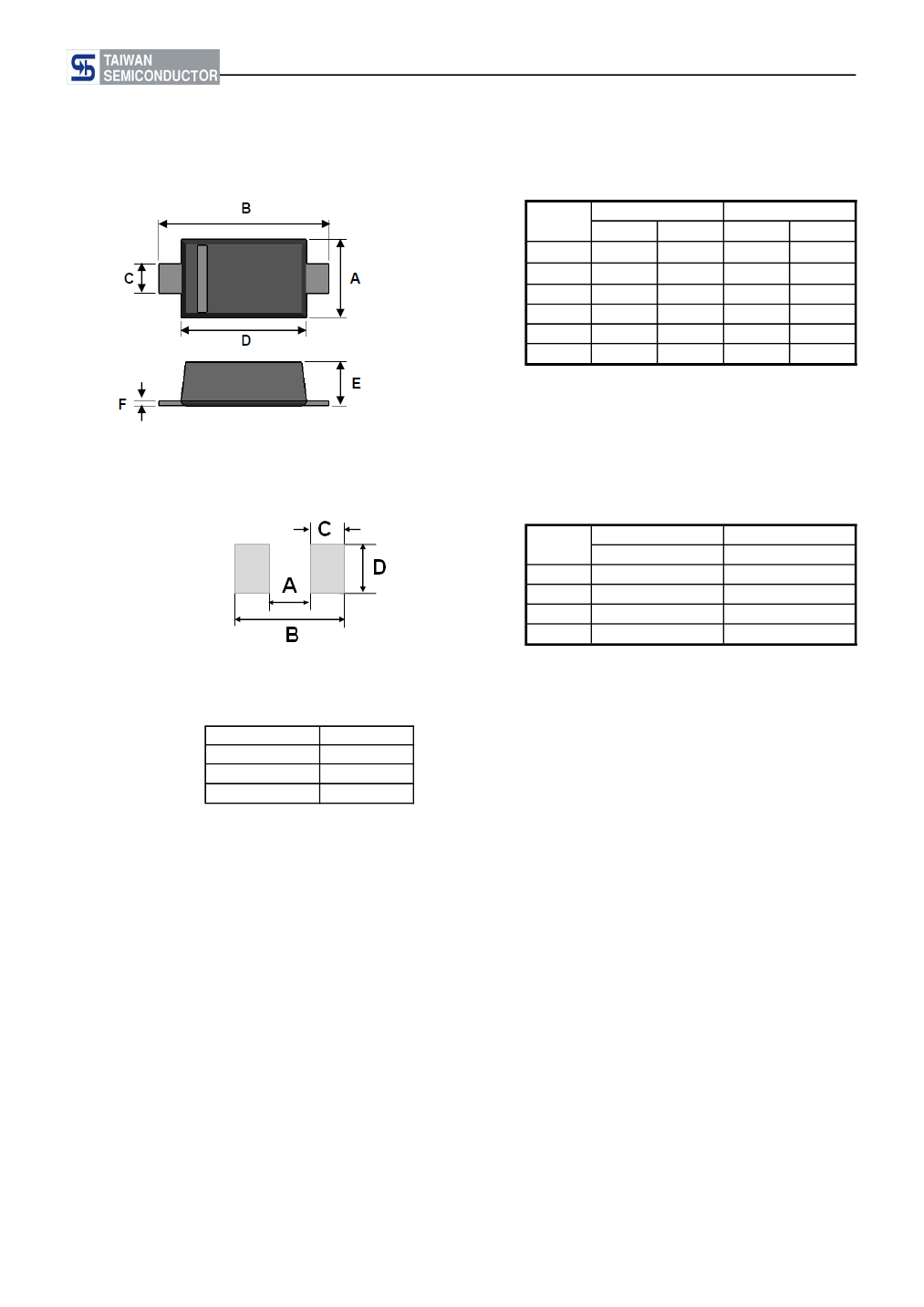

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.50
3.30
0.50
2.50
0.80
0.05
Max
1.70
3.90
0.70
2.70
1.15
0.20
Unit (inch)
Min
0.059
0.130
0.020
0.098
0.031
0.002
Max
0.067
0.154
0.028
0.106
0.045
0.008
DIM.
A
B
C
D
E
F
SUGGEST PAD LAYOUT
DIM.
A
B
C
D
Unit (mm)
Typ.
2.36
4.19
0.91
1.22
Unit (inch)
Typ.
0.093
0.165
0.036
0.048
MARKING
Part No.
B0520LWF
B0530WF
B0540WF
Marking
SD
SE
SQ
Document Number: DS_S1412005
Version: C14
B0520LWF,B0530WF,B0540WF
Taiwan Semiconductor
Small Signal Product
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_S1412005
Version: C14
