106768-7 datasheet, PDF - EEWORLD Datasheet

106768-7: DescriptionCONNECTOR, 32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

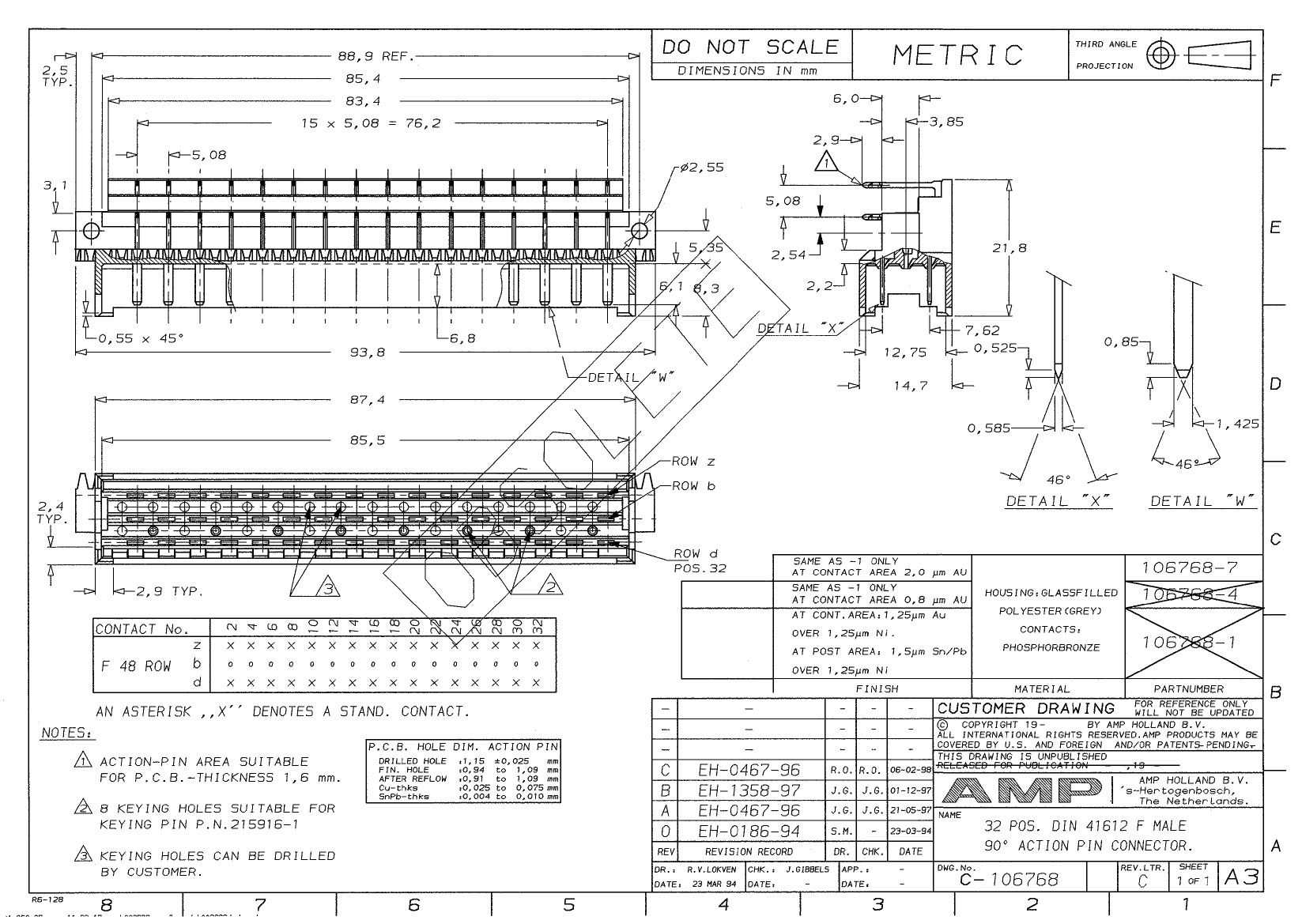

106768-7 Overview

CONNECTOR, 32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (79) OVER NICKEL
Contact completed and terminated	TIN LEAD (59) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	106768
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	PRESS FIT
Total number of contacts	32
Base Number Matches	1

	106768-7	106768-4
Description	CONNECTOR, 32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT	CONNECTOR, 32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT
Reach Compliance Code	unknow	unknow
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (79) OVER NICKEL	GOLD (31) OVER NICKEL
Contact completed and terminated	TIN LEAD (59) OVER NICKEL	TIN LEAD (59) OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	106768	106768
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5.08 mm	5.08 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	32	32
Base Number Matches	1	1
