1N4764A-B datasheet, PDF - EEWORLD Datasheet

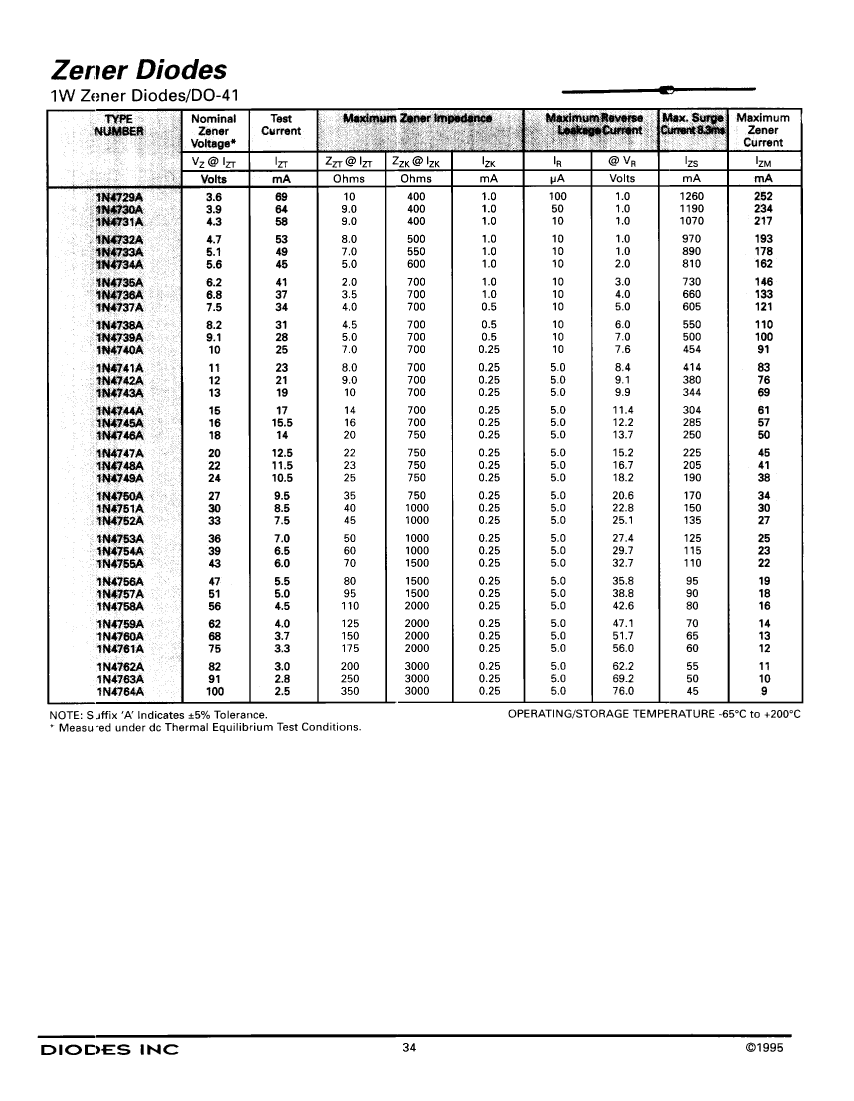

1N4764A-B: DescriptionZener Diode, 100V V(Z), 5%, 1W, Silicon, Unidirectional; CategoryDiscrete semiconductor diode; File Size102KB，1 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

1N4764A-B Overview

Zener Diode, 100V V(Z), 5%, 1W, Silicon, Unidirectional

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LALF-W2
Maximum knee impedance	3000 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	100 V
Maximum reverse current	5 µA
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	2.5 mA
Base Number Matches	1
