1N1204A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N1204A

1N1204A: Description12 A, 400 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size151KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

1N1204A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N1204A	-	-	View	Buy Now

1N1204A Overview

12 A, 400 V, SILICON, RECTIFIER DIODE

1N1204A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
Parts packaging code	DO-4
package instruction	O-MUPM-D1
Contacts	1
Reach Compliance Code	compliant
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	240 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

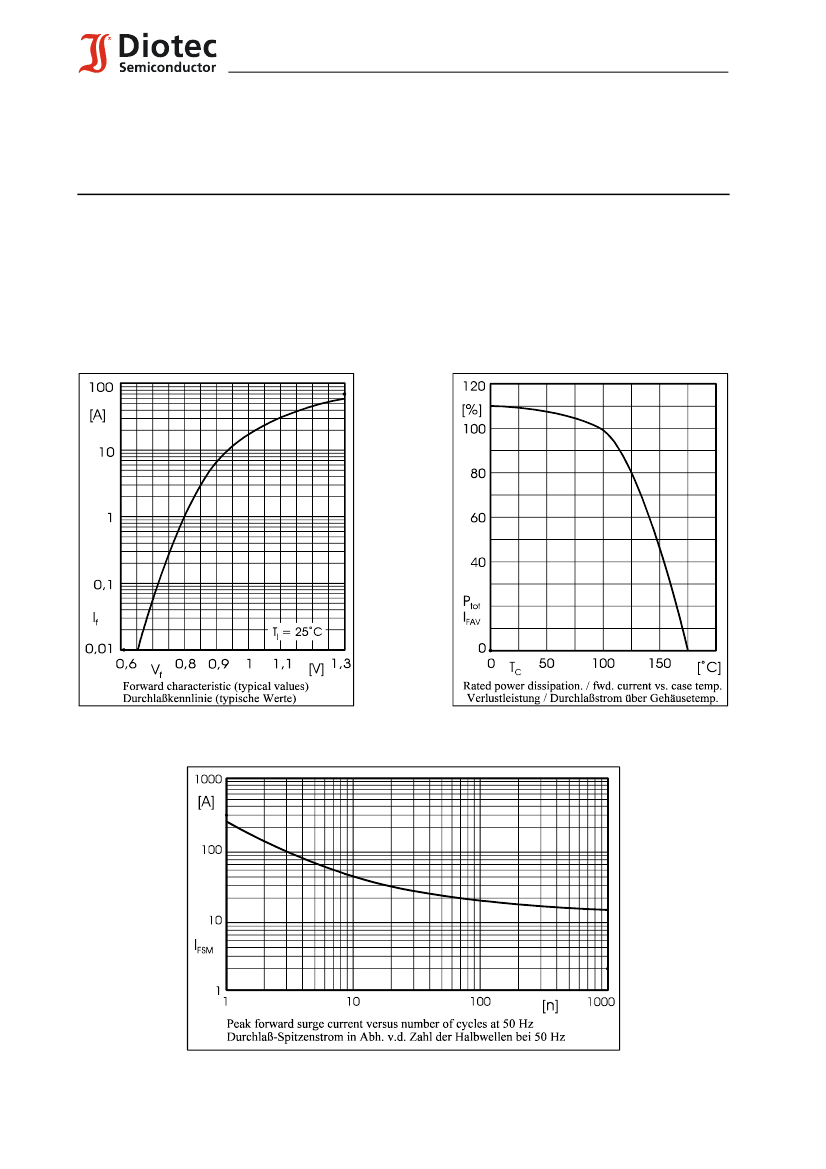

Preview

Download Datasheet

View All

1N 1199A ... 1N 1206A, 1N 3671, 1N 3673

PBY 271 ... PBY 277

Silicon-Power Rectifiers

Nominal current – Nennstrom

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

Metal case – Metallgehäuse

Weight approx. – Gewicht ca.

Recommended mounting torque

Empfohlenes Anzugsdrehmoment

Silizium-Leistungs-Gleichrichter

12 A

50...1000 V

DO-4

5.5 g

18 ± 10% lb.in.

2 ± 10% Nm

Dimensions / Maße in mm

Standard: Cathode to stud / am Gewinde

Index R:

Anode to stud / am Gewinde (e.g. 1N 1199 A/R)

Maximum ratings

Type

Typ

1N 1199 A

1N 1200 A

1N 1202 A

1N 1204 A

1N 1206 A

1N 3671

1N 3673

PBY 271

PBY 272

PBY 273

PBY 274

PBY 275

PBY 276

PBY 277

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

RRM

[V]

100

200

400

600

800

1000

= 100

f > 15 Hz

= 25

Grenzwerte

Surge peak reverse voltage

Stoßspitzensperrspannung

RSM

[V]

120

240

480

720

1000

1200

12 A

)

40 A

)

220 A

240 A

Max. average forward rectified current, R-load

Dauergrenzstrom in Einwegschaltung mit R-Last

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 Hz half sine-wave

Stoßstrom für eine 50 Hz Sinus-Halbwelle

Peak forward surge current, 60 Hz half sine-wave

Stoßstrom für eine 60 Hz Sinus-Halbwelle

Rating for fusing – Grenzlastintegral, t < 10 ms

FAV

FRM

FSM

) Valid, if the temp. of the stud is kept to 100

C – Gültig, wenn die Temp. am Gewinde auf 100

C gehalten wird

26.03.2002
