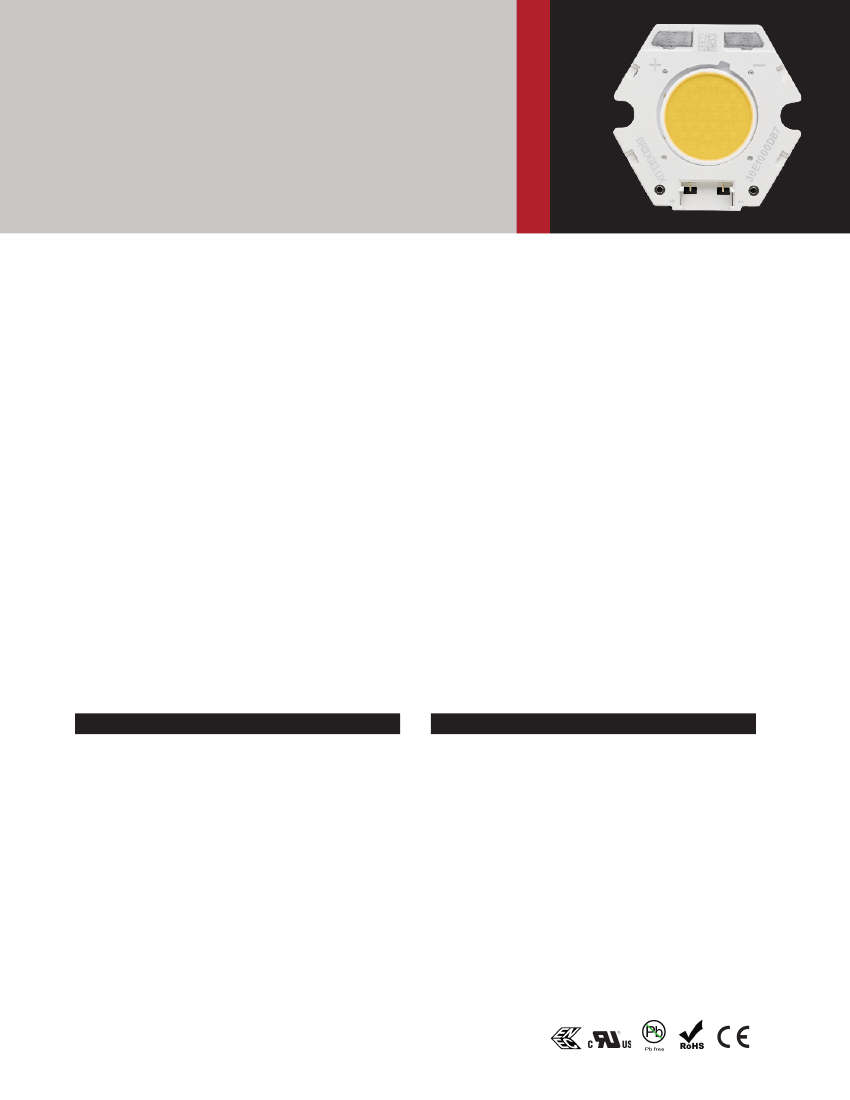

Series is a revolutionary advancement in chip on board (COB) light source technology and innovation. Vero LED light
sources simplify luminaire design and manufacturing processes Vero Chip on Board (COB) LED arrays are available in four
LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.
Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color
control standard for clean and consistent uniform lighting.
Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting
features for plug-and-play installation.
Bridgelux Décor Series™ is our state-of-the-art color line designed specifically for premium applications, producing
unmatched LED light quality with brilliant color-rendering options and pleasing lighting palettes. Bridgelux Décor Series color
points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD.
Décor Series™ Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen lamps.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Efficacy of 155 lm/W typical
• Lumen output performance ranges from 520 to
4,100
lumens
• Broad range of CCT options from 2700K to 6500K
• CRI options include minimum 65, 70, 80, and 90
• 2 and 3 SDCM color control for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Thermally isolated solder pads
• On-board connector port
• Top side part number markings
• V
f
bin code backside marking
• Broad application coverage for interior and exterior
lighting
• Flexibility for application driven lighting design
requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Solderless connectivity enables plug & play
installation and field upgradability
• Improved inventory management and quality control
Vero
®
Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Eye Safety
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
8
16
17
18
19
22
23
24
25
27
28
28
28
29
1
Product Feature Map
Vero 10 is the smallest form factor in the Vero family of
next generation solid state light sources. In addition to
delivering the performance and light quality required
for many lighting applications, Vero incorporates several
features to simplify the design integration and
manufacturing process, accelerate time to market and
reduce system costs. Please visit www.bridgelux.com for
more information on the Vero Series family of products.

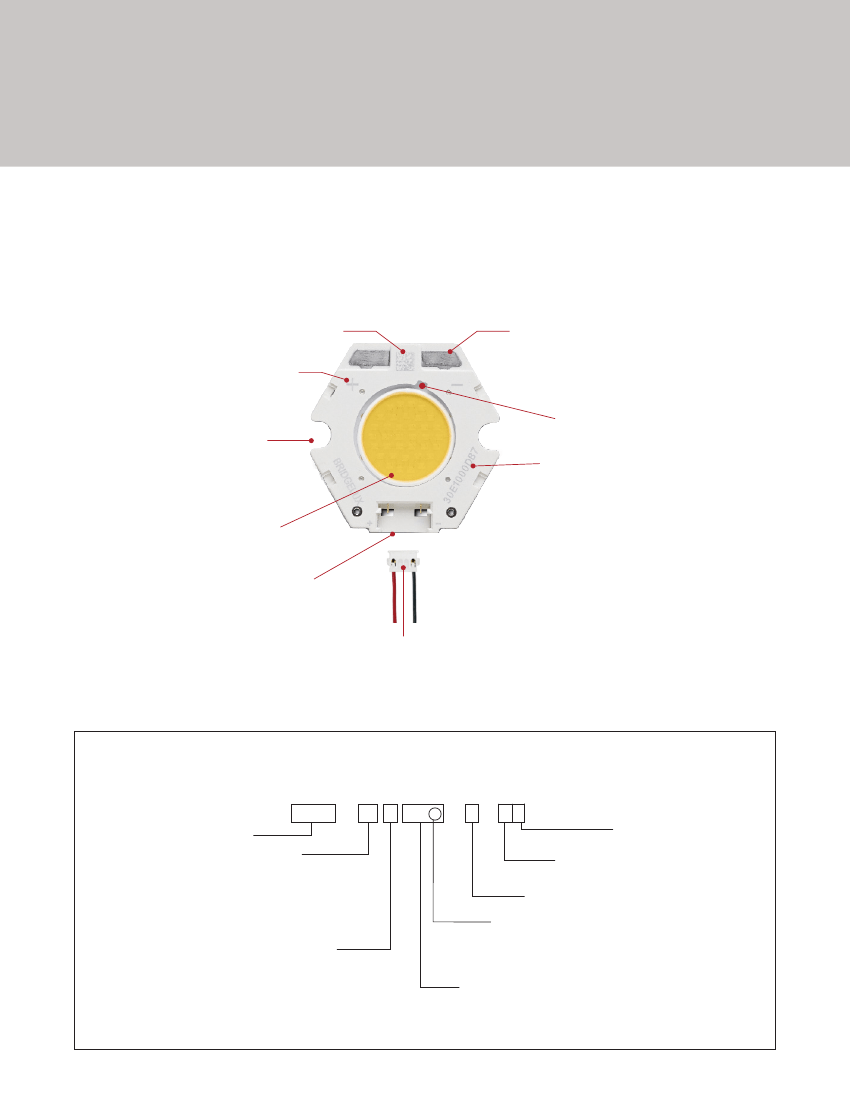

2D Bar code provides full
manufacturing traceability
Polarity indication marks simplify
manufacturing operator instructions
Thermally isolated solder pads reduce
manufacturing cycle time and complexity
T
c
Measurement point
Mounting holes
Top side part number marking improves
inventory management and outgoing
quality control
Radial die configuration improves lumen
density and beam control
Solderless connector port enables simplified
manufacturing processes, reduced inventory
carrying costs and can enable field upgradability
Optional Molex Pico-EZmate
™
connector harness
(sold separately)
Product Nomenclature
The part number designation for Bridgelux Vero LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRC – 30 E 100 0 – C – 7 3
Product Family
Nominal CCT
20 = 2,000K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Decor Series Showcase Target
Flux Indicator
100x = 1000 lm
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-20B1001-B-73
BXRC-20B1001-D-73
BXRC-27E1000-B-7x
BXRC-27E1000-C-7x
BXRC-27E1000-D-7x
BXRC-27G1000-B-7x
BXRC-27G1000-C-7x
BXRC-27G1000-D-7x
BXRC-27H1000-B-7x
BXRC-27H1000-C-7x
BXRC-27H1000-D-7x
BXRC-30E1000-B-7x
BXRC-30E1000-C-7x
BXRC-30E1000-D-7x
BXRC-30G1000-B-7x
BXRC-30G1000-C-7x
BXRC-30G1000-D-7x
BXRC-30G100C-B-73
BXRC-30G100C-D-73
BXRC-30H1000-B-7x
BXRC-30H1000-C-7x
BXRC-30H1000-D-7x
BXRC-30A1001-B-73
8,9
BXRC-30A1001-C-73
8,9
Nominal
CCT
1
(K)
2000
2000
2700
2700
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
CRI
65
65
80
80
80
90
90
90
97
97
97
80
80
80
90
90
90
90
90
97
97
97
93
93
93
80
80
80
90
90
90
93
2
Nominal Drive
Current
3
(mA)
270
350
270
360
350
270
360
350
270
360
350
270
360
350
270
360
350
270
350
270
360
350
270
360
350
270
360
350
270
360
350
270
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1365
1322
1394
1858
1350
1161
1548
1125
1006
1342
975
1452
1936
1406
1210
1613
1172
1123
1087
1084
1445
1050
1090
1453
1056
1500
2000
1453
1248
1665
1209
1175
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
1201
1163
1226
1635
1188
1022
1363
990
886
1181
858
1277
1703
1237
1065
1419
1031
988
957
954
1272
924
959
1279
929
1320
1760
1278
1099
1465
1064
1034
Typical V
f
(V)
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
35.0
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
34.8
26.0
34.8
Typical
Power
(W)
9.4
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
12.5
9.1
9.4
Typical
Efficacy
(lm/W)
145
145
148
148
148
124
124
124
107
107
107
155
155
155
129
129
129
119
119
115
115
115
116
116
116
160
160
160
133
133
133
125
BXRC-30A1001-D-73
8,9
BXRC-35E1000-B-7x
BXRC-35E1000-C-7x
BXRC-35E1000-D-7x
BXRC-35G1000-B-7x
BXRC-35G1000-C-7x
BXRC-35G1000-D-7x
BXRC-35A1001-B-73
8,9
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value for 80 CRI
products is 0, the minimum R9 value for 90 CRI products is 50, the minimum R9 value for 97 CRI products is 93. Bridgelux maintains a ± 3 tolerance on CRI
and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary
1. Input voltage is 8~20V 2. Output voltage is 5V, 400mA 3. Fewer peripheral devices. 4. The price of chip + peripheral devices should be around 1 yuan....
