500-2A2F-MINI-SAS HD CABLES
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| Factory Lead Time | 6 weeks |
| body width | 0.285 inch |
| subject depth | 0.609 inch |
| body length | 2.259 inch |
| Connector type | CARD EDGE CONNECTOR |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 0.6 mΩ |
| Contact style | HYBRID |
| Dielectric withstand voltage | 500VDC V |
| Durability | 200 Cycles |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 10117936 |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Termination type | PRESS FIT |
| Total number of contacts | 12+32 |

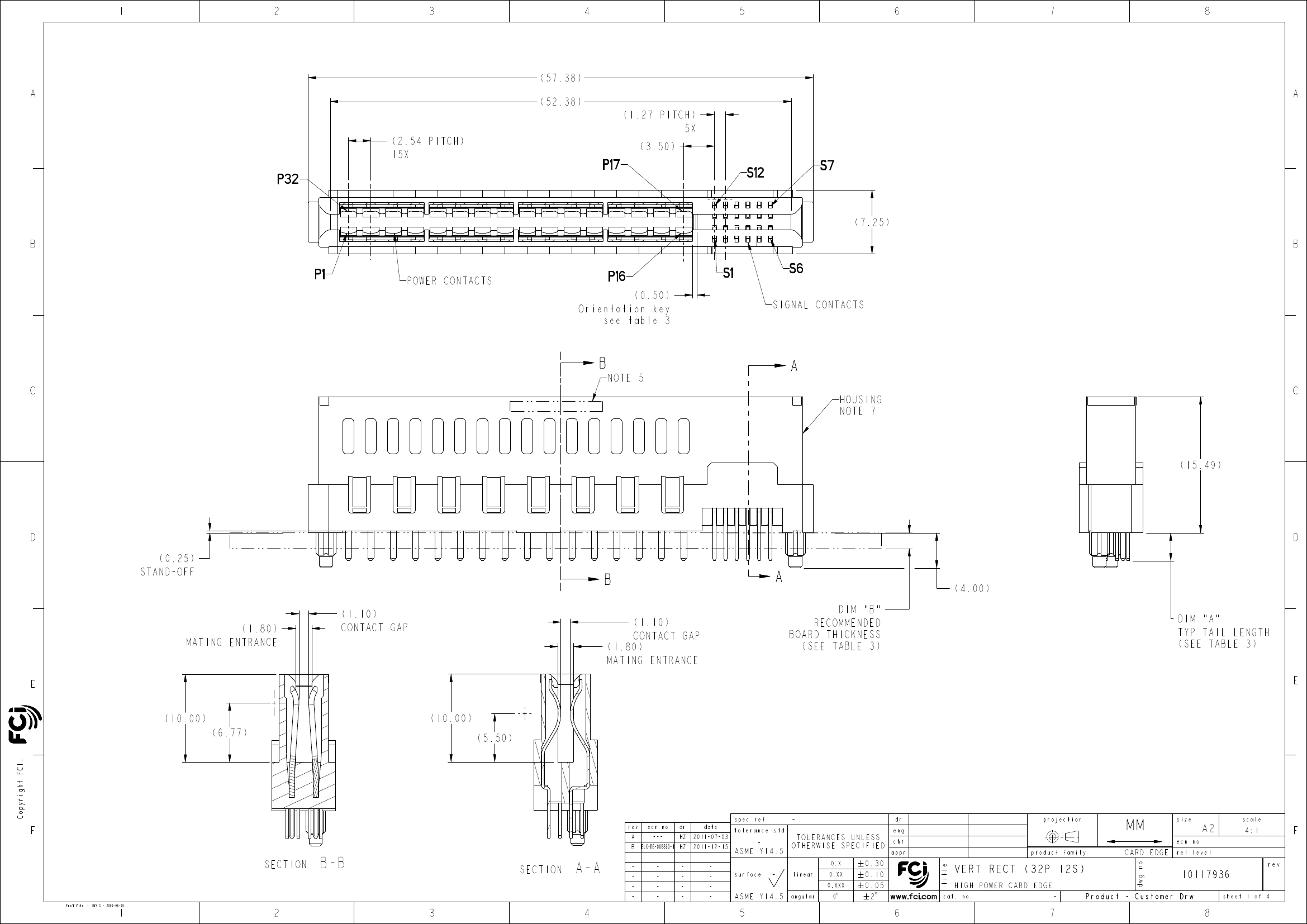

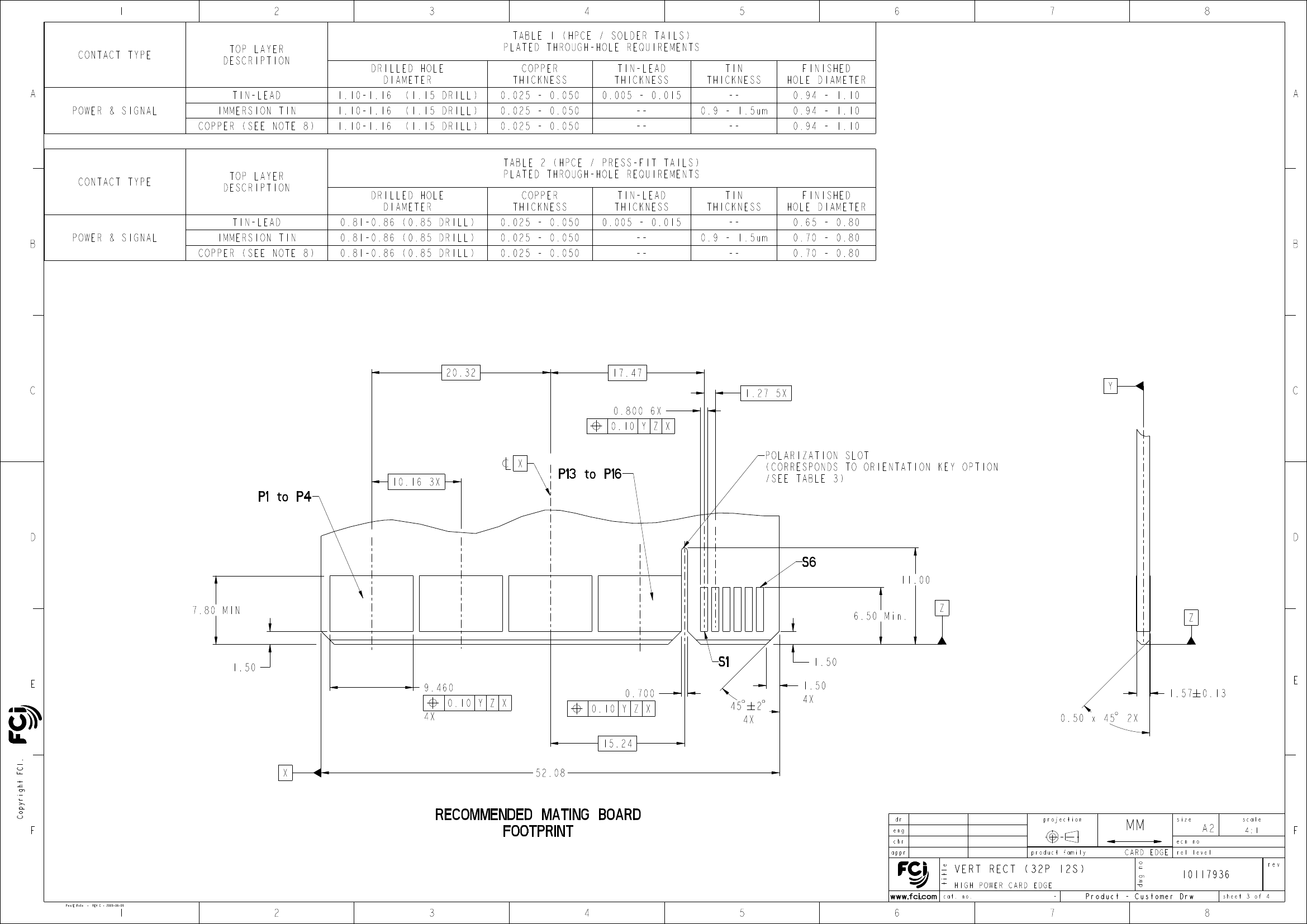

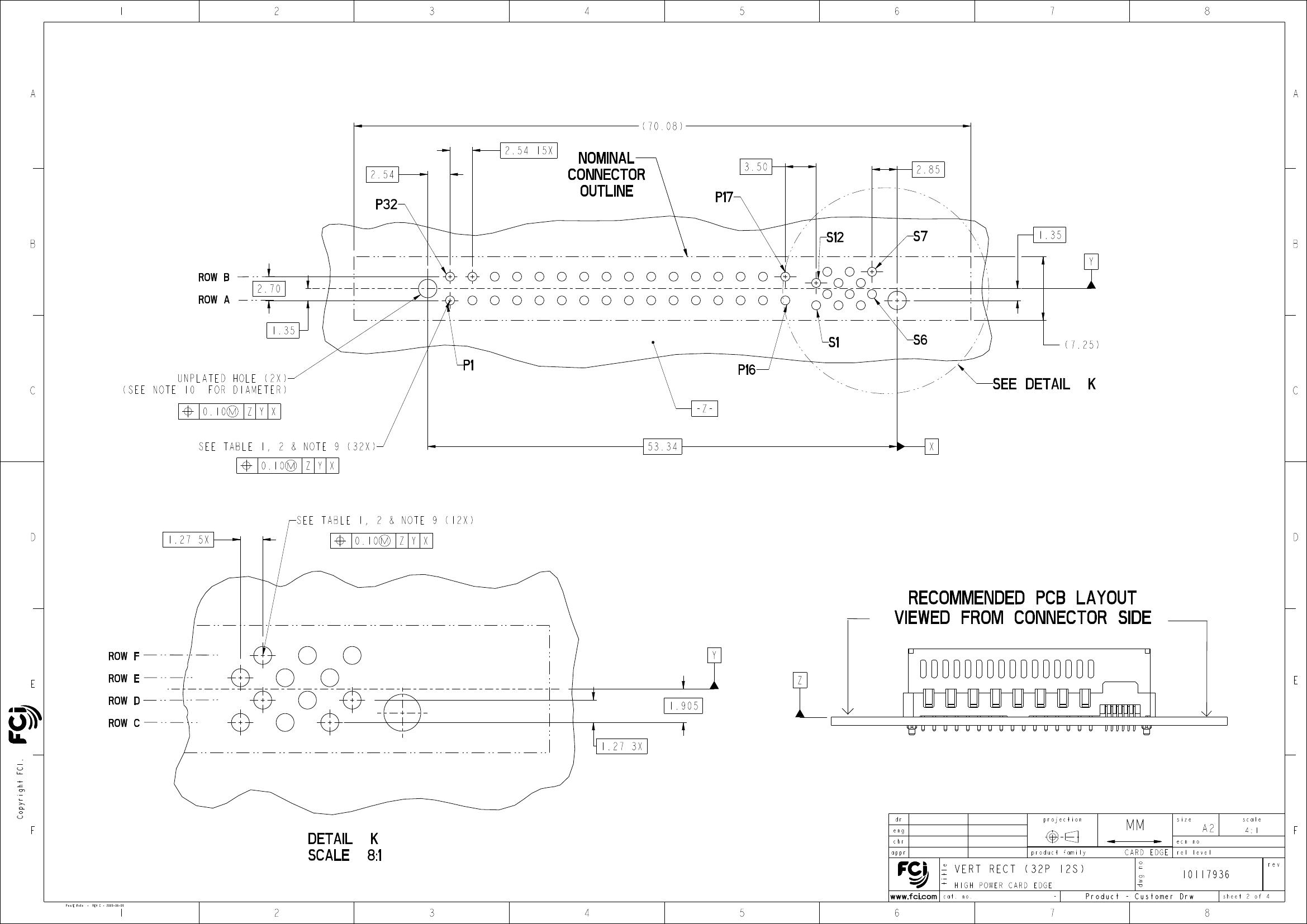

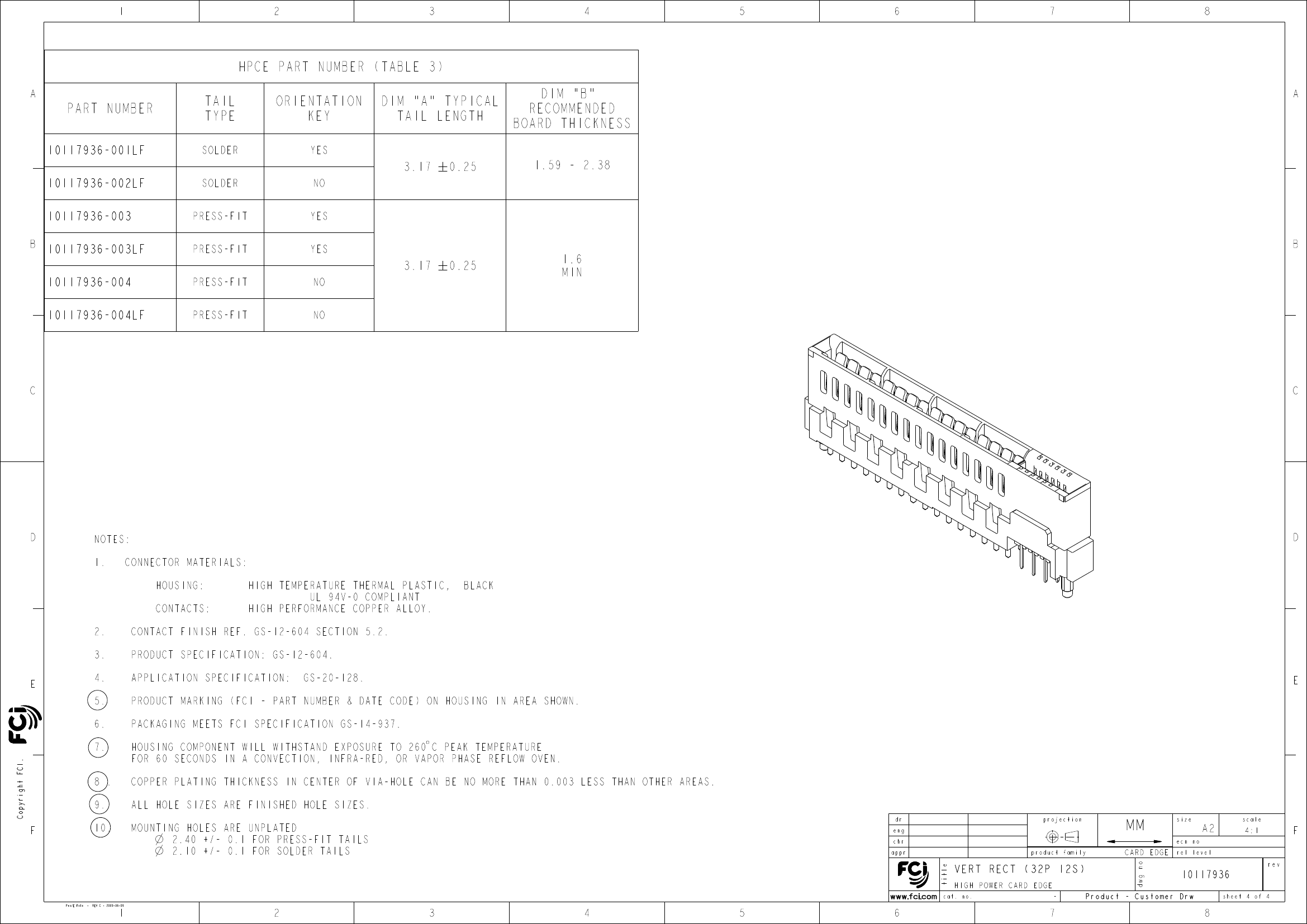

| 10117936-004LF | 10117936-003LF | 10117936-001LF | 10117936-002LF | |
|---|---|---|---|---|
| Description | 500-2A2F-MINI-SAS HD CABLES | 500-2A2F-MINI-SAS HD CABLES | 500-2A2F-MINI-SAS HD CABLES | 500-2A2F-MINI-SAS HD CABLES |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Factory Lead Time | 6 weeks | 6 weeks | 6 weeks | 6 weeks |
| body width | 0.285 inch | 0.285 inch | 0.285 inch | 0.285 inch |
| subject depth | 0.609 inch | 0.609 inch | 0.609 inch | 0.609 inch |
| body length | 2.259 inch | 2.259 inch | 2.259 inch | 2.259 inch |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 0.6 mΩ | 0.6 mΩ | 0.6 mΩ | 0.6 mΩ |
| Contact style | HYBRID | HYBRID | HYBRID | HYBRID |
| Dielectric withstand voltage | 500VDC V | 500VDC V | 500VDC V | 500VDC V |
| Durability | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | 10117936 | 10117936 | 10117936 | 10117936 |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | PRESS FIT | PRESS FIT | SOLDER | SOLDER |
| Total number of contacts | 12+32 | 12+32 | 12+32 | 12+32 |
