RL201G THRU RL207G
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage - 50 to 1000 Volts
Forward Current - 2.0Amperes
FEATURES
. The plastic package carries Underwrites Laboratory
Flammability Classification 94V-0
. High current capaility
. Low reverse leakage
. Glass passivated junction
. Low forward voltage drop
. High temperature soldering guaranteed: 350 /10 seconds,
0.375"(9.5mm)lead length,5lbs.(2.3kg)tension
MECHANICAL DATA
.
Case:
JEDEC DO-15 molded plastic body
.
Terminals:
Plated axial lead solderable per MIL-STD-750,method 2026
.
Polarity:
Color band denotes cathode end
.
Mounting Position:
Any
.
Weight:
0.014 ounce, 0.39 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Ratings at 25
ambient temperature unless otherwise specified,Single phase,half wave 60Hz,resistive or inductive)
load. For capacitive load,derate by 20%)
Symbols
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Macimum average forward rectified
current 0.375"(9.5mm)lead length at
T
A
=75
Peak forward surge current 8.3ms
sing-wave superimposed on rated load
(JEDEC method)
Maximum instantaneous forward voltage at 2.0 A
Maximum reverse
current at rated DC blocking voltage
Typeical thermal resistance(Note 2)
Typical junction Capacitance(Note 1)
Operating and storage temperature range
TA=25
TA=100
V
F
I
R
I
FSM
V
RRM
V
RMS
V
DC
I
(AV)
1N
1N
1N
1N
1N
1N
1N
Units
201G 202G 203G 204G 205G 206G 207G
50
35
50
100
70
100
300
210
300
400
280
400
2.0
600
420
600
200
140
200
1000
700
1000
Volts
Volts
Volts
Amps
70.0
Amps
1.1
5.0
Volts
A
50.0
R
C
J
T
J
JA
40.0
20.0
-50 to +175
/W
pF
T
STG
Notes:
1. Measured at 1MHz and applied reverse voltage of 4.0V DC
2.Thermal resistance from juntion to ambient and from junction lead at 0.375"(9.5mm)lead length,
P.C.B. Mounted
Copyright @ 2000 SHANGHAI CHENYI ELECTRONICS CO.,LTD
Page 1 of 2
CE
CHENYI ELECTRONICS
RL201G THRU RL207G
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage - 50 to 1000 Volts
Forward Current - 2.0Amperes

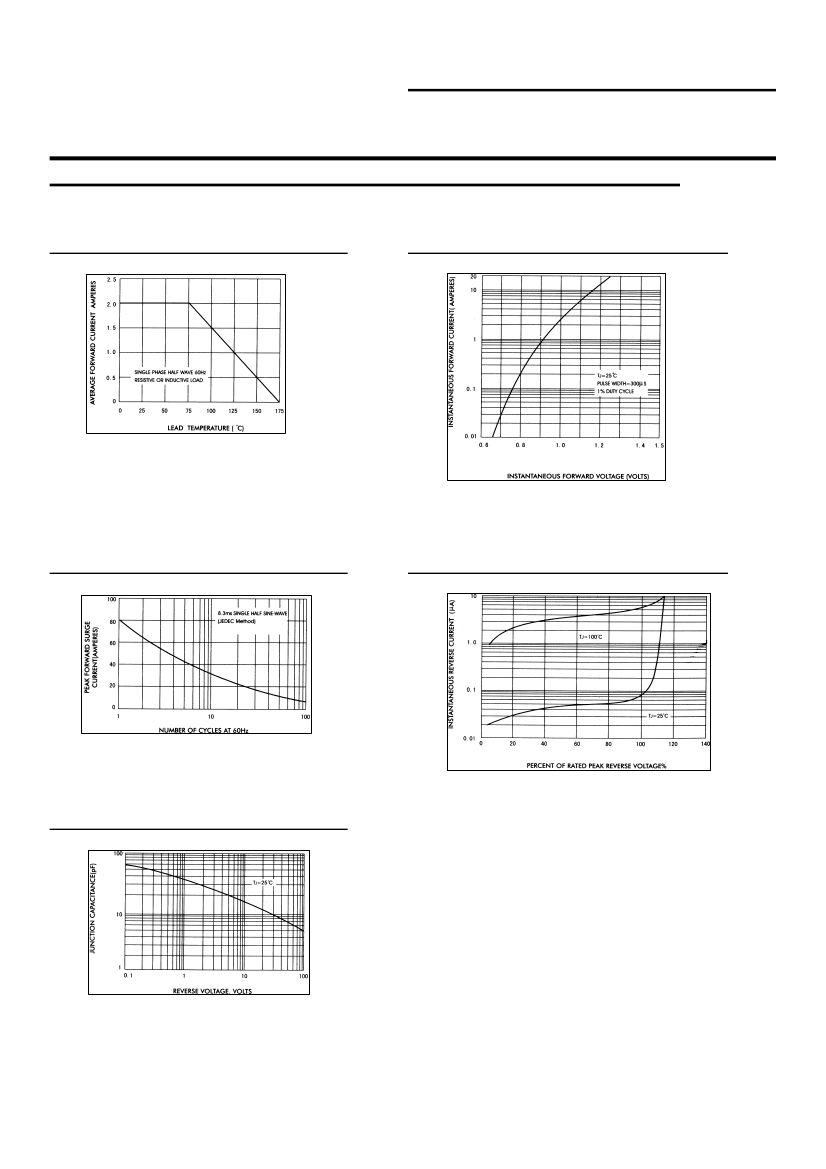

RATINGS AND CHARACTERISTIC CURVES RL201G THRU RL207G
FIG.2-TYPICAL INSTANTANEOUS FORWARD
FLG.1-FORWARD CURRENT DERATING CURVE
CHARACTERISTICS
FIG.3-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
FIG.4-TYPICAL REVERSE CHARACTERISTICS
FIG.5-TYPICAL JUNCTION CAPACITANCE
Copyright @ 2000 SHANGHAI CHENYI ELECTRONICS CO.,LTD
Page 2 of 2
