DEA202450BT-1195A1

Description
FILTER BANDPASS 2.4GHZ WLAN SMD
CategoryAnalog mixed-signal IC    filter
File Size43KB,1 Pages
ManufacturerTDK Corporation
Websitehttp://www.tdk.com
Environmental Compliance
Download Datasheet Parametric View All

DEA202450BT-1195A1 Online Shopping

Suppliers Part Number Price MOQ In stock
DEA202450BT-1195A1 - - View Buy Now

DEA202450BT-1195A1 Overview

FILTER BANDPASS 2.4GHZ WLAN SMD

DEA202450BT-1195A1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Maximum attenuation frequency2100 MHz
Attenuation at maximum frequency10 dB
Center frequency or cutoff frequency (fo/fc)2450 MHz
filter typeBAND PASS FILTER
high1 mm
input resistance50 OHM
Maximum insertion loss2.3 dB
length2 mm
Installation typeSURFACE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output impedance50 OHM Ω
physical sizeL2.0XB1.25XH1.0 (mm)/L0.079XB0.049XH0.039 (inch)
width1.25 mm
Base Number Matches1
(4/23)

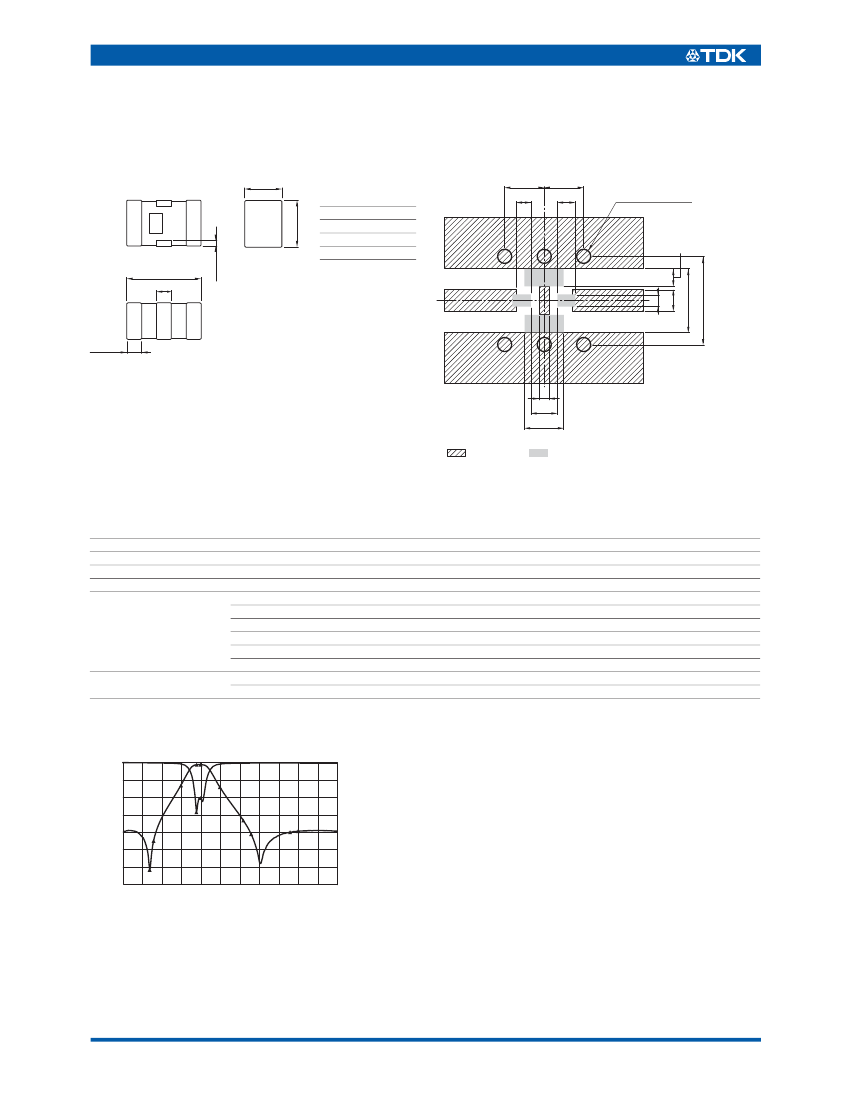

Multilayer Band Pass Filters, DEA Series
DEA202450BT-1195A1
SHAPES AND DIMENSIONS
1.0max.
RECOMMENDED PC BOARD PATTERN
TERMINAL
FUNCTIONS
1.25±0.2
1.4
0.53
1.4
0.65
ø0.5 Through-hole
0.63min.
0.45
2.32
0.35
0.95
1.4
2
1
4
2.0±0.2
0.4±0.15
3
0.15min.
1
2
3
4
GND
In(Out)
GND
Out(In)
0.4±0.15
Dimensions in mm
Solder resist
Land
Dimensions in mm
Line width be designed to mach 50Ω
characteristic impedance depending
on PCB material and thickness
ELECTRICAL CHARACTERISTICS
Item
Center frequency
Insertion loss
Return loss
Minimum value
[2450MHz]
[2400 to 2500MHz]
[2400 to 2500MHz]
[880 to 915MHz]
[915 to 1250MHz]
[1710 to 1990MHz]
[1990 to 2100MHz]
[4800 to 5000MHz]
[7200 to 7500MHz]
Operating
Storage
(dB)
(dB)
(dB)
(dB)
(dB)
(dB)
(dB)
(dB)
(°C)
(°C)
9
40
30
23
10
25
13
–40
–40
Typical value
Maximum value
2.3
+85
+85
Attenuation
Temperature range
• Ta:+25°C
FREQUENCY CHARACTERISTICS
0
–10
Attenuation(dB)
–20
–30
–40
–50
–60
–70
500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
Frequency (MHz)
Insertion loss
1: 2400MHz
–1.221dB
2: 2500MHz
–1.202dB
Return loss
Attenuation loss
1: 2400MHz 1: 1200MHz
–28.573dB
–61.487dB
2: 2500MHz 2: 1300MHz
–20.283dB
–44.918dB
3: 2000MHz
–13.083dB
4: 3000MHz
–14.092dB
5: 3600MHz
–33.109dB
6: 3800MHz
–40.9dB
7: 4800MHz
–39.925dB
8: 5000MHz
–39.346dB
• All specifications are subject to change without notice.
