Toroids (ring cores) accessories
General information
Toroids (ring cores) accessories

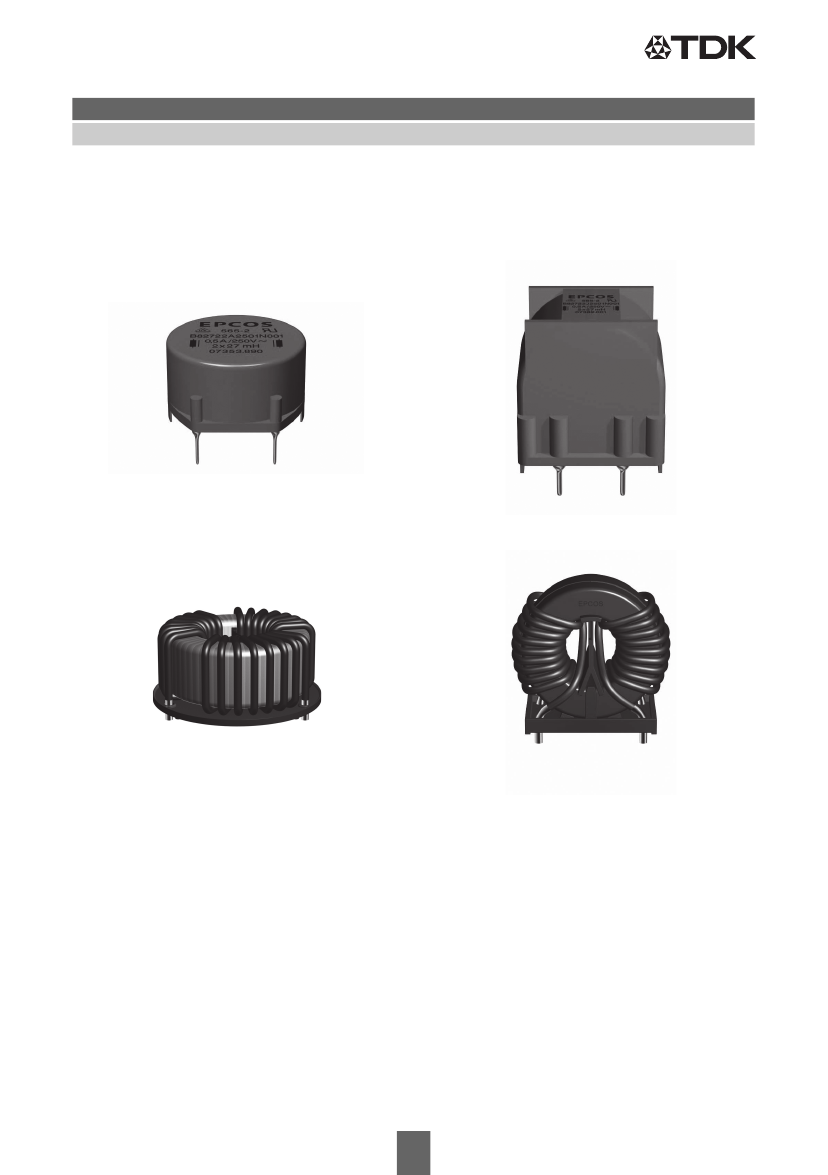

Examples of final applications of ring core accessories
Application of ring core housings – horizontal / vertical version
Application of ring core base plate
Epoxy coated ring cores and accessories is ideal combination for current-compensated chokes.
Combination of various wire diameters and hole/pin arrangement offer many alternatives of appli-
cation.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
5/17
Toroids (ring cores) accessories
Base plate for ring cores
Base plate for ring cores
Material:
GFR polycarbonate UL94 V-0
Makrolon 9415 [E41613], color code blue, COVESTRO AG
Ordering code
Hole diameter d
mm
1.1
1.4
1.7
2.9
2.1
Lead spacing
mm
22.86
×
15.24
22.86
×
15.24
see picture
see picture
see picture
Holes
4
4
8
6
6
B64293A1000X000
B64293A1100X000
B64293A1200X000
1)
B64293A1300X000
2)
B64293A1400X000
2)
B64293
Base plate
Figure
a
b
c
Dimensions
mm
40.4
×
20.5
40.4
×
20.5
∅
47.8
∅
64.0
∅
64.0
1) Combination with ring core housing B64291A1704X000
2) Hole diameter 1.0 … 3.1 mm possible
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
5/17
Toroids (ring cores) accessories
Base plate for ring cores

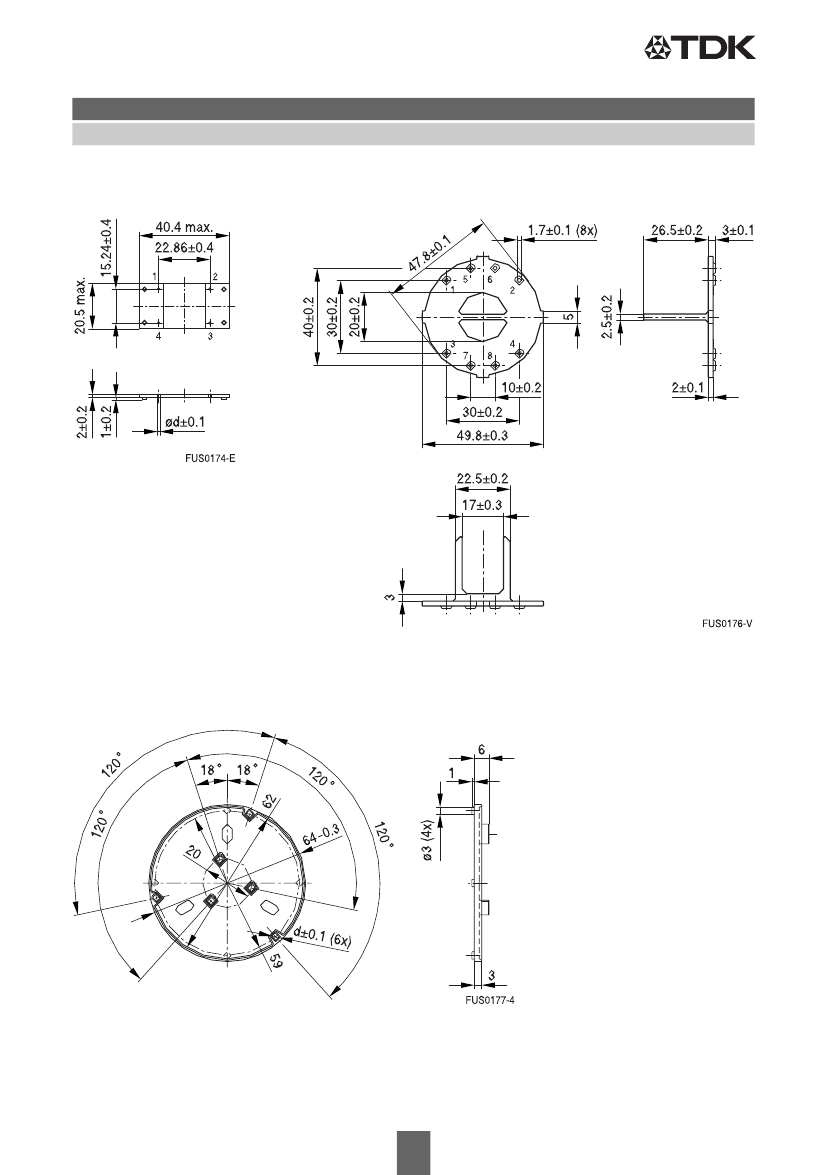

Figure a
Figure b
*)
B64293
*) Combination with ring core housing B64291A1704X000
Figure c
Tolerances to ISO 2768-C unless otherwise noted.
Dimensions in mm.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
5/17
Toroids (ring cores) accessories
Housings for ring cores
Housings for ring cores – horizontal version
Material:
B64291A: GFR polycarbonate UL94 V-0
Makrolon 9415 [E41613], color code blue, COVESTRO AG
B64291B: GFR liquid crystal polymer UL94 V-0
Vectra E130i [E83005], color code natural, CELANESE INTERNATIONAL CORP.
Solderability (lead-free): to IEC 60068-2-20, test Ta, + 245
±
5 °C, 3 ± 0.3 s
Resistance to soldering heat (wave soldering): to IEC 60068-2-20, test Tb, + 260
±
5 °C, 10
±
1 s
Housings – horizontal version
Figure
a
b
c
d
e
f
g
h
i
j
Inner diameter d
i
mm
11.6
12.0
20.4
26.0
30.0
30.0
39.3
39.3
48.0
70.6
Height
mm
9.6
8.0
13.3
16.8
19.7
25.0
25.0
30.0
32.0
39.1
Lead spacing
mm
10
×
10
see picture
20
×
12.5
25
×
15
30
×
20
30
×
20
15
×
40
15
×
40
–
–
Pins
4
8
4
4
4
4
4
4
–
–
B64291A1004X000
B64291B1008X000
B64291A1104X000
B64291A1204X000
B64291A1304X000
B64291A1404X000
B64291A1504X000
B64291A1604X000
B64291A1704X000
1)
B64291A1804X000
Ordering code
B64291
1) Combination with base plate B64293A1200X000
