CMW01Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> CMW01Y

CMW01Y: DescriptionLED YELLOW T1 MODULAR DIFFUSED; CategoryLED optoelectronic/LED; File Size92KB，2 Pages; ManufacturerVisual Communications Company - VCC; Environmental Compliance

Download Datasheet Parametric Compare View All

CMW01Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMW01Y	-	-	View	Buy Now

CMW01Y Overview

LED YELLOW T1 MODULAR DIFFUSED

CMW01Y Parametric

Parameter Name	Attribute value
color	yellow
Wavelength - Peak	590nm
Configuration	single
current	20mA
millicandela level	12.5mcd
perspective	120°
Lens type	scattering, colored
Lens style/size	Round, with dome, 3mm (T-1)
Rated voltage	2.1V
Installation type	Through hole, right angle

Preview

Download Datasheet

View All

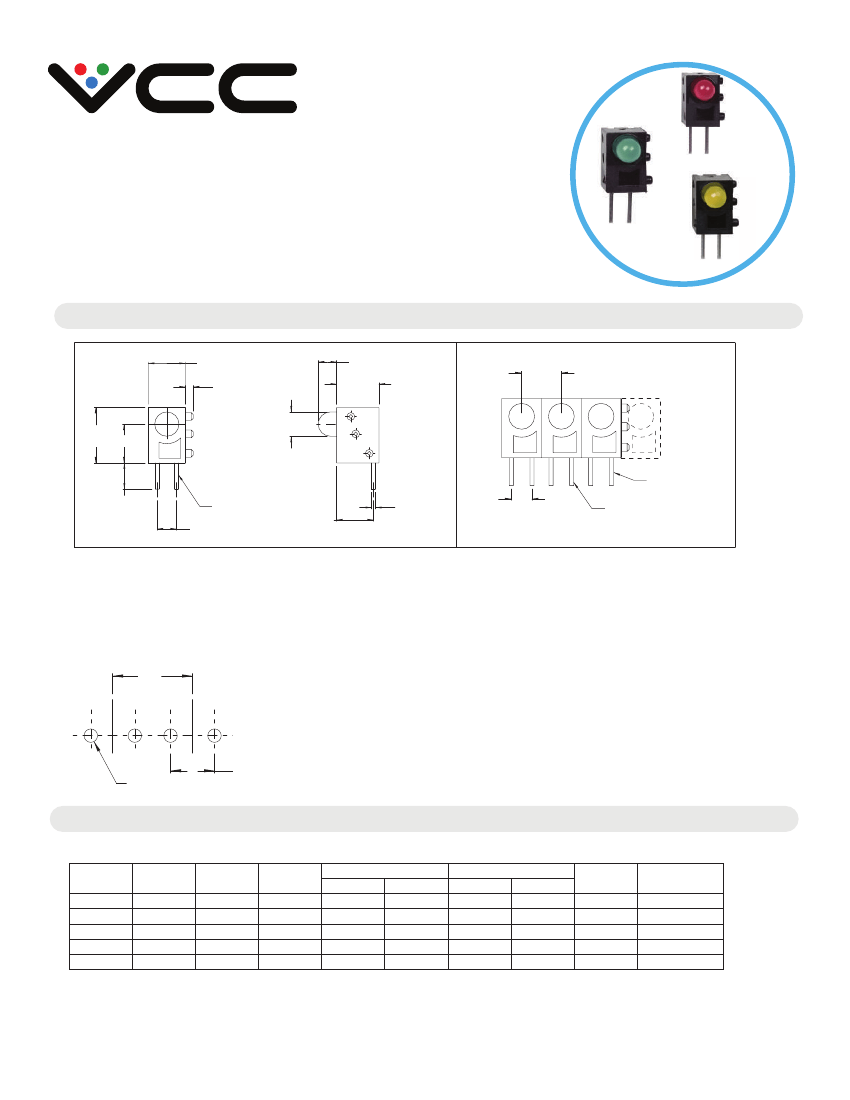

T-1 StatusPak™

Circuit Board Indicators

Product Dimensions

.182/.192

.040

.095±.020

.192

.218

.286

MAX.

Ø.125

.200

.135 MIN.

.100

C AT HODE

.190±.020

.020 T Y P .

.100

C AT HODE

TYP.

.020 S Q.

TYP.

All dimensions in inches.

P rinted C ircuit B oard as s embly has been made fas ter and eas ier than ever before. Now you can mount from one to ten circuit

board indicators , as a s ingle unit, in one eas y s tep.

T -1 S tatus P ak™ is cus tomized to your s peci cation. Y ou choos e the number of LE Ds , color s equence and pos ition.

S tatusP ak™ is shipped to you as a complete unit, ready for one-step P C board mounting. Unique snap-together feature allows

you to add or take away S tatusP ak™ modules as needed without any special tooling.

Mounting Hole Pattern:

.190

TYP.

Ø.040 TYP.

.100

All dimensions in inches

Electro-Optical Characteristics and Ratings

P art Number

C MC 01R

C MC 01G

C MW01R

C MW01Y

C MW01G

E mitted

C olor

H.E .R ed

Y ellow

H.E .G reen

Lens

C olor

C lear

R ed

Y ellow

G reen

P ackage

Type

Non-Diffused

Diffused

Non-Diffused

Luminous Intensity

Min. (mcd)

63.0

24.0

6.3

3.2

T yp. (mcd)

125.0

60.0

12.5

T yp. (V )

2.0

2.2

2.0

2.1

2.2

F orward V oltage

Max. (V )

2.4

2.5

V iewingAngle P eak Wavelength

(degrees)

(nm)

120

624

565

635

590

565

H.E .G reen

3.2

12.5

2.5

your first call for illuminated components

www.vcclite.com

1.800.522.5546

07/17 Rev 2

CMW01Y Related Products

	CMW01Y	CMW01G	CMW01R	CMC01R	CMC01G	CMC01Y
Description	LED YELLOW T1 MODULAR DIFFUSED	LED GREEN T1 MODULAR DIFFUSED	LED RED T1 MODULAR DIFFUSED	LED RED T1 MODULAR CLEAR LENS	LED GRN T1 MODULAR CLEAR LENS	LED YEL T1 MODULAR CLEAR LENS
color	yellow	green	red	red	green	yellow
Wavelength - Peak	590nm	565nm	625nm	590nm	625nm	565nm
Configuration	single	single	single	single	single	single
current	20mA	20mA	20mA	20mA	20mA	20mA
millicandela level	12.5mcd	12.5mcd	20mcd	60mcd	60mcd	60mcd
perspective	120°	120°	130°	30°	30°	30°
Lens type	scattering, colored	scattering, colored	scattering, colored	transparent	transparent	transparent
Lens style/size	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)
Rated voltage	2.1V	2.2V	2V	2V	2.2V	2.1V
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle
