0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
FH36 Series
●Space
saving (51 positions shown)
2.7mm
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[51 Positions]
16.9mm
■Features
1. Low-profile and light weight
Weight: Reduced approximately 30%
Board footprint: Reduced approximately 15%
(As compared with Hirose Electric's FH26 Series
connectors (51 positions)
Metal fittings do not protrude outside of the connector body
●Can
be mounted over conductive traces
2. Easy solderability on the PC board
The soldering leads are on 0.6 mm pitch, exiting on
front and back of the connector.
No exposed contacts on the bottom of
the connector
●Operation
(1) Actuator open
(2) Insert FPC
Actuator
3. Conducive traces on the PCB can run
under the connector
No exposed contacts on the bottom of the connector.
4. Easy FPC insertion and reliable
electrical connection
Proven Flip Lock actuator allows easy insertion of
FPC and provides a tactile sensation when fully
closed, confirming complete electrical and
mechanical connection.
FPC
5. FPC position hold
Tabs on each side of the FPC assure correct
placement and hold in the connector prior to
closing of the actuator.
(3) Close the actuator
(4) FPC connected
6. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC)
can be used. This is the only ultra-low profile ZIF
connector using standard FPC.
7. Board placement with automatic
equipment
Flat upper surface and tape and reel packaging
facilitate vacuum pick-up and placement.
Standard reel packaging contains 5,000
connectors.
●FPC
temporary hold
8. Halogen-free
*
(FH36W Series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
1.0mm MAX
2013.11②
1
FH36 Series●0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
■Specifications
Rating
Operating
Current rating 0.2 A DC (Note 1)
-55 to +85°C (Note 2)
temperature range
Operating
Relative humidity 90%
Voltage rating 30 Vrms AC
humidity range
max. (No condensation)
Thickness: 0.2±0.03mm Gold plated
Conditions
100 V DC
90 Vrms AC / one minute
1 mA
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm
10 cycles in each of the 3 directions
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at a temperature of 40°C and
humidity of 90 to 95%
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles
1) Reflow: At the recommended temperature profile.
2) Manual soldering: 350ç ± 10ç for 5 seconds
Storage
-10 to +50°C (Note 3)
temperature range
Storage
Relative humidity 90%
humidity range
max. (No condensation)
Recommended FPC
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Item
Specification
1.Insulation resistance 50 Mø min
2.Withstanding voltage No flashover or insulation breakdown
100 mø max.
3.Contact resistance
* Including FPC conductor resistance
Contact resistance: 100 mø max.
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 μs or longer
5.Vibration
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 μs or longer
6.Shock
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
(Steady state)
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
8.Temperature cycle
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
9.Resistance to
soldering heat
No deformation of components affection performance.
Note 1: When passing the current through all of the contacts, use 70% of the rated current.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in
storage, shipment or during transportation.
■Materials
Part
Insulator
Actuator
Contacts
Metal fittings
Material
LCP
PA
Phosphor bronze
Finish
Color: Beige
FH36 series: Dark brown
FH36W series: Light brown
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
-----------------
-----------------
■Ordering
information
FH 36 W - 51S - 0.3 SHW (50)
1
1
Series name
2
Series No.
3
Blank :Standard
W :Halogen-free
(Flame retardance UL94HB).
2
: FH
: 36
3
4
5
6
7
4
Number of positions : 11 to 61
5
Contact pitch : 0.3mm
6
Termination type: SMT horizontal staggered mounting type
7
specifications
(50)…Gold plating with nickel barrier 5,000 pieces/reel
(99)…Gold plating with nickel barrier 500 pieces/reel
2
FH36 Series●0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
■Connector
Dimensions
A±0.15
B±0.1
0.6±0.1
Lot No. indicator
(1)
A**
0.3±0.1
(0.12)
HRS mark
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.6±0.1
Cav No.
Number of contacts indicator
C±0.1
(0.12)
(1.0 MAX)
(0.47)
(0.25)
1
(2.7)
0.1
(D: FPC insertion slot dimension)
E±0.1
1
(2.75)
0.1
Note 1 : The coplanarity of each terminal lead is within 0.1.
Note 2 : Packaged on tape and reel only. Check packaging specification.
Note 3 : Slight discoloration in color of the plastic compounds does not affect form, fit or function of the connector.
Note 4 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH36-15S-0.3SHW(50)
FH36-17S-0.3SHW(50)
FH36-19S-0.3SHW(50)
FH36-25S-0.3SHW(50)
FH36-29S-0.3SHW(50)
FH36-33S-0.3SHW(50)
FH36-35S-0.3SHW(50)
FH36-45S-0.3SHW(50)
FH36-51S-0.3SHW(50)
FH36-61S-0.3SHW(50)
FH36W-11S-0.3SHW(50)
FH36W-15S-0.3SHW(50)
FH36W-17S-0.3SHW(50)
FH36W-19S-0.3SHW(50)
FH36W-23S-0.3SHW(50)
FH36W-27S-0.3SHW(50)
FH36W-31S-0.3SHW(50)
FH36W-33S-0.3SHW(50)
FH36W-39S-0.3SHW(50)
FH36W-51S-0.3SHW(50)
FH36W-61S-0.3SHW(50)
CL No.
580-1618-8-50
580-1606-9-50
580-1607-1-50
580-1619-0-50
580-1613-4-50
580-1615-0-50
580-1604-3-50
580-1617-5-50
580-1601-5-50
580-1600-2-50
580-1625-3-50
580-1623-8-50
580-1616-2-50
580-1612-1-50
580-1614-7-50
580-1608-4-50
580-1609-7-50
580-1622-5-50
580-1620-0-50
580-1605-6-50
580-1611-9-50
Number of contacts
15
17
19
25
29
33
35
45
51
61
11
15
17
19
23
27
31
33
39
51
61
A
6.1
6.7
7.3
9.1
10.3
11.5
12.1
15.1
16.9
19.9
4.9
6.1
6.7
7.3
8.5
9.7
10.9
11.5
13.3
16.9
19.9
B
3.6
4.2
4.8
6.6
7.8
9
9.6
12.6
14.4
17.4
2.4
3.6
4.2
4.8
6
7.2
8.4
9
10.8
14.4
17.4
C
4.2
4.8
5.4
7.2
8.4
9.6
10.2
13.2
15
18
3
4.2
4.8
5.4
6.6
7.8
9
9.6
11.4
15
18
D
4.83
5.43
6.03
7.83
9.03
10.23
10.83
13.83
15.63
18.63
3.63
4.83
5.43
6.03
7.23
8.43
9.63
10.23
12.03
15.63
18.63
E
5.59
6.19
6.79
8.59
9.79
10.99
11.59
14.59
16.39
19.39
4.39
5.59
6.19
6.79
7.99
9.19
10.39
10.99
12.79
16.39
19.39
Tape and reel packaging (5,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
3
FH36 Series●0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
■Recommended
PCB mounting pattern and metal mask dimensions
0.6±0.05
(0.5:Metal mask)
(Recommended metal mask thickness: t=0.1)
B±0.05
(0.2)
(0.3)
(0.7:Metal mask)
0.95±0.05
0.03±0.05
(Lead plated 0.1 MAX)
0.3±0.07
0.3
+0.04
–0.03
0.1±0.15
0.75±0.1
0.85±0.1
1.45±0.1
(0.5)
0.2±0.03
0±0.03
*RELATIVE POSITIONS OF
POINT A and B
(0.07)
0.3±0.03
(0.23:Metal mask)
0.6±0.05
1.67±0.05
(3.07)
0.3±0.05
0.3±0.05
0.8±0.05
(0.65:Metal mask)
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.535±0.05
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

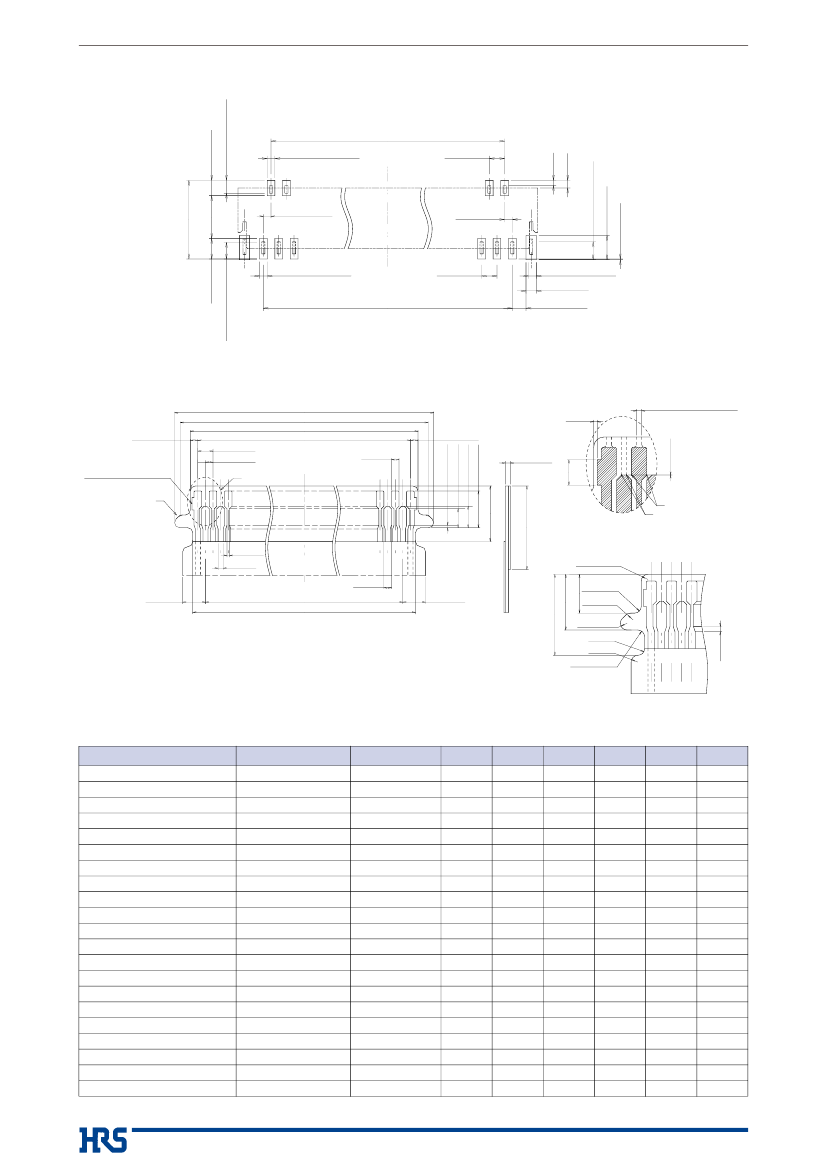

■Recommended
FPC Dimensions
0.3±0.07
0.6±0.02
0.3±0.02
disengagement shift
S
R
F±0.1
G±0.1
H±0.05
C±0.03
Detail R
3.3±0.3 (Stiffener)
2.2±0.3
A
B
0.1±0.02
(0.2)
0.3
+0.04
–0.03
0.9±0.2
B±0.03
J±0.05
0.9±0.2
Detail S
MAX R0.2
2.4±0.1
1.65±0.05
1.15±0.05
R0.2±0.05
R0.2±0.1
R0.2±0.05
(R0.2)
(R0.2)
R0.2±0.05
All dimensions: mm
Part Number
FH36-15S-0.3SHW(50)
FH36-17S-0.3SHW(50)
FH36-19S-0.3SHW(50)
FH36-25S-0.3SHW(50)
FH36-29S-0.3SHW(50)
FH36-33S-0.3SHW(50)
FH36-35S-0.3SHW(50)
FH36-45S-0.3SHW(50)
FH36-51S-0.3SHW(50)
FH36-61S-0.3SHW(50)
FH36W-11S-0.3SHW(50)
FH36W-15S-0.3SHW(50)
FH36W-17S-0.3SHW(50)
FH36W-19S-0.3SHW(50)
FH36W-23S-0.3SHW(50)
FH36W-27S-0.3SHW(50)
FH36W-31S-0.3SHW(50)
FH36W-33S-0.3SHW(50)
FH36W-39S-0.3SHW(50)
FH36W-51S-0.3SHW(50)
FH36W-61S-0.3SHW(50)
CL No.
580-1618-8-50
580-1606-9-50
580-1607-1-50
580-1619-0-50
580-1613-4-50
580-1615-0-50
580-1604-3-50
580-1617-5-50
580-1601-5-50
580-1600-2-50
580-1625-3-50
580-1623-8-50
580-1616-2-50
580-1612-1-50
580-1614-7-50
580-1608-4-50
580-1609-7-50
580-1622-5-50
580-1620-0-50
580-1605-6-50
580-1611-9-50
Number of contacts
15
17
19
25
29
33
35
45
51
61
11
15
17
19
23
27
31
33
39
51
61
B
3.6
4.2
4.8
6.6
7.8
9
9.6
12.6
14.4
17.4
2.4
3.6
4.2
4.8
6
7.2
8.4
9
10.8
14.4
17.4
C
4.2
4.8
5.4
7.2
8.4
9.6
10.2
13.2
15
18
3
4.2
4.8
5.4
6.6
7.8
9
9.6
11.4
15
18
F
6.04
6.64
7.24
9.04
10.24
11.44
12.04
15.04
16.84
19.84
4.84
6.04
6.64
7.24
8.44
9.64
10.84
11.44
13.24
16.84
19.84
G
5.6
6.2
6.8
8.6
9.8
11
11.6
14.6
16.4
19.4
4.4
5.6
6.2
6.8
8
9.2
10.4
11
12.8
16.4
19.4
H
4.8
5.4
6
7.8
9
10.2
10.8
13.8
15.6
18.6
3.6
4.8
5.4
6
7.2
8.4
9.6
10.2
12
15.6
18.6
J
4.6
5.2
5.8
7.6
8.8
10
10.6
13.6
15.4
18.4
3.4
4.6
5.2
5.8
7
8.2
9.4
10
11.8
15.4
18.4
4
(0.15)
FH36 Series●0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors

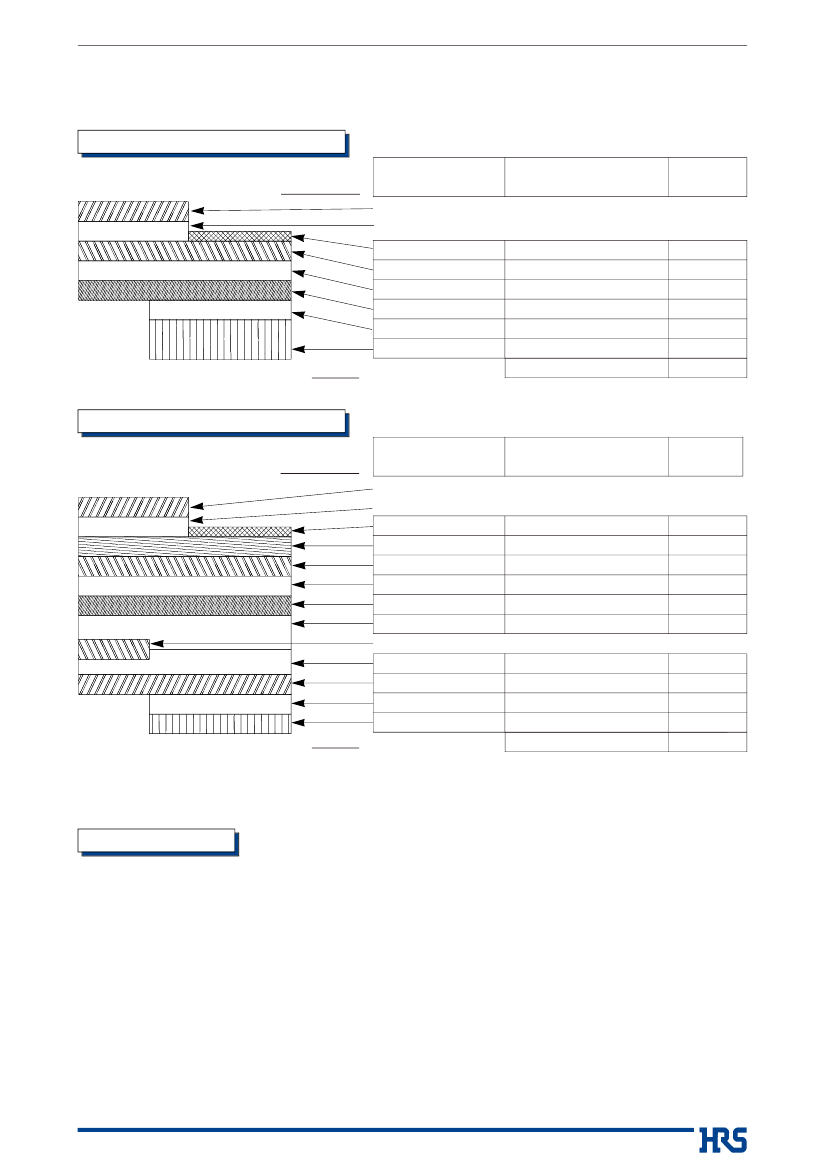

■Recommended
FPC construction
●Contact
FPC manufacturer for specific details.
1. Using Single-sided FPC
Connecting side
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffener
Polyimide
Material
1 mil thick.
Material Thickness
(μm)
(25)
(25)
0.2μm thick gold plated over 1 to 5μm
thick nickel underplating
3
35
25
25
40
75
203
Cu
Polyimide
1oz
1 mil thick
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Polyimide 3 mil thick
Total
Back side
2. Using Double-sided FPC
Connecting side
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
Polyimide
Material
1 mil thick
Material Thickness
(μm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
0.2μm thick gold plated over 1 to 5μm
thick nickel underplating
Cu
Cu
Polyimide
Cu
Polyimide
Polyimide
Total
1/2oz
1 mil thick
1/2oz
1 mil thick
1 mil thick
Thermosetting adhesive
Thermosetting adhesive
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Back side
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT
RECOMMENDED.
3.Precautions
1. This specification is a recommendation for the construction of the FH36 Series FPC (t=0.2
±
0.03)
2. For details about the construction, please contact the FPC manufacturers.
5
京公网安备 11010802033920号
EEWORLD
