ERU chokes
ERU 19, helically wound
Series/Type:
Date:
B82559*A019
June 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
ERU chokes
Helically wound
Rated inductance 1.0 .... 30 µH
Saturation current 10.1 ... 43 A
Construction
■
■
■
■
■
■
B82559*A019
ERU 19
High temperature ferrite core
Magnetically shielded
Helical winding
Self-leaded construction
Under body termination
3 pins for improved reliability
Features
■
■
■
■
■
■
■
High rated current
Extremely low DC resistance
Very low profile and extremely small footprint
Suitable for pick-and-place processes
RoHS-compatible
Easily customized
AEC-Q200 qualified
Applications
Energy storage chokes for
■
DC-DC converters
■
VRM modules
■
POL converters
■
Solar converters
Terminals
Lead-free tinned
Marking
Manufacturer, ordering code, date of manufacture and
production place (YYWWD/X),
Delivery mode and packing units
■
Blister tape
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/16
ERU chokes
Helically wound
Dimensional drawing and layout recommendation
B82559*A019
ERU 19
Dimensions in mm
Circuit diagram
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/16
ERU chokes
Helically wound

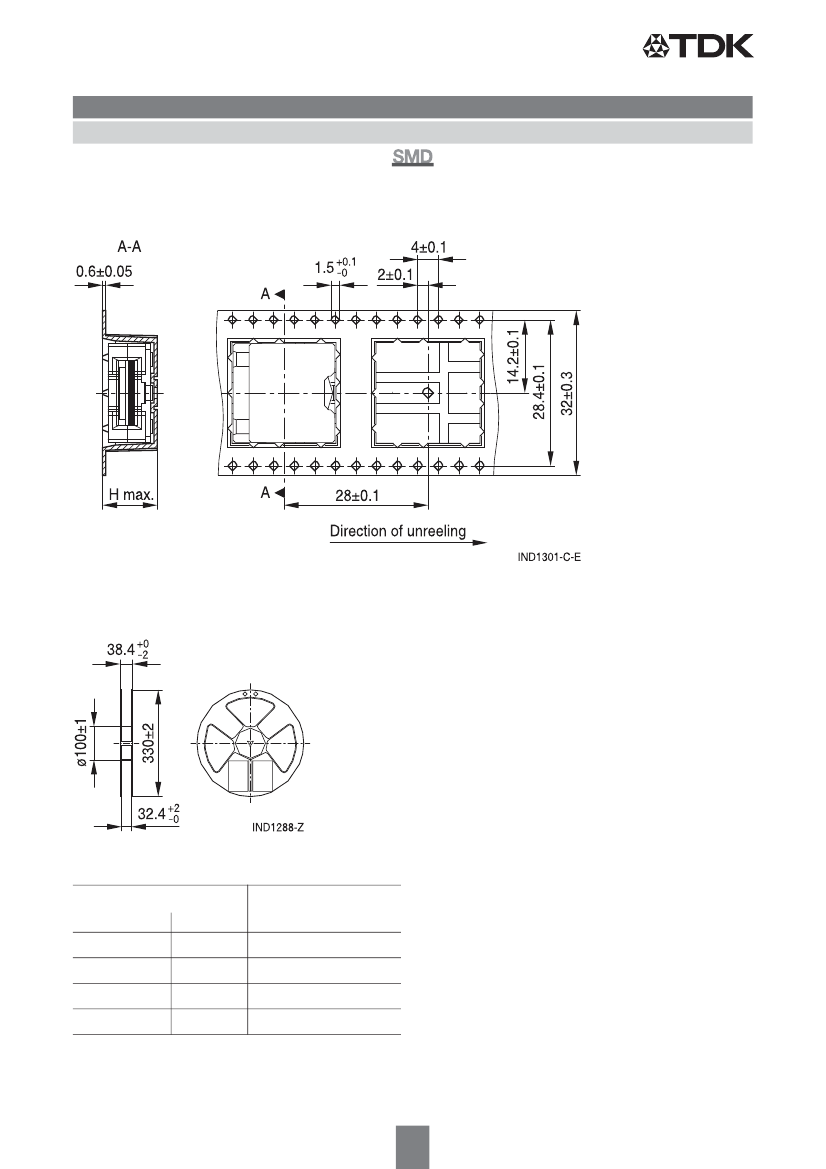

Taping and packing
Tape:
B82559*A019
ERU 19
Dimensions in mm
Reel:
Dimensions in mm
Height (mm)
component h cavity H
8.35
9.15
9.75
10.85
10.2
11.0
11.6
12.7
Packing unit
per reel
240
200
190
160
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/16
ERU chokes
Helically wound
Technical data and measuring conditions
Rated inductance L
R
Inductance tolerance
Saturation current I
Sat
DC resistance R
DC
Self-resonant frequency
High voltage: N1 - core
Solderability
(test of wettability of the pins)
Resistance to soldering heat
Operating temperature
Storage conditions (packaged)
Measured at 100 kHz, 0.1 V, +25 °C
10%
B82559*A019
ERU 19
Current that will result in an approximately 20% drop in
the inductance values at the specified temperature
Measured at +25 °C
2 MHz
200 V DC, 1 s
(245 5) °C, (3 0.3) s,
wetting of soldering area 95%
(based on IEC 60068-2-58, solder bath method)
To JEDEC J-STD 020D (Tc: +245 °C on pin)
40 °C … +150 °C (component)
–25 °C … +40 °C,
75% RH
Characteristics and ordering codes
L
R
H
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
20.0
30.0
I
sat, 25°C
A
43.0
42.5
37.8
31.5
23.0
18.6
14.4
13.0
12.0
10.1
I
sat, 100°C
R
DC
(max) R
DC
(typ)
A
37.5
36.3
32.2
27.0
20.2
16.4
12.7
11.4
10.6
8.7
m
1.20
1.70
2.20
2.70
2.70
8.25
9.55
12.15
14.75
18.65
m
0.95
1.45
1.80
2.30
2.30
7.70
8.90
11.35
13.75
17.35
Height h Approx. Ordering code
(nom.) weight
mm
8.35
9.15
9.75
10.85
10.85
8.35
8.35
9.15
9.75
10.85
g
9.8
10.3
11.1
12.7
12.7
9.3
9.6
10.7
11.8
13.0
B82559A2102A019
B82559A3152A019
B82559A4222A019
B82559A5332A019
B82559A5472A019
B82559A6682A019
B82559A7103A019
B82559A9153A019
B82559A0203A019
B82559A0303A019
