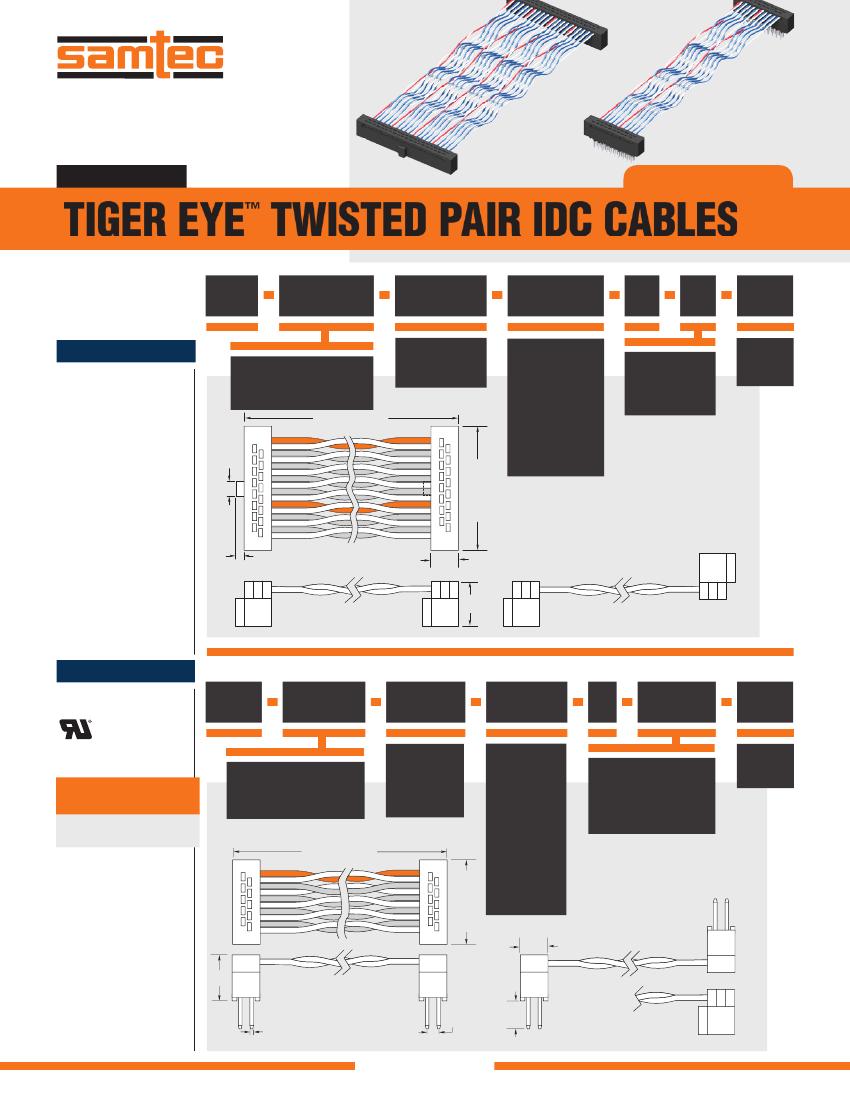

F-219
(1.27 mm) .050"
EYE
™
IDC
TIGER
™
FMTP–10–D–03.85–01
FFTP–20–D–08.77–01–N
FFTP, FMTP SERIES
TIGER EYE TWISTED PAIR IDC CABLES
FFTP Mates with:
FTS, FTSH, EHF, SHF
FMTP Mates with:
FLE*, SFMC*
FFTP
PINS
PER ROW
END
ASSEMBLY
ASSEMBLY
LENGTH
01
N
OPTION
SPECIFICATIONS
For complete specifications
see www.samtec.com?FFTP
or www.samtec.com?FMTP
Insulator Material:
PBT
Contact (FFTP):
BeCu
Terminal (FMTP):
Phosphor Bronze
Plating (FFTP):
10 µ" (0.25 µm)
Au over 50 µ" (1.27 µm)
Ni on contact area; Sn over
50 µ" (1.27 µm) Ni on balance
Plating (FMTP):
Sn over 50 µ" (1.27 µm) Ni
Wire:
30 AWG 7/38,
Tinned, Twisted Pair
with PVC insulator
Operating Temp Range:
-40 °C to +105 °C
Lead Size Accepted:
(0.41 mm) .016" SQ
Insertion Depth (FFTP):
(2.64 mm) .104" to
(3.17 mm) .125"
RoHS Compliant:
Yes
–05, –08, –10,
–13, –17, –20, –25
(Standard sizes)
ASSEMBLY LENGTH
= Double
End
–D
= (97.79 mm) 3.85"
–03.85
–08.77
–18.00
= (222.76 mm) 8.77"
= Notch
Polarization
(Standard)
–N
= Reverse
Connector
–R
= (457.20 mm) 18.00"
(1.90)
.075
No. of
positions
x
(1.27)
.050
+
(4.19)
.165
(Standard lengths)
(1.02) .040
(3.05)
.120
–D
(5.08)
.200
–R
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
FMTP
PINS
PER ROW
END
ASSEMBLY
ASSEMBLY
LENGTH
01
TRANSFER
OPTION
OPTION
ALSO AVAILABLE
(MOQ Required)
• Other sizes
• Other cable lengths
–05, –08, –10,
–13, –17, –20, –25
(Standard sizes)
= Double End
–D
–T
= (97.79 mm)
3.85"
–03.85
= Transfer End
= (222.76 mm)
8.77"
–08.77
–18.00
(Standard
lengths)
Leave blank for
–D End Assembly.
For –T End Assembly
Specify “–N”
(Socket has notch
polarization)
= Reverse
Connector
–R
ASSEMBLY LENGTH
No. of
positions
x
(1.27)
.050
+
(4.19)
.165
= (457.20 mm)
18.00"
(3.05)
.120
*Note:
Standard FMTP callout
will not mate with FLE, SFMC.
Must use gold plated callouts.
(See drawing on web.)
When mated with a socket,
Wire 1 mates with Pin 2;
Wire 2 mates wth Pin 1, etc.
Note:
This Series is
non-standard, non-returnable.
(5.08)
.200
–R
–D
(0.41) .016 SQ
(1.27)
.050
(3.07)
.121
–T
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
