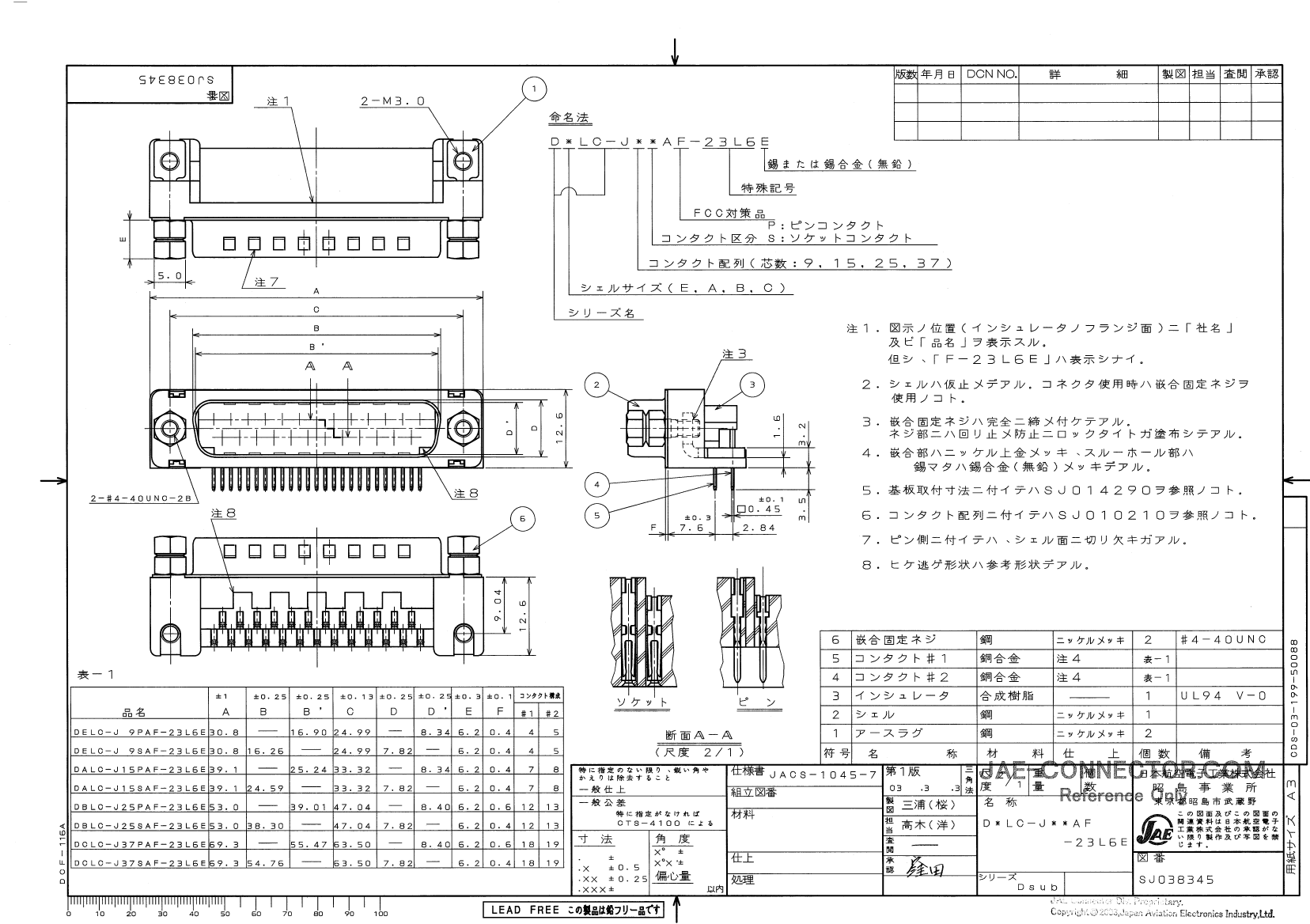

DALC-J15PAF-23L6E

Description
CONN D-SUB PLUG 15POS R/A
CategoryThe connector
File Size146KB,1 Pages
ManufacturerJAE Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

DALC-J15PAF-23L6E Online Shopping

Suppliers Part Number Price MOQ In stock
DALC-J15PAF-23L6E - - View Buy Now

DALC-J15PAF-23L6E Overview

CONN D-SUB PLUG 15POS R/A

DALC-J15PAF-23L6E Parametric

Parameter NameAttribute value
Connector styleD-Sub
Connector typePlug, male pin
Number of pins15
Number of rows2
Housing size, connector layout2(DA,A)
Contact typeSignal
Installation typeThrough hole, right angle
Flange characteristicsMating side, female anti-falling screw (4-40)
Terminationwelding
characteristicground dent
Housing material, platingSteel, nickel plated
Contact platinggold
Contact plating thickness-
Intrusion protection-
Material flammability ratingUL94 V-0
Rated current5A
Operating temperature-55°C ~ 105°C
Rated voltage-
colorblack
Contact shape-
Shell material-
Wire gauge-
Contact material-
Braking device interval0.299"(7.60mm)

DALC-J15PAF-23L6E Related Products

DALC-J15PAF-23L6E DELC-J9SAF-23L6FE
Description CONN D-SUB PLUG 15POS R/A CONN D-SUB RCPT 9POS R/A SOLDER
Connector style D-Sub D-Sub
Connector type Plug, male pin socket, female socket
Number of pins 15 9
Number of rows 2 2
Housing size, connector layout 2(DA,A) 1(DE,E)
Contact type Signal Signal
Installation type Through hole, right angle Through hole, right angle
Flange characteristics Mating side, female anti-falling screw (4-40) Mating side, female anti-falling screw (4-40)
Termination welding welding
Housing material, plating Steel, nickel plated Steel, nickel plated
Contact plating gold gold
Material flammability rating UL94 V-0 UL94 V-0
Rated current 5A 5A
Operating temperature -55°C ~ 105°C -55°C ~ 105°C
color black black
Braking device interval 0.299"(7.60mm) 0.299"(7.60mm)
