1715749805 Overview

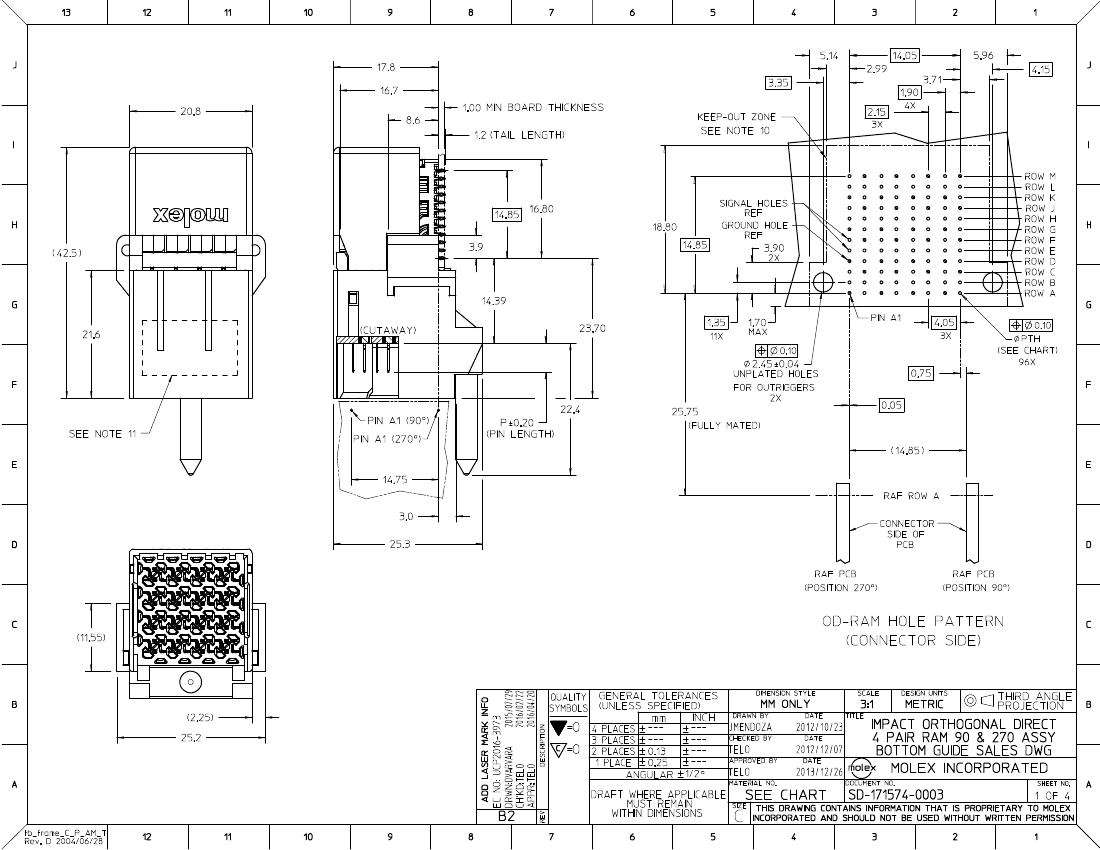

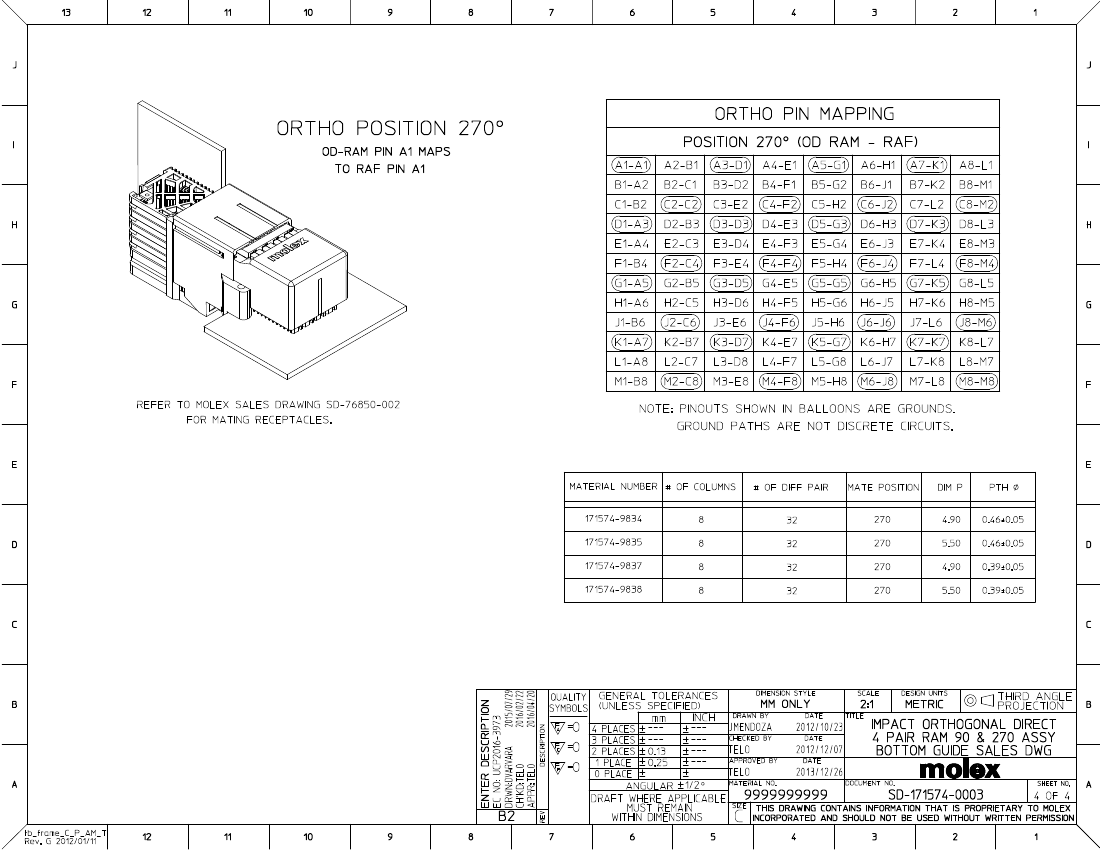

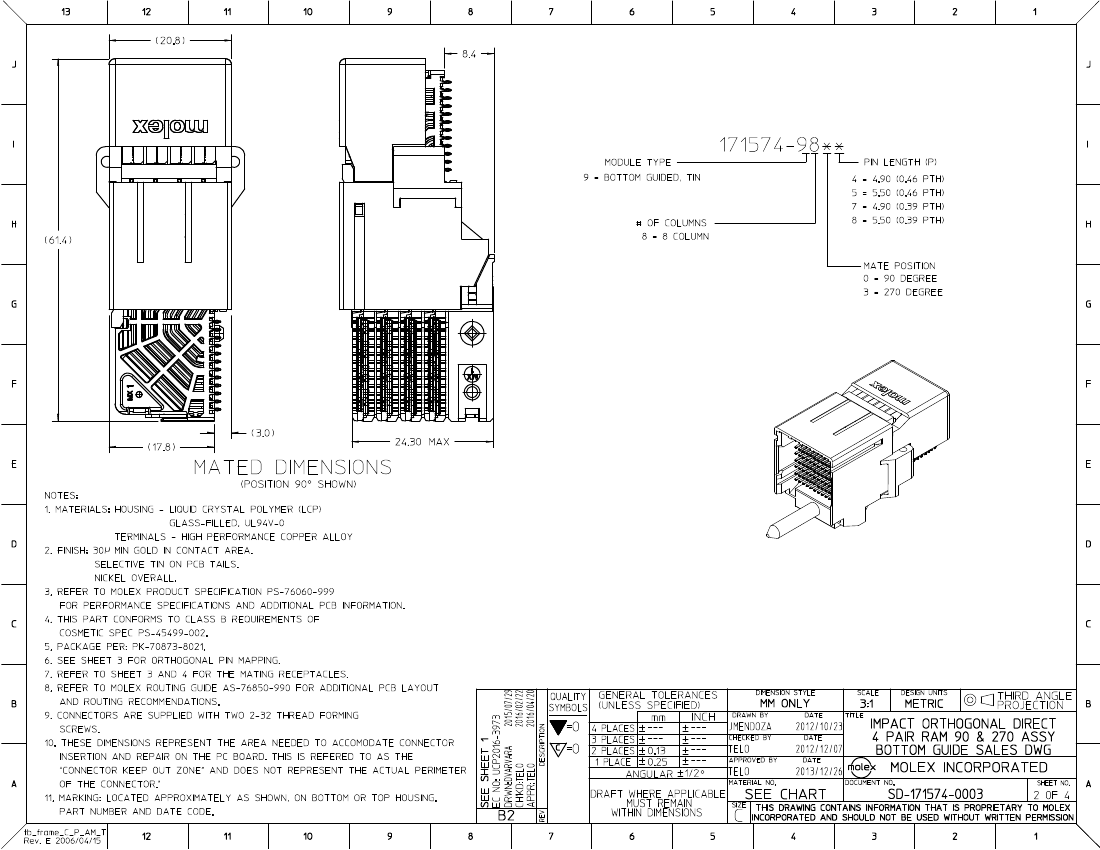

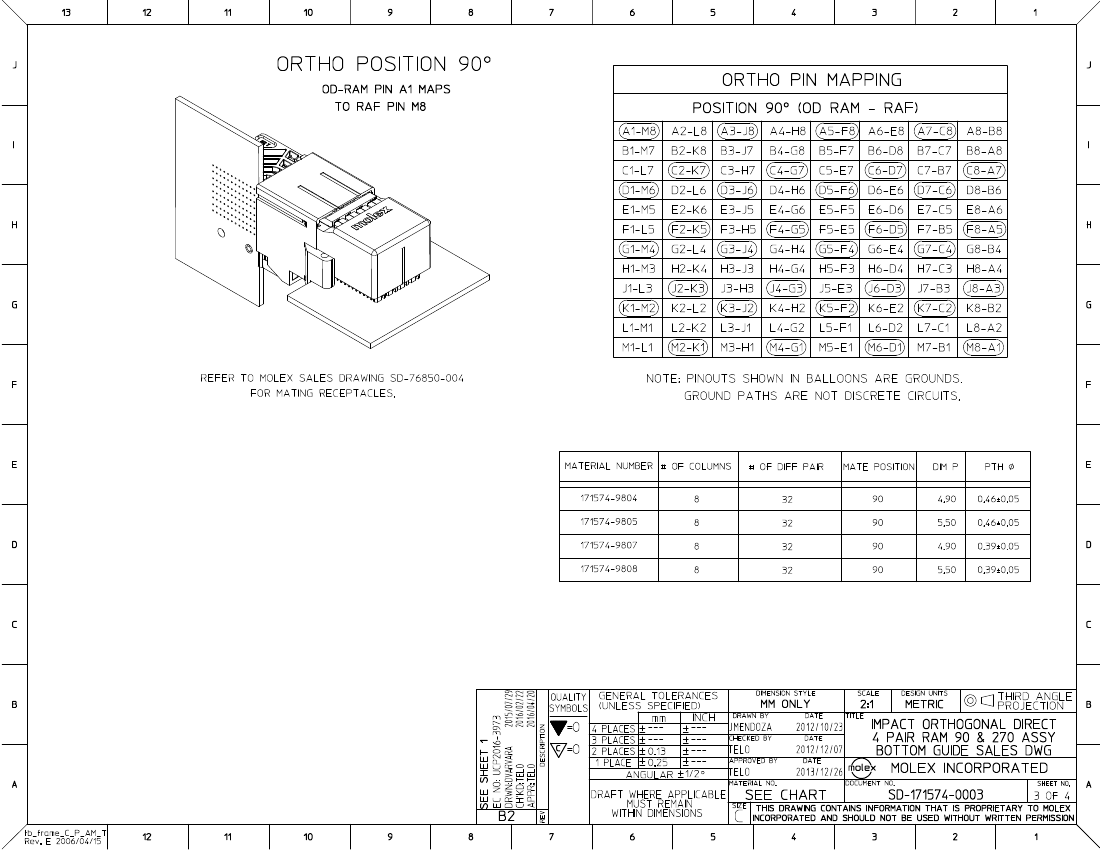

IMPACT 4X8 BOTTOM GD ORTHO D RAM

Parameter Name	Attribute value
Connector usage	-
Connector type	Connector, male pin
Connector style	Impact™, Bottom Guide Pin
Number of pins	96
Number of pins loaded	all
spacing	-
Number of rows	12
Number of columns	8
Installation type	Board edge, through hole, right angle
Termination	Press fit
Contact layout (typical)	32 differential pairs
characteristic	board guide
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
color	black
Rated current	-
Material flammability rating	UL94 V-0
Operating temperature	-55°C ~ 85°C
Rated voltage	30V

	1715749805	1715749838	1715749804	1715749807	1715749808
Description	IMPACT 4X8 BOTTOM GD ORTHO D RAM	IMPACT 4P ODRAM BOTTOM GD 270 55	IMPACT ORTHO DIRECT 4PX8C BOTTOM	IMPACT 4X8 BOTTOM GD ORTHO D RAM	IMPACT 4X8 BOTTOM GD ORTHO D RAM
Connector type	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin
Connector style	Impact™, Bottom Guide Pin	Impact™, Bottom Guide Pin	Impact™, Bottom Guide Pin	Impact™, Bottom Guide Pin	Impact™, Bottom Guide Pin
Number of pins	96	96	96	96	96
Number of pins loaded	all	all	all	all	all
Number of rows	12	12	12	12	12
Number of columns	8	8	8	8	8
Installation type	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle	Board edge, through hole, right angle
Termination	Press fit	Press fit	Press fit	Press fit	Press fit
Contact layout (typical)	32 differential pairs	32 differential pairs	32 differential pairs	32 differential pairs	32 differential pairs
characteristic	board guide	board guide	board guide	board guide	board guide
Contact plating	gold	gold	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
color	black	black	black	black	black
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating temperature	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Rated voltage	30V	30V	30V	30V	30V
