Technical information
Thermal-magnetic Circuit Breaker 2216-S
In the automation industry, it is very
important to consistently reduce machine
downtime and specify devices that are easy
to install and save control cabinet space.
E-T-A’s new 2216-S thermal-magnetic
circuit breaker, measuring only 12.5 mm
wide by 70 mm deep, requires very little
space in control cabinets and provides
trusted overcurrent protection.
It features easy to use plug-in type
terminals and was specifically designed for
the 80plus (with screwless PT terminals)
and 81plus (with screw terminals)
side-by-side mountable sockets for direct
DIN rail mounting. The sockets provide
quick and straightforward power and signal
distribution via plug-in type jumpers and
busbars. When the 2216-S is plugged
in, it firmly latches into the socket. It
also features coding pins, following the
»key-lock principle«, which help users
combine the correct breaker and socket
together. Dimensions are in accordance
with the standard DIN 43880 for the
installation of built-in units.
Three different trip characteristics are
available allowing exact specification of the
2216-S based on the size of the loads and
lines being protected. The ultra-fast F1 curve
is meant for DC circuits and corresponds to
the A curve in circuit protection. The fast
trip curve F2 and the medium-delayed trip
curve M1 were designed for both AC and
DC applications. The F2 curve corresponds
to the B characteristic and the M1 curve
corresponds to the C characteristic to IEC/
EN 60898/1 (DIN VDE 0641-11).
Technical data
Rated voltage
Current rating range
Auxiliary contact
Number of poles
Rupture capacity I
cn
AC 240 V (50/60Hz); DC 50 V (single pole,
DC 80 V (double pole)
0,5…16 A
change-over (optional)
1-pole and 2-pole
AC 240 V
DC 50 V
AC 240 V
DC 80 V
1-pole
1-pole
2-pole
2-pole
300 A
600A
400A
600A

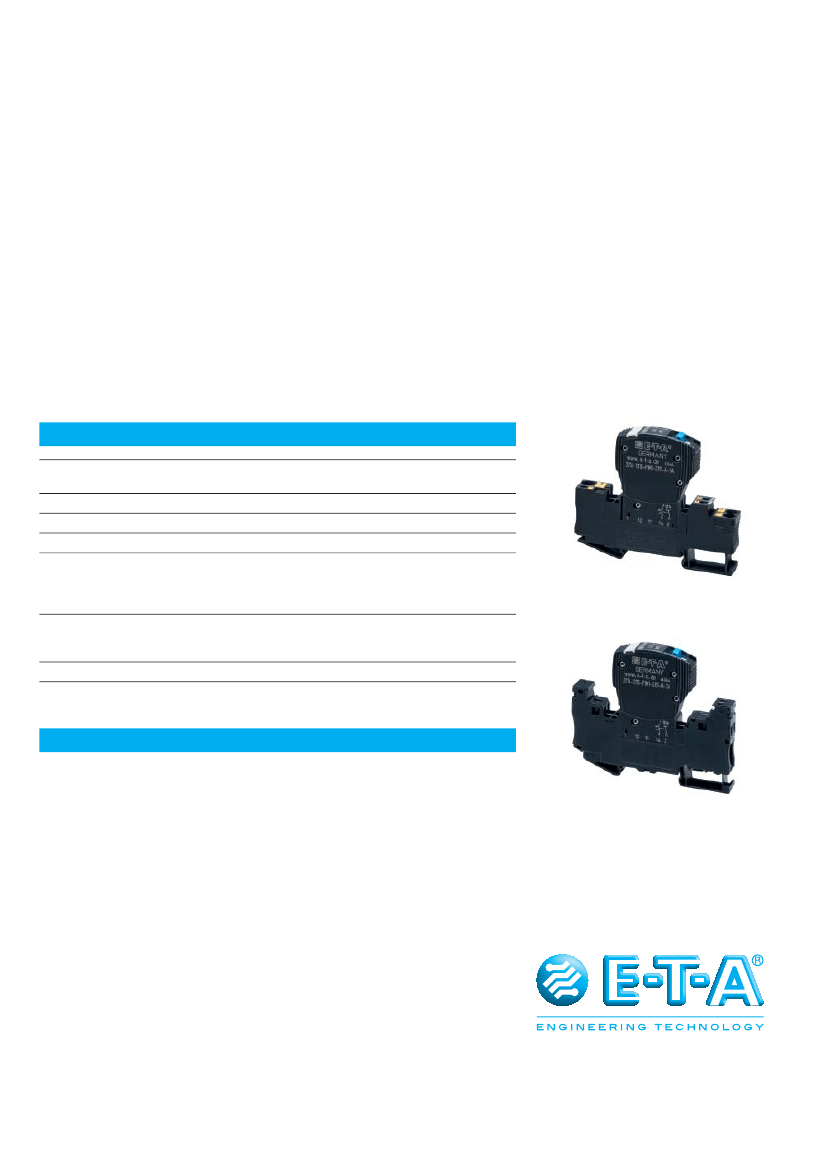

Thermal-magnetic circuit breaker type 2216-S
on socket 80 plus
Typical life
6000 cycles at 1 x rated current
3000 cycles at 1 x rated current
(DC 80 V, 2-pole)
IEC EN 60934, UL 1077 and UL 508
Approvals
Features and benefits
●
●
●
●
●
●
●
Reliable overcurrent protection for AC and DC control circuits
Three different trip characteristics for exact specification to the load
Space-saving design: 12.5 x 90 x 70 mm (including socket)
Easy to use plug-in type terminals for flexible installation
Coding pins provide a clear correlation between breaker and socket
Integral retaining clip ensures a tight fit in the socket
International approvals for global use
Thermal-magnetic circuit breaker type 2216-S
on socket 81 plus
E-T-A Elektrotechnische Apparate GmbH
Industriestraße 2-8 . 90518 ALTDORF
GERMANY
Phone: +49 9187 10-0 . Fax +49 9187 10-397
F_2216-S_e_040612A
E-Mail: info@e-t-a.de . www.e-t-a.de
