10060913-201 datasheet, PDF - EEWORLD Datasheet

10060913-201: DescriptionARRAY FEMALE 296POS 1.3MM GOLD; CategoryThe connector; File Size817KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10060913-201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10060913-201	-	-	View	Buy Now

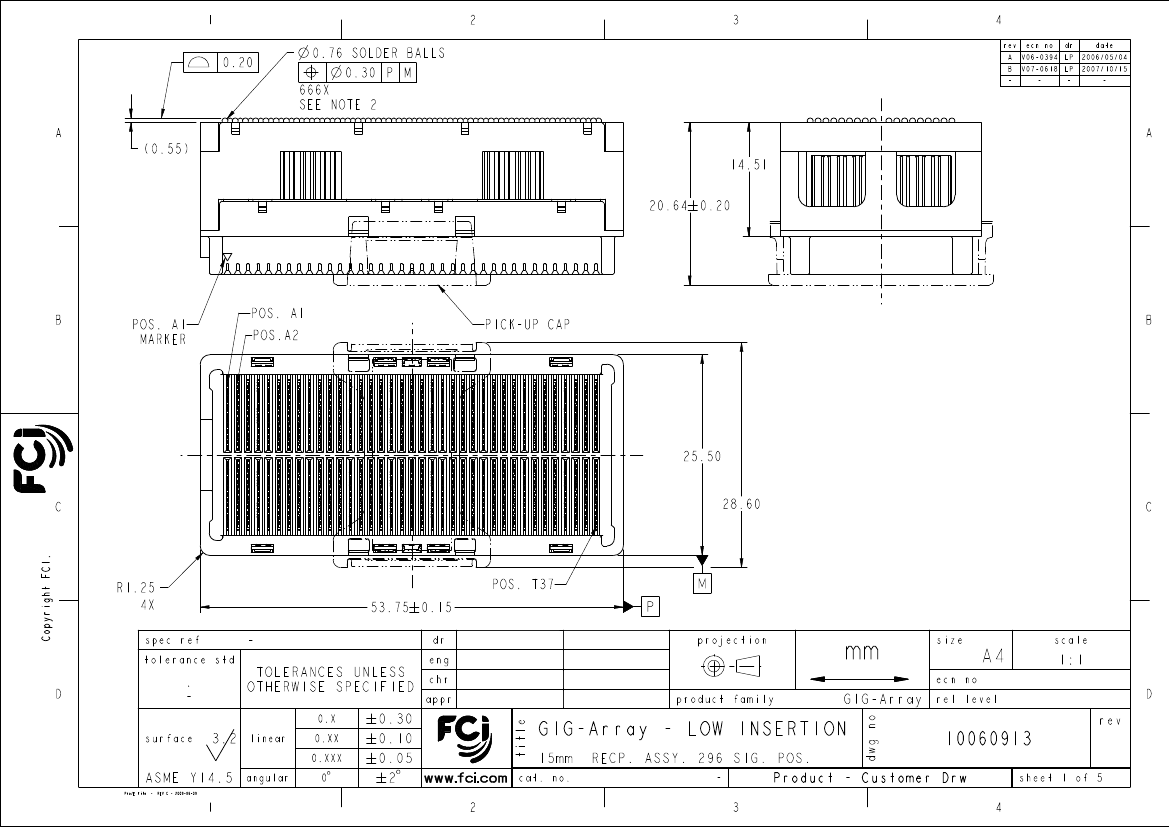

ARRAY FEMALE 296POS 1.3MM GOLD

Parameter Name	Attribute value
Connector type	Differential Pair Array, Female
Number of pins	296 signals (148 pairs)
spacing	0.051"（1.30mm）
Number of rows	18
Installation type	surface mount
characteristic	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）

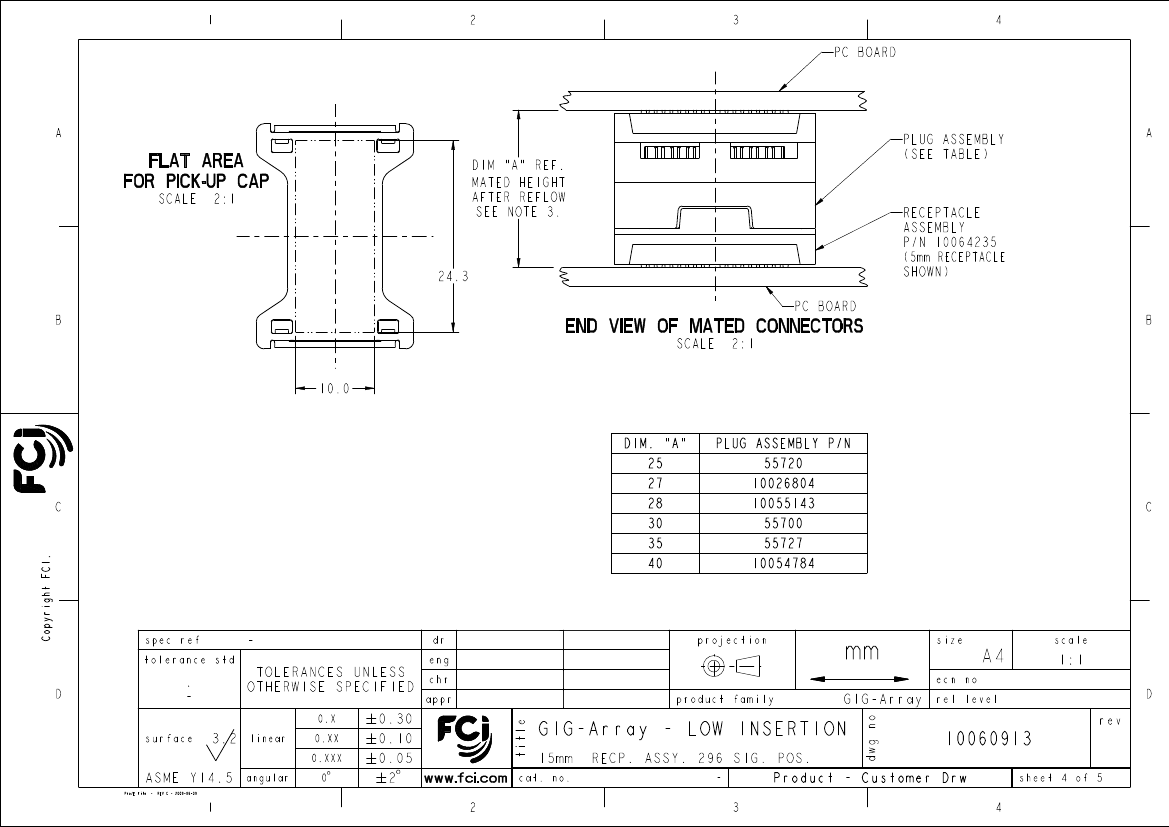

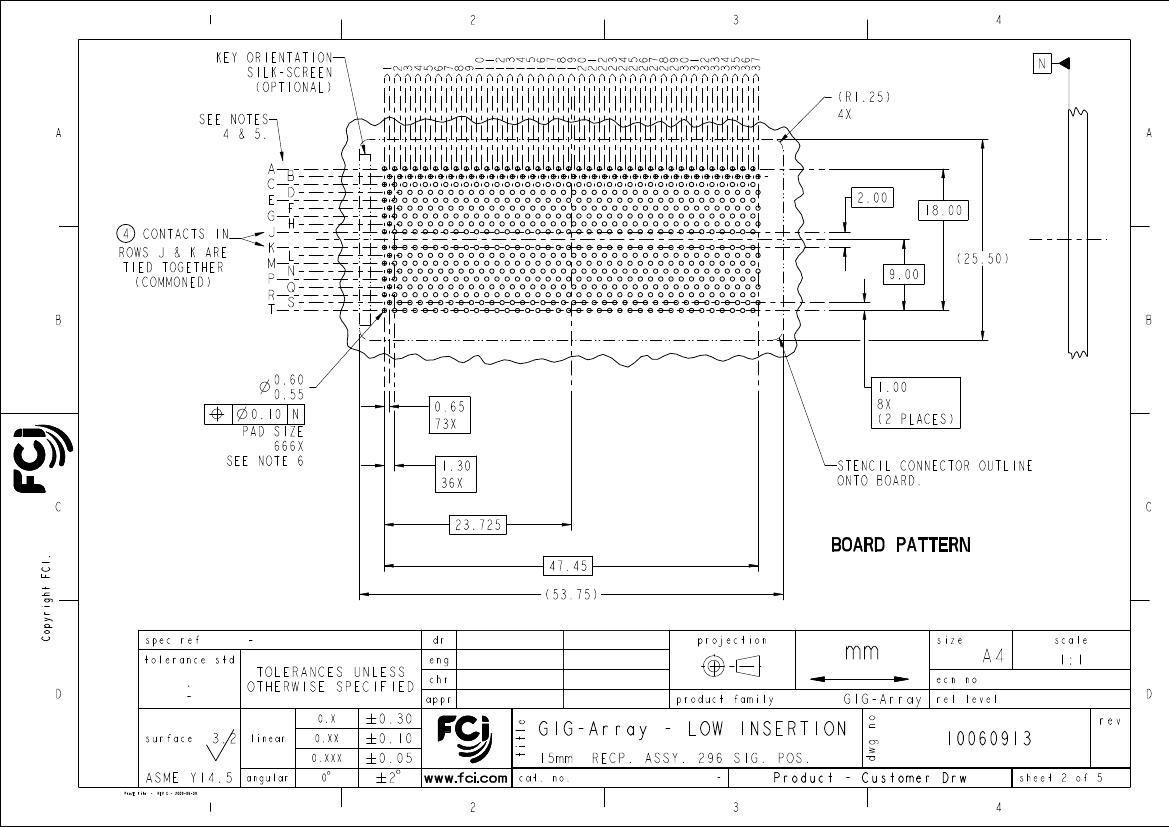

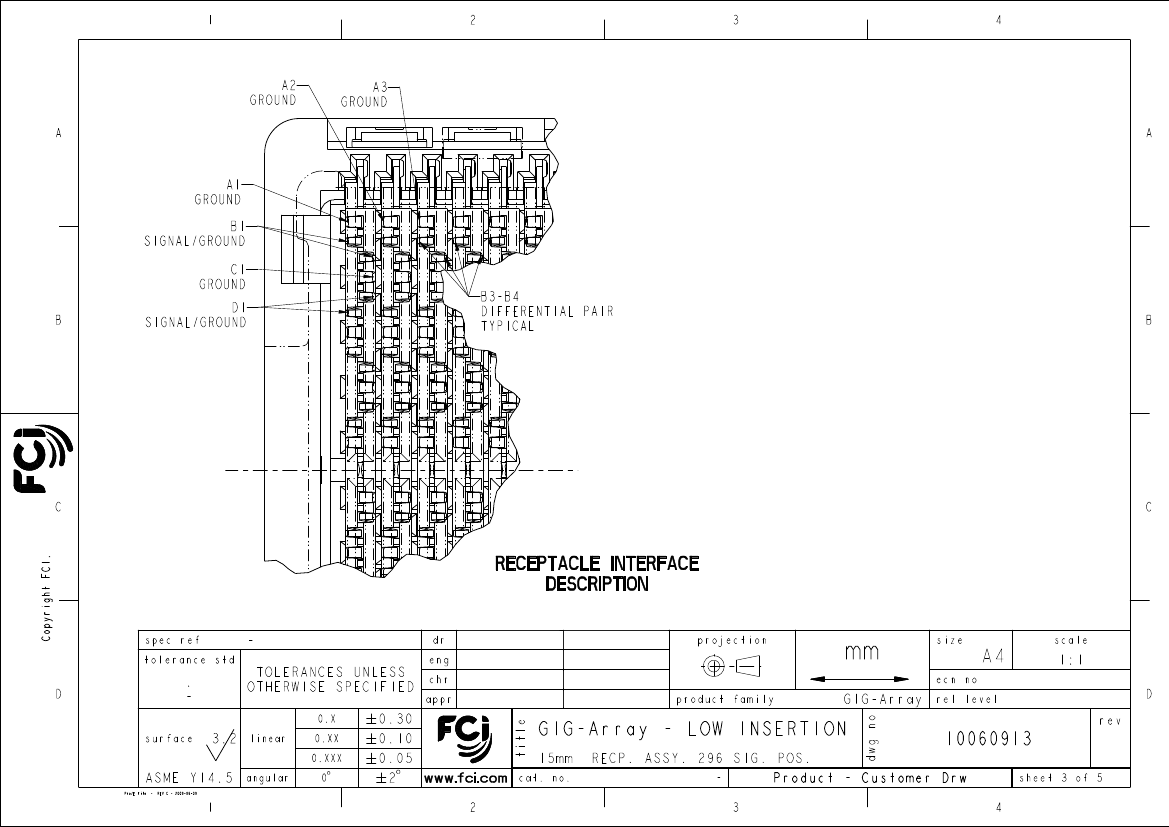

Joint stack height	25mm，27mm，28mm，30mm，35mm，40mm
board height	0.571"（14.51mm）

Bill Lin

Nickor Zuo

Alex Cao

Pei-Ming Zheng

2010/02/02

2011/06/15

2011/06/24

2011/06/27

ELX-DG-003943-1

Released

C

PDS: Rev :C

STATUS:Released

Printed: Jun 27, 2011

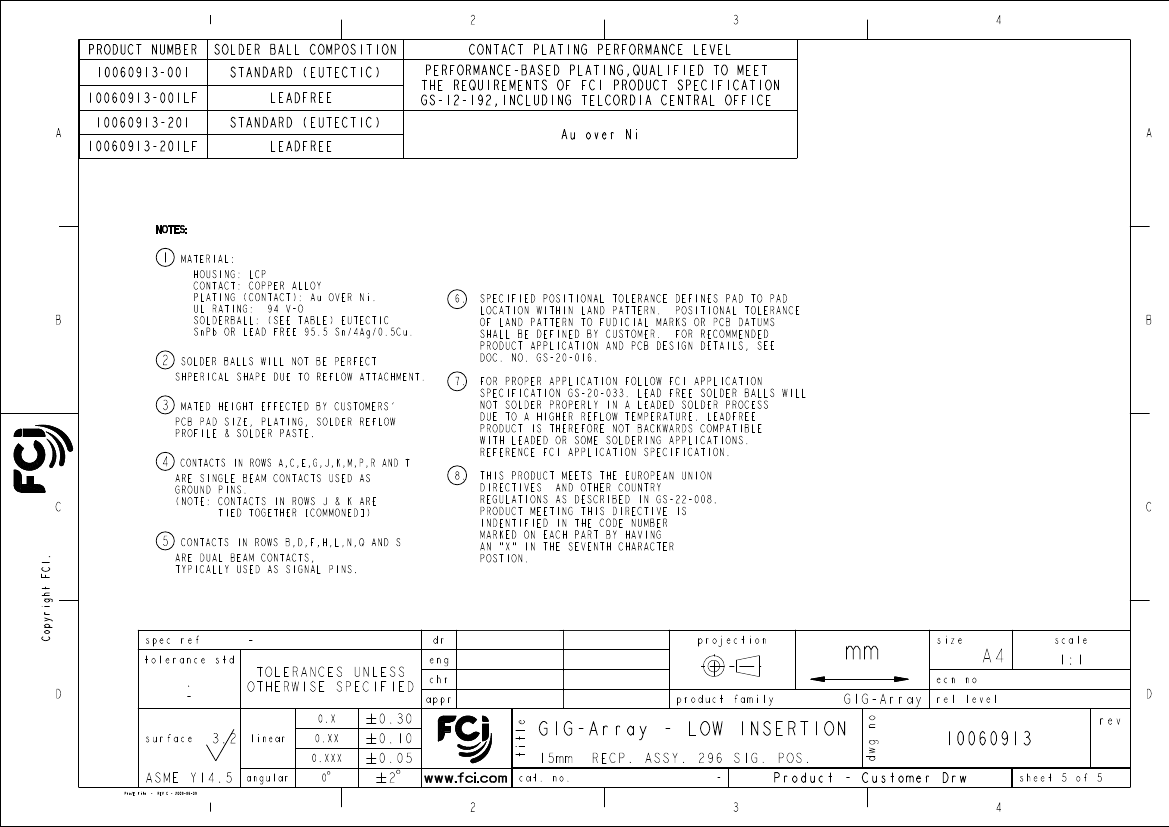

	10060913-201	10060913-201LF
Description	ARRAY FEMALE 296POS 1.3MM GOLD	ARRAY FEMALE 296POS 1.3MM GOLD
Connector type	Differential Pair Array, Female	Differential Pair Array, Female
Number of pins	296 signals (148 pairs)	296 signals (148 pairs)
spacing	0.051"（1.30mm）	0.051"（1.30mm）
Number of rows	18	18
Installation type	surface mount	surface mount
Contact plating	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）
Joint stack height	25mm，27mm，28mm，30mm，35mm，40mm	25mm，27mm，28mm，30mm，35mm，40mm
board height	0.571"（14.51mm）	0.571"（14.51mm）
