DF52-2S-0.8H(21) datasheet, PDF

Datasheet> All Categories > The connector> DF52-2S-0.8H(21)

DF52-2S-0.8H(21): DescriptionCONN RCPT 0.8MM 2POS R/A PCB; CategoryThe connector; File Size247KB，6 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

DF52-2S-0.8H(21) Overview

CONN RCPT 0.8MM 2POS R/A PCB

DF52-2S-0.8H(21) Parametric

Parameter Name	Attribute value
Connector type	jack
Contact type	No male or female type
style	Board to cable/wire
Number of pins	2
Number of pins loaded	all
Spacing - Mating	0.031"（0.80mm）
Number of rows	1
Line spacing - patching	-
Installation type	Surface mount, right angle
Termination	welding
Fastening type	pin lock
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Insulation color	black
Insulation height	0.069"（1.75mm）
Contact length - terminal	-
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	Meets glow wire specifications, solder retained
Rated current	1.5A
Rated voltage	100V
application	-
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
Contact shape	-
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	-

Preview

Download Datasheet

View All

0.8mm Pitch, Compact and Robust Wire-to-Board Connectors

DF52 Series

◆Small

and robust structure

Board side

Thick wall parts

Cable side

Housing walls are thick while the connector remains small.

■Features

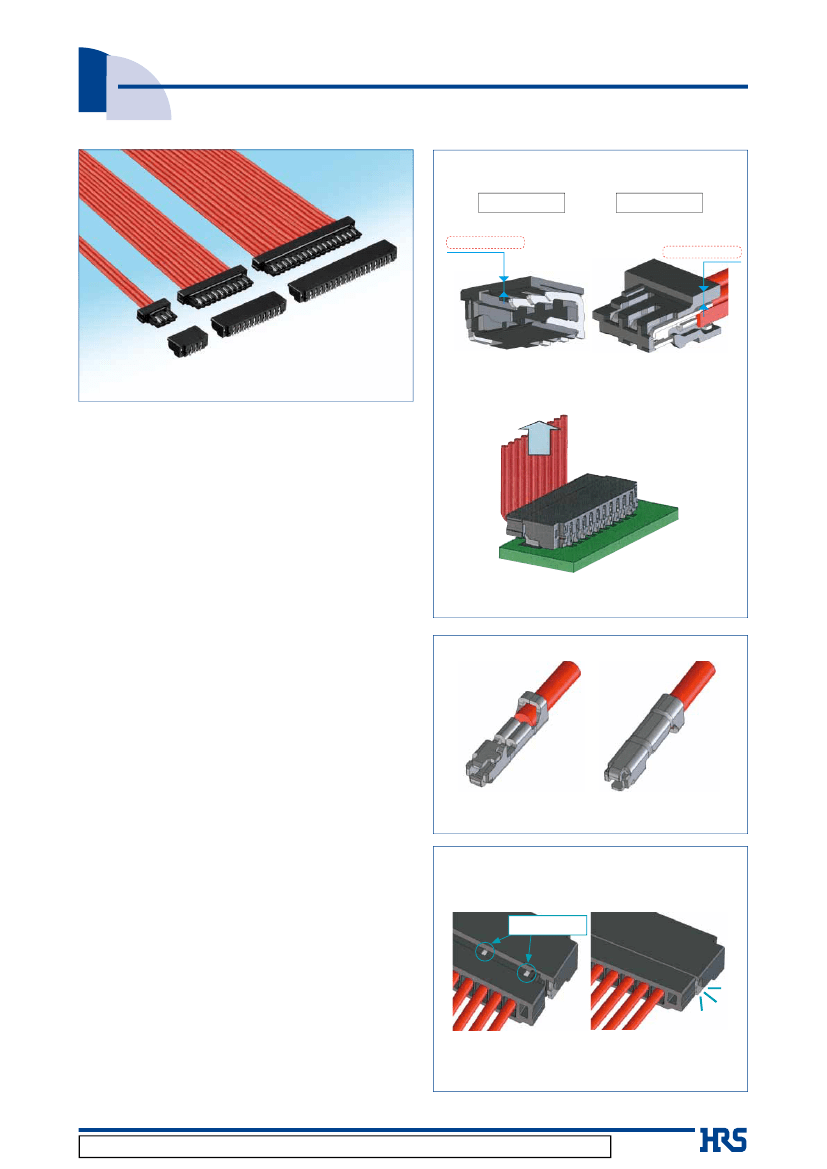

1. Small-sized connector

0.8mm Pitch, 1.75mm Height, 4.1mm Depth. Suitable for

small-sized applications.

2. Small but robust structure

The housing is designed with thick walls while remaining

small. This produces a strong, robust connector that

resists damage.

3. Suitable for high current applications.

The maximum current of 2.5A (using 2-pos 28 AWG wire)

is achieved by using highly conductive material and

appropriate contact force.

Robust structure prevents damage while routing wiring.

Fig.1

4. BOX shaped contact prevents deformation.

The BOX shaped crimp contact prevents deformation

during assembly and contributes to the overall stability

and robustness.

◆Box

shaped contact structure

5. Visual check insures fully mated Plug and Receptacle

The housing is designed with an open side that allows for

visual inspection to insure the connectors are fully mated

preventing accidental disconnect.

6. Glow Wire compliance (Compliant with IEC 60695-2-11)

7. Halogen-free

Chlorine and bromine levels are below standard values of

IEC 61249-2-21.

Br : less than 900ppm, Cl : less than 900ppm,

Br + Cl : less than 1,500ppm.

The Box shaped structure of the crimp contact prevents deformation.

Fig.2

◆Allows

for visual inspection of the mating process.

Incomplete mating

Exposed contact

Mating complete

The contact is exposed in the

half-mated state.

Mating is complete when the

contact is no longer visible.

The mated condition can be visually checked.

Fig.3

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2017.2②
